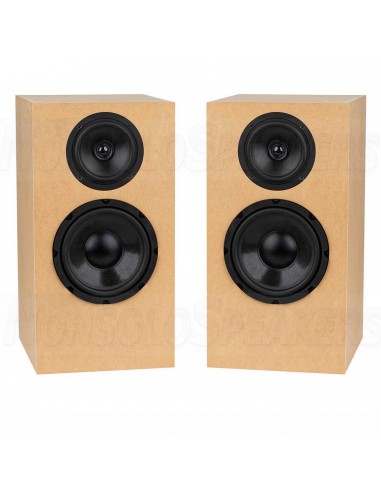

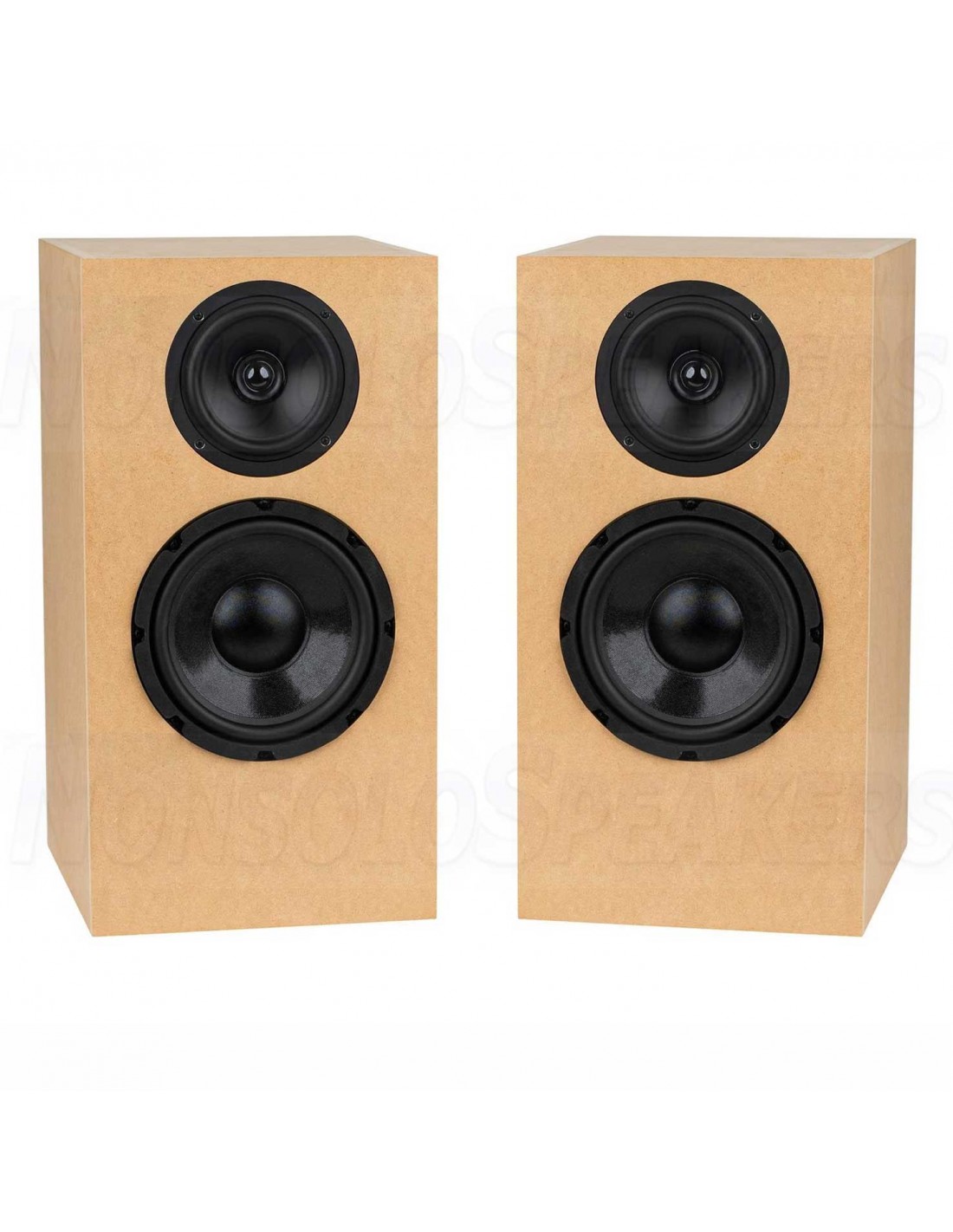

Orian 3-way High Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

Product description

The Orian Bookshelf Speaker will deliver big and spacious sound with powerful output capability. The 5-1/4” coaxial midrange/tweeter uses an open back enclosure to produce an uncolored and natural response while taking advantage of reflections for a wide enveloping soundstage. The high excursion 8” woofers pump out room shaking bass with extension into the lowest octaves. This kit includes everything you need to build a pair of high-output bookshelf speakers, including: knock-down cabinets, drivers, crossover components, damping material, wire, and screws.

.

Highlights

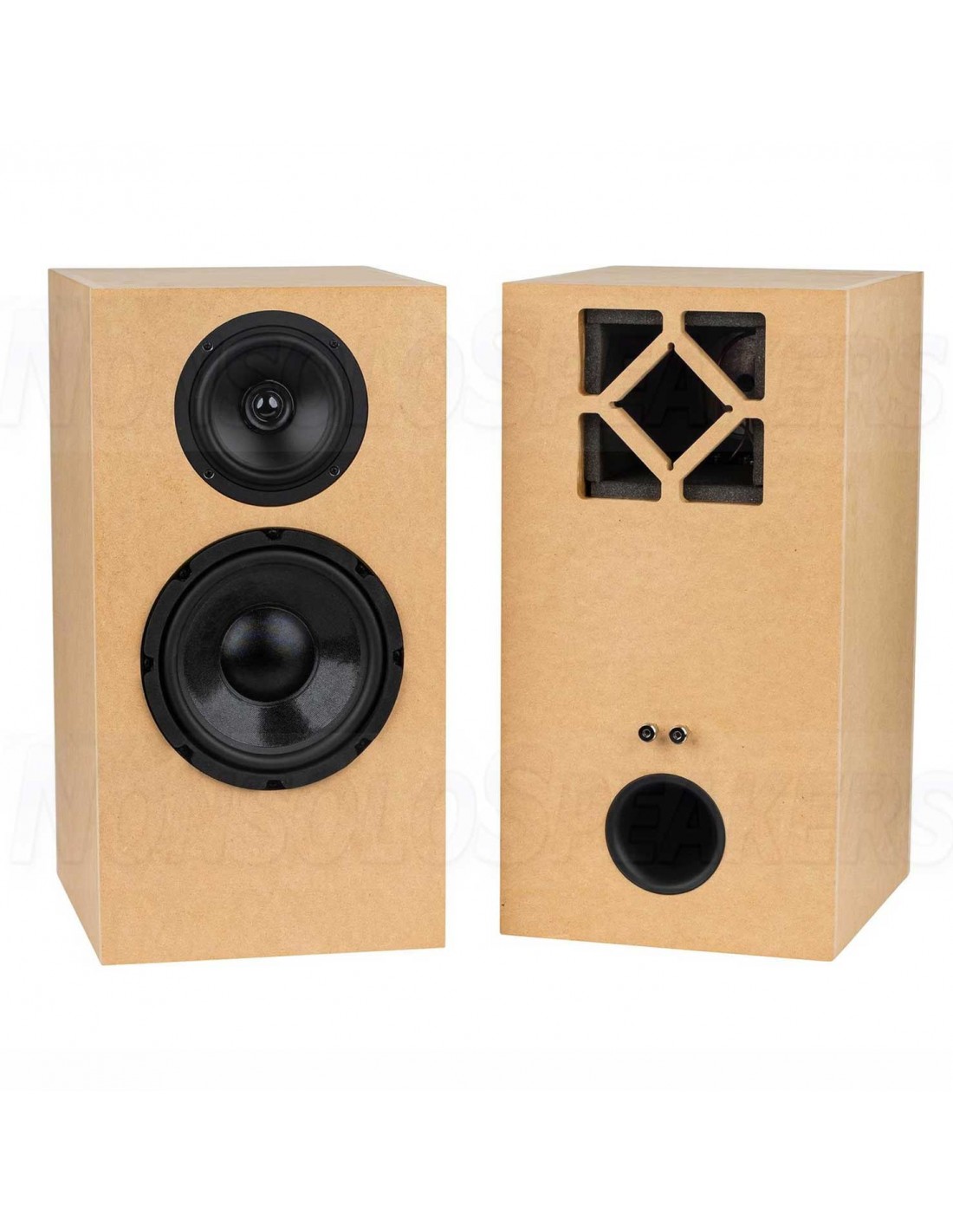

Unique open back midrange eliminates "boxy" coloration and uses reflected sound for wider soundstage

Coaxial midrange/tweeter drivers minimize interaction for more consistent on and off-axis response

203,2mm high excursion woofers produce powerful low frequency response even when driven to high SPL

Included printed circuit board makes crossover assembly easier than ever

±3 dB from 35 to 20,000 Hz for natural full-range response without the need for a subwoofer

.

Product details

Orian 3-way High Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

The Orian High Output Bookshelf Speaker Kit's unique design delivers SPL levels you would normally only expect from larger tower speakers, while creating a spacious soundstage that will put you in the center of the performance. This speaker kit defines "big sound from small package". With an open back midrange enclosure, the Orian takes advantage of reflected sound to produce room filling output for a remarkably wide soundstage with no boxy coloration caused by standing waves. An 8" long throw woofer provides powerful low frequency output with useful in-room response to less than 30 Hz, making this system ideal for use without the need for a separate subwoofer. The coaxially mounted 1" silk dome tweeter provides natural but accurate response with almost perfect time alignment and phase interaction to the midrange. Weather you need high output to fill a large space or accurate response for critical studio playback, the Orian Speaker Kit is the perfect choice.

The 120,7mm coaxial midrange/tweeter uses an open back enclosure to produce an uncolored and natural response while taking advantage of reflections for a wide enveloping soundstage. The high excursion 203,2mm woofers pump out room shaking bass with extension into the lowest octaves.

Dividing the frequencies between the drivers is a 15 component 3-way crossover network. Polypropylene caps, air core inductors, and ultra-low inductance resistors are used in the critical midrange/tweeter signal path allowing this network to pass audio with minimal effect to the original signal. Crossover frequencies of 500 and 4,500 Hz let the drivers perform in their optimal range for low distortion and consistent off-axis performance. Due to the number of components the Orian kit includes a custom dual-sided printed circuit board, making the crossover assembly and installation easier than ever.

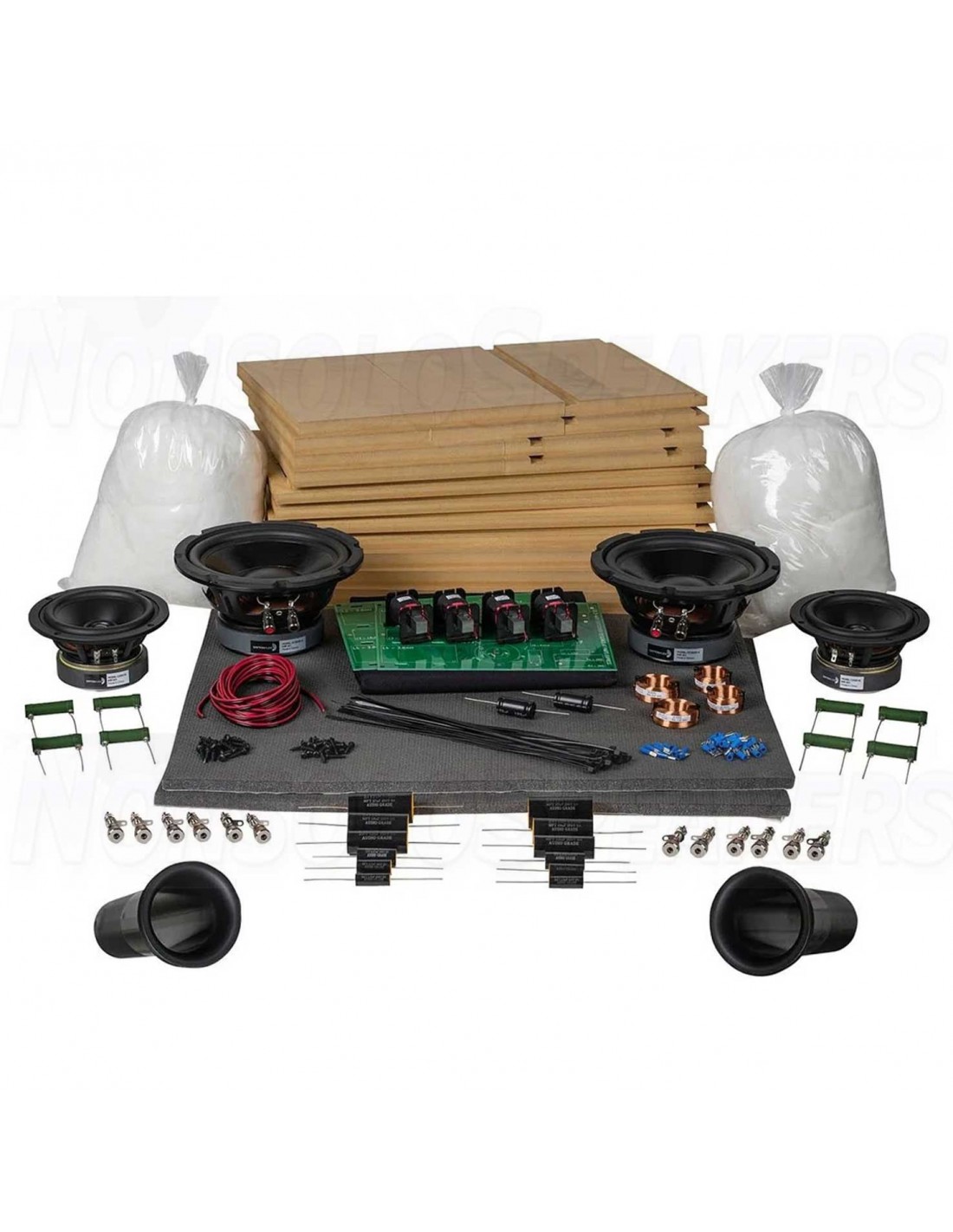

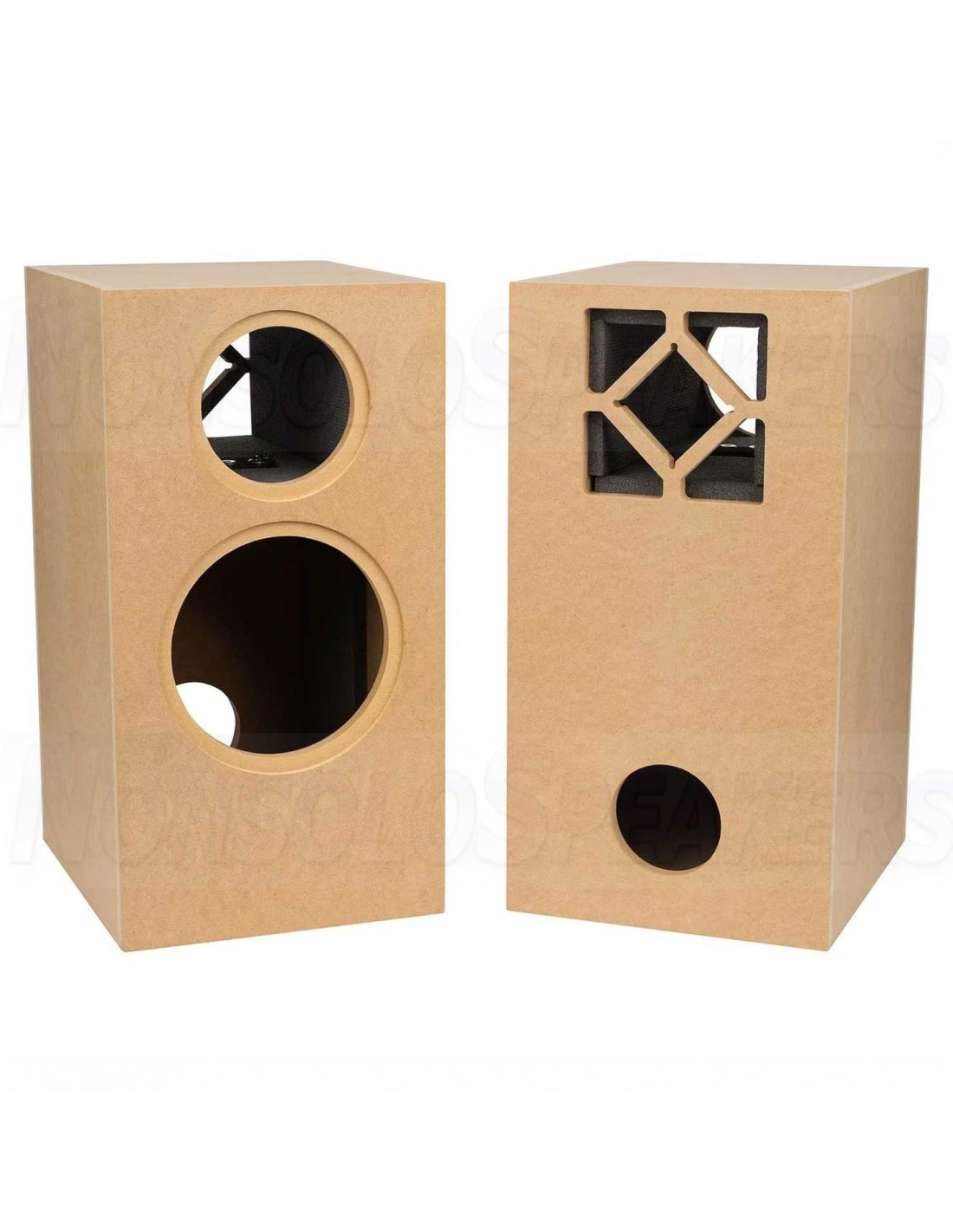

This kit includes everything you need to build a pair of high-output bookshelf speakers, including: knock-down cabinets, drivers, crossover components, damping material, wire, and screws.
