Overnight Sensations MT DIY components pack
Overnight Sensations MT DIY components pack
Components for Pair of speakers, (cabinet not included)
This DIY speaker KIT is Visaton’s answer on the question, if it is possible to design a small bookshelf speaker with a balanced soundstage and powerful bass reproduction.
Overnight Sensations MT DIY components pack
Components for Pair of speakers, (cabinet not included)
This DIY speaker KIT is Visaton’s answer on the question, if it is possible to design a small bookshelf speaker with a balanced soundstage and powerful bass reproduction.
.
Product description
Build your own high-end near-field monitors with the audio components of the highly regarded Overnight Sensations MT speaker designed by Paul Carmody. This kit includes nearly everything to build a pair of speakers, including: drivers, ports, and crossover components.
.
Highlights
Quick, economical build that delivers surprisingly big sound from a small box
This kit is an excellent choice for an amateur speaker building hobbyist
.
Product details
Overnight Sensations MT Speaker Kit Pair
When Paul Carmody first listened to the Overnight Sensations speakers that he designed he exclaimed, "I wish I had a time machine. I would go back to my bedroom when I was in Jr. High or High School and give these to myself. These are the little bookshelf speakers I imagined I had: huge soundstage, deep bass, and tiny box. In reality, back then all I had were some impish Minimus-7s."
The Overnight Sensations are designed to be a quick, economical build that can put out a surprisingly big sound in a small box. Could be a weekender project for an addict, a gift for a teenager (see above), or—in Paul's case—a set of small, full-bodied monitors that he could listen to while grading papers.
For the Overnight Sensations' driver arrangement, Paul selected the versatile Dayton Audio ND20FA-6 3/4inch (1.9cm) neodymium silk dome tweeter and mated it to the attractive HiVi B4N 10cm aluminum midbass woofer. To extract as much bass as possible, Paul decided upon a cabinet size of roughly 4.5 liters which is tuned to 53 Hz using a 1-1/3inch (3.5cm) diameter port that is 6inch (15.2cm) long but feel free to design your own cabinet according to your preferences!
This kit includes nearly everything you need to build a top-notch pair of speakers in no time flat, including: drivers, ports, and crossover components.
,
Included Components:
Qty Part Number Description
2 004-10 Dayton Audio DNR-10 10 Ohm 10W Precision Audio Grade Resistor
2 004-6 Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor
2 027-402 Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor
2 027-412 Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor
2 027-415 Dayton Audio DMPC-2.2 2.2uF 250V Polypropylene Capacitor
2 027-424 Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor
2 255-030 Jantzen 1204 0.35mH 20 AWG Air Core Inductor
2 255-252 Jantzen 1078 1.1mH 18 AWG Air Core Inductor
2 260-388 Port Tube 1-1/3inch (3.5cm) ID Adjustable
2 275-030 Dayton Audio ND20FA-6 3/4inch (1.9cm) Neodymium Dome Tweeter
2 297-429 HiVi B4N 4inch (10cm) Aluminum Midbass Round Frame
2 091-340 Binding Post Banana Jack Pair w/Tab
1 081-423 25-Pack #6 x 3/4inch (1.9cm) Pan Head Deep Thread Black Screws
1 Red/Black 16 AWG 2-conductor Power Speaker Wire 1.8 m.
.

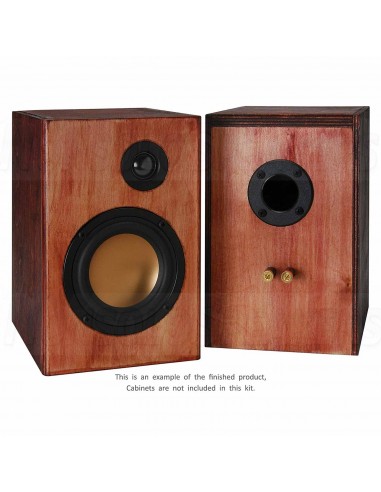

Note: Cabinets are not included.
Specifications: Power handling: 25 watts RMS/50 watts max • Impedance: 8 ohms • Sensitivity: 83 dB 1W/1m.
