Amiga MT DIY components pack

Components for one speaker, (cabinet not included)

.

Product description

Another popular design by Paul Carmody, the Amiga 2-way tower kit has a small footprint but produces a big sound. This kit has become known as a boutique Hi-Fi killer. This kit is ideal for novice woodworkers, the baffle is pre-cut for the drivers, you just build the enclosure. This kit includes parts to build a single speaker: The drivers, crossover components, and damping material.

.

Highlights

The Amiga has a detailed yet relaxed sound with surprising low frequency extension

Remarkably flat response, ±2.5 dB from 35-20,000 Hz

Designed and fine-tuned by expert designer Paul Carmody

-

Product details

Amiga DIY Components Pack

Basically, if you like the Overnight Sensations, then you'll like the Amigas. The tonal balance is similar with slightly relaxed voicing to allow for long listening sessions without fatigue. However, the quality of the drivers will definitely highlight finer details in any recording. The imaging creates a wide soundstage, as a quality monopole speaker should, with a very tight center image, and sounds seeming to appear around and behind the speakers. The bass extension should definitely surprise; with an F3 of 34 Hz, there is a good chance you can leave the subwoofer turned off for most purposes. The overall sound is big, it is a 2-way that produces like a 3-way.

The drivers for the Amiga's were chosen for their low distortion and accuracy. The Dayton Audio RS180S-8 bass-midwoofer handles frequencies below 2,000 Hz with precision and authority. For the top few octaves Paul chose the Peerless by Tymphany DX25TG59-04 1" (2.54cm) dome tweeter for its low Fs and smooth response. This kit includes nearly everything you need to build a top-notch speaker including the drivers, port, damping material, and crossover components.

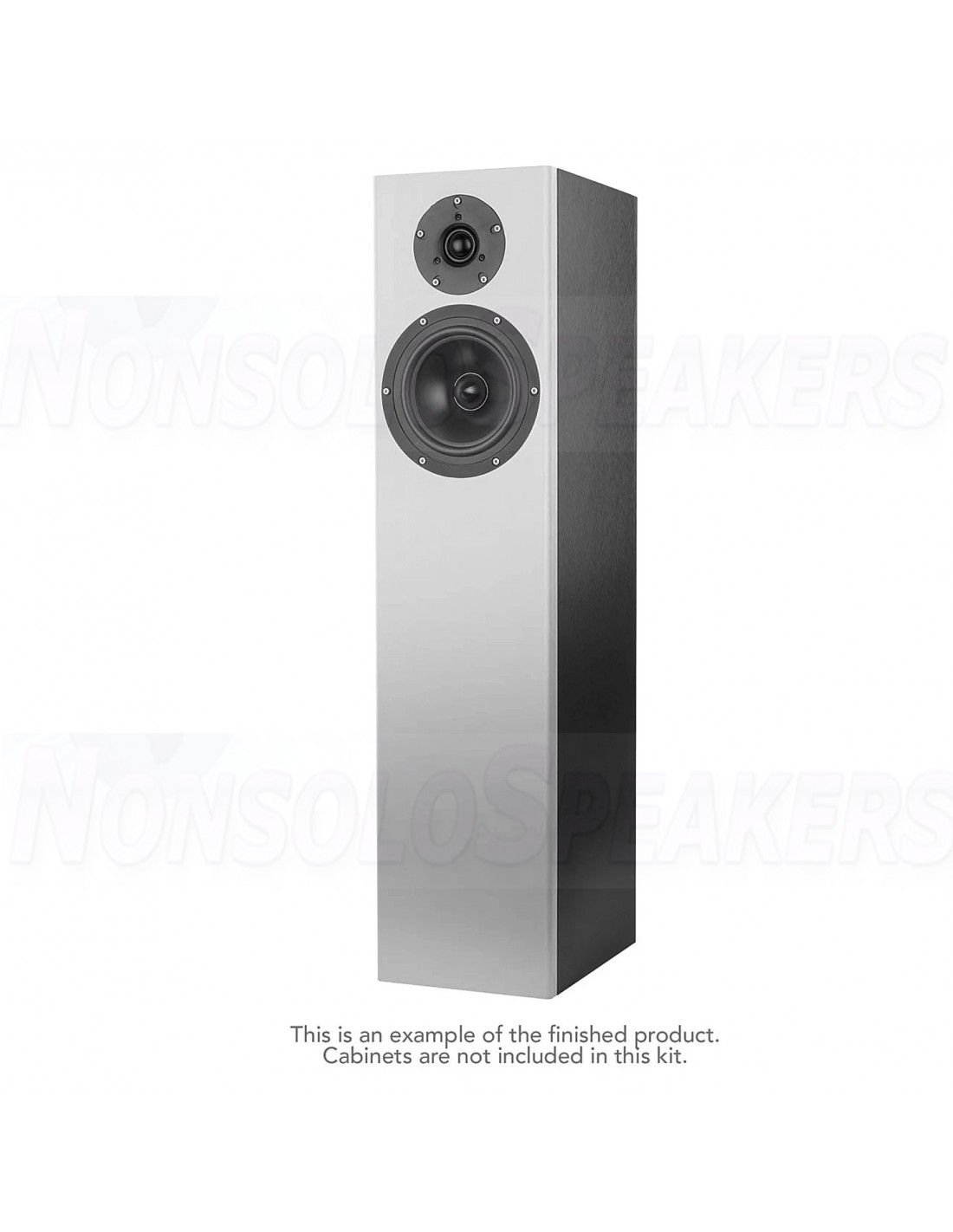

Note: Cabinets are not included.

This kit includes parts to build a single speaker.

.

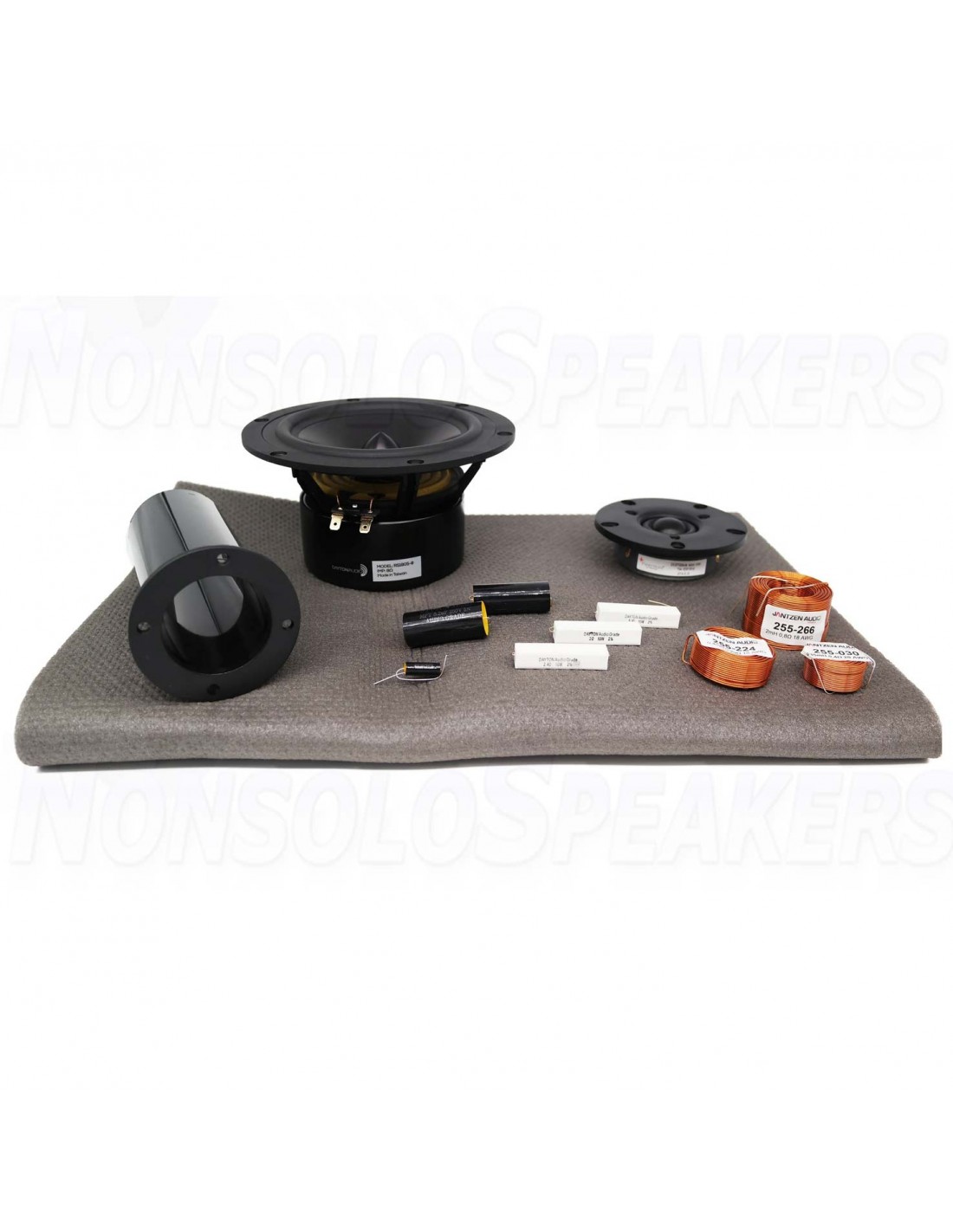

Included Components:

Qty Part Number Description

1 027-424 Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor

1 027-402 Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor

1 027-426 Dayton Audio DMPC-8.2 8.2uF 250V Polypropylene Capacitor

1 255-224 Jantzen 1950 0.40mH 18 AWG Air Core Inductor

1 255-266 Jantzen 1063 2.0mH 18 AWG Air Core Inductor

1 255-030 Jantzen 1204 0.35mH 20 AWG Air Core Inductor

1 004-5.1 Dayton Audio DNR-5.1 5.1 Ohm 10W Precision Audio Grade Resistor

1 004-2.4 Dayton Audio DNR-2.4 2.4 Ohm 10W Precision Audio Grade Resistor

1 004-2 Dayton Audio DNR-2.0 2.0 Ohm 10W Precision Audio Grade Resistor

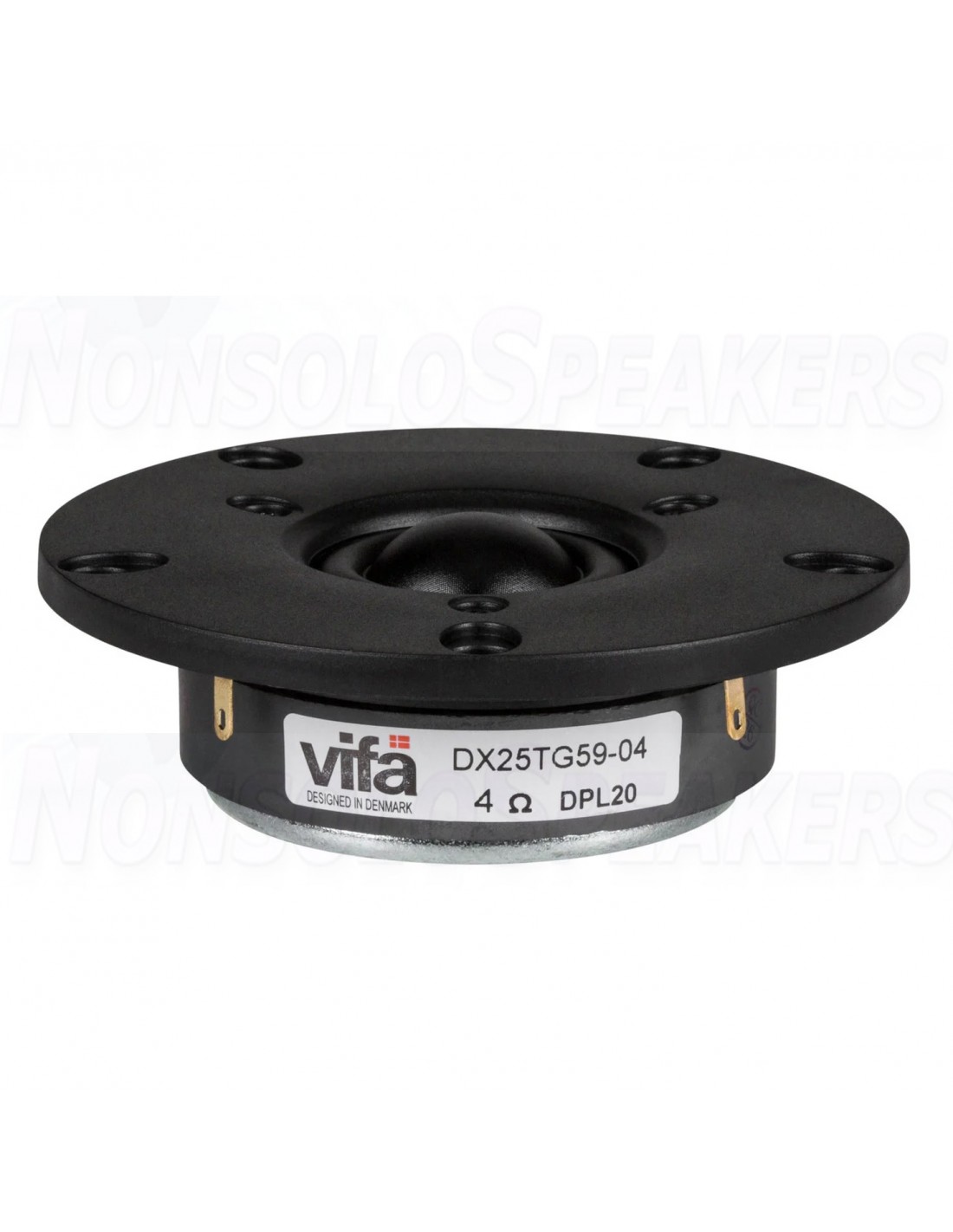

1 264-1020 Peerless by Tymphany DX25TG59-04 1" Fabric Dome Tweeter

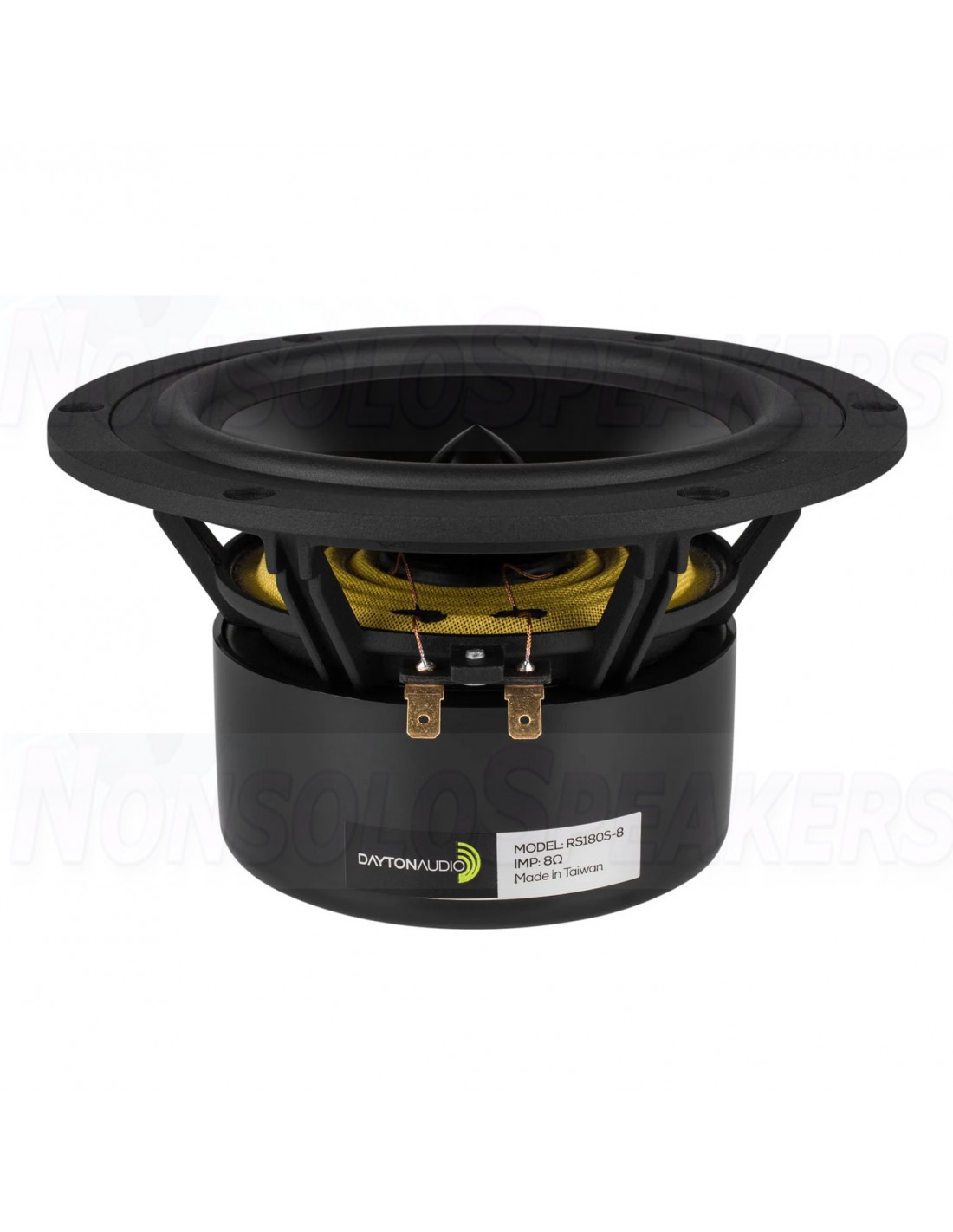

1 295-364 Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

1 260-387 Port Tube 2" ID Adjustable

2 260-520 Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
