Markaudio CHBW-70 Black 5" Full Range Woofer
Markaudio CHBW-70 Black 5" Full Range Woofer
Markaudio CHBW-70 Black 5" Full Range Woofer
Markaudio CHBW-70 Black 5" Full Range Woofer
Markaudio CHBW-70 Black 5" Full Range Woofer
Markaudio CHBW-70 Black 5" Full Range Woofer

Markaudio CHBW-70 Black 5" Full Range Woofer

Markaudio CHBW-70 Black 5" Full Range Woofer

Out-of-Stock
€41.35 €44.95 -8%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Markaudio CHBW-70 Black 5" Full Range Woofer

Price for 1 piece

-

Highlights

Wide range audio driver

Latest-model

-

Product details

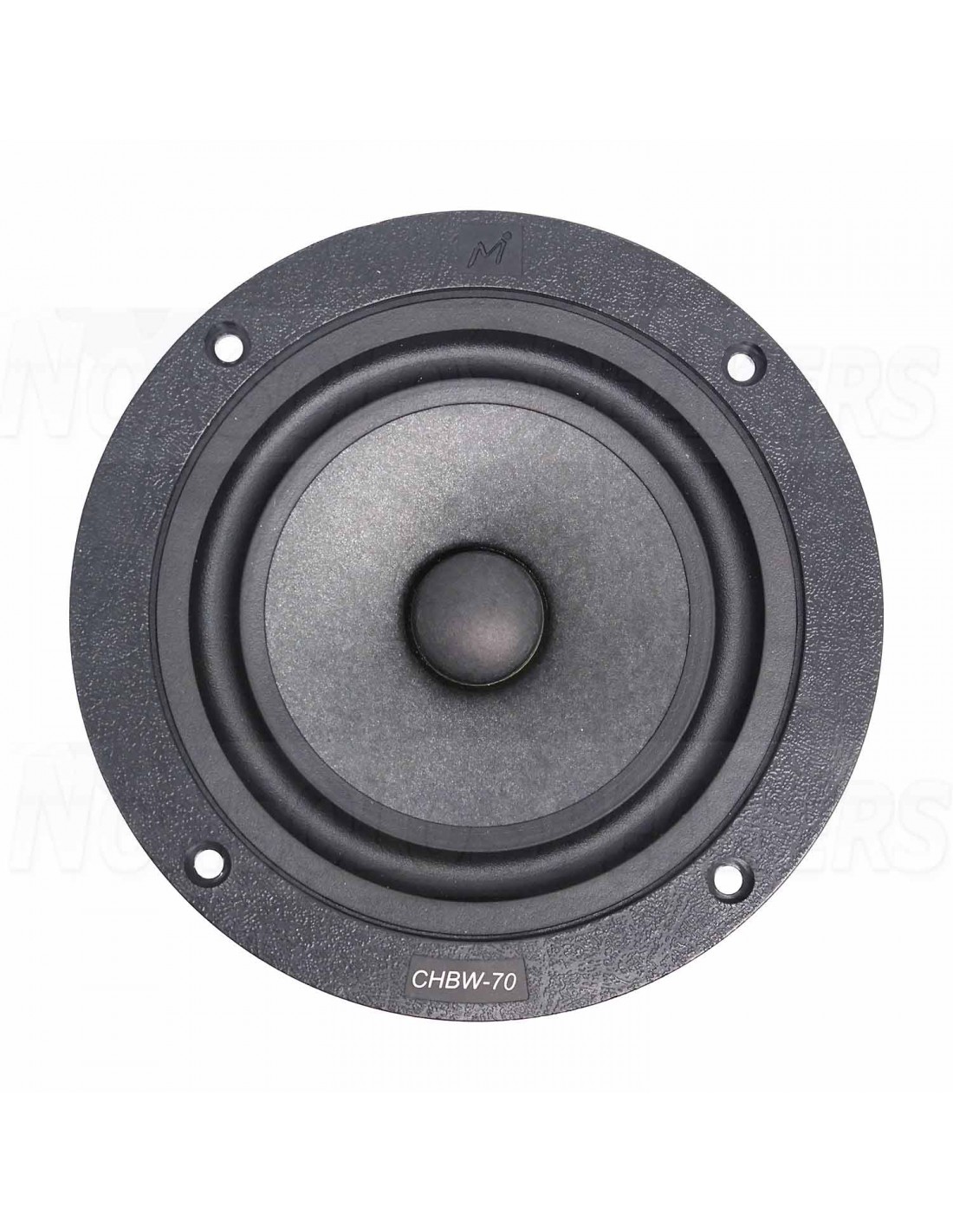

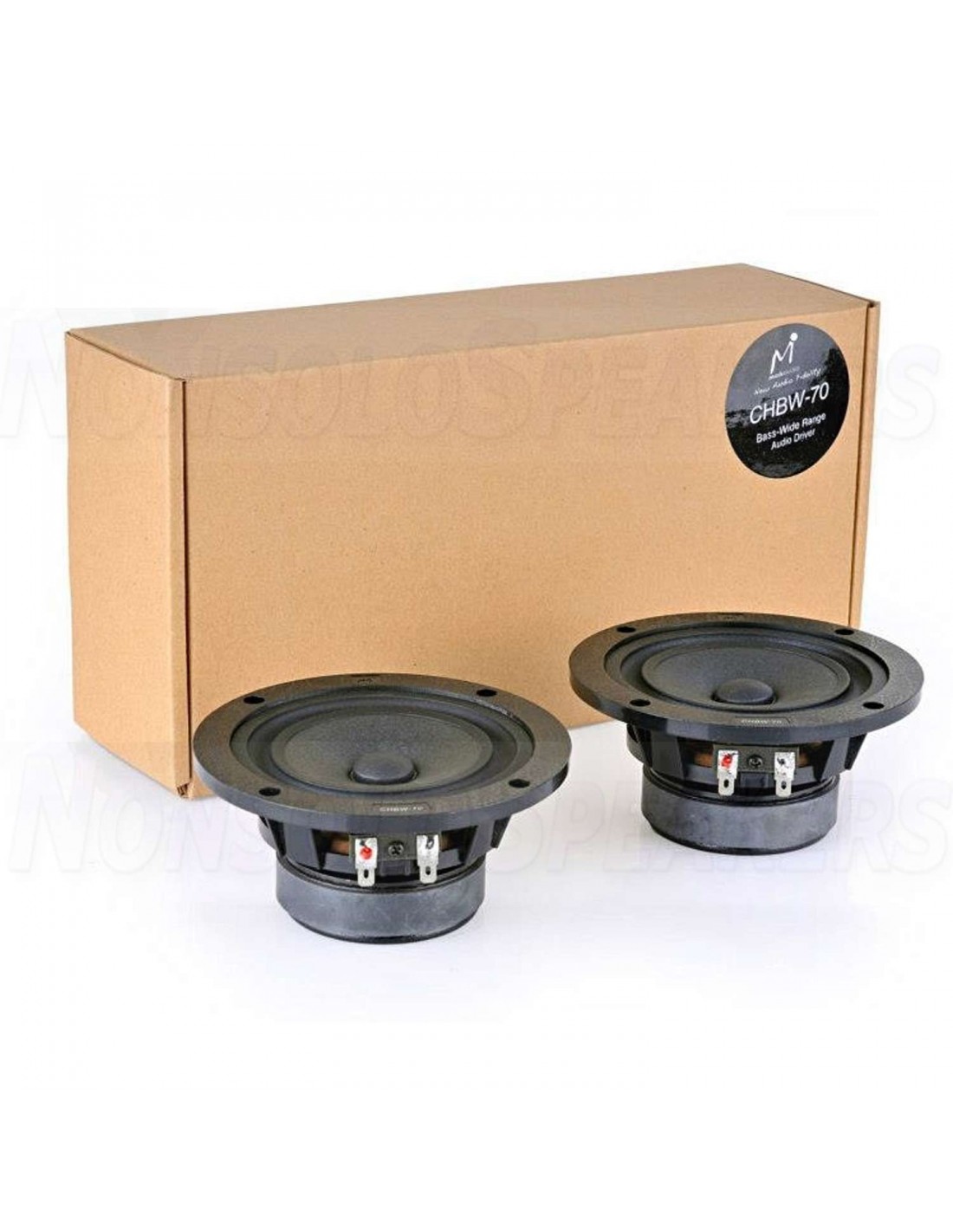

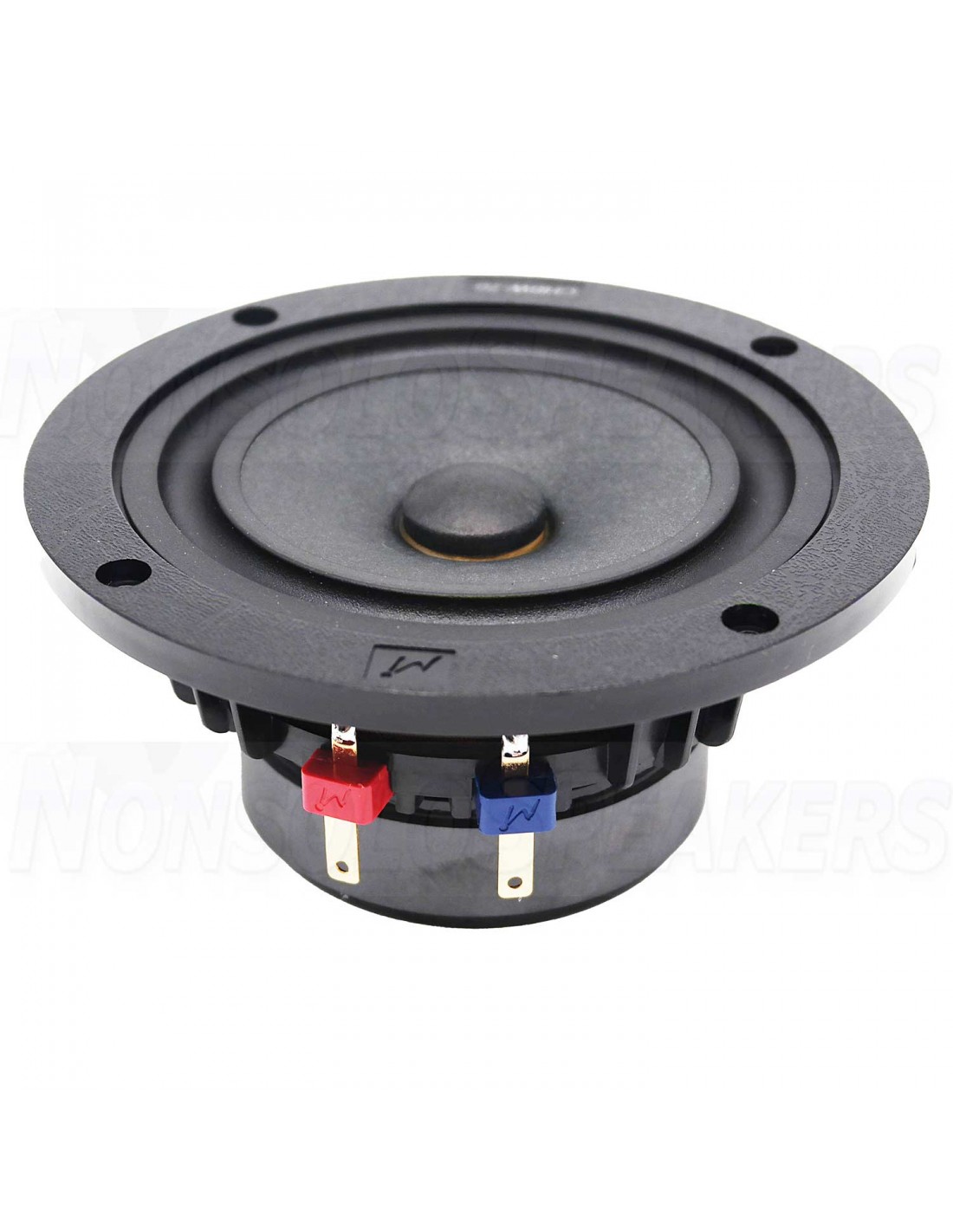

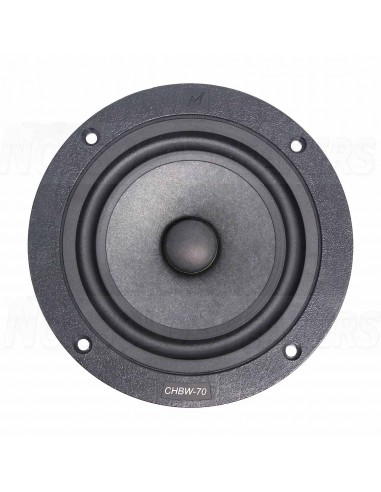

Markaudio CHBW-70 Black 5" Full Range Woofer

The CHBW-70 is a special driver designed for best low to mid-range performance. Male and female singing voices sound very natural on the CHBW. For lower load operations, bass response in the properly designed box can be tuned into the low 40ʼs Hertz. It has a warm easy listening sound, very natural and pleasing to the ear. This driver can easily fit into Bass-Reflex and Vented box sizes from 4.4 liters to 11 liters internal volume. The CHBW is easy to partner with tweeters to make a 2-way system, suitable for many audio uses.

-

Specifications

  • Article number CHBW-70
  • Woofer Series CH Series
  • Woofer Type Full-range
  • Nominal Diameter 5"
  • Power Handling (RMS) 20w Nom.
  • Impedance (Z) 8 ohms
  • Sensitivity 84.80 dB
  • Voice Coil Diameter 20-mm
  • Mechanical Q (Qms) 1.78
  • Electromagnetic Q (Qes) 0.69
  • Total Q (Qts) 0.49
  • Diaphragm Mass Inc. Airload (Mms) 4.50 g
  • Moving Mass Of Diaphragm (Mmd) 4.30 g
  • Mechanical Compliance of Suspension (Cms) 1.26 uM/N
  • Surface Area of Cone (Sd) 5.02 K mm/2
  • BL Product (BL) 4.43 T*M
  • Compliance Equivalent Volume (Vas) 4.60 Ltrs
  • Maximum Linear Excursion (Xmax) 4.2-mm 1 way
Markaudio CHBW-70

Markaudio is a well-known brand specializing in high-performance full-range drivers and speakers. They’re particularly popular among audiophiles and DIY speaker builders because of their exceptional sound quality and innovative designs.

Markaudio’s drivers are known for:

Full-Range Sound: Their speakers typically focus on delivering clear, uncolored sound across a broad range, without relying on crossovers or multiple drivers. This results in a more natural soundstage.

High Efficiency: Markaudio drivers are usually designed to be highly efficient, which means they can produce loud and clear sound even with lower-powered amplifiers.

Compact Size: Many of their drivers are compact, making them ideal for bookshelf or small speaker builds while still providing excellent sound reproduction.

Their most popular models include:

Markaudio Alpair Series: This is one of their flagship lines, known for its clarity and wide frequency response.

Markaudio CHR Series: These are also highly regarded, with some models offering even broader dispersion and better midrange presence.
