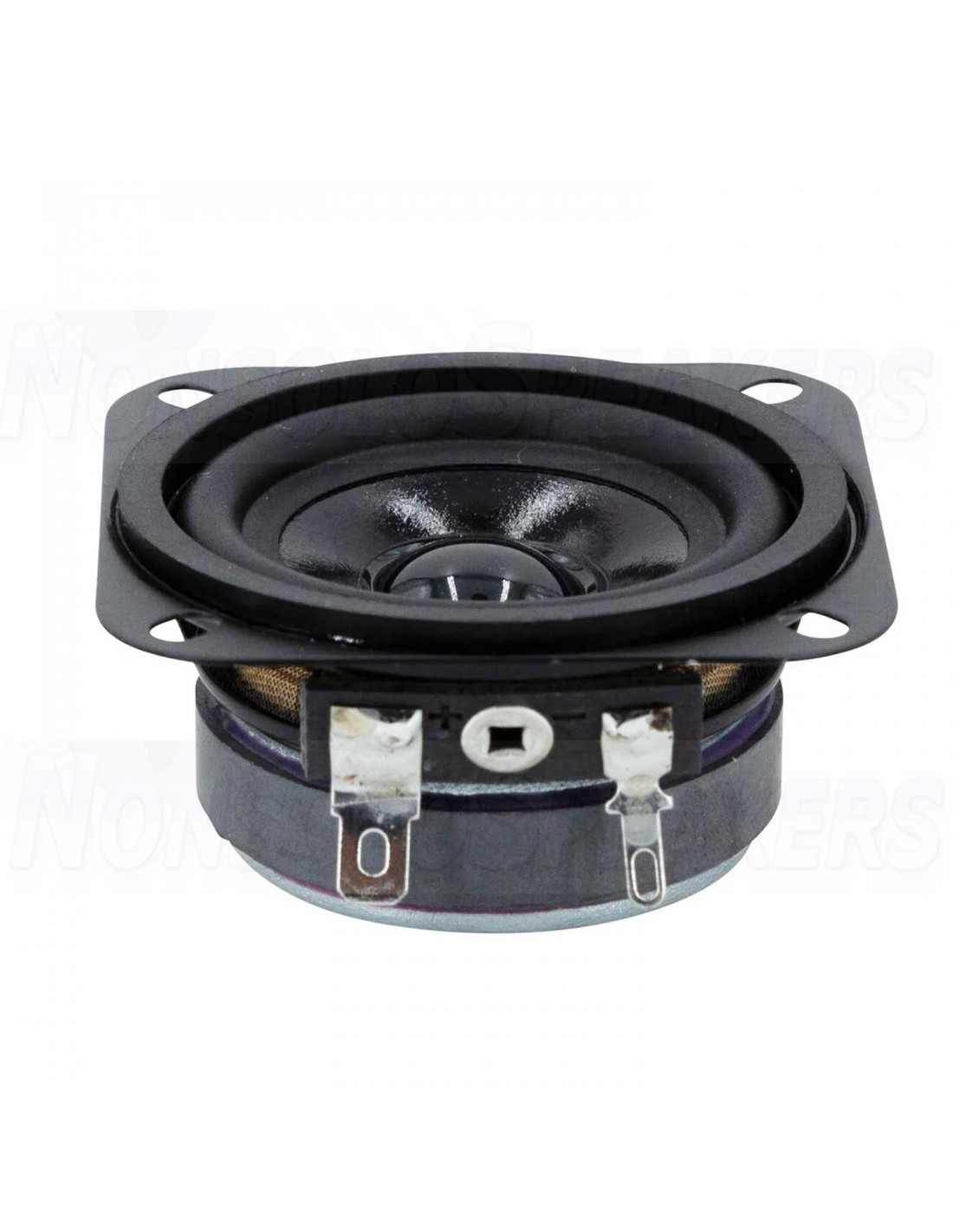

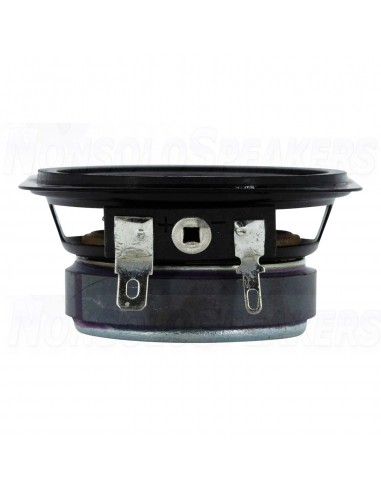

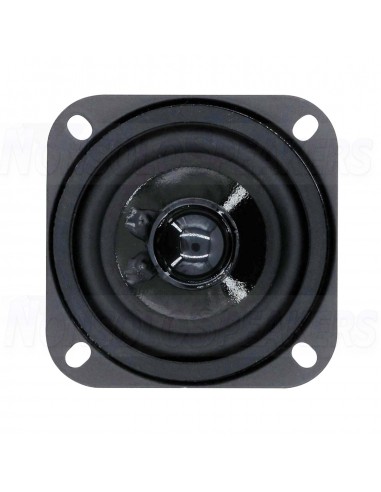

Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm
Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm

Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm

Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm

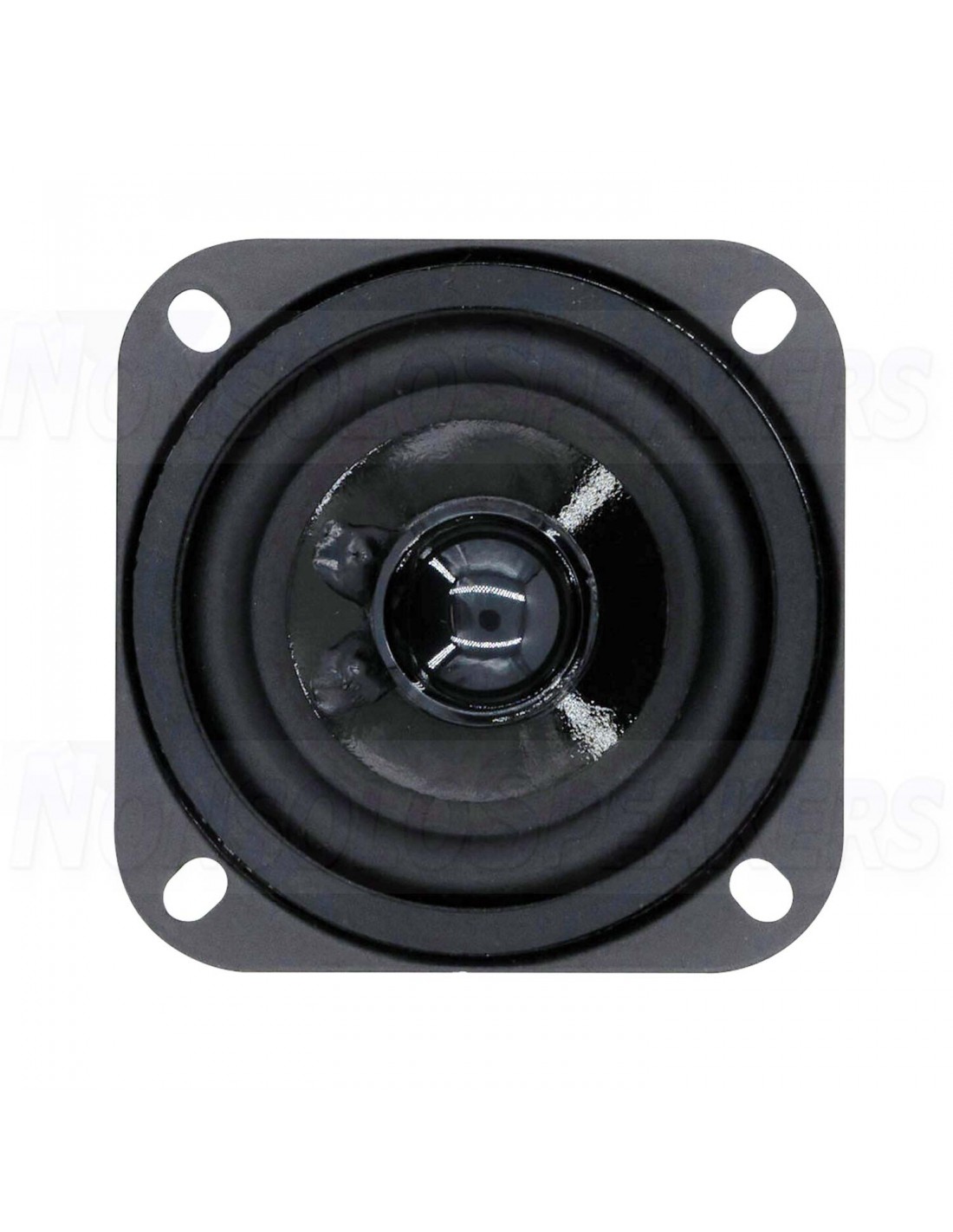

5.8 cm (2.3") Full-range speaker with coated paper cone and rubber surround to achieve an IP64 rating, making this driver suitable for outdoor use.

SHIPMENT IN 5-7 WORKING DAYS
€9.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton FR 58 - 8 2.3" Full-Range Speaker 8 Ohm

5.8 cm (2.3") Full-range speaker with coated paper cone and rubber surround to achieve an IP64 rating, making this driver suitable for outdoor use.

.

Highlights

  • IP64 rating allows this driver to be used in outdoor speakers
  • Extremely flat response from 200 to 20,000 Hz
  • Perfect driver for use in portable Bluetooth speakers.

.

Product Details

Visaton FR 58 - 8 2.3" Full Range Speaker 8 Ohm

This full-range driver is a great choice for use in outdoor speakers that might be directly exposed to rain. When used in a suitable sealed enclosure this driver has an IP64 rating (meaning it can withstand direct exposure to water and dust). With a remarkably smooth frequency response, this is an ideal driver for use in hi-fi outdoor speaker systems.

.

Technical Data

  • Article number FR 58 - 8
  • Woofer Series FR Series
  • Woofer Type Full-Range
  • Nominal Diameter 2.3"
  • Power Handling (RMS) 10 Watts
  • Power Handling (max) 12 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 81 dB
  • Frequency Response 120 - 20,000 Hz
  • Voice Coil Diameter 14 mm
  • DC Resistance (Re) 7.3 ohms
  • Voice Coil Inductance (Le) 0.15 mH
  • Resonant Frequency (Fs) 190 Hz
  • Mechanical Q (Qms) 2.41
  • Electromagnetic Q (Qes) 1.64
  • Total Q (Qts) 0.98
  • Diaphragm Mass Inc. Airload (Mms) 0.97g
  • Surface Area of Cone (Sd) 13.2 cm2
  • BL Product (BL) 2.27 Tm
  • Compliance Equivalent Volume (Vas) 0.18 liters
  • Maximum Linear Excursion (Xmax) 0.55 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber Basket / Frame
  • Material Steel Magnet Material Ferrite
  • Overall Outside Diameter 56 mm
  • Overall Depth 28 mm
  • Baffle Cutout Diameter 57 mm
  • Bolt Circle Diameter 64.5 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 5.5 mm

Visaton FR 58 - 8
