Visaton AL 170 6.5" High-End Woofer 8 Ohm

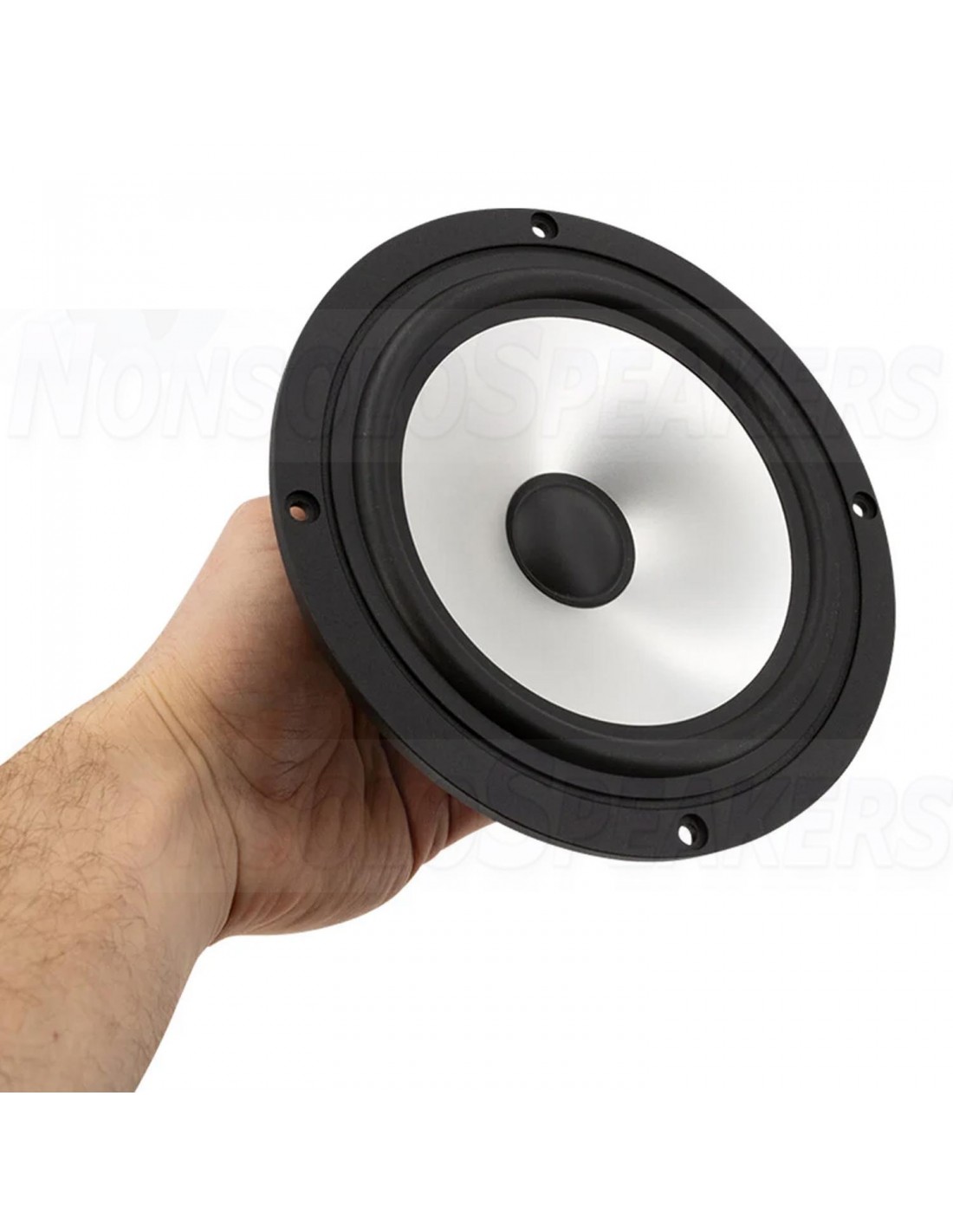

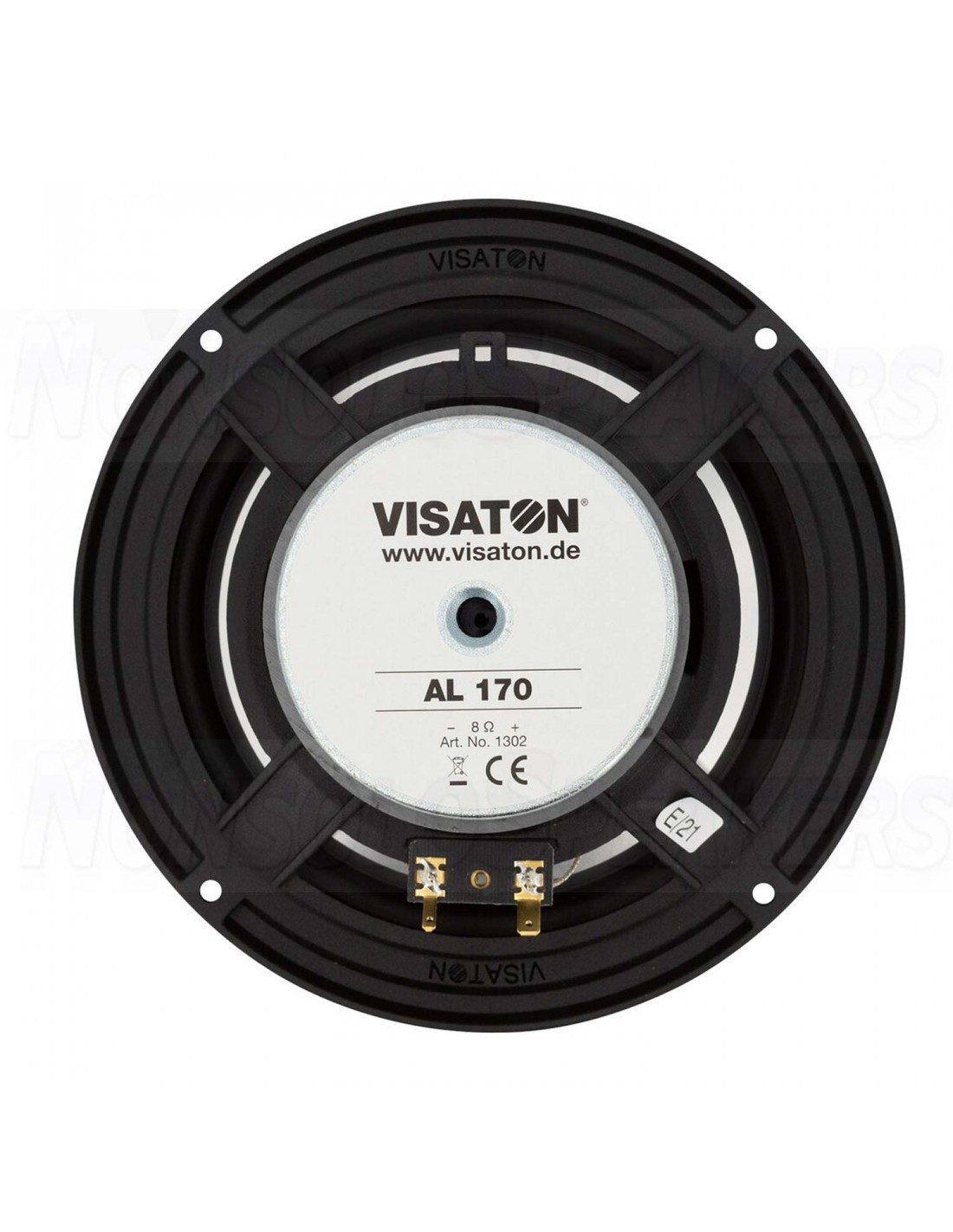

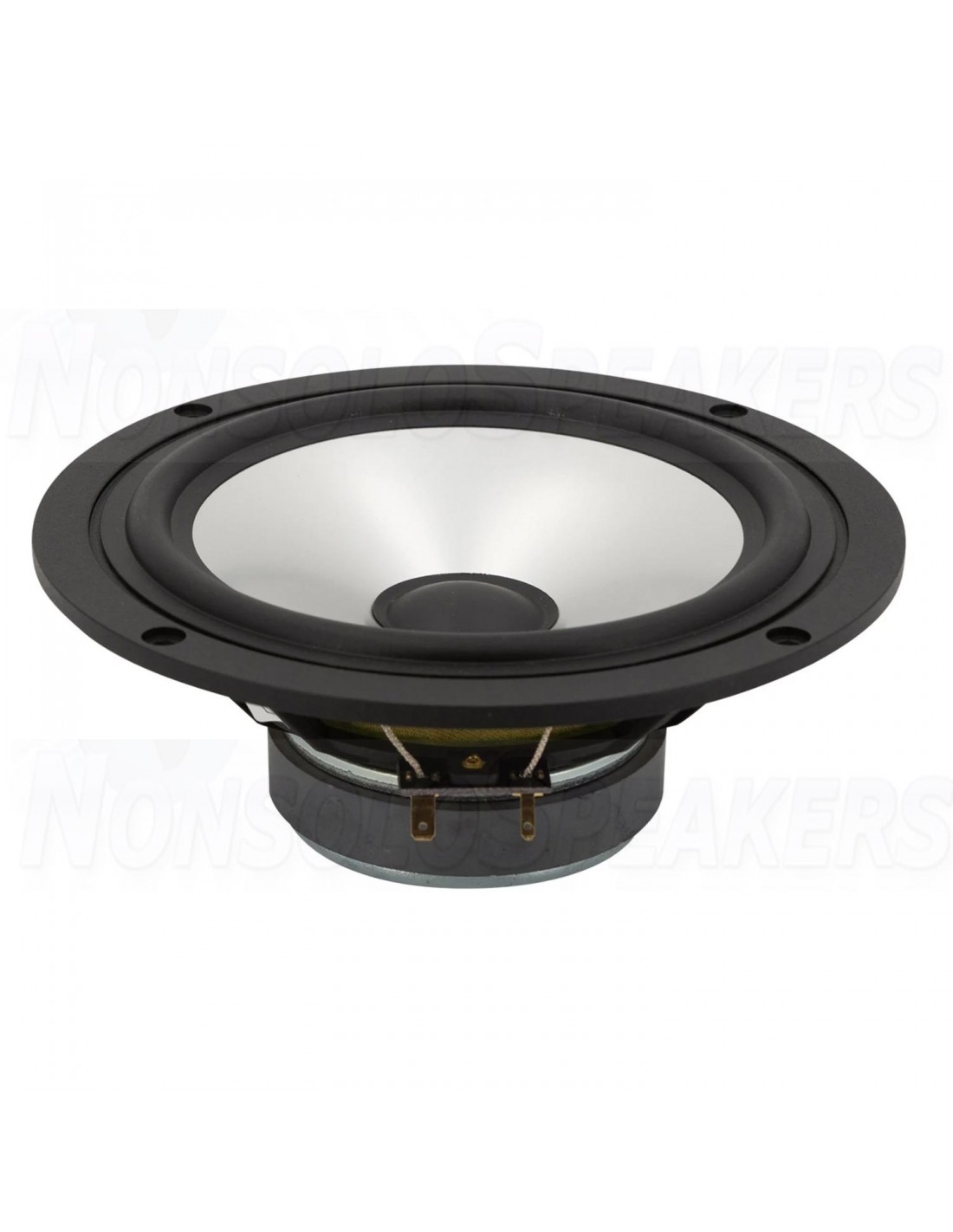

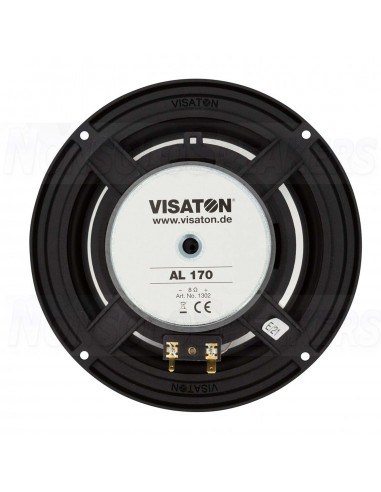

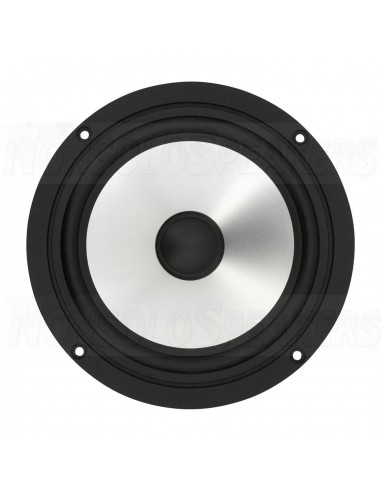

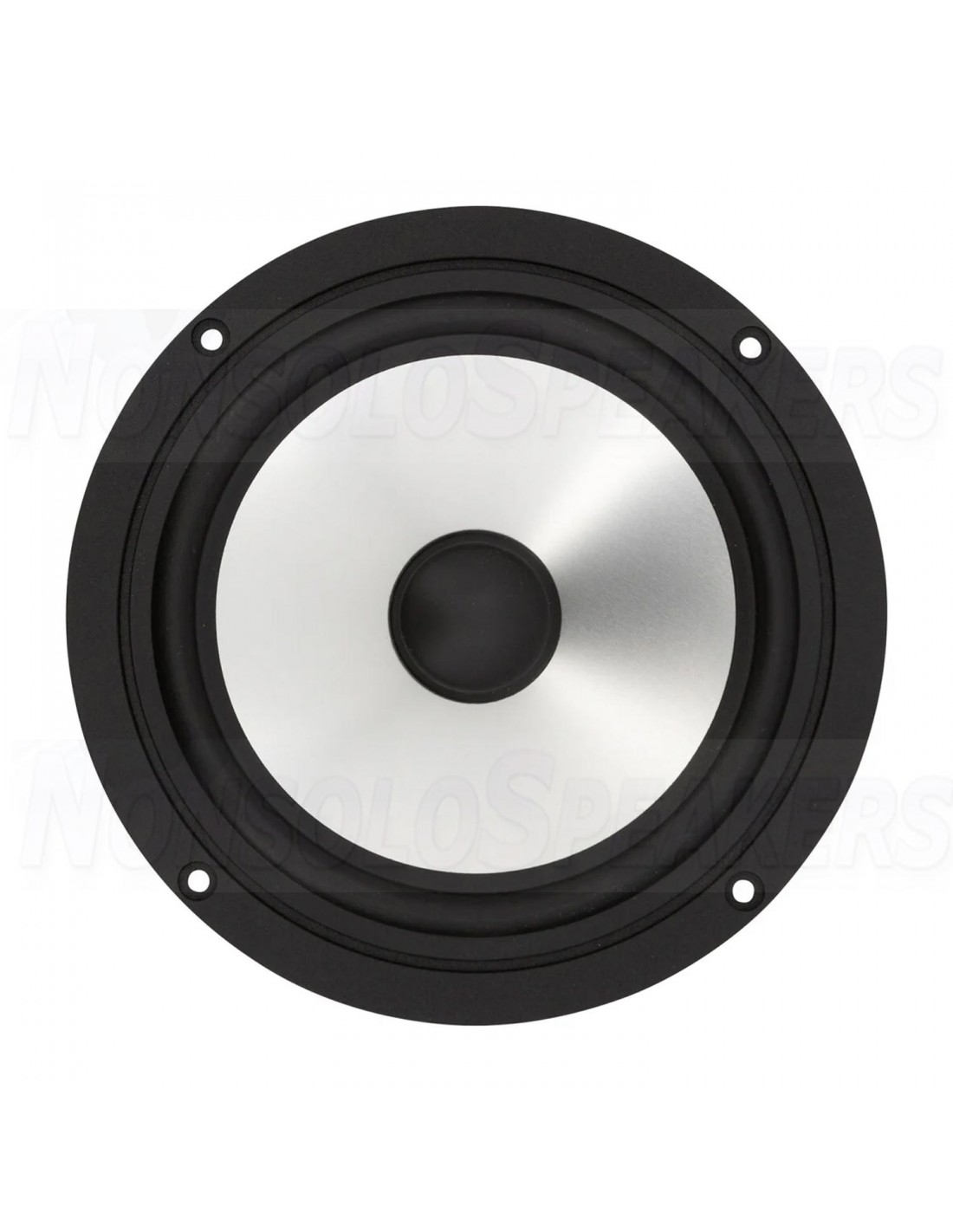

17 cm (6.5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton AL 170 6.5" High-End Woofer 8 Ohm

17 cm (6.5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

.

Highlights

  • Low electrical and mechanical losses
  • Long stroke voice coil
  • Extremely long cone displacement

.

Product Details

Visaton AL 170 6,5" High-End Midrange Driver 8 Ohm

Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.

Technical Specifications

  • Article number AL 170
  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 6.5"
  • Power Handling (RMS) 70 watts
  • Power Handling (max) 100 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 38 – 10,000 Hz
  • Voice Coil Diameter 25 mm
  • DC Resistance (Re) 5.6 ohms
  • Voice Coil Inductance (Le) 0.9 mH
  • Resonant Frequency (Fs) 38 Hz
  • Mechanical Q (Qms) 3.88
  • Electromagnetic Q (Qes) 0.43
  • Total Q (Qts) 0.39
  • Diaphragm Mass Inc. Airload (Mms) 13g
  • Mechanical Compliance of Suspension (Cms) 13g
  • Surface Area of Cone (Sd) 133 cm2
  • BL Product (BL) 6.9 Tm
  • Compliance Equivalent Volume (Vas) 34 liters
  • Maximum Linear Excursion (Xmax) 11 mm
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Former Kapton
  • Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 180 mm
  • Overall Depth 68 mm
  • Baffle Cutout Diameter 150 mm
  • Bolt Circle Diameter 168 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 4.3 mm
