SHIPMENT IN 5-7 WORKING DAYS
€192.45
Tax included
rating No review at the moment

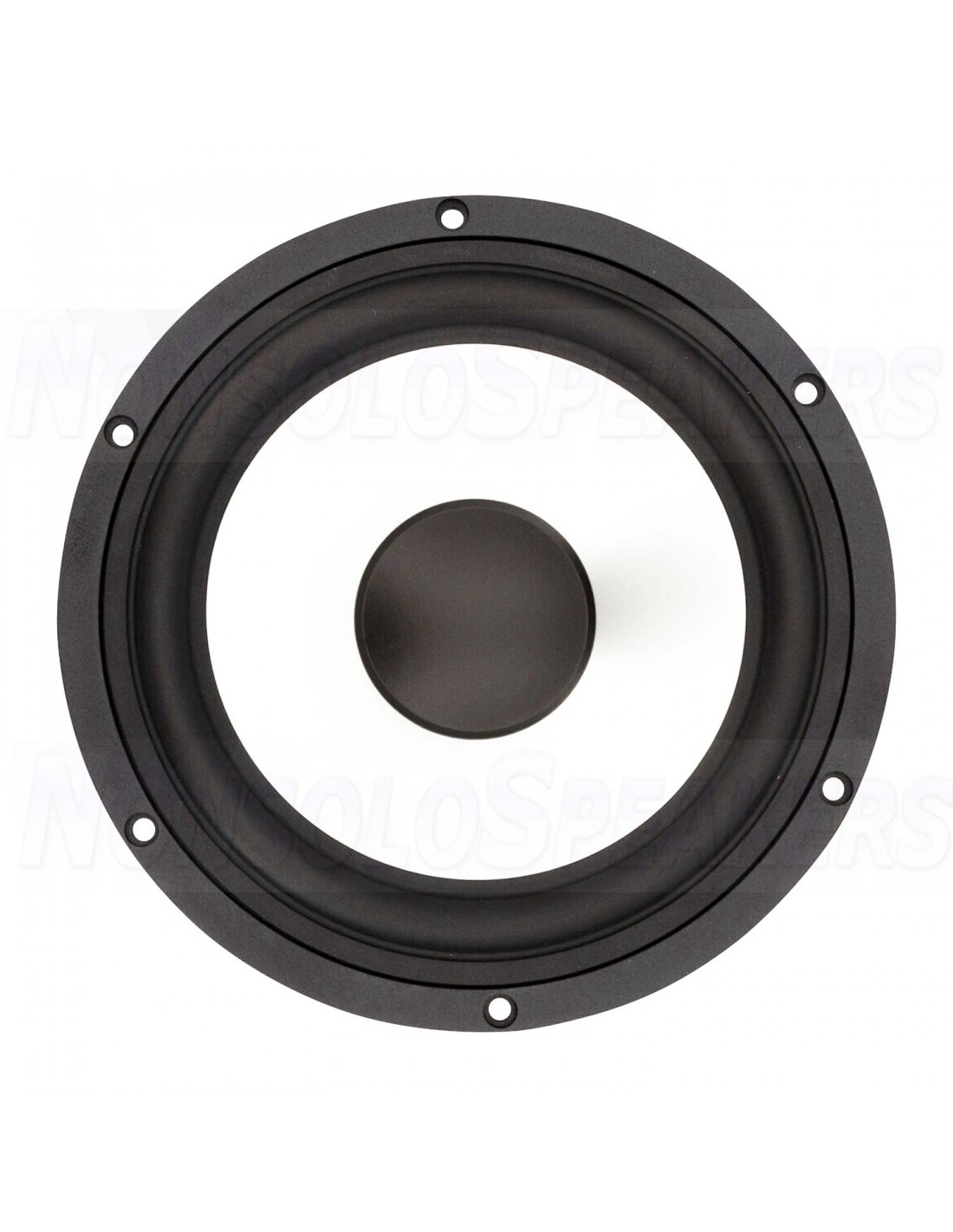

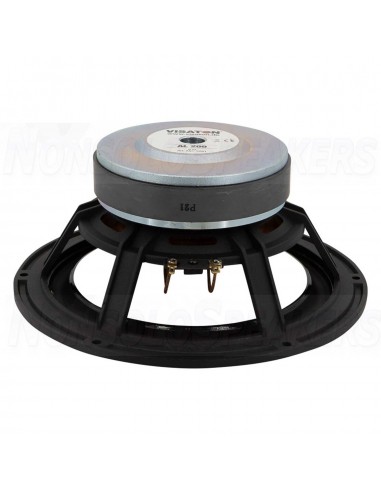

Visaton AL 200 8" High-End Woofer 8 Ohm

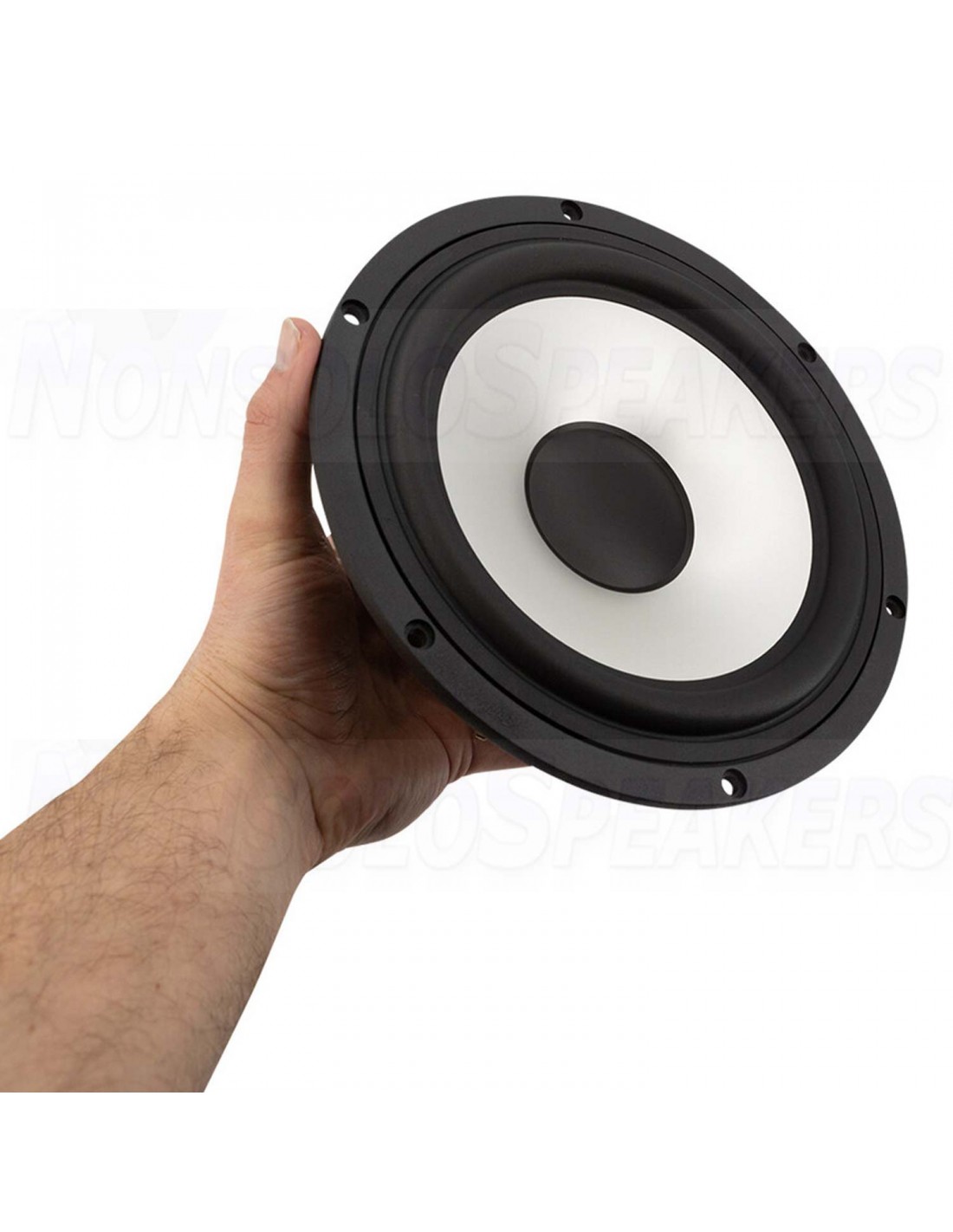

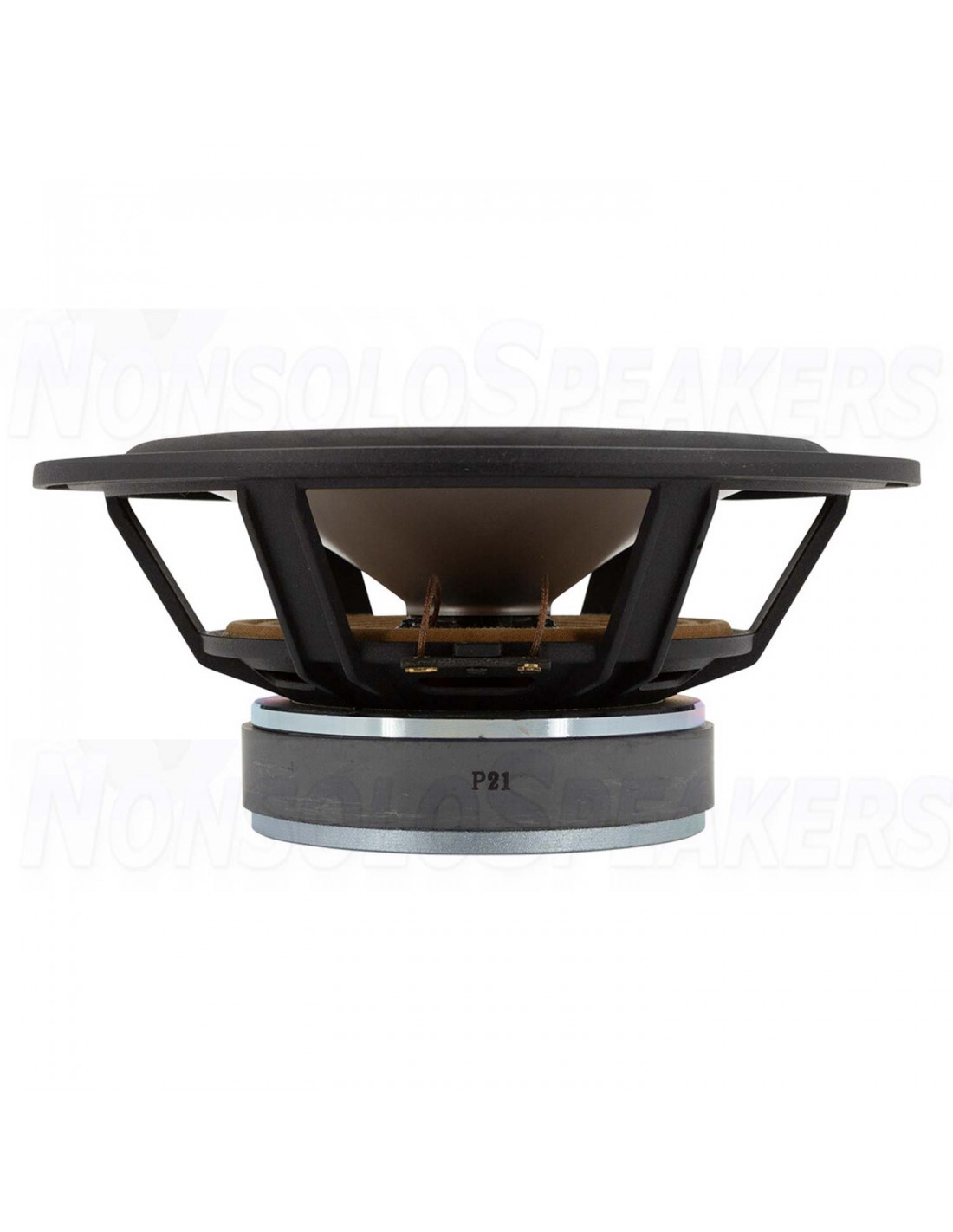

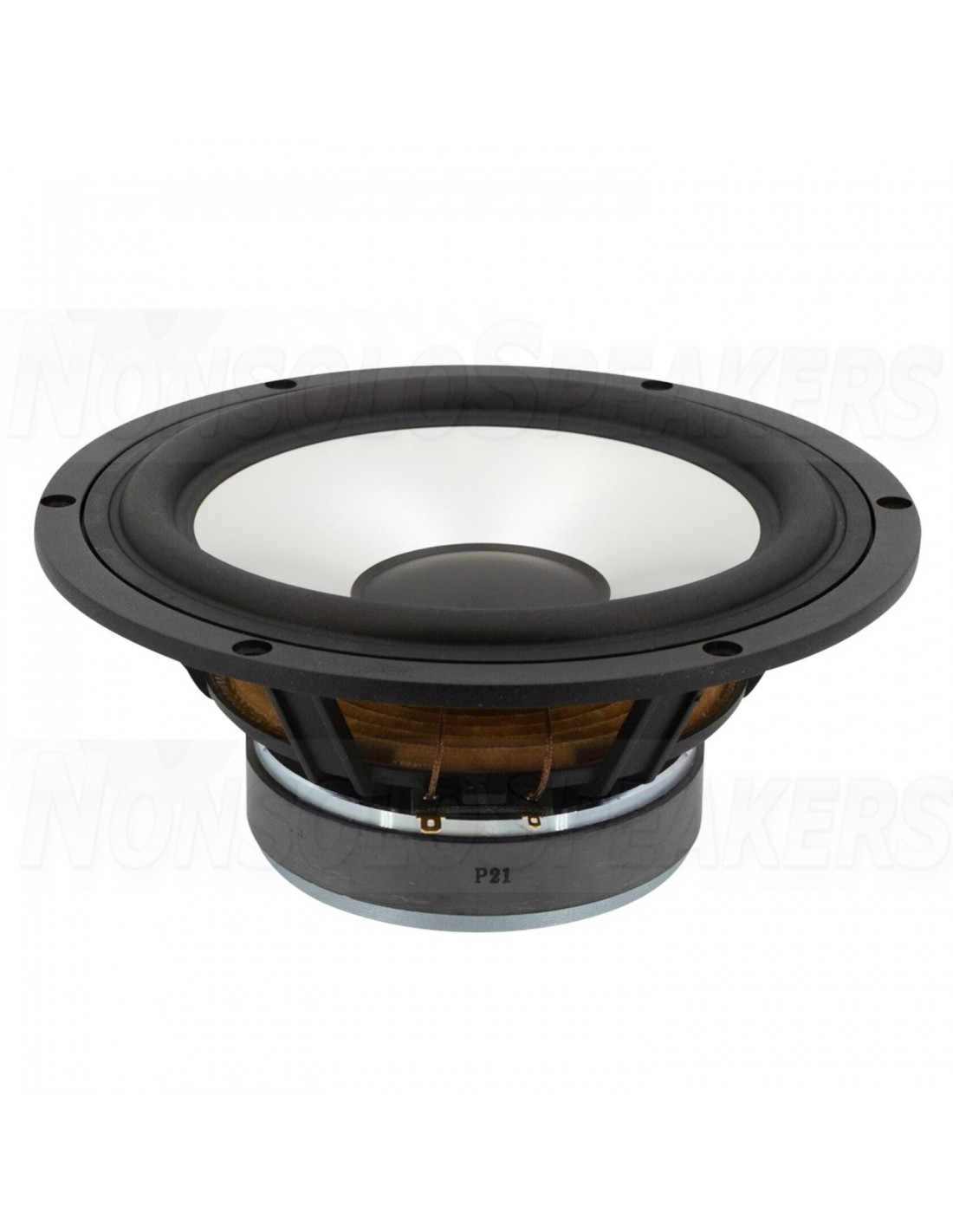

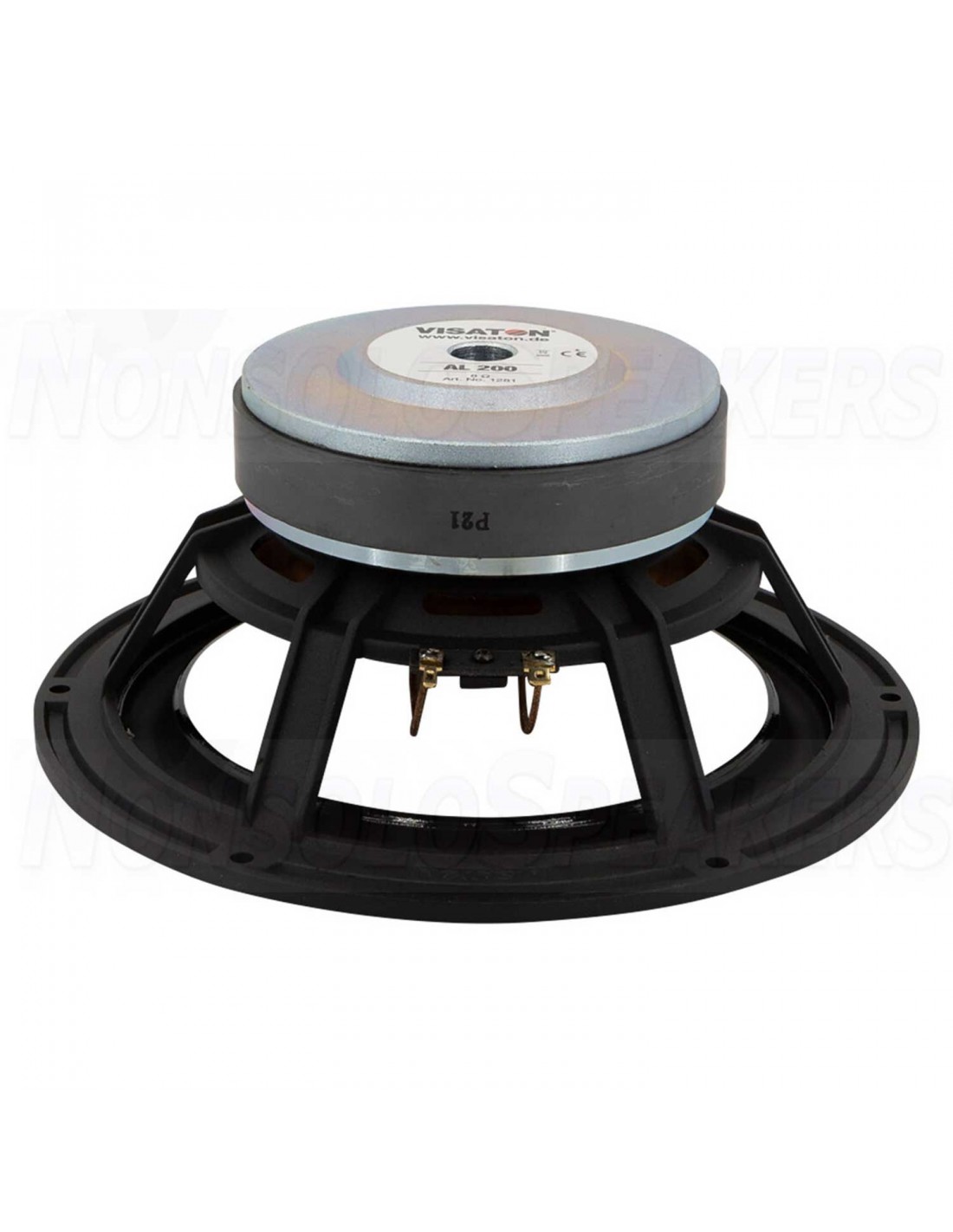

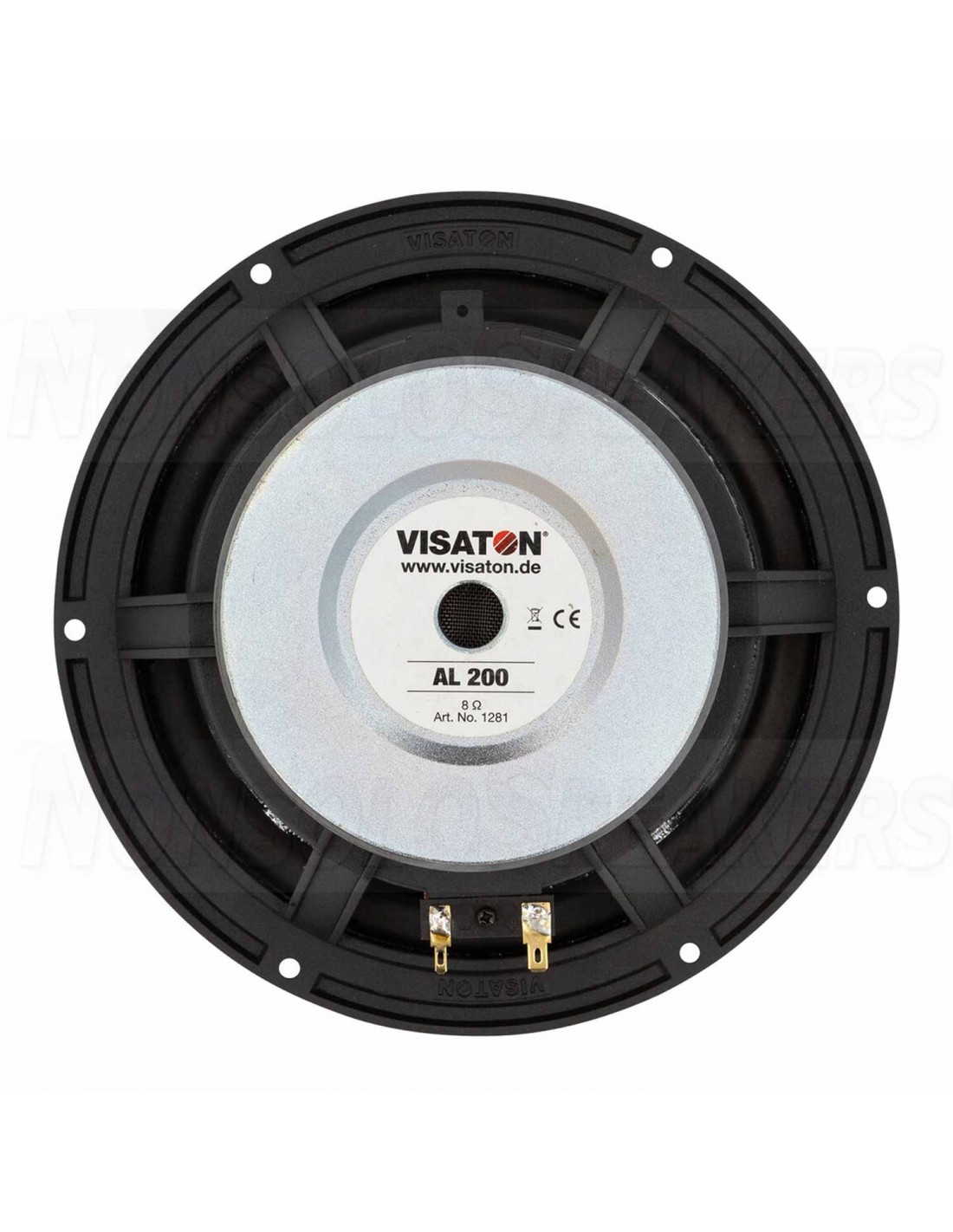

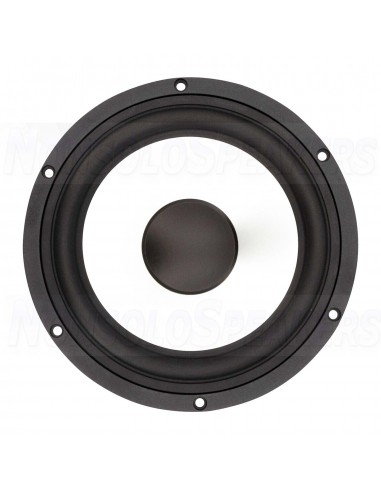

20 cm (8") High-End woofer with stiff aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton AL 200 8" High-End Woofer 8 Ohm

20 cm (8") High-End woofer with stiff aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

.

Highlights

  • Lightweight aluminum cone
  • Solid aluminum die-cast basket
  • Fast pulse response

.

Product Details

Visaton AL 200 8" High-End Midrange Driver 8 Ohm

Extremely low mechanical and electrical losses due to vented pole plate, vented damper and capton voice coil carrier. Fast pulse response due to lightweight aluminum cone. Suitable for 2- and 3-way high end combinations and as low-midrange driver in 4-way high end systems.

.

Technical Specifications

  • Article number AL 200
  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 8"
  • Power Handling (RMS) 120 watts
  • Power Handling (max) 180 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 32 - 9,000 Hz
  • Voice Coil Diameter 38 mm
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 1.2 mH
  • Resonant Frequency (Fs) 32 Hz
  • Mechanical Q (Qms) 3.73
  • Electromagnetic Q (Qes) 0.39
  • Total Q (Qts) 0.35
  • Diaphragm Mass Inc. Airload (Mms) 21g
  • Surface Area of Cone (Sd) 216 cm2
  • BL Product (BL) 8.8 Tm
  • Compliance Equivalent Volume (Vas) 77 liters
  • Maximum Linear Excursion (Xmax) 10 mm
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Former Kapton Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 222 mm
  • Overall Depth 96 mm
  • Baffle Cutout Diameter 190 mm
  • Bolt Circle Diameter 210 mm
  • # Mounting Holes 6
  • Mounting Hole Diameter 5 mm

Visaton AL 200
