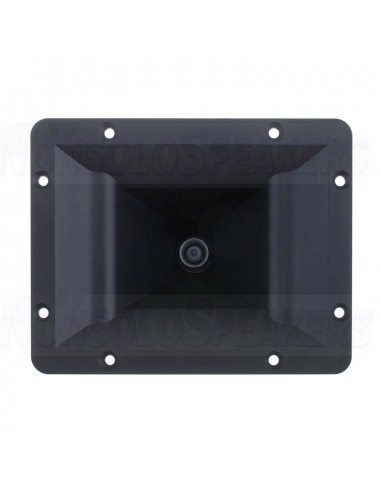

Visaton HTH 8.7 Horn Tweeter
Visaton HTH 8.7 Horn Tweeter
Visaton HTH 8.7 Horn Tweeter
Visaton HTH 8.7 Horn Tweeter
Visaton HTH 8.7 Horn Tweeter
Visaton HTH 8.7 Horn Tweeter

Visaton HTH 8.7 Horn Tweeter

Visaton HTH 8.7 Horn Tweeter

Professional CD-Horn (constant directivity) for the high-range above 3,000 Hz.

SHIPMENT IN 5-7 WORKING DAYS
€68.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton HTH 8.7 Horn Tweeter

Professional CD-Horn (constant directivity) for the high-range above 3,000 Hz.

.

Highlights

  • Great dispersion pattern
  • High power handling
  • Wide horizontal and vertical dispersion creates room filling sound
  • Great for PA and stage monitors.

.

Product Details

Visaton HTH 8.7 Professional CD-Horn 8 Ohm

With excellent response from 1,200 Hz to 16,000 Hz up to 45° off axis, Visaton's HTH 8.7 8 ohm constant directivity horn tweeter is an ideal tweeter for use in stage monitors and small PA speakers, or even in high efficiency home speaker designs.

Visaton's HTH 8.7 8 ohm professional CD (constant directivity) horn tweeter is designed to accurately reproduce high frequencies above 3,000 Hz. The square shaped horn system is made of rugged black plastic and equipped with a 1" voice-coil for high power handling. Thanks to a smooth roll off on both the high and low end of its useable bandwidth crossover design for this tweeter will be simple and predictable. This horn is an ideal high range component for compact 2- and 3-way speakers used as stage monitors or small PA for instruments and vocals.

With its smooth response and wide dispersion, the HTH 8.7 is also an excellent choice for use in high efficiency home speaker designs.

Technical Specifications

  • Article number HTH 8.7
  • Tweeter Type Horn
  • Tweeter Series HTH
  • Power Handling (RMS) 200 Watts
  • Power Handling (max) 300 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 106 dB
  • Frequency Response 1,200 - 16,000 Hz
  • Cutout Diameter 123 x 165 mm
  • Depth 130 mm
  • Recommended cut frequency 3,000 Hz
Visaton HTH 8.7
