SHIPMENT IN 7-10 WORKING DAYS
€49.95
Tax included
rating No review at the moment

SB Acoustics SB20FRPC30-8 8" Paper Cone Full-range driver

.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB20FRPC30-8 8" Paper Cone Full-range driver

.

Product description

Proprietary cone material with natural fibers made in-house

Light weight foam surround

Optimized whizzer cone for smooth high frequency extension

Phase plug for controlled radiation

Large spider for improved linearity

Optimized motor system

Vented reinforced plastic chassis

Non-conductive coil former

Extended copper sleeve on pole piece

Long life silver lead wires

.

Product details

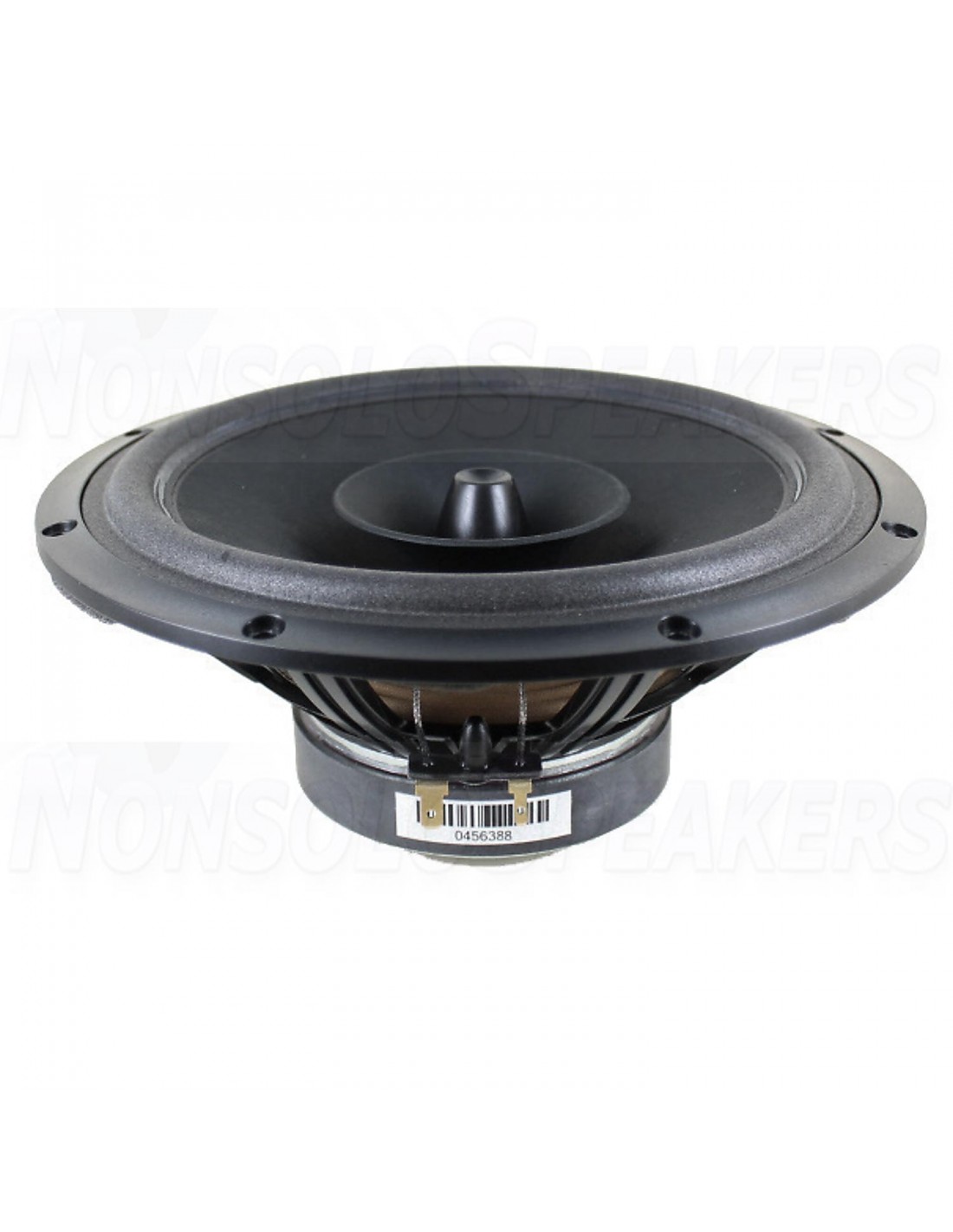

SB Acoustics SB20FRPC30-8 8” Full-range Paper Cone Driver

Using a cone proprietary paper blend cone made in house this woofer delivers good midd/bass response. Which is extended by the use of a optimized “whizzer” cone. This is supplemented by the use of a phase cone to better radiate the high frequency output. The paper blend cone is made in-house to insure quality control. This makes this a good “bang for the buck” full range driver.

.

Specifications

Article numberSB20FRPC30-8
Woofer TypeFull-range
Nominal Diameter8''
Power Handling (RMS)50 Watts
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)92 dB
Voice Coil Diameter30.5 mm
Magnet Weight0.54 kg
DC Resistance (Re)5.6 Ohms
Voice Coil Inductance (Le)0.30 mH
Resonant Frequency (Fs)39.4 Hz
Mechanical Q (Qms)3.26
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.40
Diaphragm Mass Inc. Airload (Mms)14.7 g
Mechanical Compliance of Suspension (Cms)1.12mm/N
Surface Area of Cone (Sd)216 cm2
Compliance Equivalent Volume (Vas)66.3 liters
Maximum Linear Excursion (Xmax)5.65 mm
Driver's Mechanical Losses (Rms)1.1 kg/s
Cone / Diaphragm MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPlastic
Magnet MaterialFerrite
# Mounting Holes8

.

SB20FRPC30-8
