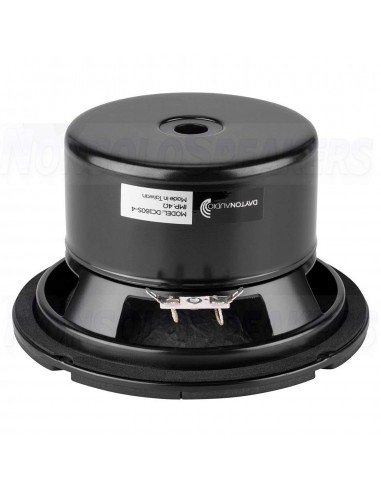

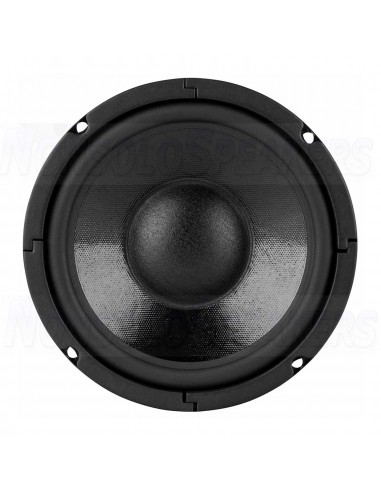

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Product description
Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
.
Highlights
Sturdy, easy-to-countersink round steel frame
4 ohm impedance offers alternative load possibilities
Coated paper cone provides smooth response and reduced cone breakup
Aluminum VC former and vented pole piece for high power handling
Large diameter flat spider and good Xmax for clean bass
Suitable for sealed or vented enclosures
.
Product details
Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-4 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-4 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The 4 ohm impedance of the DC160S-4 makes it perfect for use in MTMs and center channel speakers.
.
Specifications
Article number DC160S-4
Woofer Series Classic Series
Woofer Type Midwoofer
Nominal Diameter 6.50"
Power Handling (RMS) 50 watts
Power Handling (max) 100 watts
Impedance (Z) 4 ohms
Sensitivity 88.5 dB @ 2.83V/1m
Frequency Response 33 - 4,000 Hz
Voice Coil Diameter 35 mm
DC Resistance (Re) 3.5 ohms
Voice Coil Inductance (Le) 0.89 mH @ 1 kHz
Resonant Frequency (Fs) 30.9 Hz
Mechanical Q (Qms) 2.61
Electromagnetic Q (Qes) 0.34
Total Q (Qts) 0.30
Diaphragm Mass Inc. Airload (Mms) 30g
Mechanical Compliance of Suspension (Cms) 0.88 mm/N
Surface Area of Cone (Sd) 136.8 cm²
Volume of Displacement (Vd) 46.5 cm³
BL Product (BL) 7.68 Tm
Compliance Equivalent Volume (Vas) 23.2 liters
Maximum Linear Excursion (Xmax) 3.4 mm
Cone / Diaphragm Material Treated Paper
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket / Frame Material Steel
Magnet Material Ferrite
Shielded Yes
Overall Outside Diameter 165 mm
Overall Depth 95 mm
Baffle Cutout Diameter 144.6 mm
# Mounting Holes 4
Sealed Volume 0.15 ft.³
Sealed F3 90 Hz
Vented Volume 0.41 ft.³
Vented F3 52 Hz
