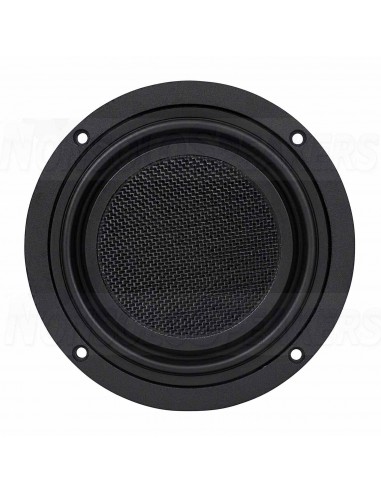

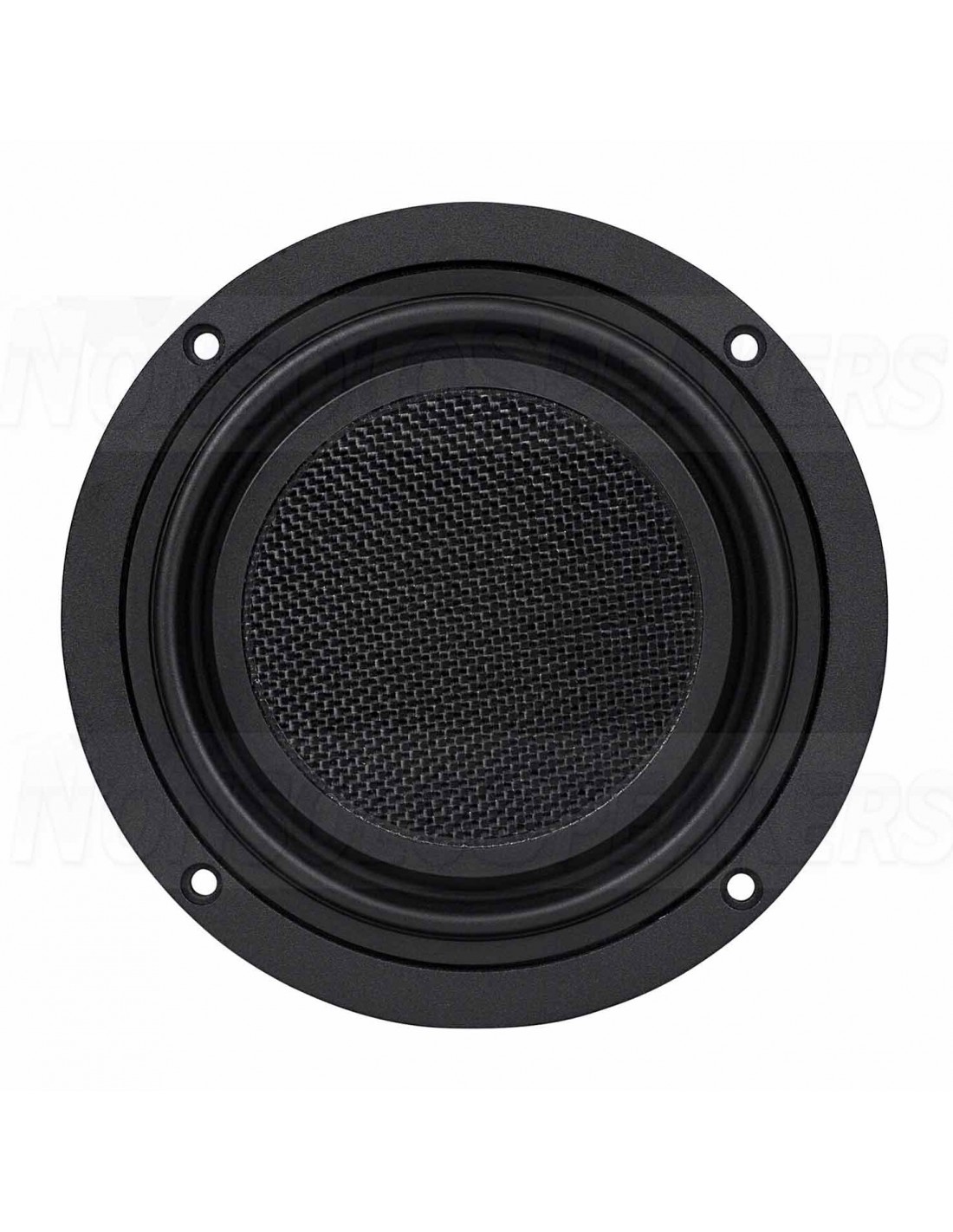

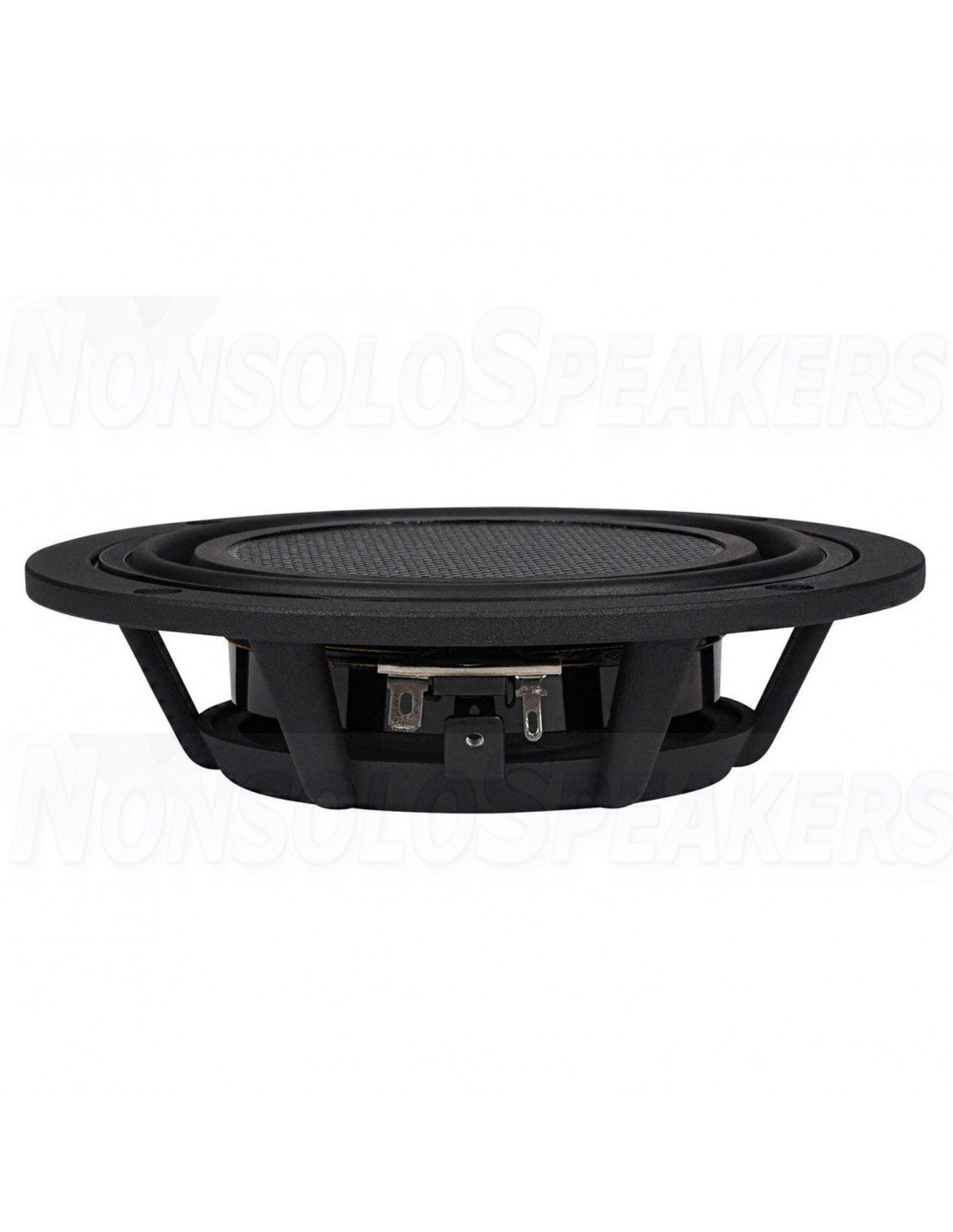

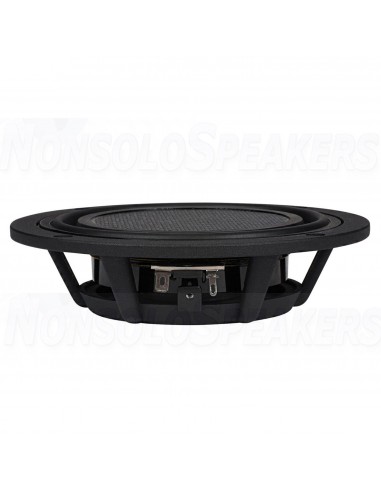

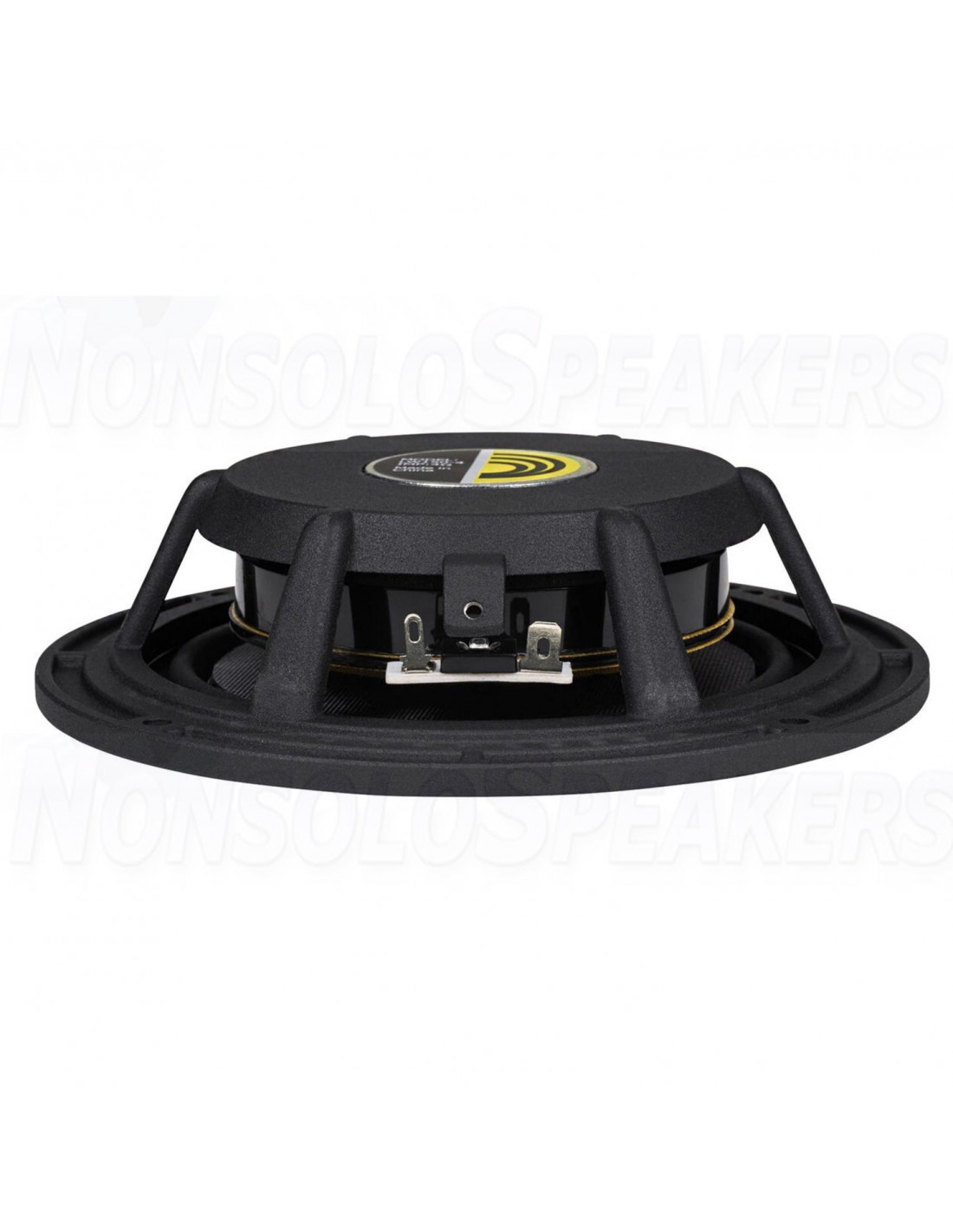

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.

Key Features

  • Very low profile woofer fits in tight spots
  • Flat woven glass-fiber/honeycomb aluminum composite cone
  • Dual sandwiched spiders and S-shaped surround enhance linear travel capability
  • Large 1-1/4" 4-layer voice coil and optimized T-pole gap geometry
  • Peripheral holes in spider landing enable zero-clearance venting in shallow enclosures
  • Great for on-wall, in-wall, or car audio applications

The unique and versatile Dayton Audio LW150-4 6" woofer was designed for space limited, minimum depth applications. Its low-profile frame and unique venting permit the back of the woofer to be placed directly against cabinet walls or even embedded (countersunk) into the cabinet, resulting in an enclosure less than 1-1/2" deep. Great match for today's ultra-thin TVs or use as a down firing subwoofer in a low powered system, low-frequency down-firing driver in a center channel/monitor stand, or bookshelf stand.

.

Product Details

Brand Dayton Audio

Model LW150-4

UPC 848791001864

Unit of Measure Each

Weight 0,500

.

Product Specifications

Nominal Diameter 6"

Bolt Circle Diameter 5.5

Moving Mass Of Diaphragm (Mmd) 21.8

Power Handling (RMS) 40 Watts

Power Handling (MAX) 80 Watts

Impedance 4Ω

Frequency Response 60 to 1,800Hz

Sensitivity 86.1dB 2.83V/1m

Voice Coil Diameter 1.25"

.

Thiele-Small Parameters

Resonant Frequency (Fs) 62.6Hz

DC Resistance (Re) 3.6Ω

Voice Coil Inductance (Le) 0.86mH

Mechanical Q (Qms) 6.01

Electromagnetic Q (Qes) 0.72

Total Q (Qts) 0.64

Compliance Equivalent Volume (Vas) 0.12ft³

Mechanical Compliance of Suspension (Cms) 0.296mm/N

BL Product (BL) 6.51T·m

Maximum Linear Excursion (Xmax) 4mm

Surface Area of Cone (Sd) 91cm²

.

Materials of Construction

Cone Material Carbon Fiber Composite

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Kapton® / Polyimide

Basket / Frame Material

Cast Aluminum

Magnet Material Neodymium

.

Mounting Information

Overall Outside Diameter 6"

Baffle Cutout Diameter 5.125"

Depth 1.5"

# Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed F3 77Hz

Vented Volume 0.33ft³

Vented F3 40Hz

LW150-4
10 Items
New
848791001864
