WF182CU13
WF182CU13

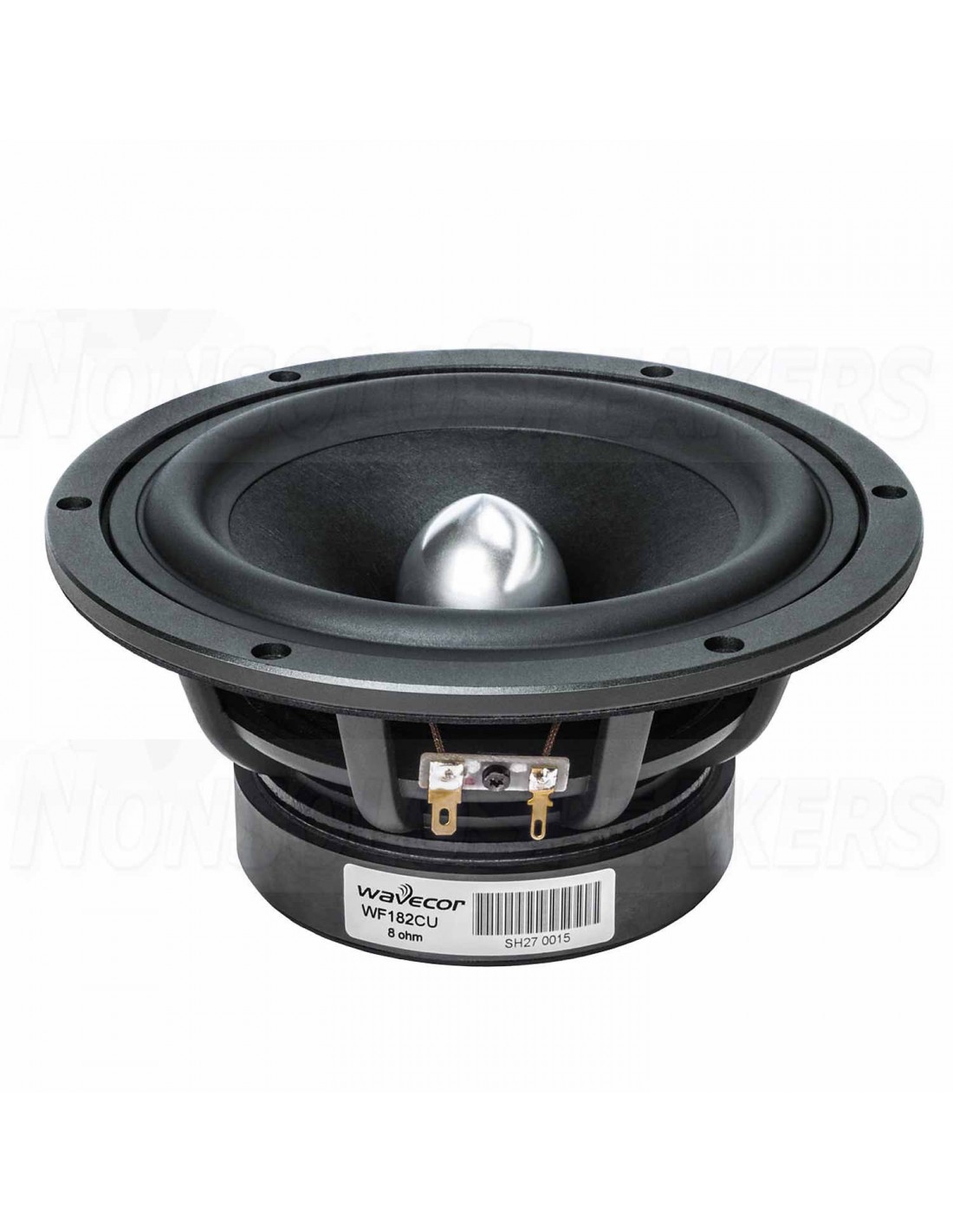

Wavecor WF182CU13 17 cm bass midrange paper

Wavecor WF182CU13  17 cm bass midrange paper

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 38-4000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
SHIPMENT IN 7/10 WORKING DAYS
€203.15 €239.00 -15%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Wavecor WF182CU13  17 cm bass midrange paper

  • power handling (continuous/programme) = 100 W
  • frequency range = 38-4000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,8 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 7,9 N/A
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 15,3 g
  • equivalent volume of compliance Vas = 29,9 l
  • total Q factor Qts = 0,36 (Qms=9,5, Qes=0,37)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm

.

recommended cabinet 1:

closed cabinet with 6,3 L volume
from 82/52 Hz (-3dB/-8dB)

.
recommended cabinet 2:

22 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 43/34 Hz (-3dB/-8dB).
