SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer

SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer

SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer

Powerful optimized low distortion neodymium motor system. Extended copper sleeve on pole piece. Non-conducting fibreglass voice coil former. Vented pole piece and voice coil. Lightweight CCAW voice coil. Long-life silver lead wires.

SHIPMENT IN 7/10 WORKING DAYS
€322.05 €339.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori MW19TX-4 TeXtreme Midwoofer

.

Product description

Advanced TeXtreme® cone

Vented aerodynamic cast aluminium chassis

Soft low damping rubber surround

Advanced BIMAX spider

.

Product Details

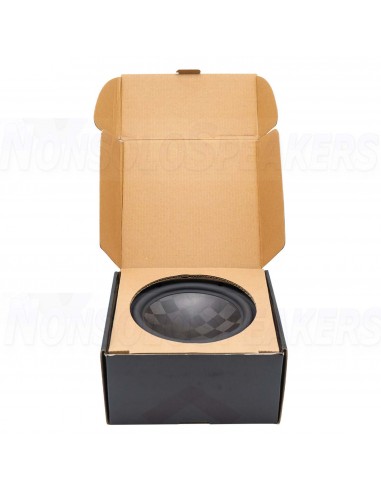

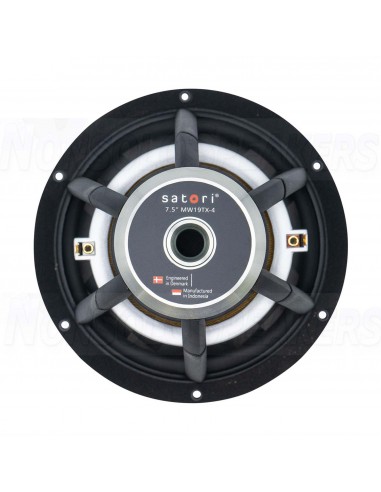

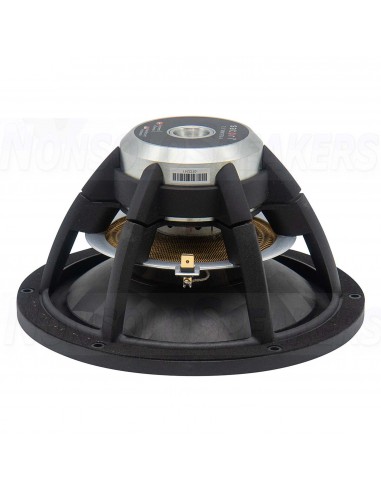

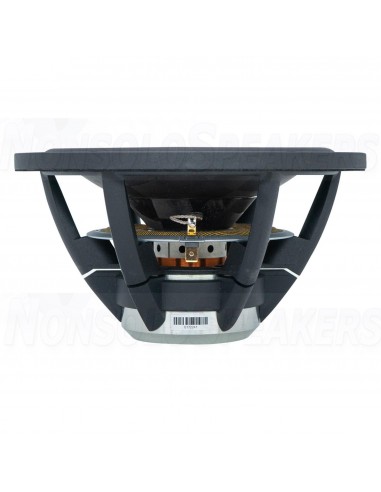

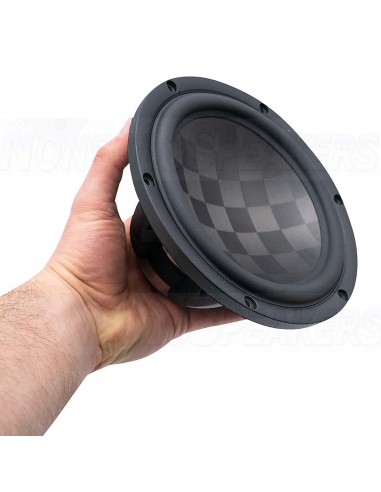

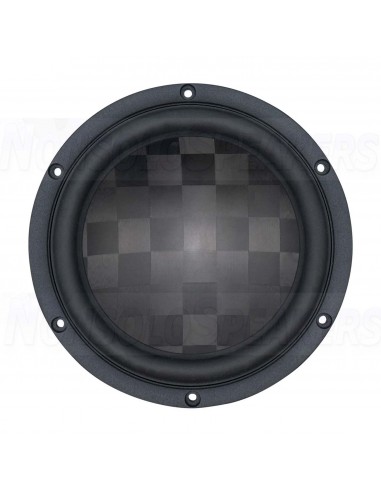

SB Acoustics Satori MW19TX-4 7.5″ TeXtreme Midwoofer

Powerful optimized low distortion neodymium motor system. Extended copper sleeve on pole piece. Non-conducting fibreglass voice coil former. Vented pole piece and voice coil. Lightweight CCAW voice coil. Long-life silver lead wires.

.

Specifications

Article numberMW19TX-4
Woofer SeriesSatori
Woofer TypeMidwoofer
Nominal Diameter7.5"
Power Handling (RMS)70 W
Power Handling (max)70 W
Impedance (Z)4 Ohms
Sensitivity (SPL at 1m / 2.83V)93 dB
Voice Coil Diameter39 mm
Magnet Weight0.15 kg
DC Resistance (Re)3.4 Ohms
Voice Coil Inductance (Le)0.14 mH
Resonant Frequency (Fs)32 Hz
Mechanical Q (Qms)5.43
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.27
Diaphragm Mass Inc. Airload (Mms)16.2 g
Mechanical Compliance of Suspension (Cms)1.52 mm/N
Surface Area of Cone (Sd)158 cm2
BL Product (BL)6.3 Tm
Compliance Equivalent Volume (Vas)53.2 liters
Maximum Linear Excursion (Xmax)6.8 mm
Driver's Mechanical Losses (Rms)0.6 kg/s
MW19TX-4
