Out-of-Stock
€41.95
Tax included
rating No review at the moment

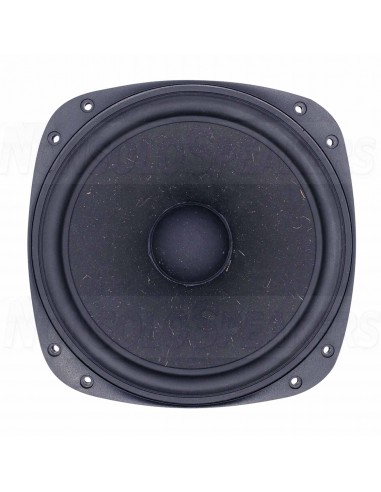

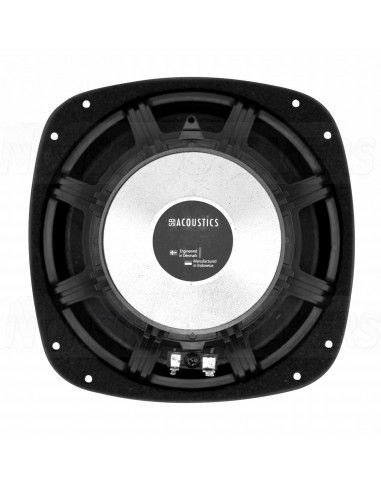

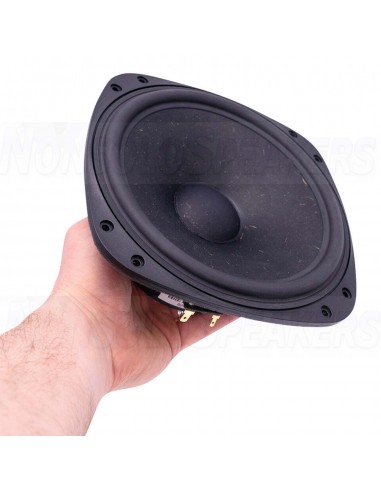

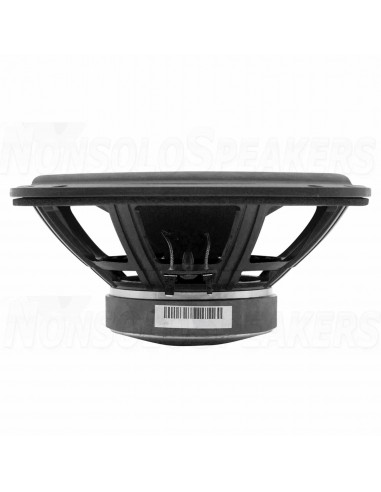

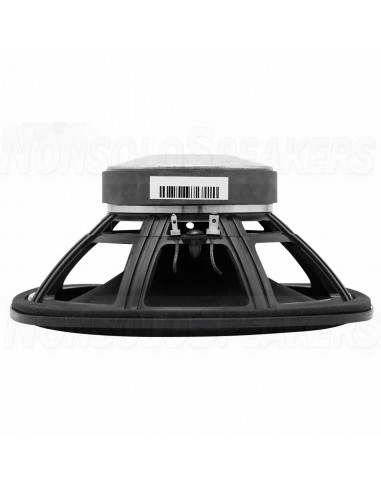

SB Acoustics SB20PFC30-4 8" Paper Cone Woofer

The SB Acoustics SB20PFC30-4 is an 8" papyrus fiber paper cone woofer with a great value for its build quality and performance. Its components make it a good choice for many different enclosure types

.


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB20PFC30-4 8" Paper Cone Woofer

.

Product description

Vented reinforced plastic chassis

Proprietary cone material with natural fibers made in-house

Soft low damping rubber surround for improved transient response

Large spider for improved linearity

Optimized motor system

Vented coil former for low compression

Non-resonant long life lead wires

.

Product details

SB Acoustics SB20PFC30-4 8" Paper Cone Woofer

The SB Acoustics SB20PFC30-4 is an 8" papyrus fiber paper cone woofer with a great value for its build quality and performance. Its components make it a good choice for many different enclosure types.  An extended and smooth frequency response suggests simple crossovers, even none at all.

.

Specifications

Article numberSB20PFC30-4
Woofer SeriesPFC Series
Woofer TypeMidwoofer
Nominal Diameter8"
Power Handling (RMS)50 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)92.5 dB
Voice Coil Diameter1.2"
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.71 mH
Resonant Frequency (Fs)33.7 Hz
Mechanical Q (Qms)2.78
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.33
Diaphragm Mass Inc. Airload (Mms)22.4 g
Mechanical Compliance of Suspension (Cms)1 mm/N
Surface Area of Cone (Sd)216 cm2
BL Product (BL)6.6 Tm
Compliance Equivalent Volume (Vas)2.33 ft.³
Maximum Linear Excursion (Xmax)5.75 mm
SB20PFC30-4
