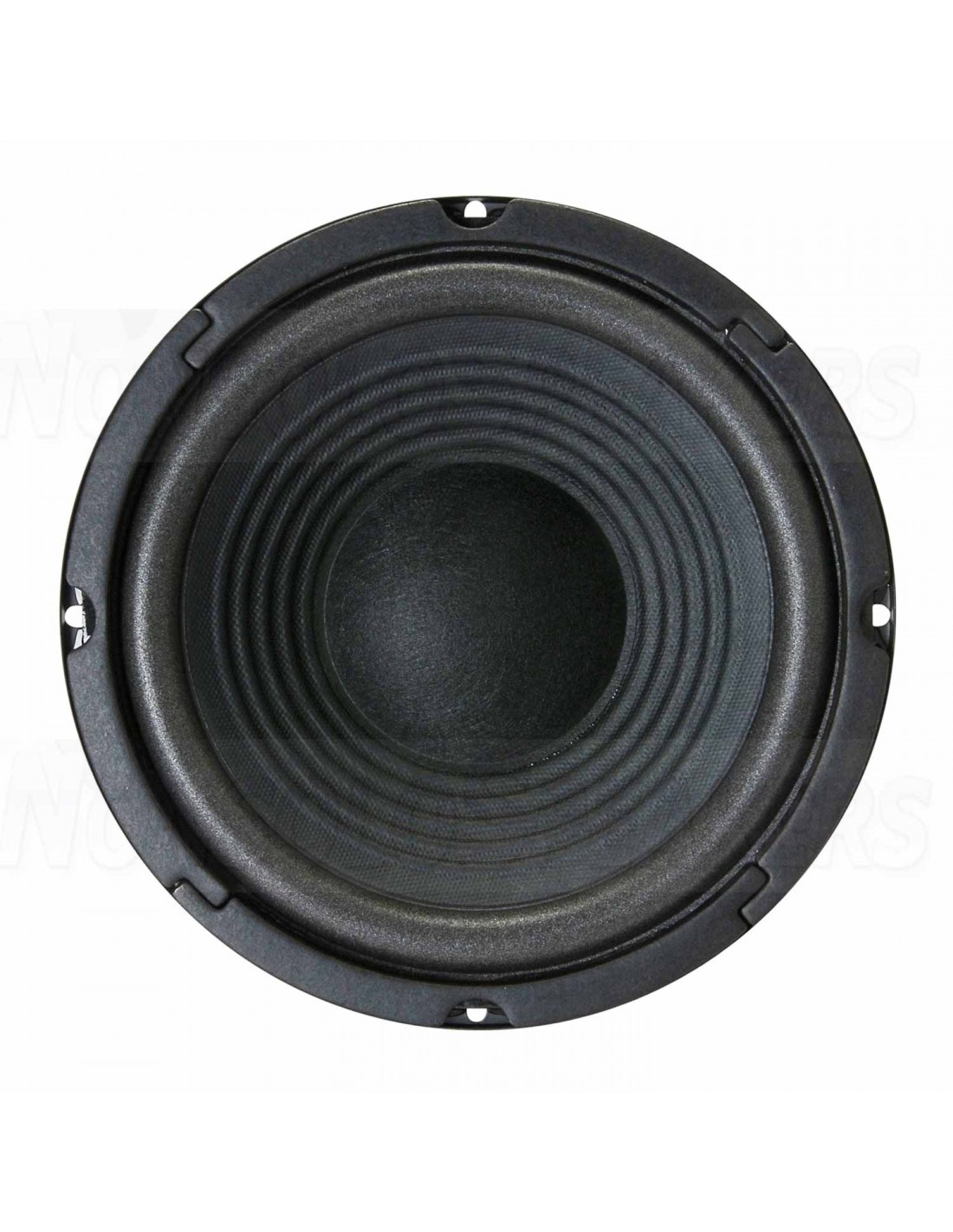

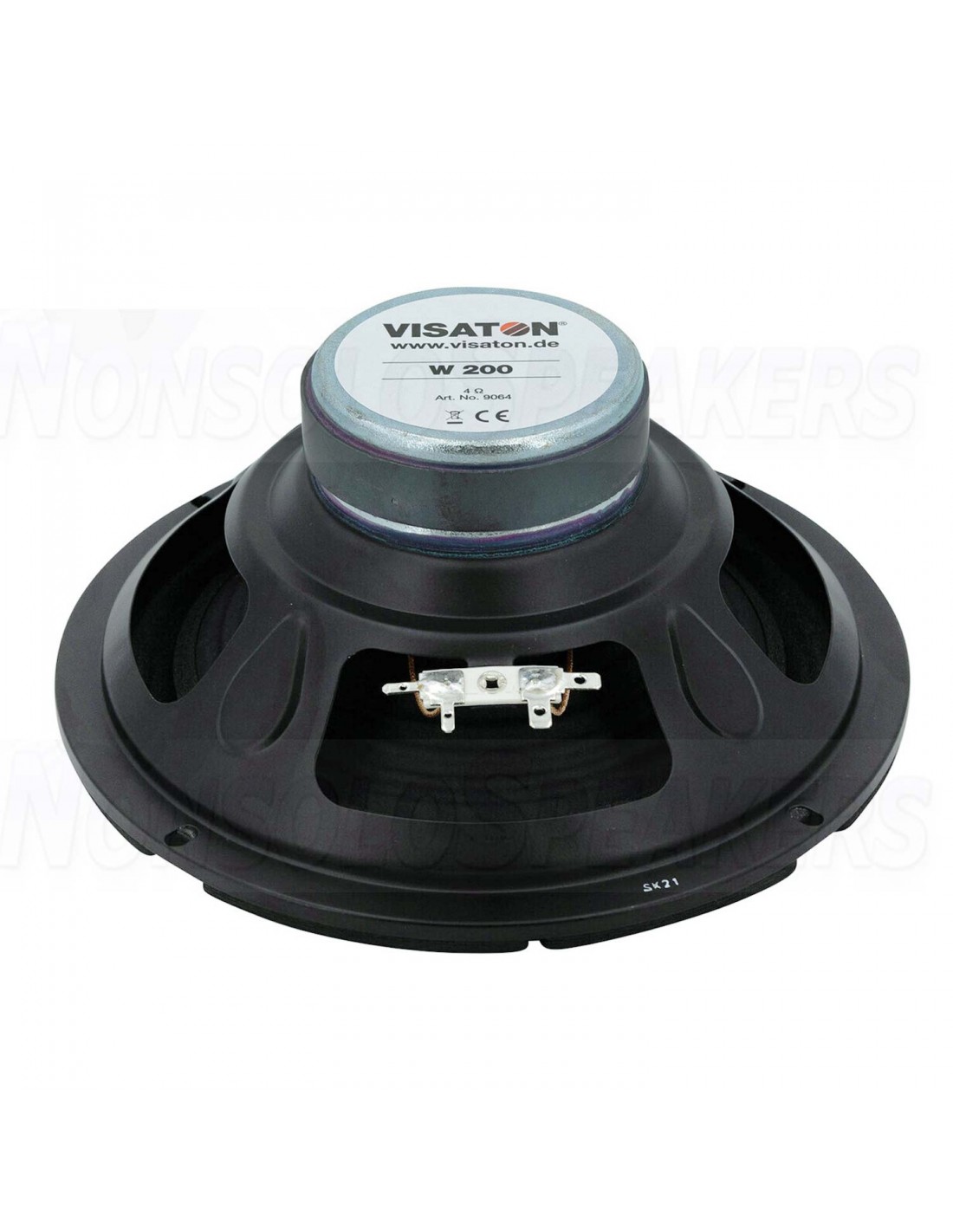

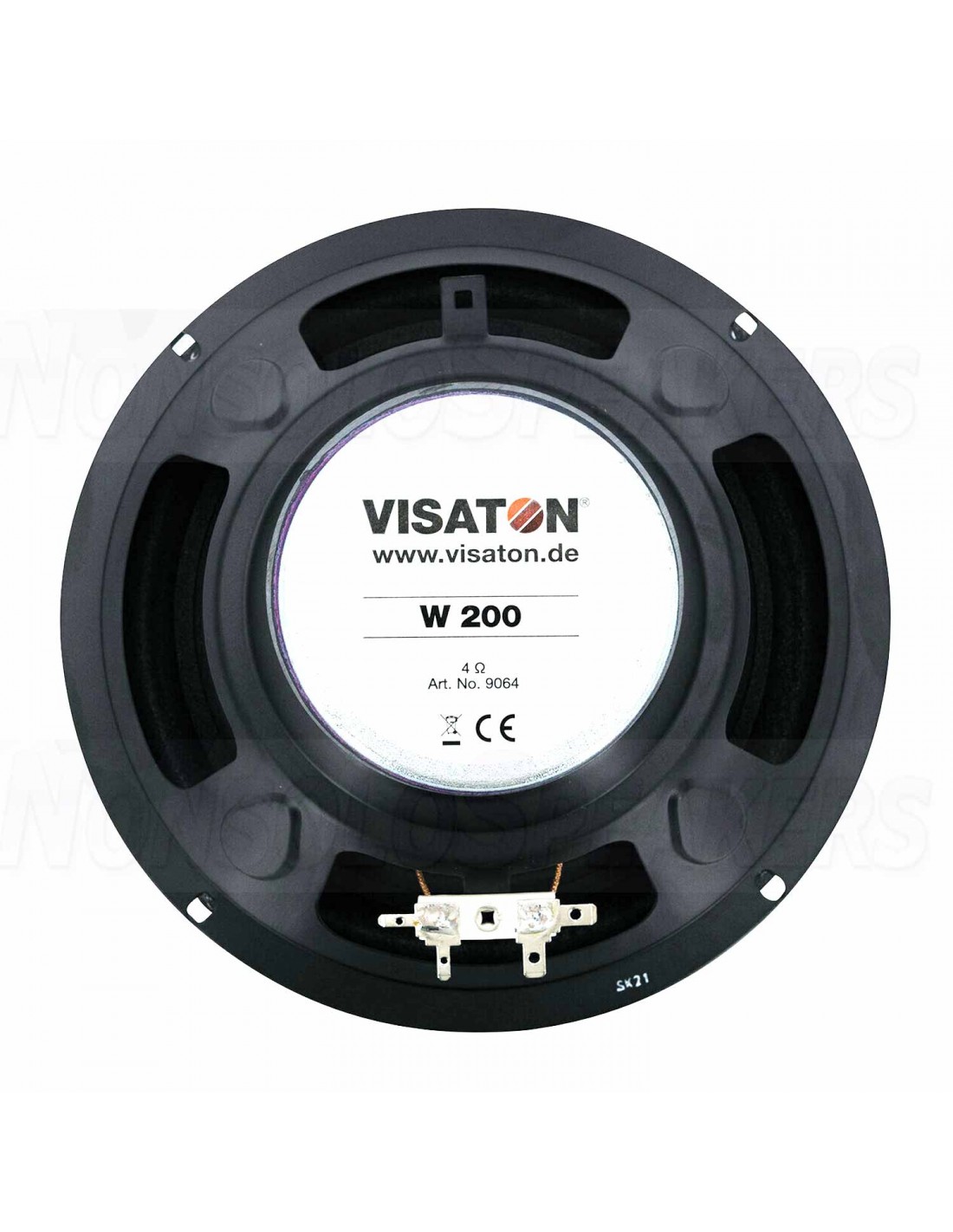

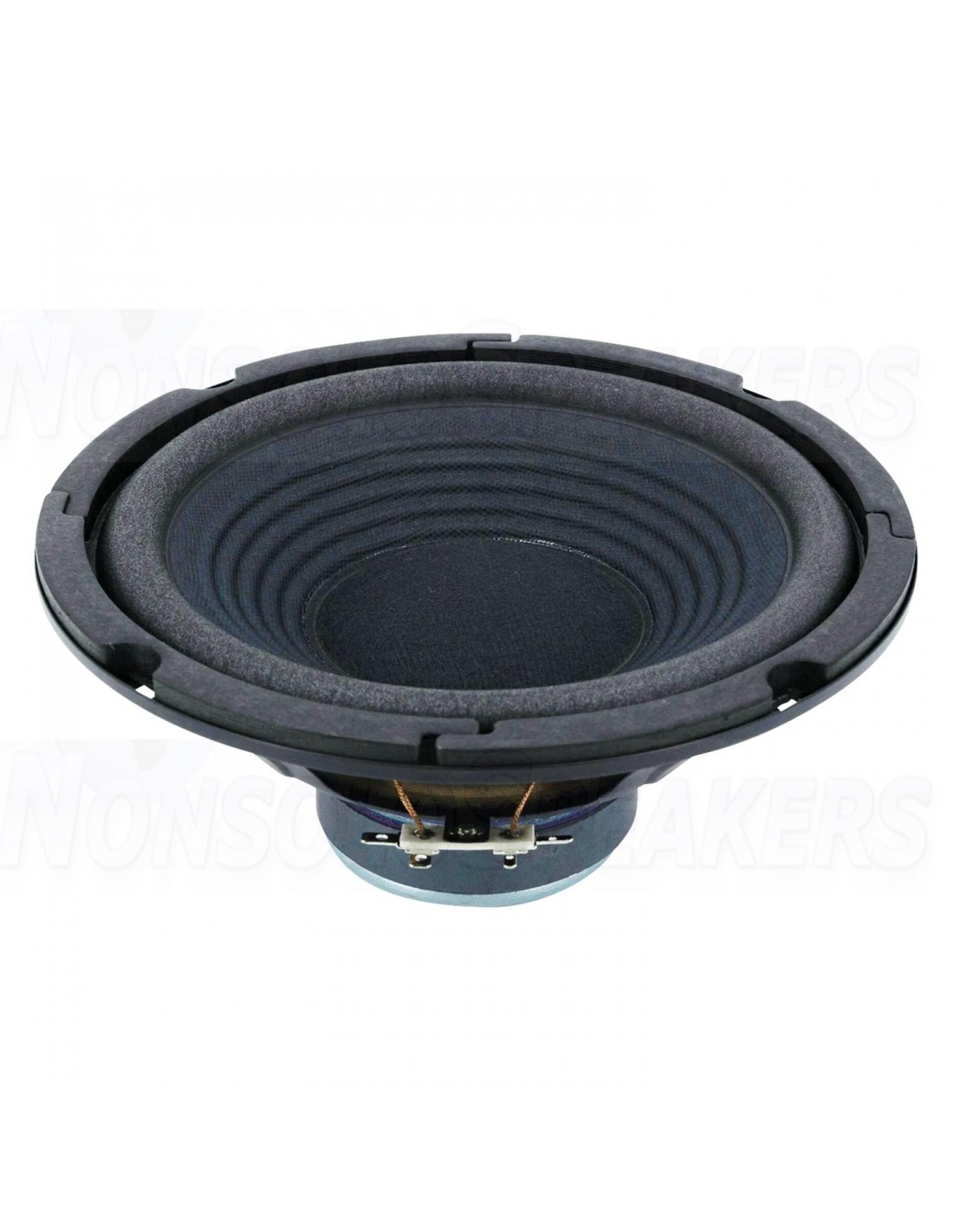

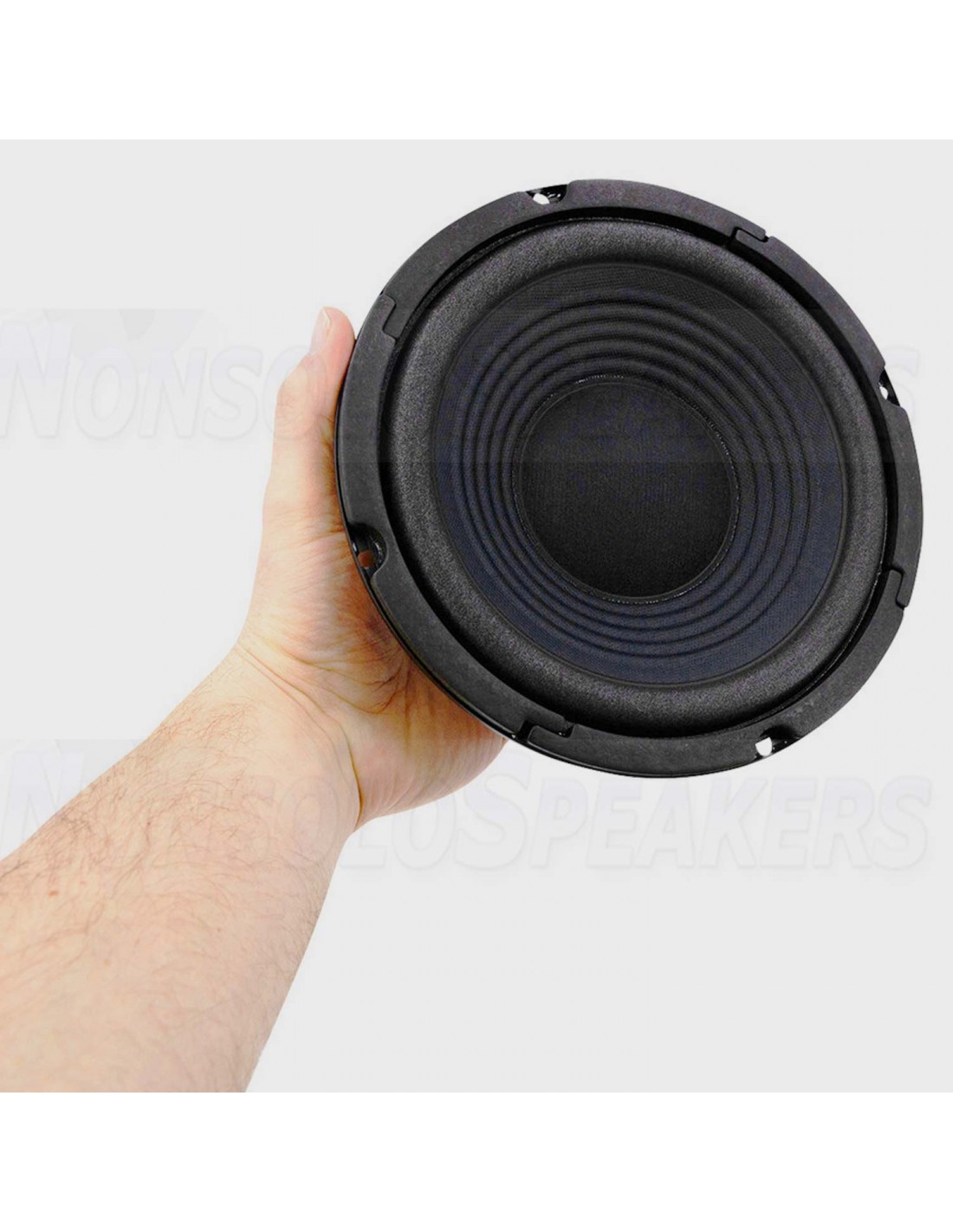

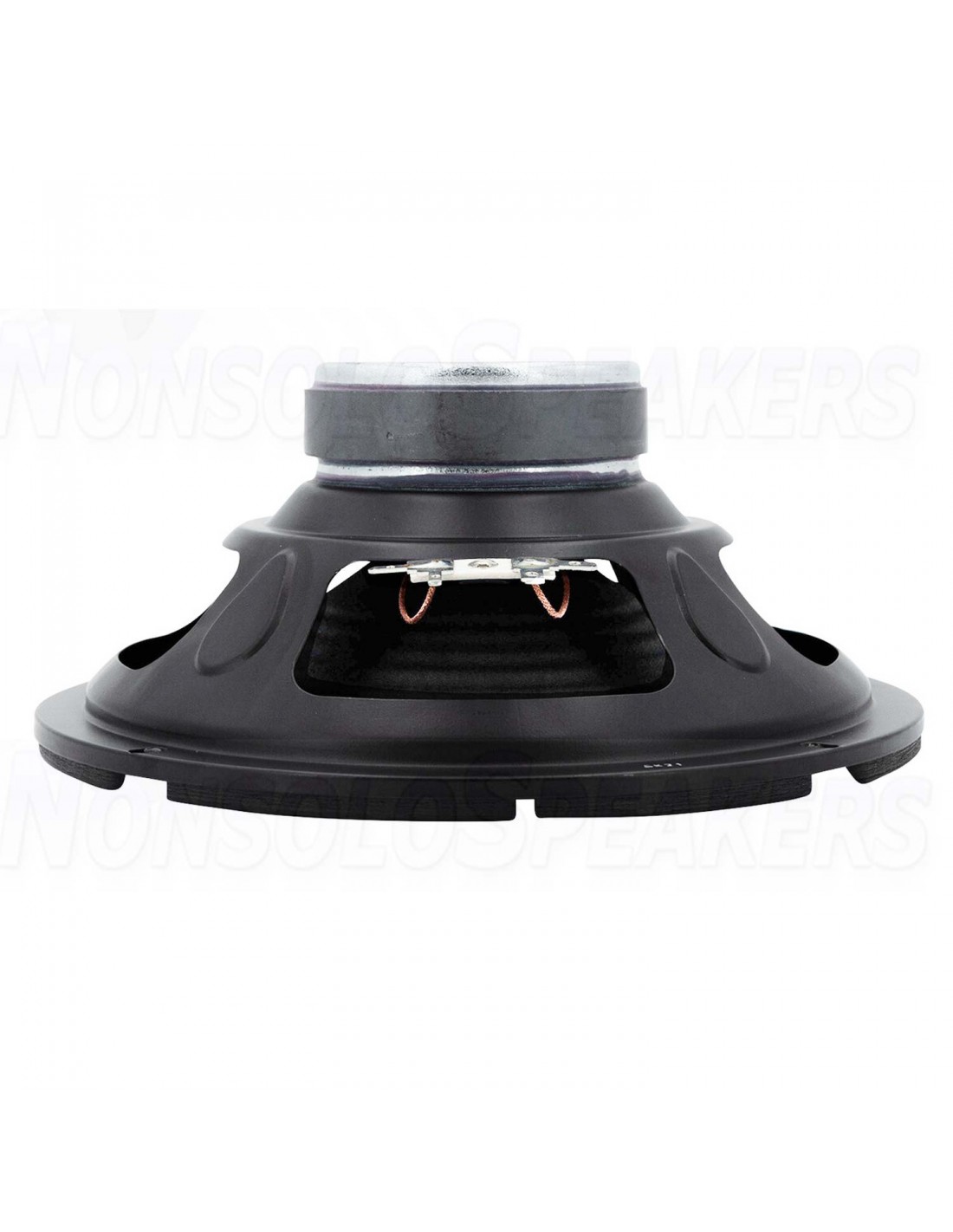

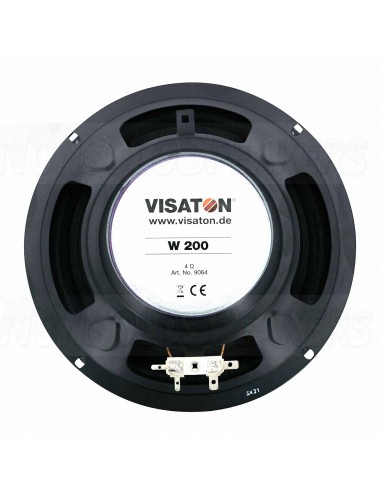

Visaton W 200 - 4 8" Woofer 4 Ohm

20 cm (8") woofer with very good price/performance ratio. Suitable for simple 2-way speakers and car rear tray systems. Especially suited as replacement driver for many HiFi speakers.

.

Highlights

• Good Price/Performance ratio
• Great replacement driver for sealed speaker cabinets
• Foam surround and ribbed paper cone for a classic sound

.

Product Details

Visaton W 200 8" Woofer 4 Ohm

Visaton's W 200 8" woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround and ribbed, treated paper cone offer longevity while capturing that classic sound from the golden era of loudspeakers.

A healthy ±10 mm excursion limit allows this driver to pump out some serious bass in many different sized sealed, acoustic suspension cabinets. A smooth frequency response makes for easy integration with many different tweeters.

Technical Specifications

• Article number W 200 - 4
• Woofer Series W Series
• Woofer Type Midwoofer
• Nominal Diameter 8"
• Power Handling (RMS) 50 Watts
• Power Handling (max) 80 Watts
• Impedance (Z) 4 ohms
• Sensitivity (SPL at 1m / 2.83V) 91 dB
• Voice Coil Diameter 25 mm
• DC Resistance (Re) 3.2 ohms
• Voice Coil Inductance (Le) 0.5 mH
• Resonant Frequency (Fs) 45 Hz
• Mechanical Q (Qms) 3.46
• Electromagnetic Q (Qes) 0.77
• Total Q (Qts) 0.63
• Diaphragm Mass Inc. Airload (Mms) 14g
• Surface Area of Cone (Sd) 207 cm2
• BL Product (BL) 4.2 Tm
• Compliance Equivalent Volume (Vas) 54 liters
• Maximum Linear Excursion (Xmax) 2 mm
• Cone / Diaphragm Material Treated Paper
• Surround Material Foam
• Overall Outside Diameter 206 mm
• Overall Depth 87 mm
• Baffle Cutout
• Diameter 185 mm
• Bolt Circle Diameter 197 mm
• # Mounting Holes 4
• Mounting Hole Diameter 5 mm
