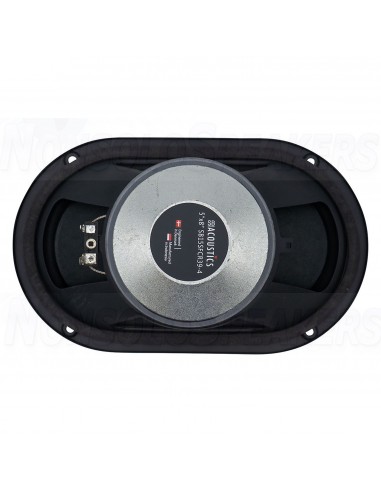

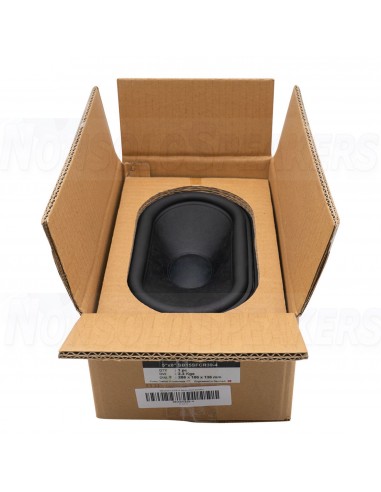

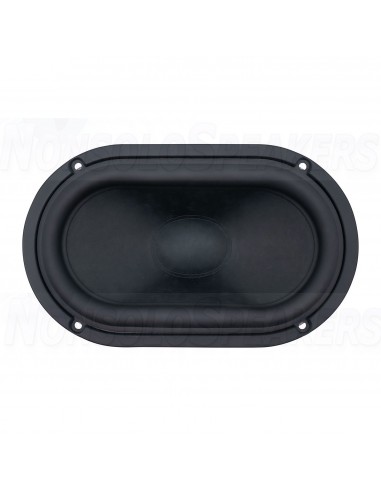

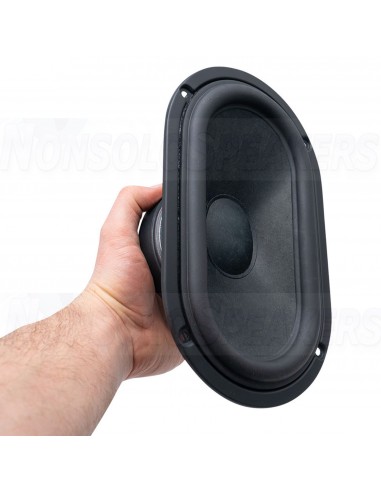

SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer
SB Acoustics SB15SFCR39-8 Bass-mid woofer

SB Acoustics SB15SFCR39-8 Bass-mid woofer

SB Acoustics SB15SFCR39-8 Bass-mid woofer

Racetrack design. Hard paper cone (made in-house). Optimized motor system. Non-conductive reinforced vented coil former. Symmetric suspension. Low damping rubber surround. Long-life silver lead wires. Vented chassis

.

SHIPMENT IN 7/10 WORKING DAYS
€45.08 €47.45 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB15SFCR39-8 Bass-mid woofer

-

Product description

Racetrack design

Hard paper cone (made in-house)

Optimized motor system

Non-conductive reinforced vented coil former

Symmetric suspension

Low damping rubber surround

Long life silver lead wires

Vented chassis

.

Product Details

SB Acoustics SB15SFCR39-8 Bass-mid woofer

Racetrack design. Hard paper cone (made in-house). Optimized motor system. Non-conductive reinforced vented coil former. Symmetric suspension. Low damping rubber surround. Long-life silver lead wires. Vented chassis

.

Specifications

Article numberSB15SFCR39-8
Woofer TypeMidwoofer
Nominal Diameter5x8"
Power Handling (RMS)50 W
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Voice Coil Diameter38,5 mm
DC Resistance (Re)6,2 Ohm
Voice Coil Inductance (Le)1,3 mH
Resonant Frequency (Fs)32 Hz
Mechanical Q (Qms)7.11
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.42
Diaphragm Mass Inc. Airload (Mms)23 g
Surface Area of Cone (Sd)178 cm2
BL Product (BL)8,0 N/A
Compliance Equivalent Volume (Vas)48,3 l
Maximum Linear Excursion (Xmax)5 mm
Overall Outside Diameter219,3 x 120,6 mm

SB15SFCR39-8
