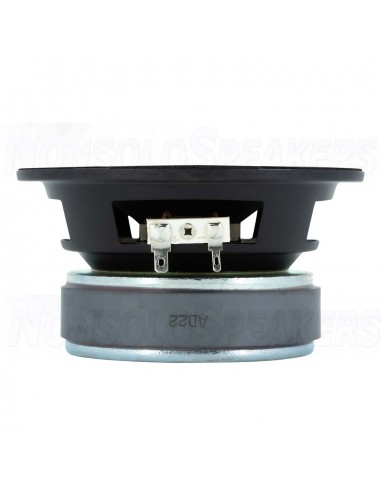

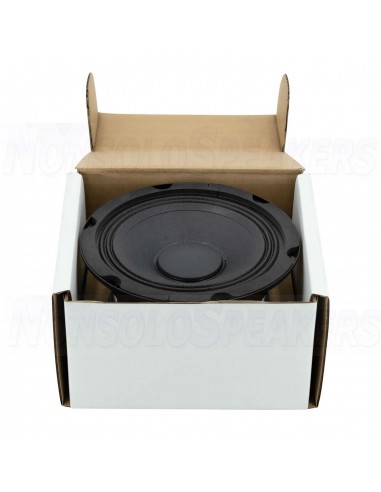

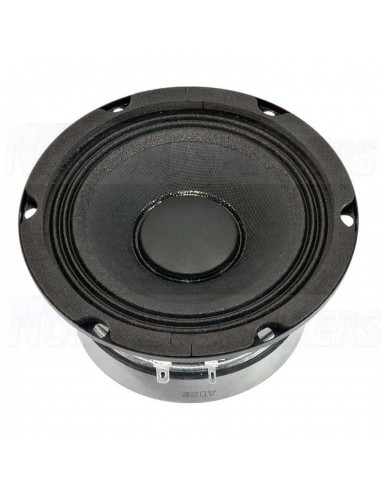

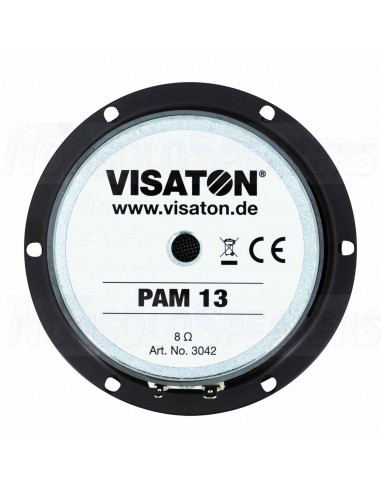

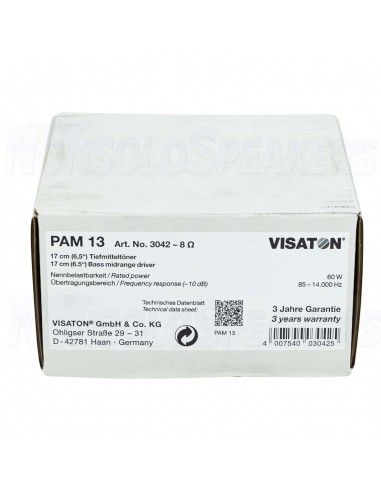

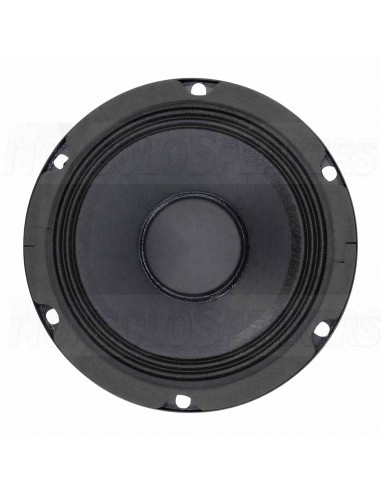

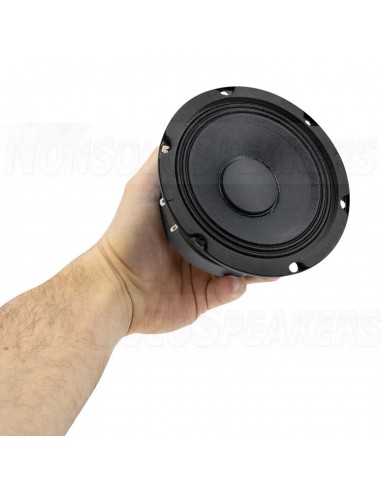

Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer
Visaton PAM 13 5'' Bass-mid Woofer

Visaton PAM 13 5'' Bass-mid Woofer

Visaton PAM 13 5'' Bass-mid Woofer

13 cm (5") Midrange driver for PA systems.

SHIPMENT IN 5-7 WORKING DAYS
€79.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton PAM 13 5'' Bass-mid Woofer

13 cm (5") Midrange driver for PA systems.

.

Highlights

  • large ferrite magnet
  • High efficiency
  • Paper membrane fabric surround

.

Product Details

Visaton PAM 13 Bass-mid Woofer

The Visaton PAM 13 is a 13 cm (5") midrange driver for PA systems. It has a large ferrite magnet and a high efficiency. The membrane is made of paper and it has a fabric surround1. It has an impedance of 8 Ohms, a frequency range of 85 Hz ~ 15 kHz, and a rated power of 60 W.

.

Technical Data

  • Article number PAM 13
  • Woofer Type Bass-mid
  • Woofer Nominal Diameter 5"
  • Power Handling (RMS) 60 Watt
  • Impedance (Z) 8 Ohm
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 85-15.000 Hz
  • Voice Coil Diameter 38 mm
  • Resonant Frequency (Fs) 135 Hz
  • Overall Depth 69 mm
  • Baffle Cutout Diameter 115 mm
  • # Mounting Holes 6Mounting Hole Diameter 5.5 mm

Visaton PAM 13
