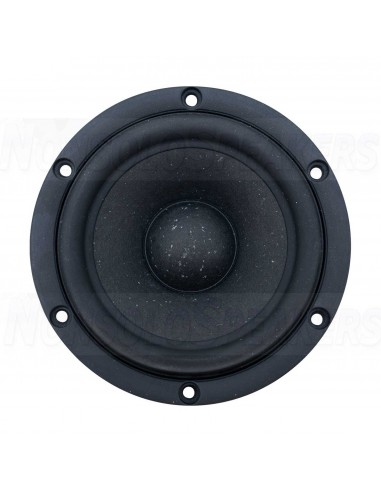

SB ACOUSTICS SATORI MW13P-8  5" Midwoofer

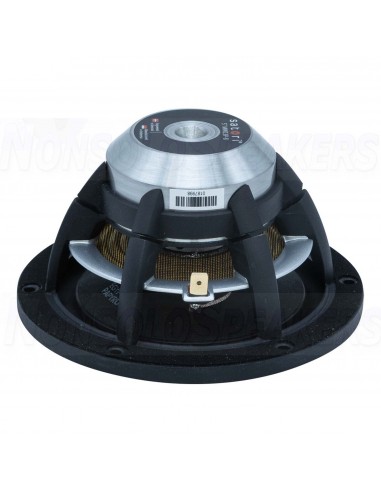

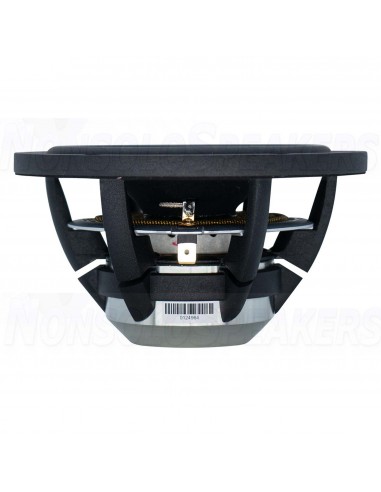

Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house. Soft low damping rubber surround for optimum transient response.

SHIPMENT IN 7-10 WORKING DAYS
€159.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SATORI MW13P-8  5" Midwoofer

.

Product description

Vented aerodynamic cast aluminum chassis for optimum strength and low compression

Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house

Soft low damping rubber surround for optimum transient response

Advanced BIMAX spider for improved linearity

Powerful optimized low distortion neodymium motor system

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and reduced distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires attached 180° apart for improved stability

Vented pole piece and coil former for reduced compression

High piston to chassis diameter ratio

Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

.

Product details

SB Acoustics Satori MW13P-8 5" Egyptian Papyrus Cone Woofer

Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

.

Specifications

Article numberMW13P-8
Woofer SeriesSatori
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)40 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
Voice Coil Diameter1.2"
DC Resistance (Re)6 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)41.5 Hz
Mechanical Q (Qms)3.55
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.3
Diaphragm Mass Inc. Airload (Mms)6.8 g
Mechanical Compliance of Suspension (Cms)2.16 mm/N
Surface Area of Cone (Sd)70 cm2
BL Product (BL)5.7 Tm
Compliance Equivalent Volume (Vas)0.52 ft.³
Maximum Linear Excursion (Xmax)5 mm
