SEAS Excel M15CH002 - E0043-06S 5" Nextel Cone Midrange Woofer
.
Product description
Long term power handling (RMS) is 70 Watts
HEXADYM magnet system of acoustically transparent design to avoid cavity resonances and air flow noise
Reduced non linear and modulation distortion
-
Product details

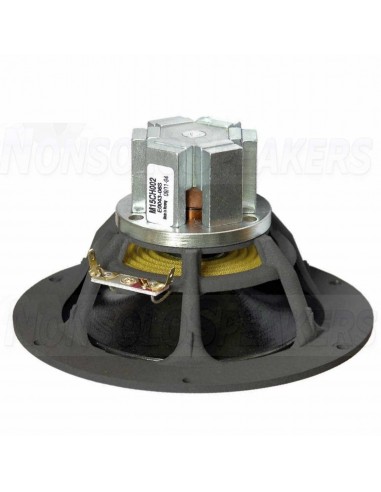

The M15CH002 is a 15cm (5”) cone midrange driver capable of a most neutral, transparent sound reproduction. The low distortion and noise generated by this driver set a new standard for midrange units. A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion resulting in low coloration in the critical midband.
Patented HEXADYM magnet system of acoustically transparent design to avoid cavity resonances and air flow noise. The magnet system based on 6 small, radially magnetized neodymium blocks is compact in order to reduce the reflexion of sound energy to a minimum. Heavy copper rings mounted above and below the T-shaped pole piece to reduce non linear and modulation distortion and to increase overload margin. A chrome plated brass phase plug enhance the performance of the copper rings and improve heat conduction away from the pole piece.
An extremely stiff and stable injection molded metal basket to keep the critical components in perfect alignment. Large windows in the basket both above and below the spider to reduce sound reflexion, air flow noise and cavity resonance to a minimum.
.
Specifications
Article numberM15CH002
Woofer SeriesExcel Series
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)70 Watts
Power Handling (max)200 Watts
Impedance (Z)6 ohms
Sensitivity (SPL)88.5 dB 2.83V/1m
Frequency Response60 to 3,500 Hz
Voice Coil Diameter1.02"
Magnet Weight2.11 oz.
DC Resistance (Re)4.9 ohms
Voice Coil Inductance (Le)0.43 mH
Resonant Frequency (Fs)67 Hz
Mechanical Q (Qms)1.7
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.4
Diaphragm Mass Inc. Airload (Mms)6.75g
Mechanical Compliance of Suspension (Cms)0.8 mm/N
Compliance Equivalent Volume (Vas)0.21 ft.³
Maximum Linear Excursion (Xmax)3 mm
