The SB Acoustics SB13PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers.

SHIPMENT IN 7/10 WORKING DAYS
€109.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB15CRC30-8 Bass-midwoofer

.

Product description

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

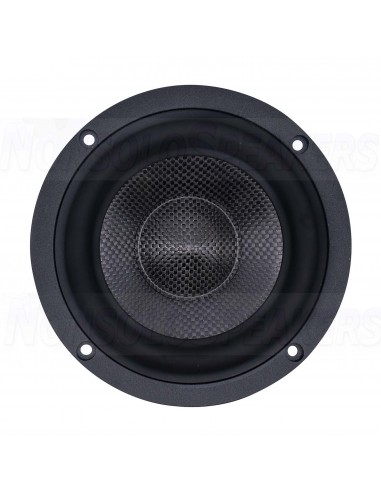

SB Acoustics SB15CRC30-8 5" Woofer

Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping.

.

Specifications

Article numberSB15CRC30-8
Woofer SeriesCRC Series
Nominal Diameter5"
Power Handling (RMS)50 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)86 dB
Voice Coil Diameter30.5 mm
Magnet Weight0.54 kg
DC Resistance (Re)5.9 Ω
Voice Coil Inductance (Le)0.14 mH
Resonant Frequency (Fs)40 Hz
Mechanical Q (Qms)3.51
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.41
Diaphragm Mass Inc. Airload (Mms)9.7 g
Mechanical Compliance of Suspension (Cms)1.60 mm/N
Surface Area of Cone (Sd)82 cm²
Compliance Equivalent Volume (Vas)14.9 liters
Maximum Linear Excursion (Xmax)5.5 mm
Driver's Mechanical Losses (Rms)0.7 kg/s
Cone / Diaphragm MaterialRohacell®/Carbon fibre sandwich cone
# Mounting Holes4
SB15CRC30-8
