Wavecor WF152CU13 bass midrange 8 ohm
Wavecor WF152CU13 bass midrange 8 ohm

Wavecor WF152CU13 bass midrange 8 ohm

Wavecor WF152CU13  bass midrange 8 ohm

SHIPMENT IN 5-7 WORKING DAYS
€181.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like

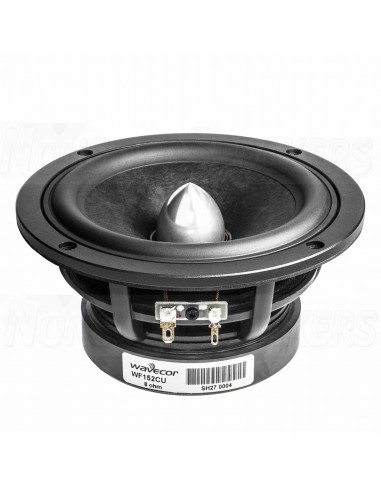

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,6 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 7,7 N/A
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 12,2 g
  • equivalent volume of compliance Vas = 9,4 l
  • total Q factor Qts = 0,42 (Qms=10,5, Qes=0,44)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm

recommended cabinet 1:
closed cabinet with 3,1 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
12,2 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 47/39 Hz (-3dB/-8dB).
