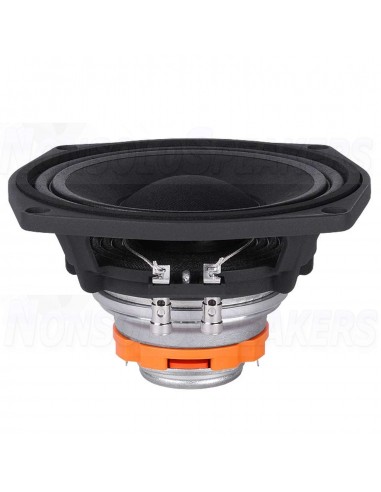

FAITAL 6HX150 - Coaxial 6" Neodimio - 8ohm
FAITAL 6HX150 - Coaxial 6" Neodimio - 8ohm

FAITAL 6HX150 - Coaxial 6" Neodimio - 8ohm

FAITAL 6HX150 - Coaxial 6" Neodimio - 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€251.75 €265.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



FAITAL 6HX150 - Coaxial 6" Neodimio - 8ohm

NOMINAL SPECIFICATIONS

Nom. Diameter 160 mm (6 in)
Overall Diameter 186.5/162 mm (7.34/6.37 in)
Bolt Circle Diameter 172 mm (6.77 in)
Baffle Cutout Diameter 147 mm (5.79 in)
Depth 95 mm (3.74 in)
Flange and Gasket Thickness 9.3 mm (0.37 in)
Net Weight 1.3 Kg (2.9 lb)
Shipping Box
(Single Carton Box)		 202 x 202 x 134 mm
(8.0 x 8.0 x 5.3 in)
Shipping Weight 2.8 Kg (6.2 lb)

TECHNICAL PARAMETERS { LF } { HF }
Nom. Impedance 8 Ohm 8 Ohm
Minimum Impedance 6 Ohm 6.3 Ohm
AES Power Handling (1) 150 W 15 W
Max Power Handling (2) 300 W 30 W
Sensitivity (1W/1m) (3) 93 dB 104 dB
Frequency Range 90÷5000 Hz 1500÷18000 Hz
Voice Coil Diameter 52 mm (2 in) 25 mm (1 in)
Winding Material Cu Al
Former Material Glass Fiber Kapton
Winding Depth 10.7 mm (0.42 in) 1.7 mm (0.07 in)
Magnetic Gap Depth 6 mm (0.24 in) 2 mm (0.08 in)
Flux Density 1.35 T 1.3 T
Min. Cross. Freq. (4) - 1.7 Hz
Dispersion Angle - 90°
Diaphragm Material - Ketone Polymer
Diaphragm Shape - Dome
Magnet Neodymium Ring Neodymium Ring
Basket Material Aluminum -
Demodulation Aluminum Ring -
Cone Surround (5) Half Roll -
NET Air Volume filled by Loudspeaker 0.6 dm^3 (0.021 ft^3) -
Spider Profile 1x constant height waves -

THIELE AND SMALL PARAMETERS { LF }

Fs 88 Hz
Re [LF] 5.5 Ohm
Re [HF] 6 Ohm
Qes 0.35
Qms 8.3
Qts 0.34
Vas 6.3 dm^3 (0.22 ft^3)
Sd 139.2 cm^2 (21.58 in^2)
Xmax (6) 4.35 mm
Xdamage (7) 10.15 mm
Mms 14 g
Bl 12 N/A
Le 0.64 mH
Mmd 12.1 g
Cms 0.23 mm/N
Rms 0.9 Kg/s
Eta Zero 1.41 %
EBP 251 Hz



6HX150
