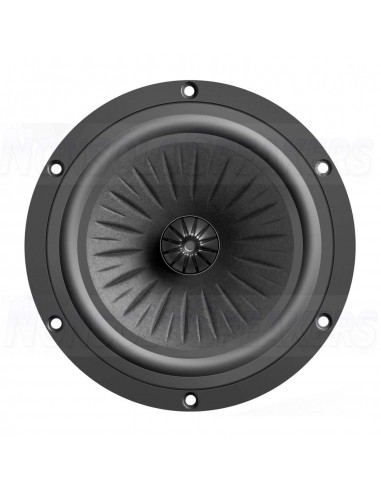

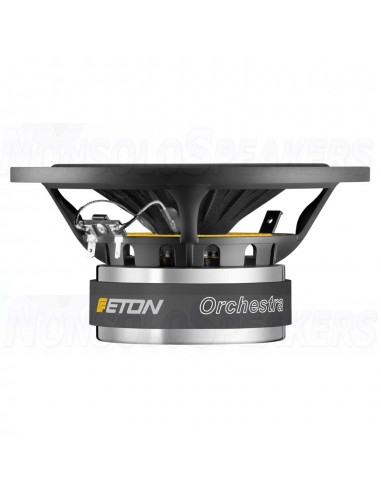

ETON 8-212/C8/37 HEX Bass-mid Woofer
ETON 8-212/C8/37 HEX Bass-mid Woofer
ETON 8-212/C8/37 HEX Bass-mid Woofer
ETON 8-212/C8/37 HEX Bass-mid Woofer
ETON 8-212/C8/37 HEX Bass-mid Woofer
ETON 8-212/C8/37 HEX Bass-mid Woofer

ETON 8-212/C8/37 HEX Bass-mid Woofer

ETON 8-212/C8/37 HEX Bass-mid Woofer

8“ Bass-Mid range driver for multiple usage, 3-layer Hexacone Sandwich cone, equipped with a solid bass-base, fast and crispy bass reproduction, high dynamic reproduction also at lower mid-frequency range.

SHIPMENT IN 7/10 WORKING DAYS
€187.95 €199.95 -6%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 8-212/C8/37 HEX Bass-mid Woofer

8“ Bass-Mid range driver for multiple usage, 3-layer Hexacone Sandwich cone, equipped with a solid bass-base, fast and crispy bass reproduction, high dynamic reproduction also at lower mid-frequency range.

.

Highlights

  • Uncompromising sound quality
  • Uncolored sound reproduction
  • Frequency range: 40 – 2000 Hz
  • Symphony II series: unique in sound and design

.

Product details

ETON Symphony II 3-312/C8/25 HEX Bass-mid Woofer
The Hex Symphony II Series is the logical development of our successful patented Symphony I Series. All of ETON’s expertise has been poured into the development of the Symphony Series. For the first time, the specially patented production process enabled the three-layered sandwich type of construction in combination with aramid fibres and their hexagonal internal structure. Maximum rigidity and excellent internal absorbing action are therefore guaranteed.
The manually applied coating also supports neutral cone behaviour and provides the surface with visual depth. The Symphony II midrange drivers and woofers create unique sound spectrums typical of Hex. The sound features are harmonic, smooth reflections of the overtones and distinctive, light midranges. A precise and powerful bass is created in the woofer range. All Symphony II chassis are characterized by a high degree of musical imaging and an impressive soundscape.
The ferrite magnet geometry’s special design makes the magnetic field almost perfectly symmetrical. Multiple ventilation and the flow-supporting cast basket guarantees minimum compression effects at large amplitudes.
.
.

Technical Specifications

  • Terminal 2,8/4,8 mm
  • Screw holes diameter 5,3/9 mm
  • Frame depth 7,8 mm
  • Overall depth 108,3 mm
  • Cutout diameter 190 mm
  • Weight 2,23 kg
  • Overall diameter 223 mm
  • Layers 2 Former material
  • Kapton Wire material Cu
  • Diameter 37 mm
  • DC resistance Re 5,5 Ω
  • Mechanical resistance RMS 0,6 kg/s
  • Effective piston area SD 222 cm2
  • Electrical Q Qes 0,32
  • Force factor BLxl 9 Tm
  • Rated power Watt 120 W
  • Suspension compliance CMS 1,15 mm/N
  • Total Q Qts 0,31
  • Total moving mass (incl. air mass) MMD 30,7 g
  • Voice coil inductance Le 0,78 mH
  • Resonance frequency TSP fr 28 Hz
  • Resonance frequency 1W fr 27 Hz
  • Characteristic SPL 1W/1m SPL 91 dB
  • Equivalent volume VAS 80 dm3
  • Nominal impedance Zn 8 Ω
  • Xmax mechanical +/- 14,2 mm
  • Mechanical Q Qms 9,31
  • Xmax electrical +/- 4 mm
  • Motor type Overhung Ferrofluid no/nein
  • Dimensions 102 x 46 mm
  • Height of air gap 8 mm
  • Height 16 mm
  • Material Ferrite/Ferrit Flux density 1 T
  • Recommended frequency range 40 - 2000 Hz
