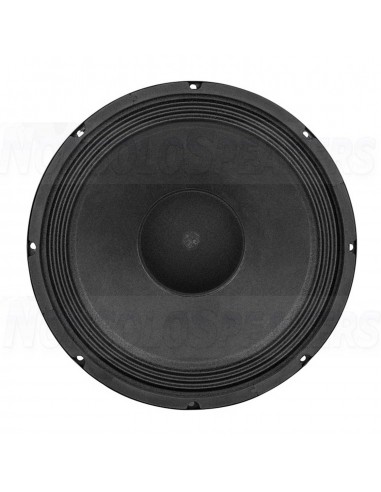

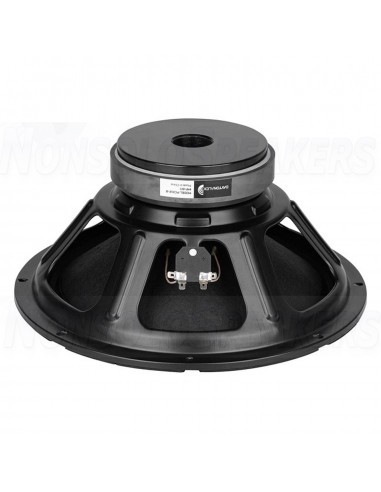

Dayton Audio PCX12-8 Coaxial Woofer

.

Product description

The PCX12-8 is highly versatile and can be used in car audio and home theater, while also performing as expected in PA and live audio configurations thanks to its coaxial design. The flat response up to the crossover point makes it easy to pair with your favorite compression driver for reliable and predictable performance out in the field.

.

Highlights

1-3/8"-18 TPI mount is compatible with many popular horn drivers

Perfect form factor for creating ultra compact monitors

Point source design delivers equal off axis response in all directions for great dispersion

Screened dustcap provides protection for your horn driver

.

Product Details

Dayton Audio PCX12-8 12" Pro Coaxial Woofer

This 200-watt woofer will cruise, distortion-free in low power applications. The PCX12-8 is highly versatile and can be used in car audio and home theater, while also performing as expected in PA and live audio configurations thanks to its coaxial design. The flat response up to the crossover point makes it easy to pair with your favorite compression driver for reliable and predictable performance out in the field.

When using a coaxial driver in a design, the outputs of each driver appear as a single point in space. This lends itself well to many uses in the home audio and car audio spaces with the ability to use compact and low-profile enclosures when space is at a premium. A QTS value of 0.53 is in the perfect sweet spot to work well in both vented and sealed cabinets. When combined with the nearly endless selection of horn drivers available right now, the PCX12-8 enables you to truly personalize your sound!

.

Specifications

Article number PCX12-8

Woofer Series PCX

Woofer Type Coaxial Woofer

Nominal Diameter 12"

Power Handling (RMS) 200 Watts

Power Handling (max) 400 Watts

Impedance (Z) 8Ω

Sensitivity 95.5 dB 2.83V/1m

Frequency Response 50Hz - 5KHz

Voice Coil Diameter 2"

DC Resistance (Re) 6.96Ω

Voice Coil Inductance (Le) 1.19mH

Resonant Frequency (Fs) 40.5Hz

Mechanical Q (Qms) 10.5

Electromagnetic Q (Qes) 0.59

Total Q (Qts) 0.56

Surface Area of Cone (Sd) 510.71cm²

BL Product (BL) 9.69T·m

Maximum Linear Excursion (Xmax) 2mm

Baffle Cutout Diameter 11.02".
