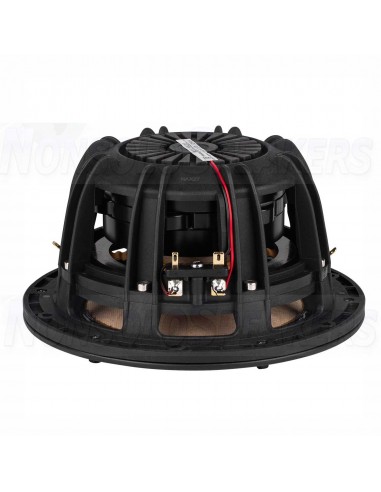

Tang Band's W6-2313 is an incredible 6.5" bamboo fiber woofer paired with a 1" hi-res tweeter in its center. The tweeter features an aluminum and magnesium blended dome that plays up to 40,000 Hz! This coaxial will produce an extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs.

Out-of-Stock
€199.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W6-2313 - Coaxial 6.5" TB Speaker - 4 ohm

.

The Tang Band W6-2313 is a full-range coaxial loudspeaker providing high quality sound in a very compact format. The woofer features a 6" bamboo fiber cone that offers a nice balance between rigidity, low mass and damping. An underhung neodymium motor design allows this driver to remain extremely linear and relatively distortion-free throughout its intended bandwidth.

The 1" tweeter features an aluminum and magnesium blended dome, as well as a rear chamber that allows it to play from 800 to 40,000 Hz! In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with many of the BIG brand coaxial drivers.

.

Product Details

  • Brand Tang Band
  • Model W6-2313
  • Part Number 264-9002
  • UPC 848864053561
  • Unit of Measure Each
  • Weight 5.1

.

Product Specifications

  • Nominal Diameter 6-1/2"
  • Bolt Circle Diameter 6.38
  • Moving Mass Of Diaphragm (Mmd) 24.95
  • Power Handling (RMS) 45 Watts
  • Power Handling (MAX) 90 Watts
  • Impedance 4Ω
  • Frequency Response 50 to 40,000Hz
  • Sensitivity 87dB 2.83V/1m
  • Voice Coil Diameter 1.75"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 50Hz
  • DC Resistance (Re) 3.6Ω
  • Voice Coil Inductance (Le) 0.02mH
  • Mechanical Q (Qms) 6.02
  • Electromagnetic Q (Qes) 0.41
  • Total Q (Qts) 0.38
  • Compliance Equivalent Volume (Vas) 0.38ft³
  • Mechanical Compliance of Suspension (Cms) 0.38mm/N
  • BL Product (BL) 8.41T·m
  • Maximum Linear Excursion (Xmax) 4mm
  • Surface Area of Cone (Sd) 25.67cm²

.

Materials of Construction

  • Cone Material Bamboo Fiber / Paper
  • Surround Material Rubber
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium

.

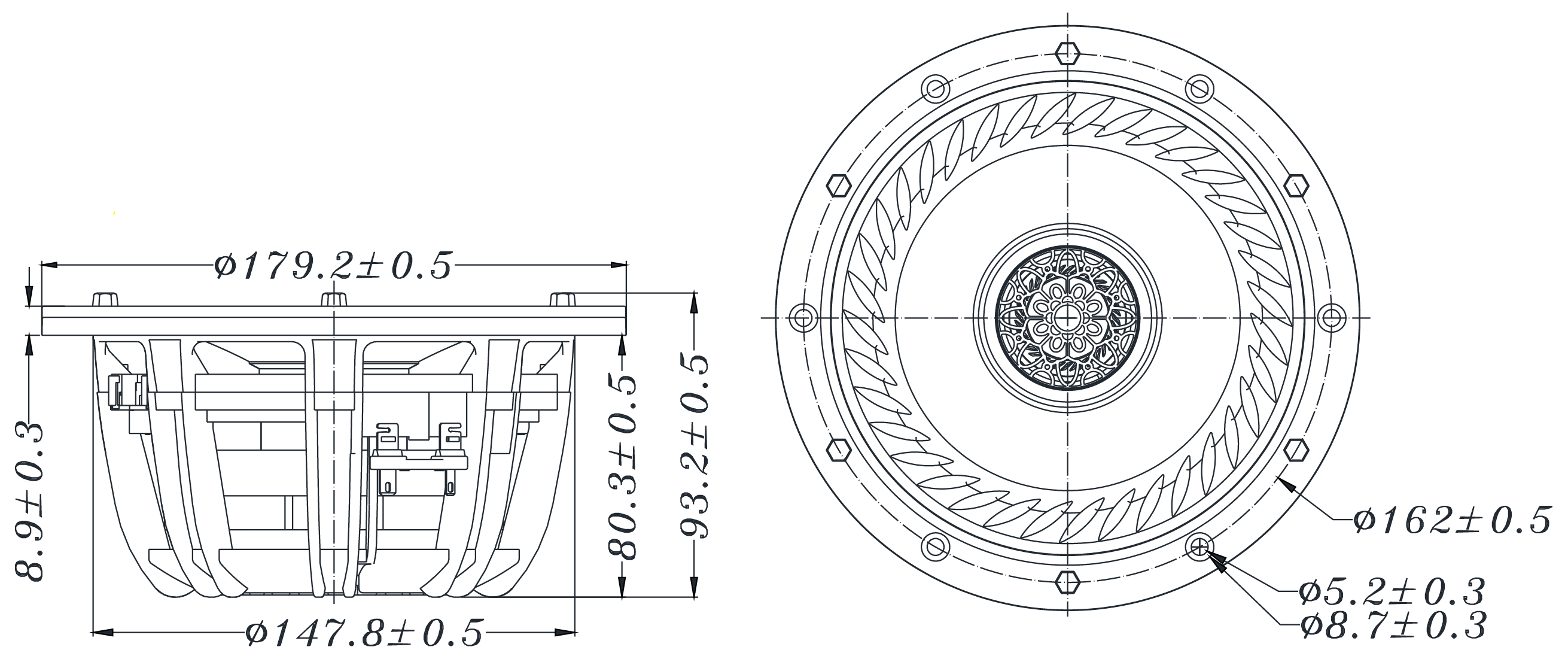

Mounting Information

  • Overall Outside Diameter 7.06"
  • Baffle Cutout Diameter 5.82"
  • Depth 3.16"
  • # Mounting Holes 6

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.0645ft³
  • Sealed F3 122.7Hz
  • Vented Volume 0.263ft³
  • Vented F3 57.16Hz

.

.
