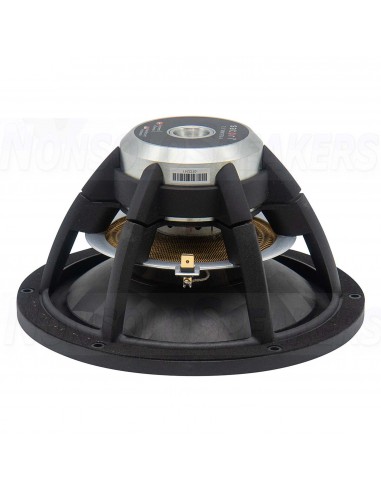

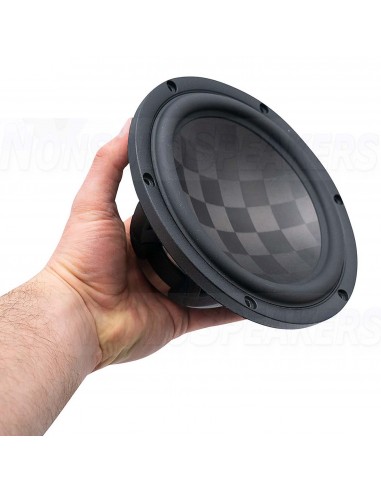

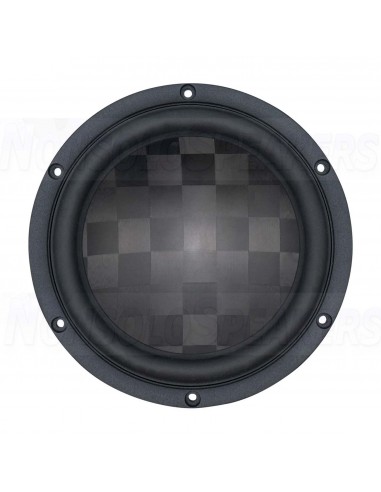

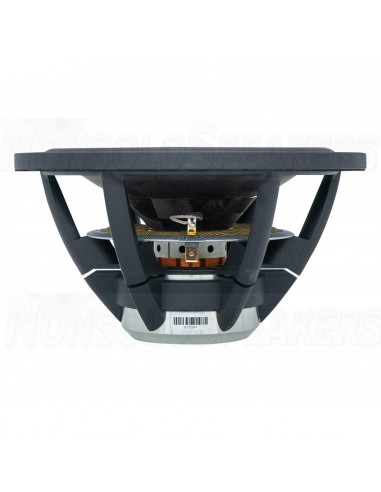

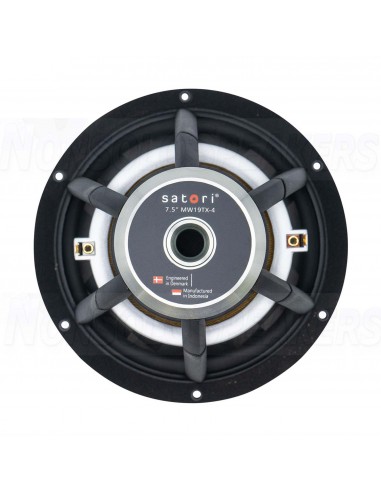

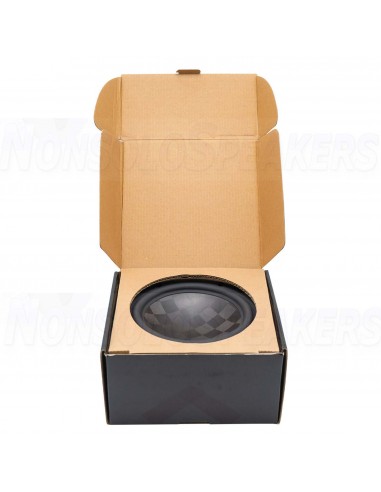

SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer
SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer

SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer

SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer

Powerful optimized low distortion neodymium motor system. Extended copper sleeve on pole piece. Non-conducting fibreglass voice coil former. Vented pole piece and voice coil. Lightweight CCAW voice coil. Long-life silver lead wires.

SHIPMENT IN 7/10 WORKING DAYS
€322.05 €339.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori MW19TX-8 TeXtreme Midwoofer

.

Product description

Advanced TeXtreme® cone

Vented aerodynamic cast aluminium chassis

Soft low damping rubber surround

Advanced BIMAX spider

.

Product Details

SB Acoustics Satori MW19TX-8 7.5″ TeXtreme Midwoofer

Powerful optimized low distortion neodymium motor system. Extended copper sleeve on pole piece. Non-conducting fibreglass voice coil former. Vented pole piece and voice coil. Lightweight CCAW voice coil. Long-life silver lead wires.

.

Specifications

Article numberMW19TX-8
Woofer SeriesSatori TeXtreme
Woofer TypeMidwoofer
Nominal Diameter7.5"
Power Handling (RMS)70 W
Power Handling (max)70 W
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)93 dB
Magnet Weight0.15 kg
Voice Coil Inductance (Le)0.20 mH
Resonant Frequency (Fs)33 Hz
Mechanical Q (Qms)6.47
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Diaphragm Mass Inc. Airload (Mms)15.6 g
Mechanical Compliance of Suspension (Cms)1.52 mm/N
Surface Area of Cone (Sd)158 cm2
BL Product (BL)7.5 Tm
Compliance Equivalent Volume (Vas)53.4 liters
Maximum Linear Excursion (Xmax)6.7 mm
Driver's Mechanical Losses (Rms)0.5 kg/s
MW19TX-8
