SHIPMENT IN 5-7 WORKING DAYS
€158.45
Tax included
rating No review at the moment

Visaton GF 200 8" High-End Woofer 2x4 Ohm

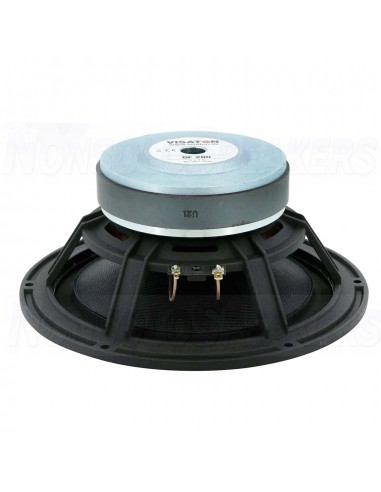

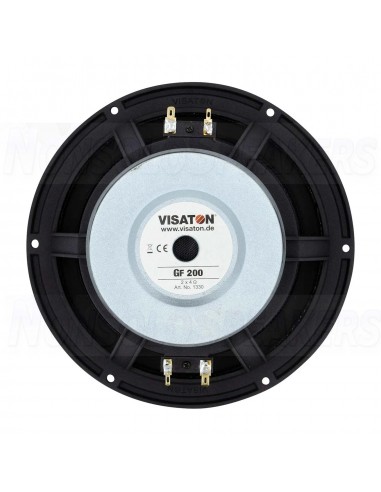

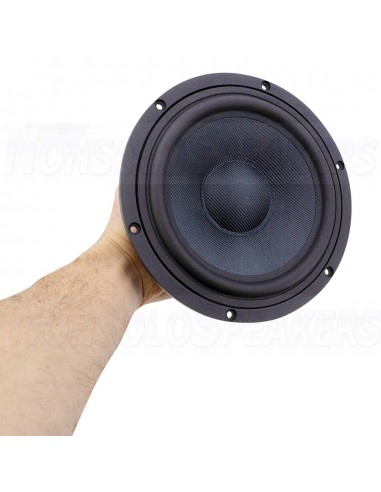

20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton GF 200 8" High-End Woofer 2x4 Ohm

20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround.

.

Highlights

  • Multi-purpose applications due to dual voice coil
  • Long stroke voice coil
  • Fiberglass cone

.

Product Details

Visaton GF 200 8" High-End Midrange Driver 2x4 Ohm

Designed for multi-purpose applications due to 2x4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The longstroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling.

.

Technical Specifications

  • Article number GF 200
  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 8"
  • Power Handling (RMS) 120 watts
  • Power Handling (max) 180 watts
  • Impedance (Z) 2x4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 30 - 4,000 Hz
  • Voice Coil Diameter 38 mm
  • DC Resistance (Re) 1.4 - 5.8 ohms
  • Voice Coil Inductance (Le) 0.3 - 1.1 mH
  • Resonant Frequency (Fs) 30 Hz
  • Mechanical Q (Qms) 4.12 - 4.51
  • Electromagnetic Q (Qes) 0.37 - 0.93
  • Total Q (Qts) 0.77
  • Moving Mass Of Diaphragm (Mmd) 25g
  • Surface Area of Cone (Sd) 214 cm2
  • BL Product (BL) 4.6 - 9.2 Tm
  • Compliance Equivalent Volume (Vas) 57 - 68 liters
  • Maximum Linear Excursion (Xmax) 6 mm
  • Cone / Diaphragm Material Fiberglass
  • Surround Material Rubber
  • Voice Coil Former Kapton
  • Dual Voice Coil Yes Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 222 mm
  • Overall Depth 96 mm
  • Baffle Cutout Diameter 190 mm
  • Bolt Circle Diameter 210 mm
  • # Mounting Holes 6
  • Mounting Hole Diameter 5 mm
