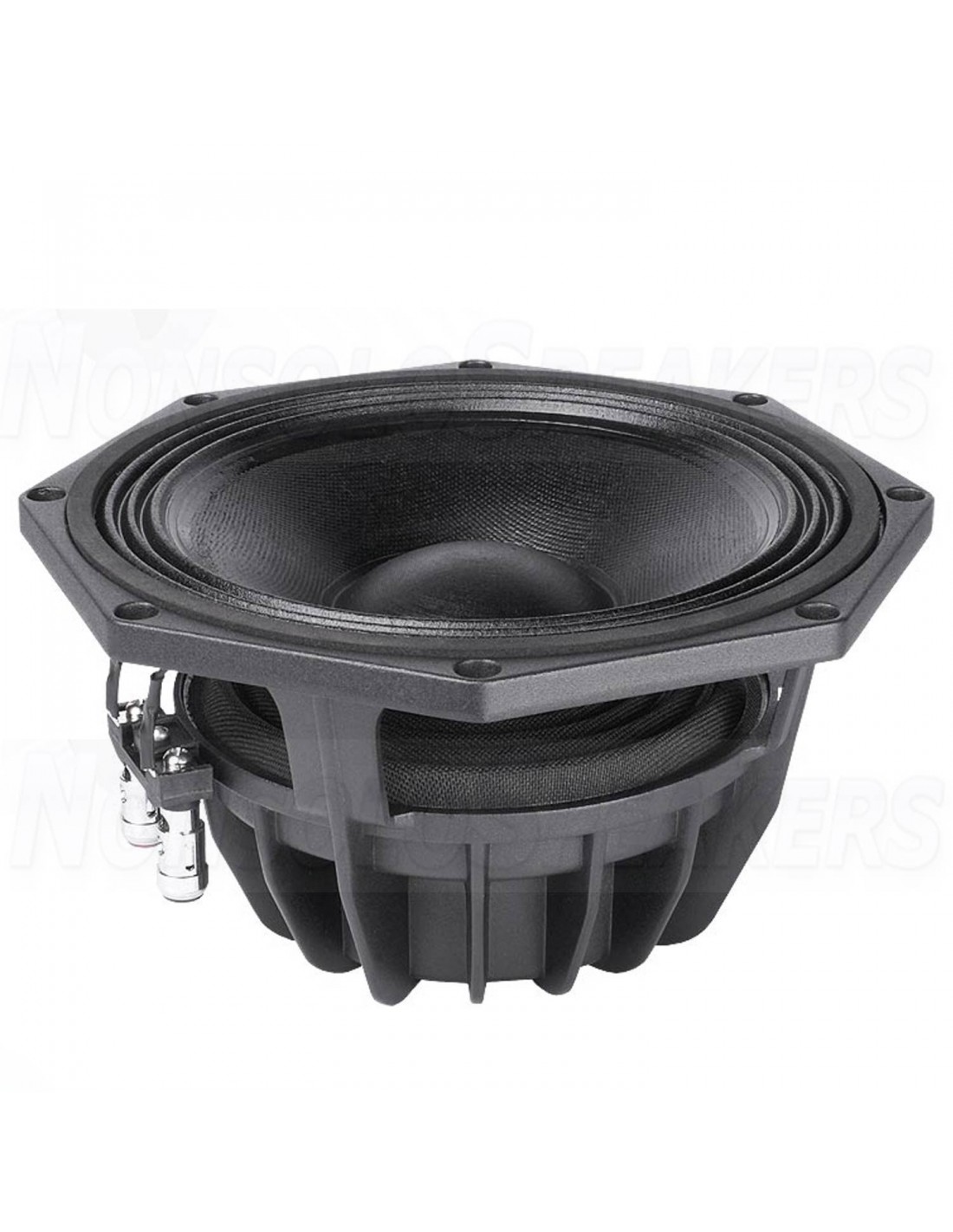

Faital 8PR200 - Midrange 8" Ferrite - 8ohm
Faital 8PR200 - Midrange 8" Ferrite - 8ohm

Faital 8PR200 - Midrange 8" Ferrite - 8ohm

Faital 8PR200 - Midrange 8"  Ferrite - 8ohm

SHIPMENT IN 5-7 WORKING DAYS
€177.65 €187.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 8PR200 - Midrange 8"  Ferrite - 8ohm

NOMINAL SPECIFICATIONS

Nominal Diameter 200 mm (8 in)
Overall Diameter 223.75/207.9 mm (8.81/8.18 in)
Bolt Circle Diameter 210 mm (8.27 in)
Baffle Cutout Diameter 183 mm (7.20 in)
Depth 116.7 mm (4.59 in)
Flange and Gasket Thickness 10.7 mm (0.42 in)
Net Weight 2.1 Kg (4.6 lb)
Shipping Box
(Single Carton Box)		 235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in)
Shipping Weight 2.5 Kg (5.5 lb)



TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 6.4 Ohm
AES Power Handling (1) 200 W
Maximum Power Handling (2) 400 W
Sensitivity (1W/1m) 95 dB
Frequency Range 70÷5000 Hz
Voice Coil Diameter 52 mm (2 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 19.3 mm (0.76 in)
Magnetic Gap Depth 9 mm (0.35 in)
Flux Density 1.15 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 1 dm^3 (0.035 ft^3)
Spider Profile 1x variable height waves


QUICK ACOUSTIC SPECS

Nominal Impedance 8 Ohm
Minimum Impedance 6.4 Ohm
AES Power Handling (1) 200 W
Sensitivity (1W/1m) 95 dB
Frequency Range 70÷5000 Hz
Flux Density 1.15 T
Magnet Neodymium Ring
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 58 Hz
Re 5.1 Ohm
Qes 0.38
Qms 9.4
Qts 0.37
Vas 16.9 dm^3 (0.60 ft^3)
Sd 209 cm^2 (32.40 in^2)
Xmax (3) 8.15 mm
Xdamage (4) 13.5 mm
Mms 27.2 g
Bl 11.5 N/A
Le 0.55 mH
Mmd 23.8 g
Cms 0.28 mm/N
Rms 1.1 Kg/s
Eta Zero 0.84 %
EBP 153 Hz


QUICK MECHANICAL SPECS

Nominal Diameter 200 mm (8 in)
Overall Diameter 223.75/207.9 mm (8.81/8.18 in)
Bolt Circle Diameter 210 mm (8.27 in)
Baffle Cutout Diameter 183 mm (7.20 in)
Depth 116.7 mm (4.59 in)
Flange and Gasket Thickness 10.7 mm (0.42 in)
Net Weight 2.1 Kg (4.6 lb)
Shipping Box
(Single Carton Box)		 235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in)
Shipping Weight 2.5 Kg (5.5 lb)
8PR200
