20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling.

SHIPMENT IN 5-7 WORKING DAYS
€64.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 200 S - 8 8" HiFi Woofer 8 Ohm

20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling.

.

Highlights

  • High-value HiFi woofer
  • Super-low 30 Hz Fs and 0.33 Qts specifications
  • Deep bass in a moderate-sized enclosure

.

Product Details

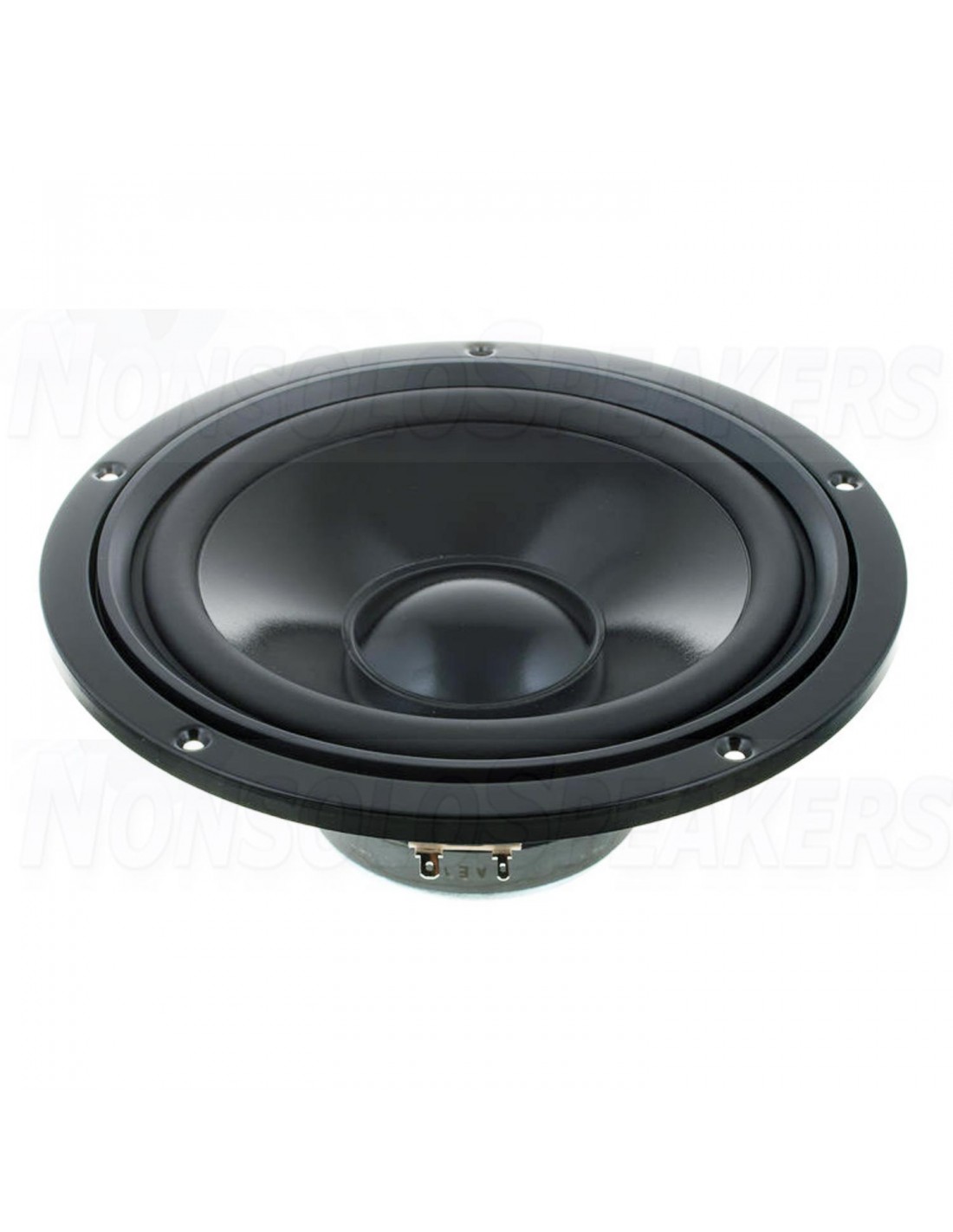

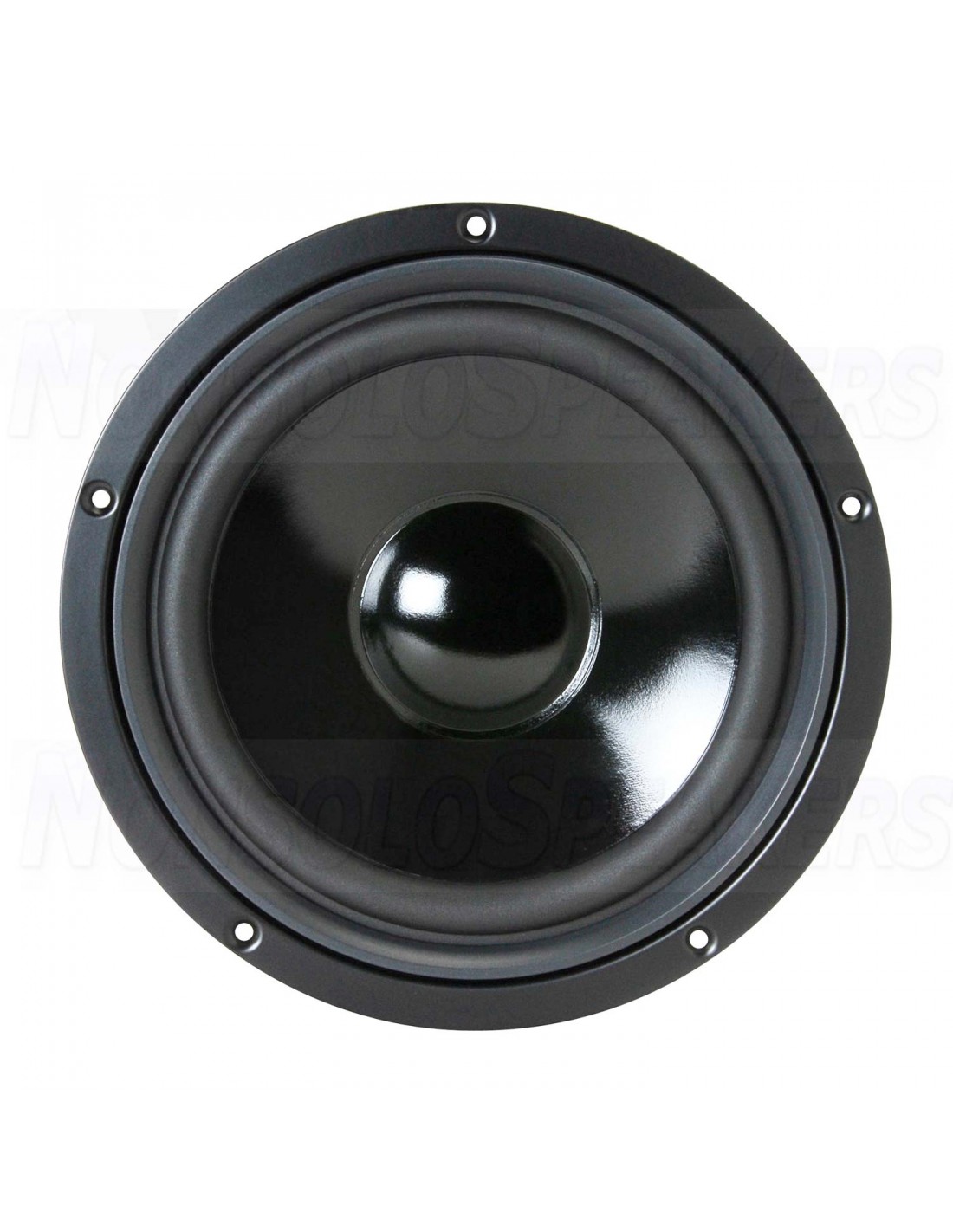

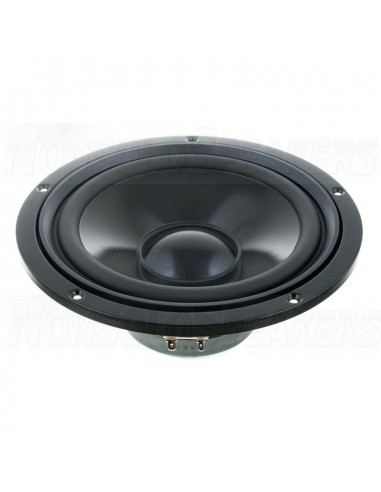

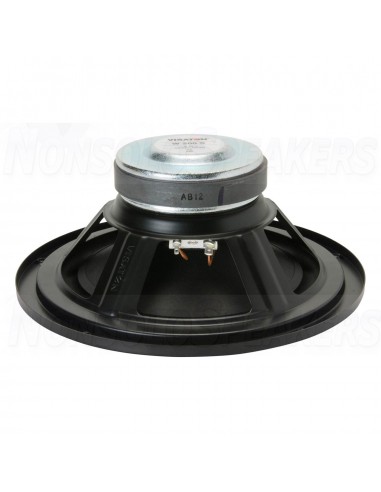

Visaton W 200 S 8" HiFi Woofer 8 Ohm
Visaton's W 200 S 8" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow an excursion limit of ±10 mm. A balanced design approach between sensitivity, smooth frequency response (cross it over as high as 2,800 Hz), and extended bass allows this driver to be used as a woofer in two and three-way speaker systems or as a subwoofer.

.

Technical Specifications

  • Article number W 200 S - 8
  • Woofer Series HiFi Series
  • Woofer Type Midwoofer
  • Nominal Diameter 8"
  • Power Handling (RMS) 75 Watts
  • Power Handling (max) 115 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 30 - 6,000 Hz
  • Voice Coil Diameter 35 mm
  • DC Resistance (Re) 6 ohms
  • Voice Coil Inductance (Le) 2.2 mH
  • Resonant Frequency (Fs) 30 Hz
  • Mechanical Q (Qms) 3.59
  • Electromagnetic Q (Qes) 0.36
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 26g
  • Surface Area of Cone (Sd) 214 cm2
  • BL Product (BL) 9.0 Tm
  • Compliance Equivalent Volume (Vas) 70 liters
  • Maximum Linear Excursion (Xmax) 3.5 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Overall Outside Diameter 232 mm
  • Overall Depth 94 mm
  • Baffle Cutout Diameter 184 mm
  • Bolt Circle Diameter 218 mm
  • # Mounting Holes 5
  • Mounting Hole Diameter 5 mm
  • Sealed Volume 13.6 liters
  • Sealed F3 73 Hz
  • Vented Volume 28.3 litersVented F3 44 Hz
