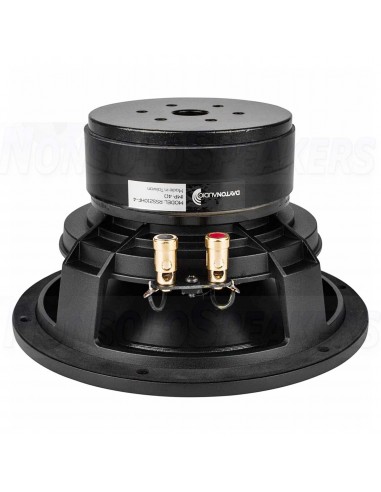

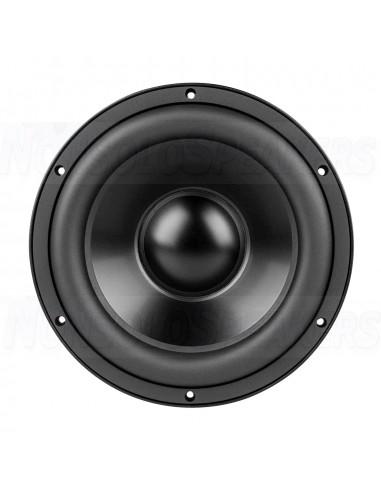

Dayton Audio Reference RSS210HO-4 Subwoofer 8"
Product description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
.
Highlights
Extensively vented motor eliminates compression and allows quiet excursion
Extra-thick black anodized aluminum cone for maximum rigidity
Triple shorting ring motor for ultra-low distortion
4-layer coil for high power handling
Optimized parameters for small enclosures
Highest quality materials throughout for long-lasting performance
.
Product details
Dayton Audio RSS210HO-4 8" Reference HO Subwoofer 4 Ohm
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed Reference Series woofer line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
.
Specifications
Article number RSS210HO-4
Woofer Series Reference Series
Woofer Type Subwoofer
Nominal Diameter 8"
Power Handling (RMS) 300 watts
Power Handling (max) 600 watts
Impedance (Z) 4 ohms
Sensitivity 85.7 dB @ 2.83V/1m
Frequency Response 30 - 1,500 Hz
Voice Coil Diameter 50.1 mm
DC Resistance (Re) 3.6 ohms
Voice Coil Inductance (Le) 0.99 mH @ 1 kHz
Resonant Frequency (Fs) 29.6 Hz
Mechanical Q (Qms)
3.33 Electromagnetic Q (Qes)
0.46 Total Q (Qts) 0.40
Diaphragm Mass Inc. Airload (Mms) 99.3g
Mechanical Compliance of Suspension (Cms) 0.29 mm/N
Surface Area of Cone (Sd) 213.8 cm²
Volume of Displacement (Vd) 235.2 cm³
BL Product (BL) 12 Tm
Compliance Equivalent Volume (Vas) 18.7 liters
Maximum Linear Excursion (Xmax) 11 mm
Cone / Diaphragm Material Black Anodized Aluminum Cone
Surround Material Rubber Voice Coil Wire Material Copper
Voice Coil Former Aluminum Basket / Frame Material
Cast Aluminum Magnet Material Ferrite
Overall Outside Diameter 213 mm
Overall Depth 126 mm
Baffle Cutout Diameter 185 mm
# Mounting Holes 6
Sealed Volume 0.53 ft.³
Sealed F3 51 Hz
Vented Volume 1.68 ft.³
Vented F3 27 Hz
