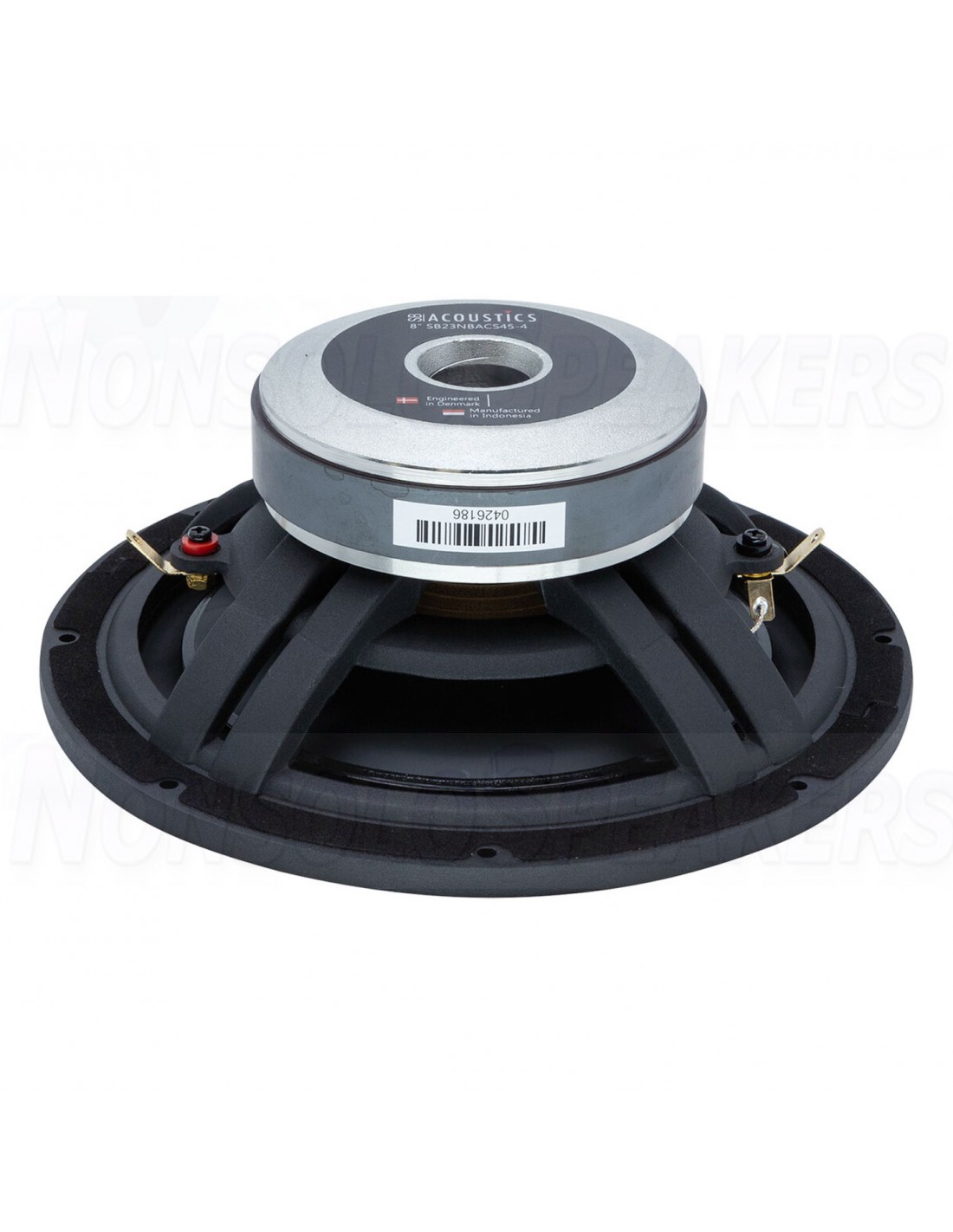

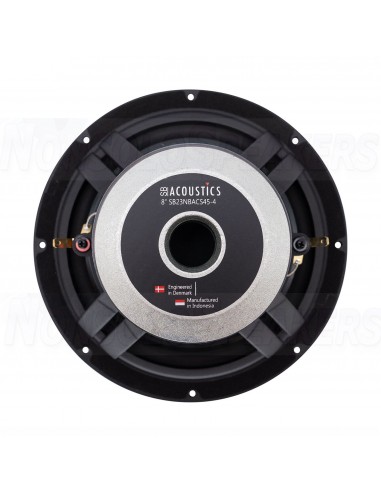

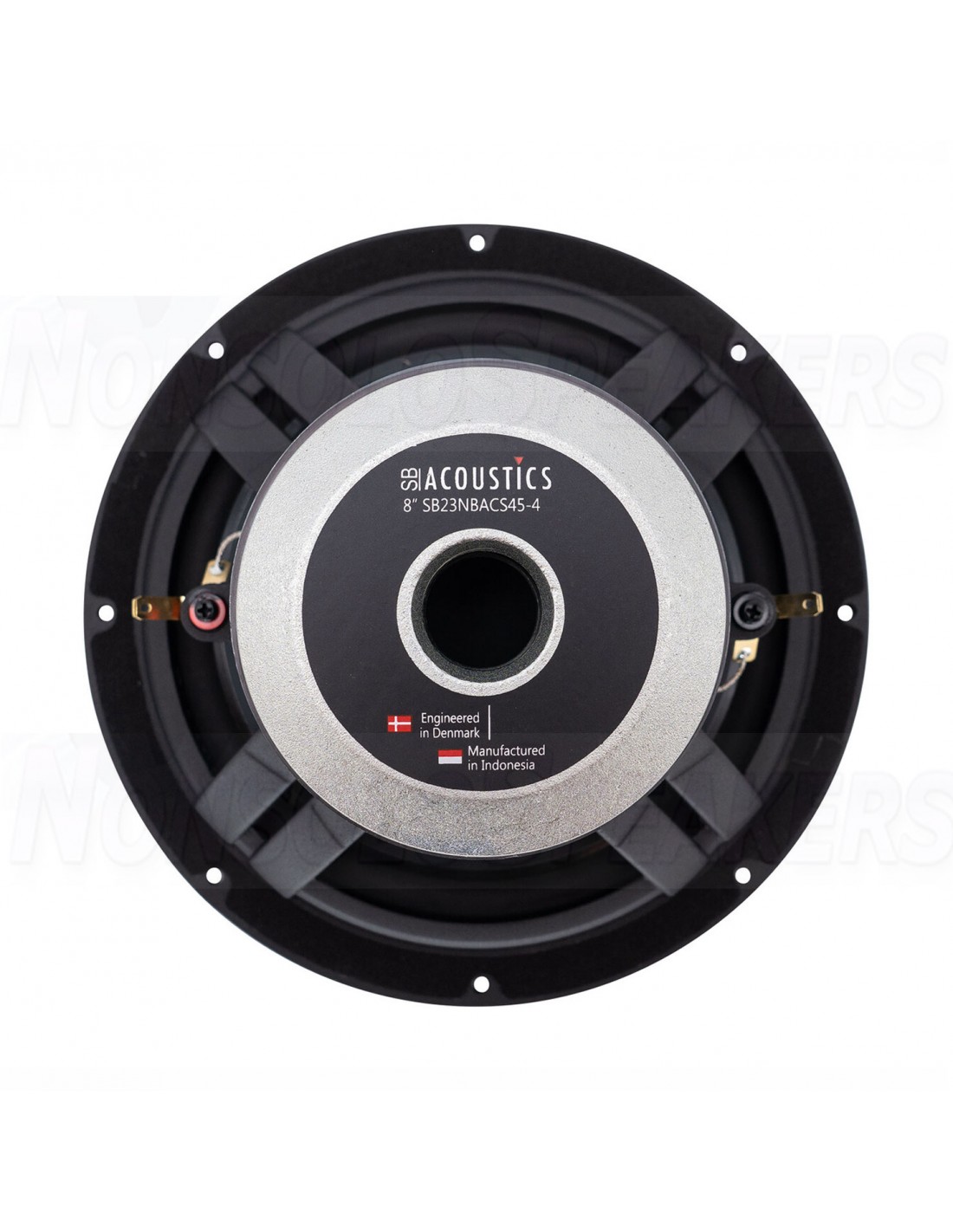

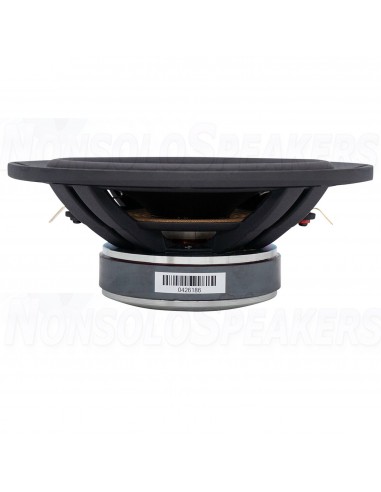

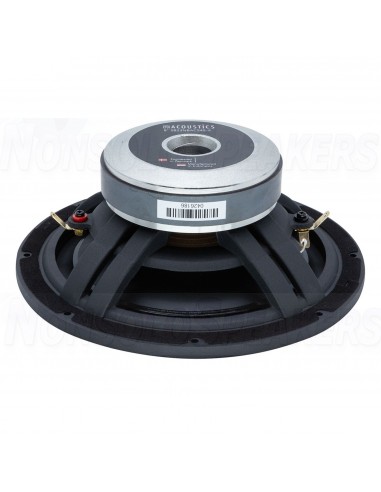

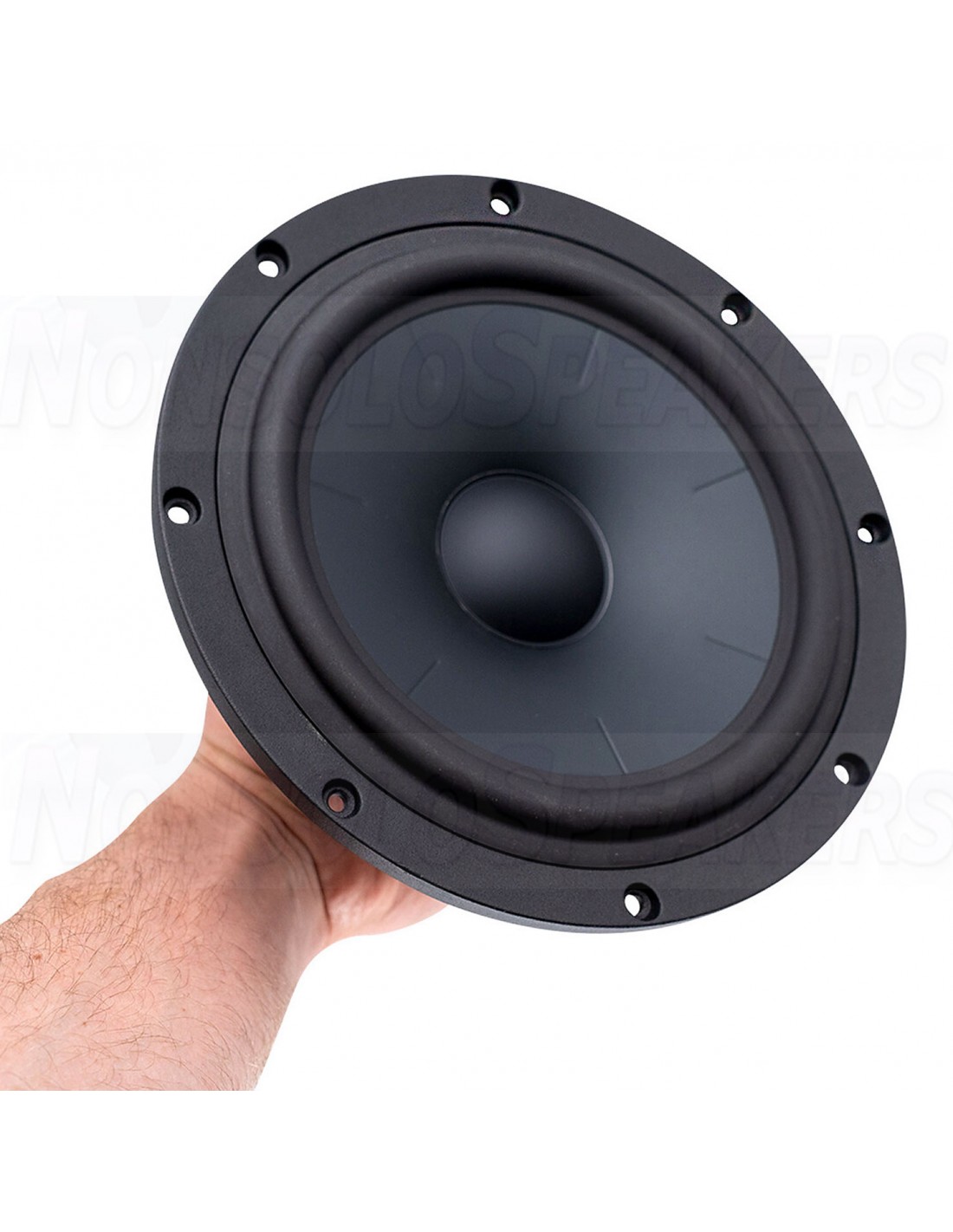

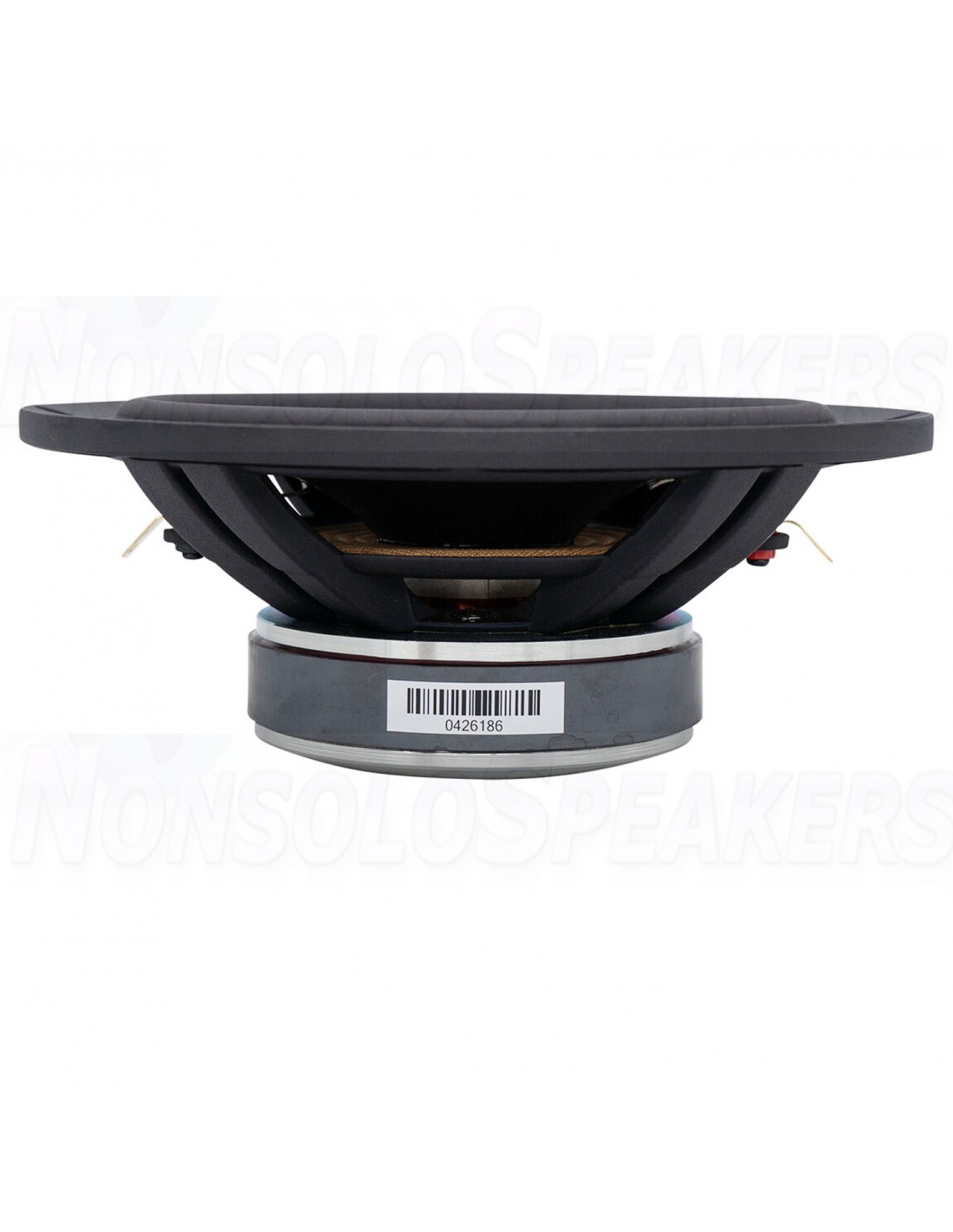

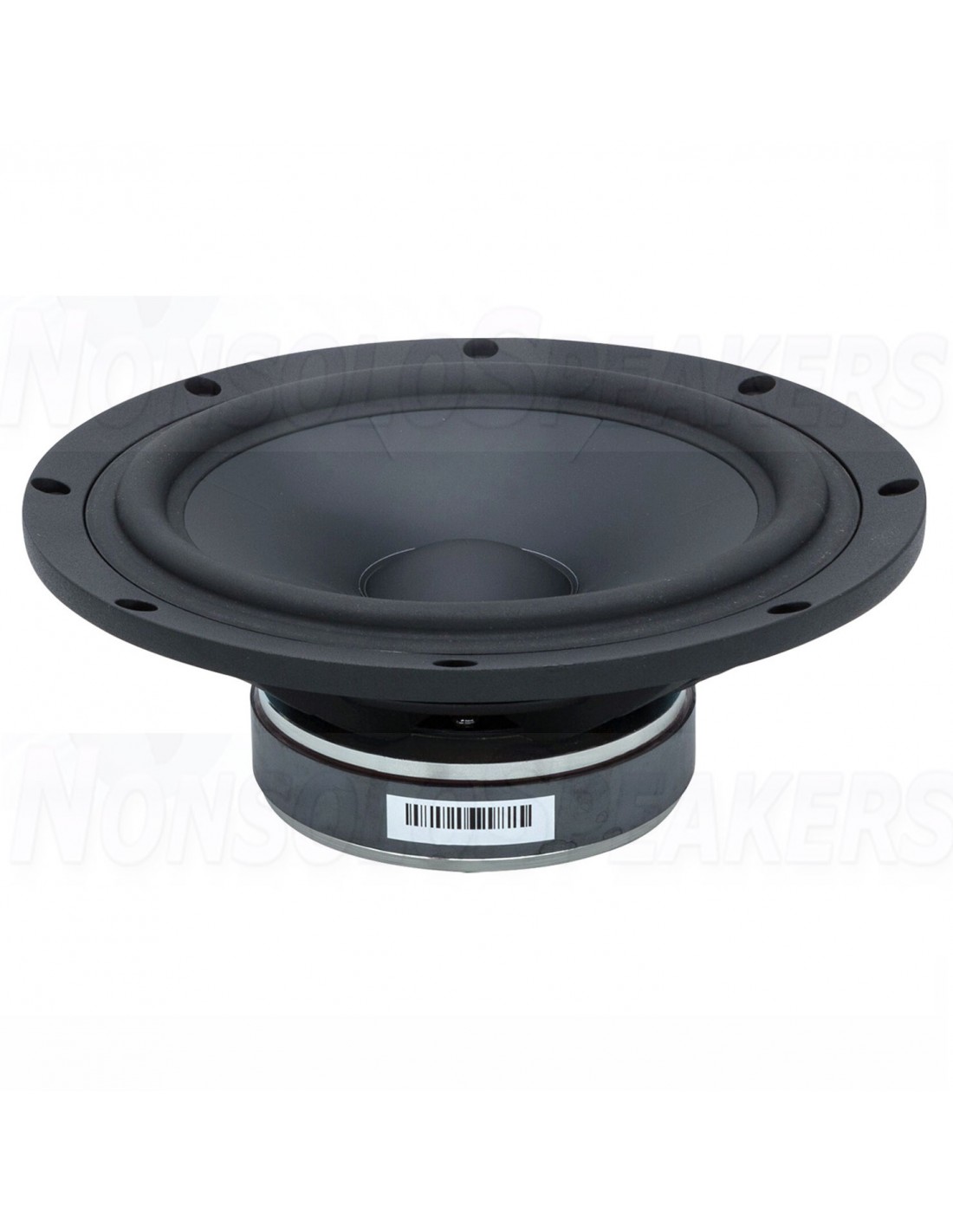

SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer
SB Acoustics SB23NBACS45-4 8" Black Aluminum Cone Woofer

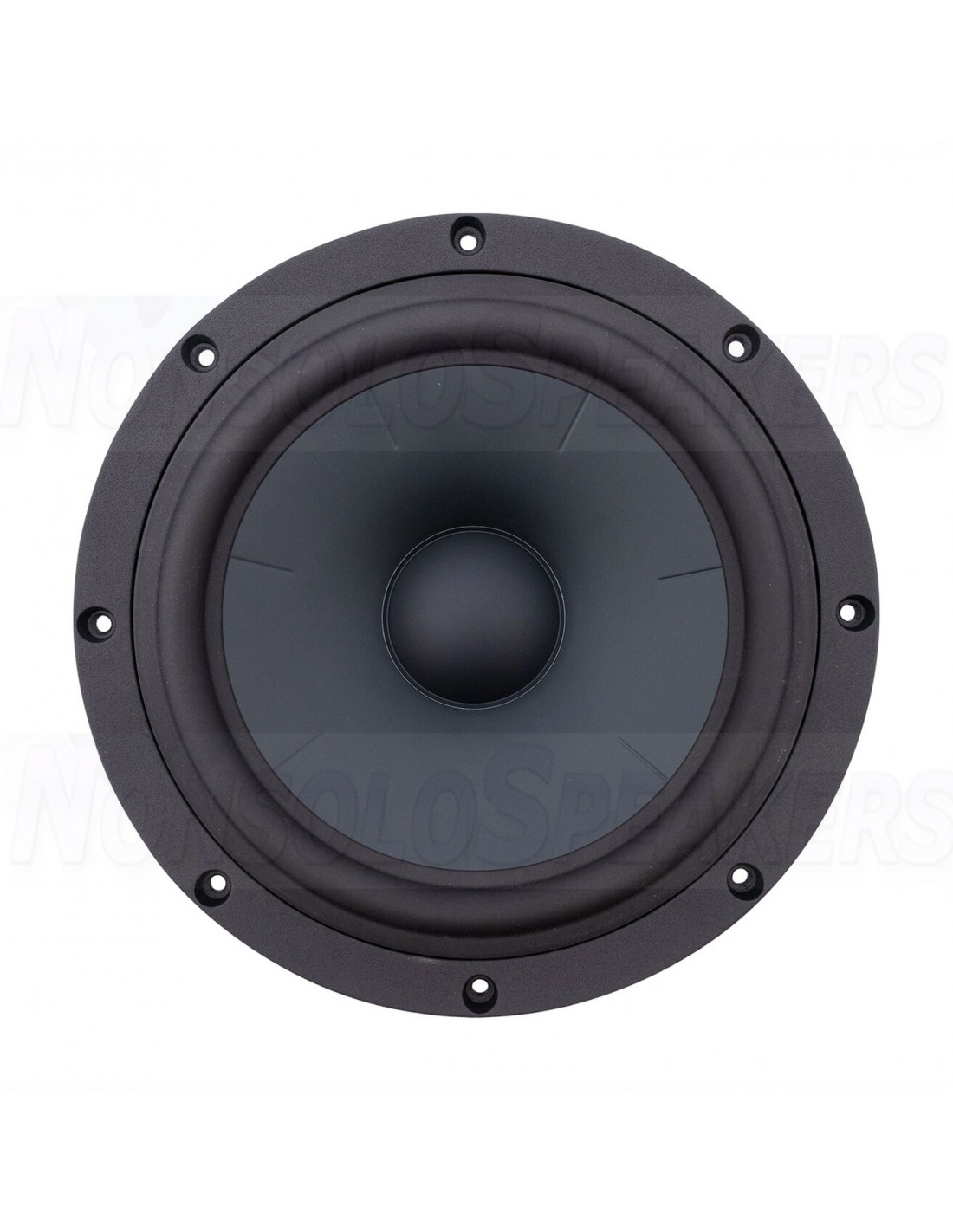

SB Acoustics SB23NBACS45-8 8" Black Aluminum Cone Woofer

SHIPMENT IN 7/10 WORKING DAYS
€118.70 €124.95 -5%
Tax included
rating No review at the moment

SB Acoustics SB15SFCR39-8 Bass-mid woofer

Racetrack design. Hard paper cone (made in-house). Optimized motor system. Non-conductive reinforced vented coil former. Symmetric suspension. Low damping rubber surround. Long-life silver lead wires. Vented chassis

.

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB23NBACS45-8 8" Black Aluminum Cone Woofer

-

Product description

Racetrack design

Hard paper cone (made in-house)

Optimized motor system

Non-conductive reinforced vented coil former

Symmetric suspension

Low damping rubber surround

Long life silver lead wires

Vented chassis

.

Product Details

SB Acoustics SB23NBACS45-8 8"

Racetrack design. Hard paper cone (made in-house). Optimized motor system. Non-conductive reinforced vented coil former. Symmetric suspension. Low damping rubber surround. Long-life silver lead wires. Vented chassis

.

Specifications

Article numberSB23NBACS45-8
Woofer SeriesNBAC Series
Woofer Type8
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87.5 dB
Voice Coil Diameter1.79"
DC Resistance (Re)5.7 ohms
Voice Coil Inductance (Le)0.37 mH
Resonant Frequency (Fs)25 Hz
Mechanical Q (Qms)5.54
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.4
Diaphragm Mass Inc. Airload (Mms)31.2 g
Mechanical Compliance of Suspension (Cms)1.43 mm/N
Surface Area of Cone (Sd)216 cm2
BL Product (BL)7.9 Tm
Compliance Equivalent Volume (Vas)3.29 ft.³
Maximum Linear Excursion (Xmax)6.5 mm

.

SB23NBACS45-4
