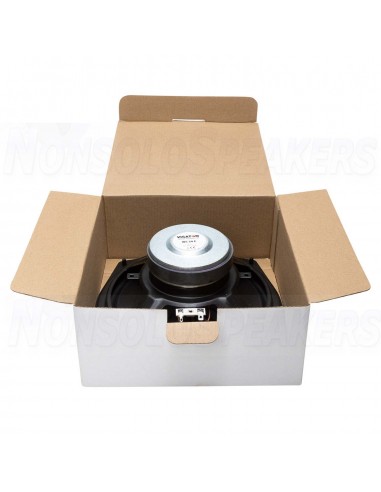

Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm
Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm

Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm

Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm

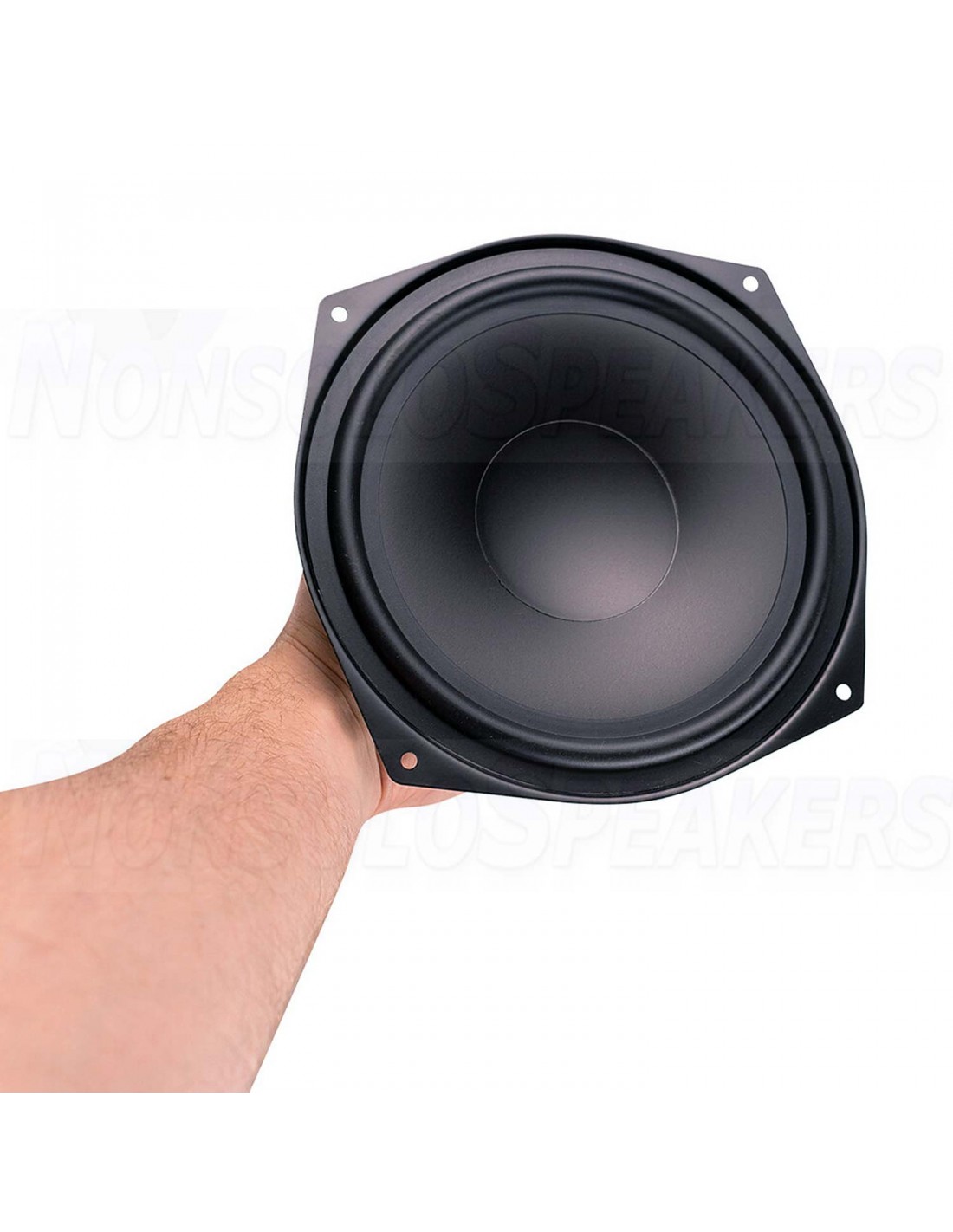

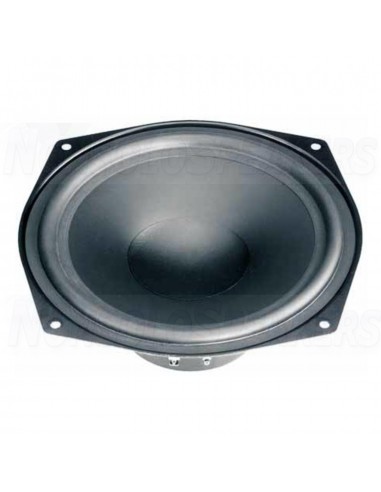

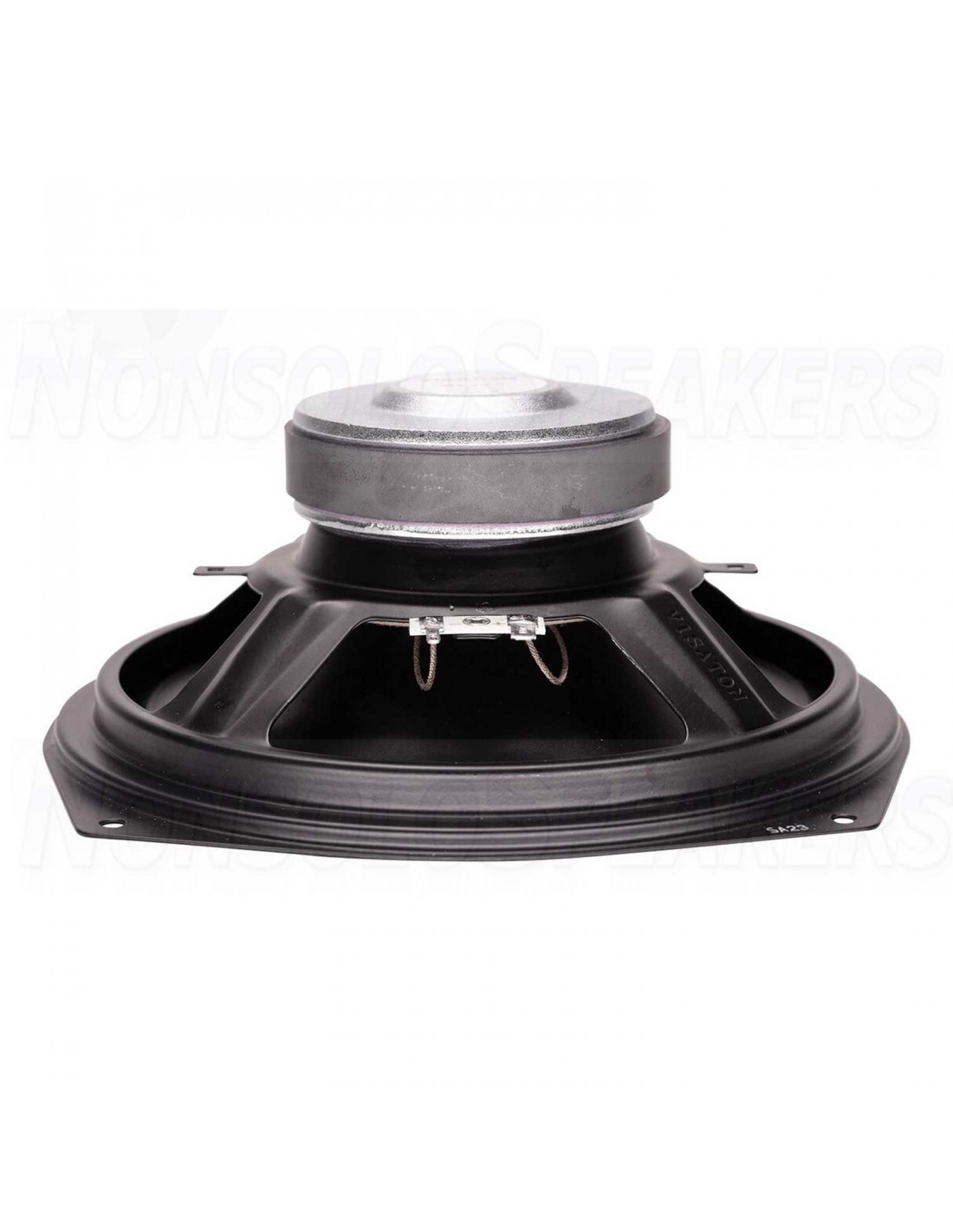

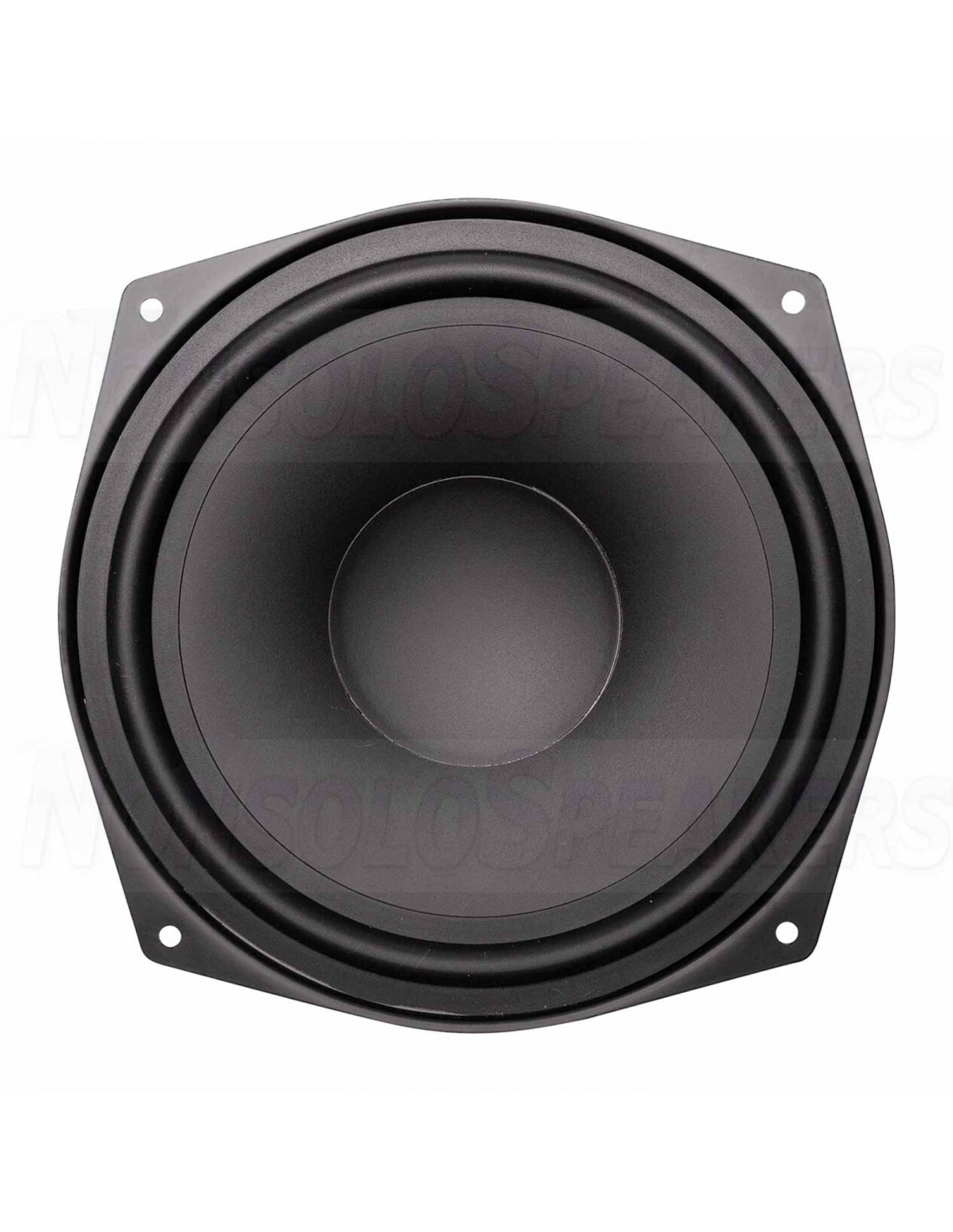

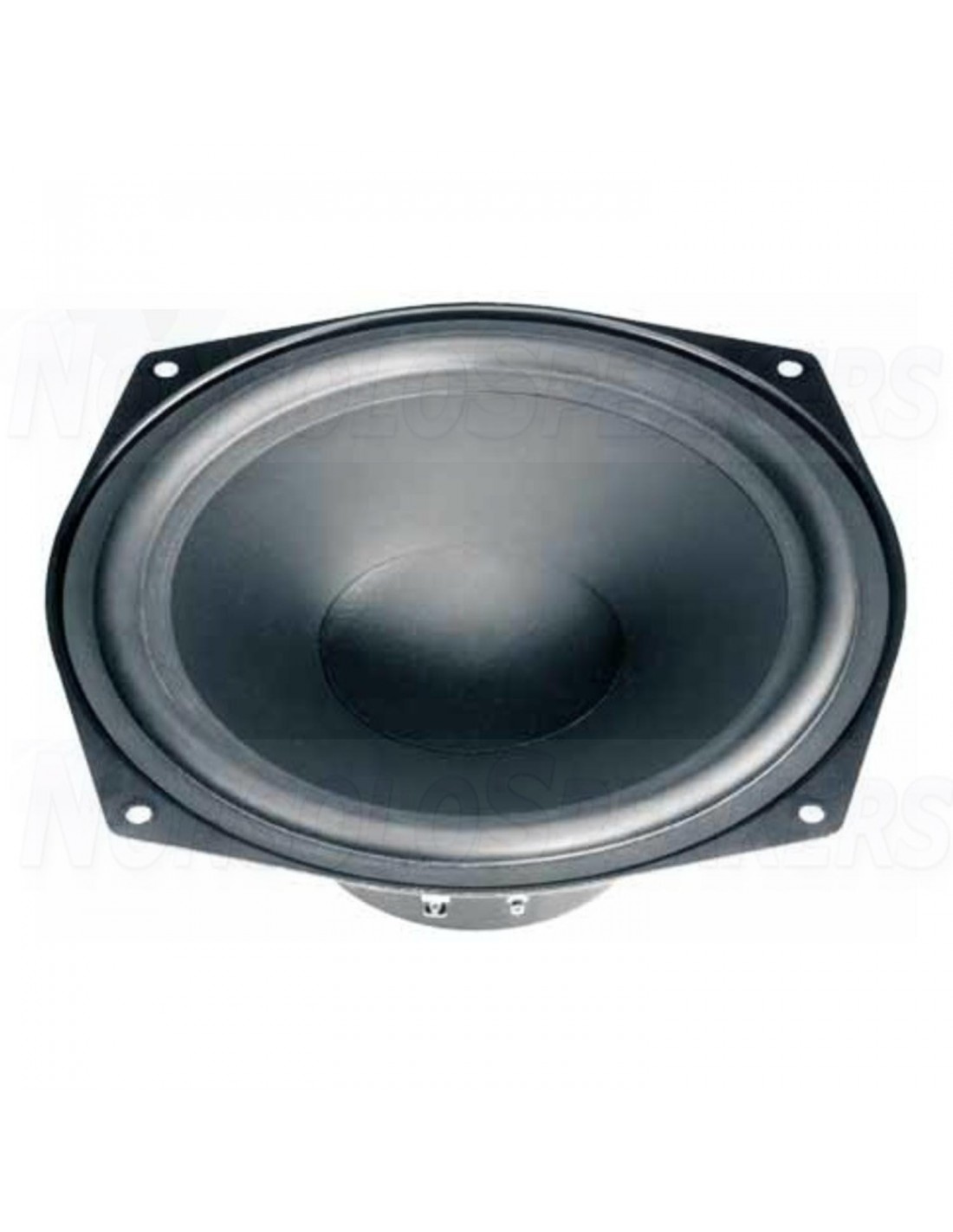

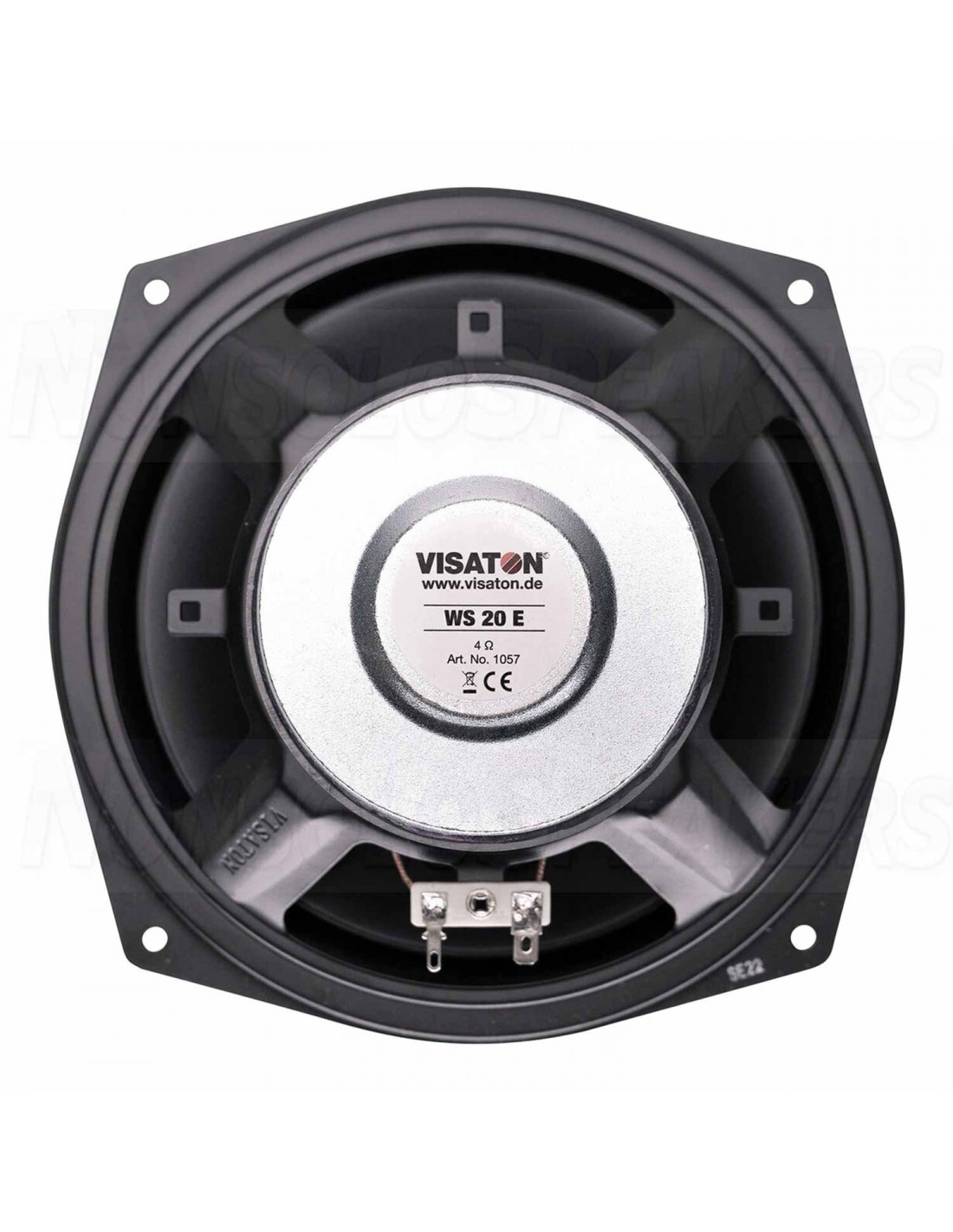

20 cm (8") HiFi woofer with polypropylene cone

SHIPMENT IN 5-7 WORKING DAYS
€33.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton WS 20 E - 4 8" HiFi Woofer 4 Ohm

20 cm (8") HiFi woofer with polypropylene cone

.

Highlights

  • Balanced response for easy system integration
  • Great replacement driver
  • Special basket design

.

Product Details

Visaton WS 20 E 8" HiFi Woofer 4 Ohm

This woofer has a balanced frequency response and is suitable as low-midrange driver for 4-way speaker systems. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.

.

Technical Specifications

  • Article number WS 20 E - 4
  • Woofer Series HiFi Series
  • Woofer Type Midwoofer
  • Nominal Diameter 8"
  • Power Handling (RMS) 80 Watts
  • Power Handling (max) 120 Watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 91 dB
  • Frequency Response 47 - 7,000 Hz
  • Voice Coil Diameter 30 mm
  • DC Resistance (Re) 3.3 ohms
  • Voice Coil Inductance (Le) 0.7 mH
  • Resonant Frequency (Fs) 47 Hz
  • Mechanical Q (Qms) 5.56
  • Electromagnetic Q (Qes) 1.44
  • Total Q (Qts) 1.14
  • Diaphragm Mass Inc. Airload (Mms) 23g
  • Surface Area of Cone (Sd) 240 cm2
  • BL Product (BL) 4.5 Tm
  • Compliance Equivalent Volume (Vas) 39 liters
  • Maximum Linear Excursion (Xmax) 3 mm
  • Cone / Diaphragm Material Polypropylene
  • Surround Material Rubber
  • Overall Outside Diameter 207 mm
  • Overall Depth 85.9 mm
  • Baffle Cutout Diameter 186 mm
  • Bolt Circle Diameter 219 mm
  • # Mounting Holes 4 Mounting Hole Diameter 5 mm
Visaton WS 20 E - 4
