SHIPMENT IN 7-10 WORKING DAYS
€219.00
Tax included
rating No review at the moment

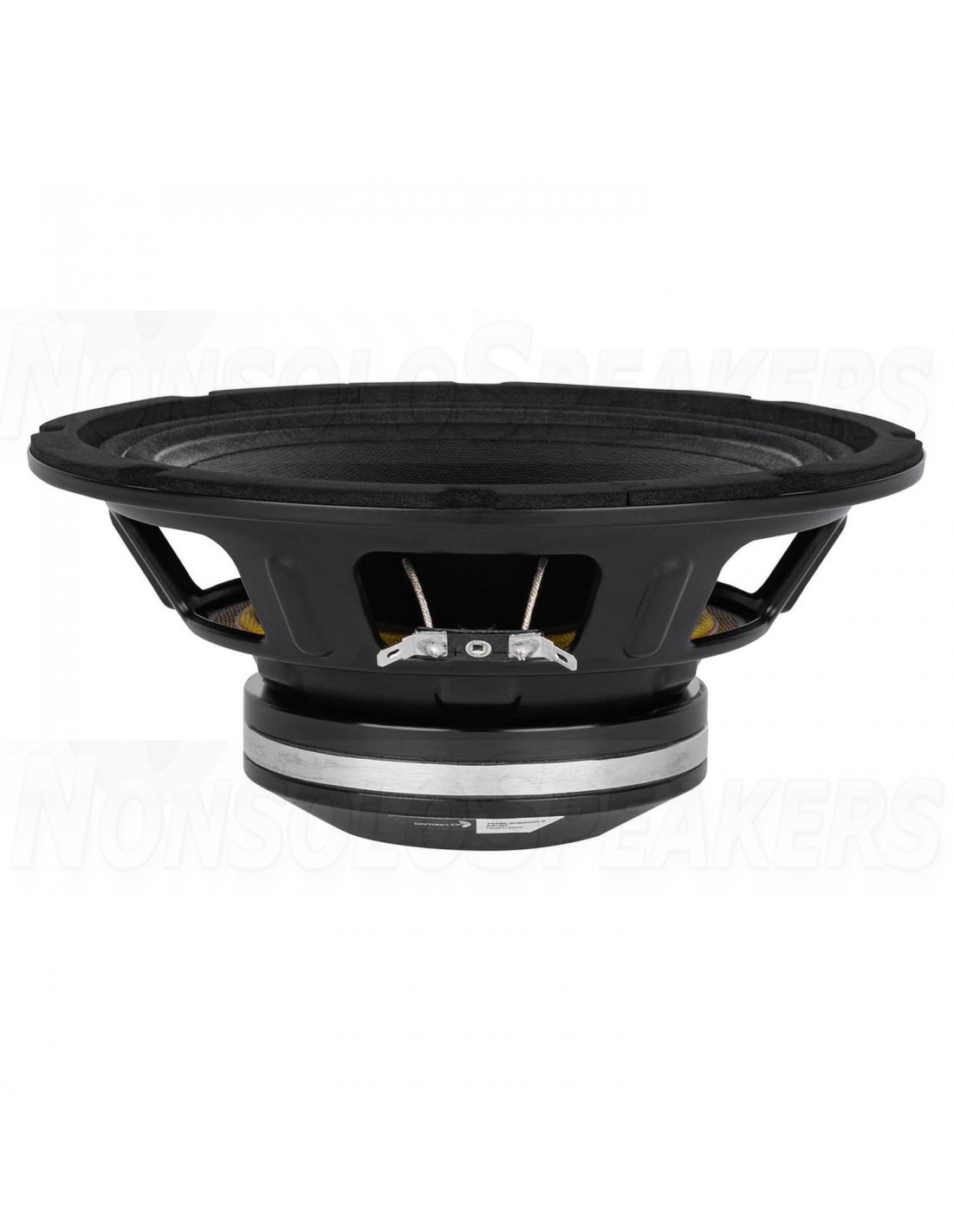

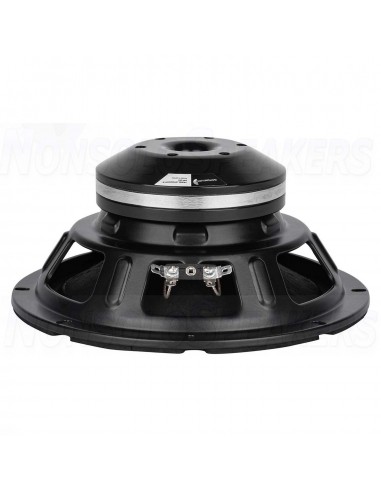

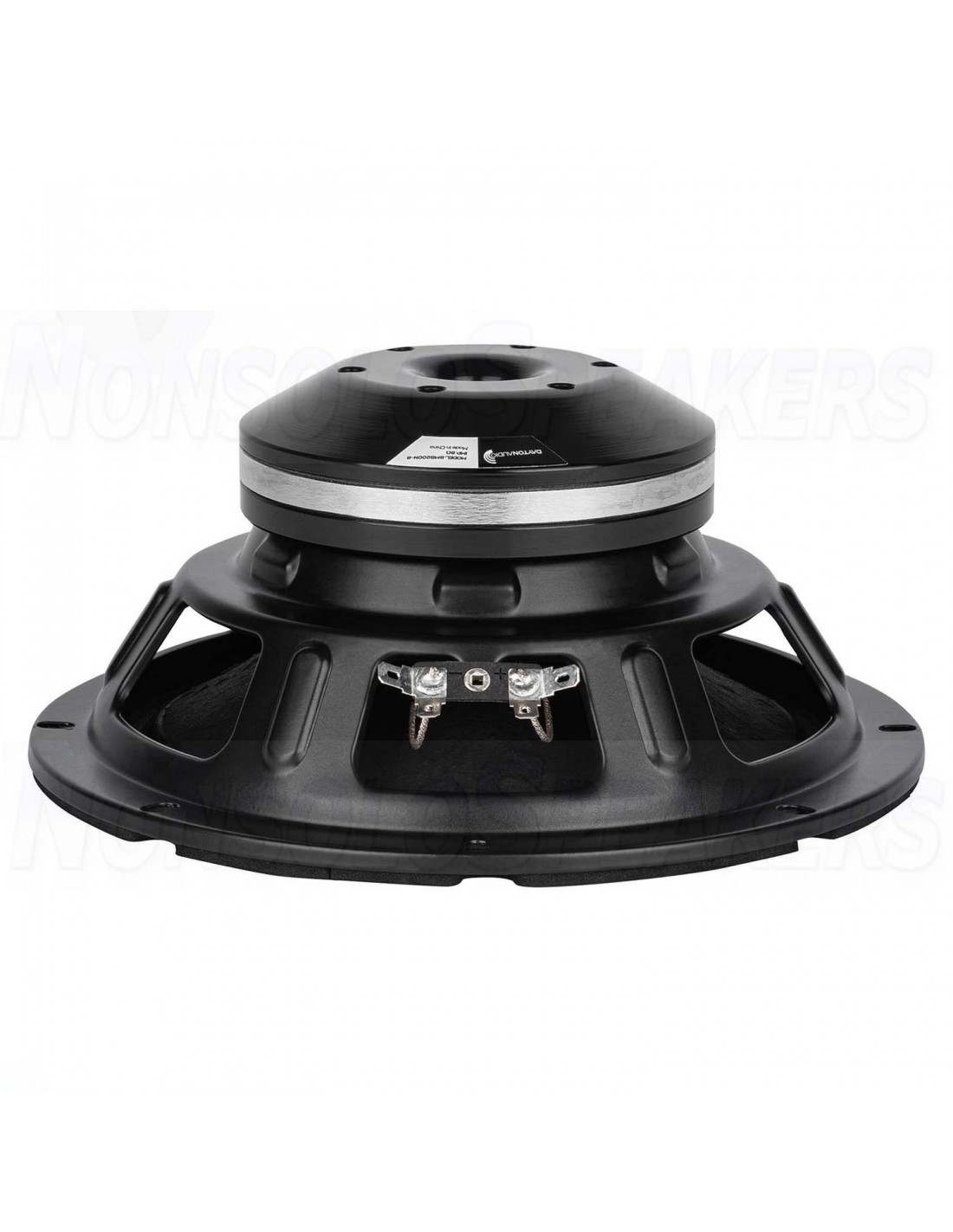

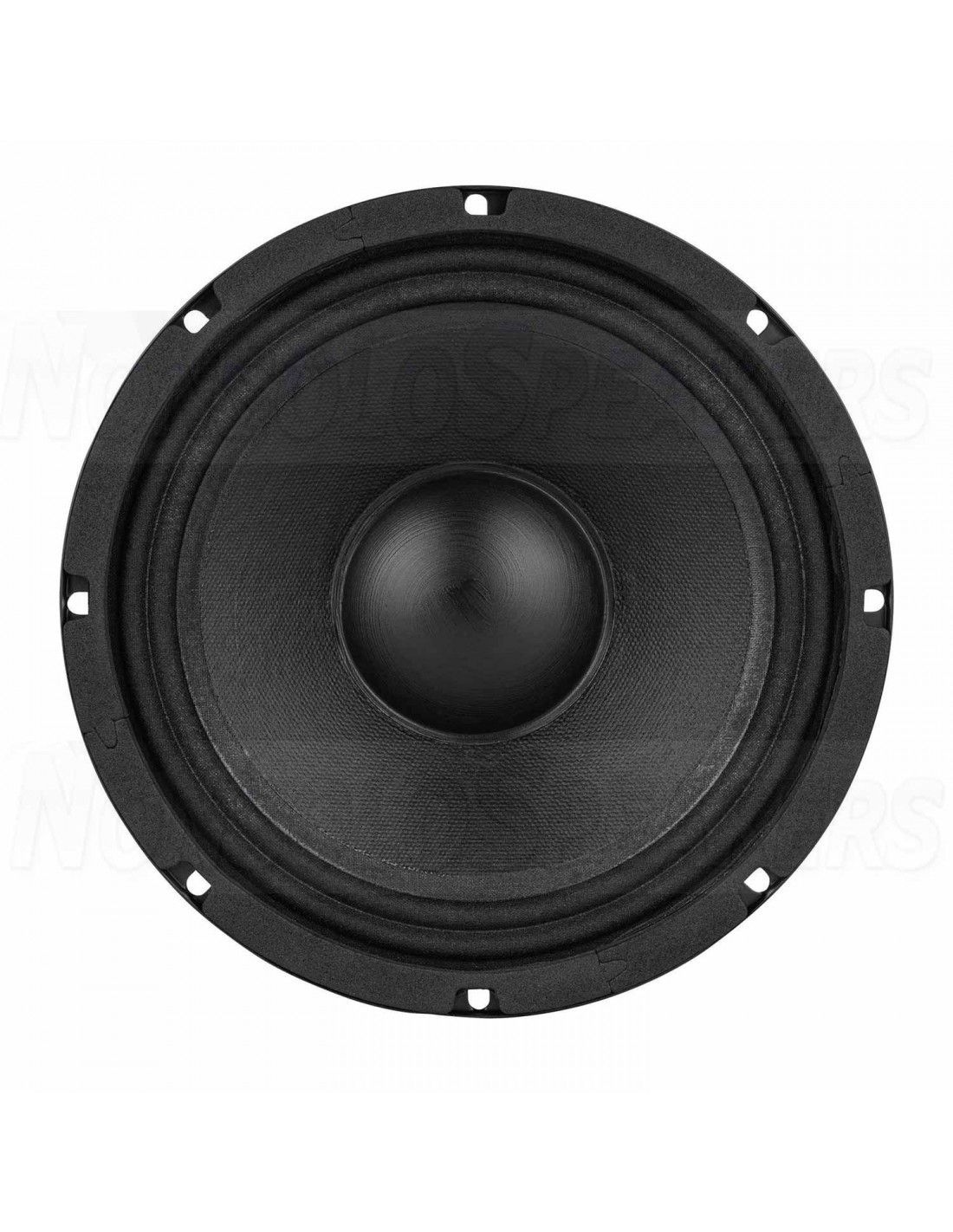

Dayton Audio Odeum Apollo 8MB200N-8 Bass-midwoofer

After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?



Dayton Audio Odeum Apollo 8MB200N-8 Bass-midwoofer

Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.

.

Highlights

    Powerful neodymium motor for superior output.

    Copper inductance cap for low distortion

    Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch

    2” Inside/outside wound copper voice coil leads on fiberglass former lends solid power handling capability

    Under spider and rear periphery venting allow for a cooler running voice coil

    Low Qts means high damping and smaller boxes

Product details

Dayton Audio Odeum Apollo 8N 8MB200N-8 8" Professional Neodymium Midbass Woofer 8 Ohm

Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.

The Dayton Audio Apollo 8 has a response that matches a large number of horn drivers due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 6 makes it easy to pair up with your favorite tweeters without taxing your power amplifiers!

The Apollo 8 is a 8" mid-bass woofer that is guaranteed to outperform the stock woofers in your PA system. A 200W power limit is achieved through the combination of a neodymium motor, a 2" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!

We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on). Upgrade, replace, or create a new pro sound system with the ODEUM series.

-

Specifications

Article number 8MB200N-8

Woofer Series Odeum

Woofer Type  Bass-midwoofer

Nominal Diamete    8"

Power Handling (RMS) 200 Watts

Power Handling (max)  400 Watts

Impedance (Z) 8Ω

Sensitivity 95.5dB 2.83V/1m

Frequency Response  75 to 5,800Hz

Voice Coil Diameter  2"

DC Resistance (Re) 6Ω

Voice Coil Inductance (Le) 0.17mH

Resonant Frequency (Fs) 94Hz

Mechanical Q (Qms)  4.43

Electromagnetic Q (Qes) 0.32

Total Q (Qts  0.32

Diaphragm Mass Inc. Airload (Mms) 20.89g

Mechanical Compliance of Suspension (Cms)   0.137mm/N

Surface Area of Cone (Sd) 200.96cm²

BL Product (BL) 14.41T·m

Compliance Equivalent Volume (Vas) 0.31ft³

Maximum Linear Excursion (Xmax) 3.91mm

Cone / Diaphragm Material  Coated Paper

Surround Material Paper

Voice Coil Former Fiberglass

Magnet Material Neodymium

Overall Outside Diameter 8.26"

Overall Depth 3.4"

Baffle Cutout Diameter 7.16"

# Mounting Holes 8

Sealed Volume 0.3ft³

Sealed F3  242Hz

Vented Volume 0.4ft³

Vented F3 82Hz

8MB200N-8
10 Items
New
844632095412
