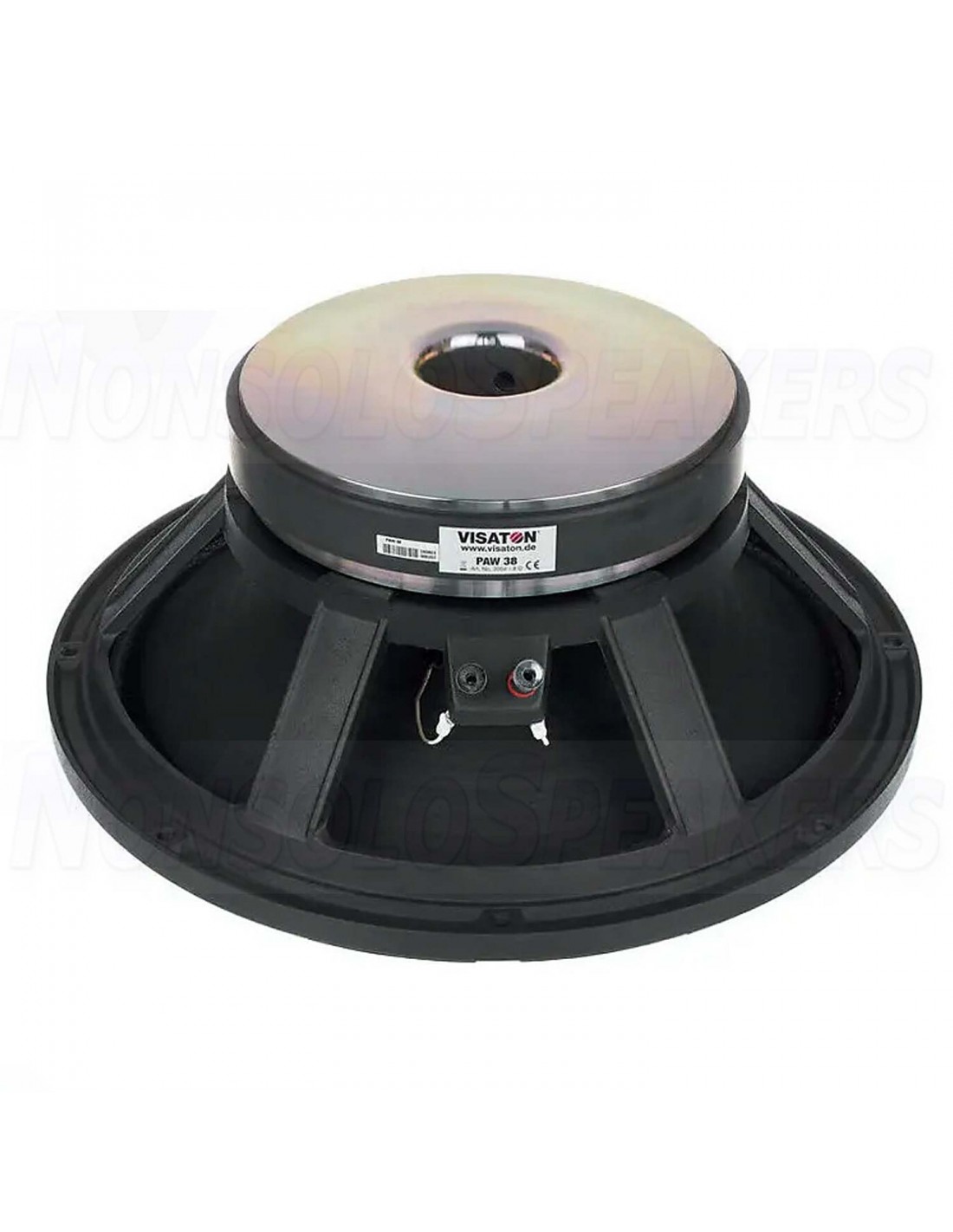

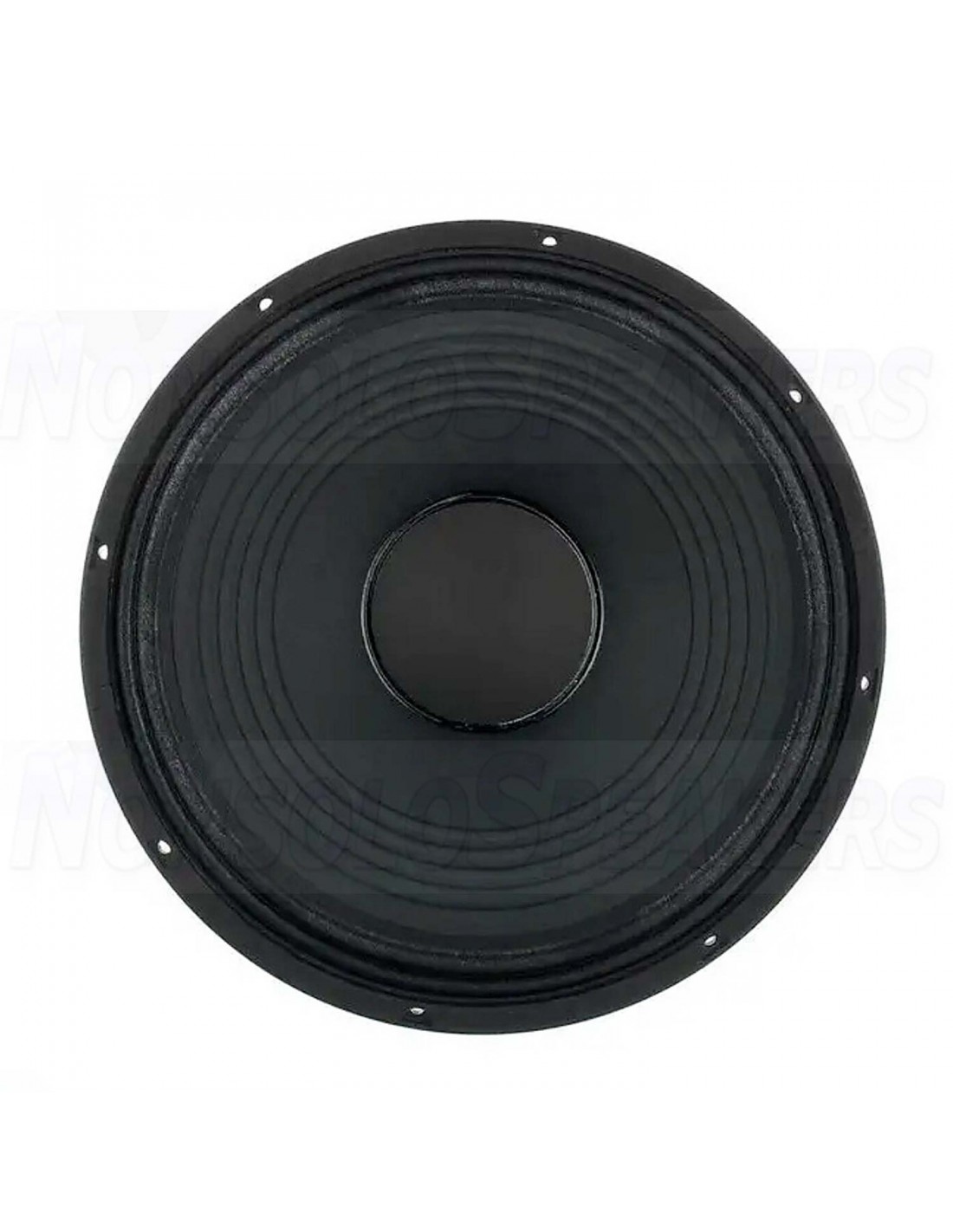

Visaton PAW 38 - 8 Subwoofer 15" 8 ohm

The Visaton PAW 38 - 8 isn't your average subwoofer; it's a 15-inch bass machine designed to bring the low end to life in professional audio (PA) systems. This powerful 8-ohm subwoofer is built to conquer the demanding world of live sound, making it ideal for bands, DJs, and audio professionals who crave earth-shaking bass for their performances.

.

Highlights

• Die cast basket
• Reinforced paper membrane
• 100 mm voice coil for high power handling
• Kapton voice coil former
• 55 mm t-yoke venting
• M shape surround for high excursion
• Connex spider
• EVA gasketFerrite magnet

Product Details

Visaton PAW 38 - 8 Subwoofer

When it comes to bass, the PAW 38 - 8 doesn't disappoint. A large 15-inch woofer paired with a ferrite magnet allows this subwoofer to reproduce deep, powerful bass tones that will get the crowd moving. And with a power handling capacity of 700 watts, it can deliver clear and impactful bass even at high volumes, ensuring your music cuts through.

Durability is another key feature. The PAW 38 - 8 is built to withstand the rigors of live use. A sturdy steel chassis and a well-designed suspension system work together to minimize distortion, even when the bass is cranked up. Additionally, the usable frequency range extends beyond just the low-end. Spanning from 52 Hz to 3700 Hz, the PAW 38 - 8 can contribute not just powerful bass but also some mid-bass frequencies, blending seamlessly with your main speakers for a cohesive and impactful overall sound. Overall, the Visaton PAW 38 - 8 is a powerful and reliable subwoofer solution for PA applications. Its impressive bass response, high power handling, and durable build make it a great choice for creating an immersive listening experience for your audience.

.

Technical data

Rated power 700 W

Maximum power 1000 W

Impedance 8 Ω

Transmission range (–10 dB)

Frequency response (–10 dB) fu–3700 Hz

Mean sound pressure level 92 dB (2.83 V/1 m)

Max. linear displacement xlin ± 5.5 mm

Excursion limit xmech ± 12 mm

Resonant frequency 36 Hz

Voice coil diameter 100 mm

Cut-out diameter 358 mm

Terminal Spring terminals

Net weight 11.5 kg
