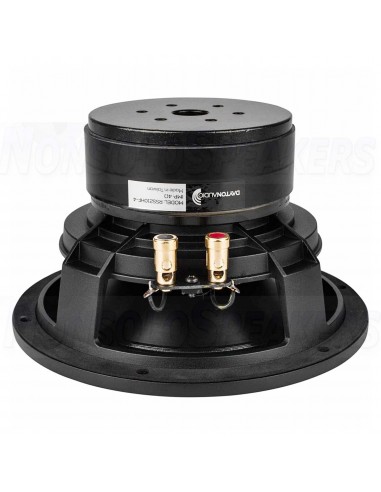

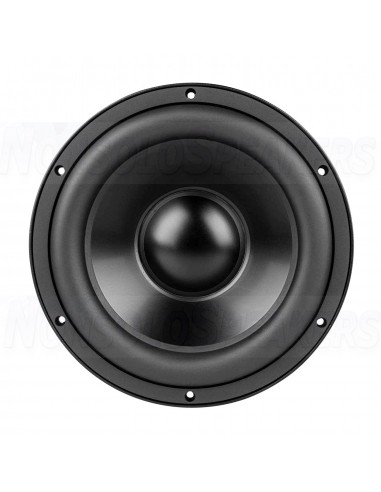

Dayton Audio Reference RSS210HF-4 Subwoofer 8"
Dayton Audio Reference RSS210HF-4 Subwoofer 8"
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
.
You might also like
Dayton Audio Reference RSS210HF-4 Subwoofer 8"
Product description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
.
Highlights
- Extensively vented motor eliminates compression and allows quiet excursion
- Lightweight black anodized aluminum cone for rigidity and lower moving mass
- Suitable for sealed or vented enclosures
- Triple shorting ring motor for ultra-low distortion
- 2-layer coil for reduced back EMF
- Highest quality materials throughout for long-lasting performance
.
Product details
Dayton Audio RSS210HF-4 8" Reference HF Subwoofer 4 Ohm
.
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
.
Specifications
Article number RSS210HF-4
Woofer Series Reference Series
Woofer Type Subwoofer
Nominal Diameter 8"
Power Handling (RMS) 280 watts
Power Handling (max) 560 watts
Impedance (Z) 4 ohms
Sensitivity 85.6 dB @ 2.83V/1m
Frequency Response 27 - 1,000 Hz
Voice Coil Diameter 51 mm
Magnet Weight 50 oz.
DC Resistance (Re) 3.1 ohms
Voice Coil Inductance (Le) 0.7 mH @ 1 kHz
Resonant Frequency (Fs) 29.6 Hz
Mechanical Q (Qms) 3.25
Electromagnetic Q (Qes) 0.69
Total Q (Qts) 0.57
Diaphragm Mass Inc. Airload (Mms) 78.4g
Mechanical Compliance of Suspension (Cms) 0.37 mm/N
Surface Area of Cone (Sd) 219.0 cm²
Volume of Displacement (Vd) 197.1 cm³
BL Product (BL) 8.12 Tm
Compliance Equivalent Volume (Vas) 23.7 liters
Maximum Linear Excursion (Xmax) 9.0 mm
Cone / Diaphragm Material Black Anodized Aluminum Cone
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket / Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 213 mm
Overall Depth 124 mm
Baffle Cutout Diameter 185 mm
# Mounting Holes 6
Sealed Volume 0.55 ft.³
Sealed F3 48 Hz
Vented Volume 1.76 ft.³
Vented F3 24 Hz
