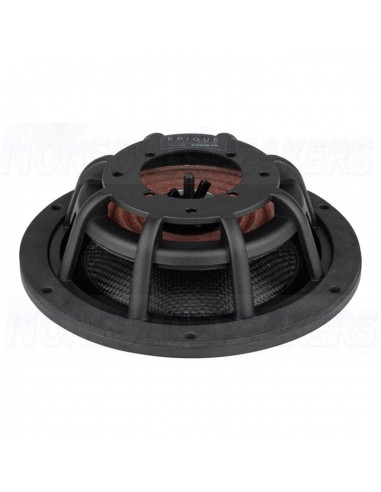

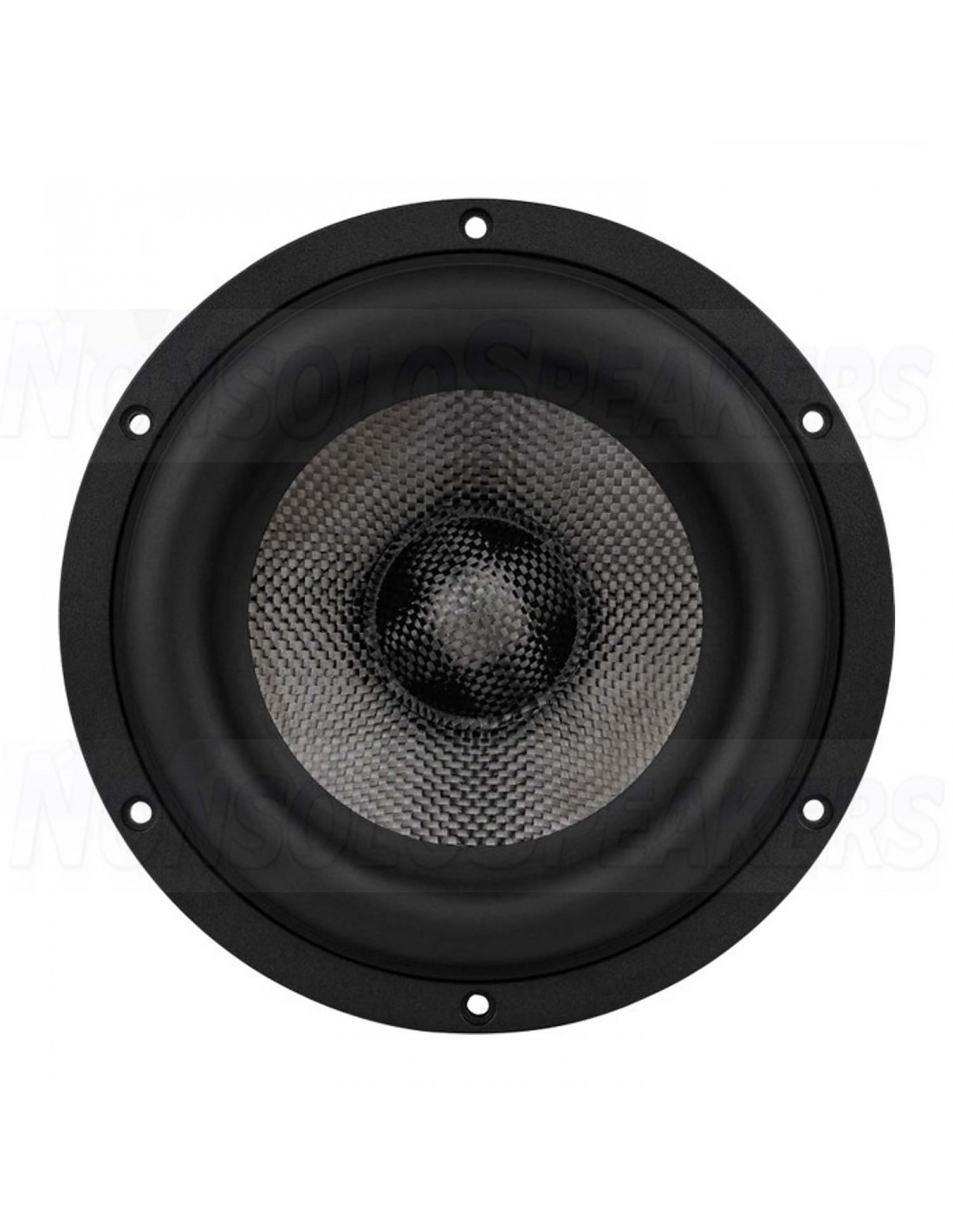

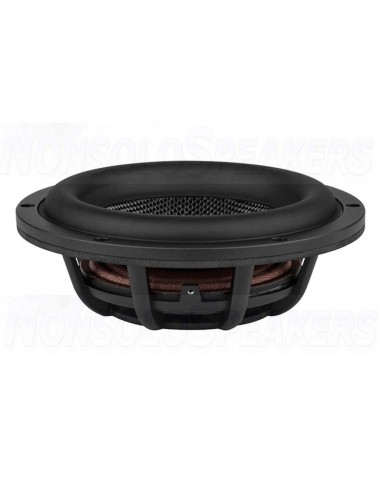

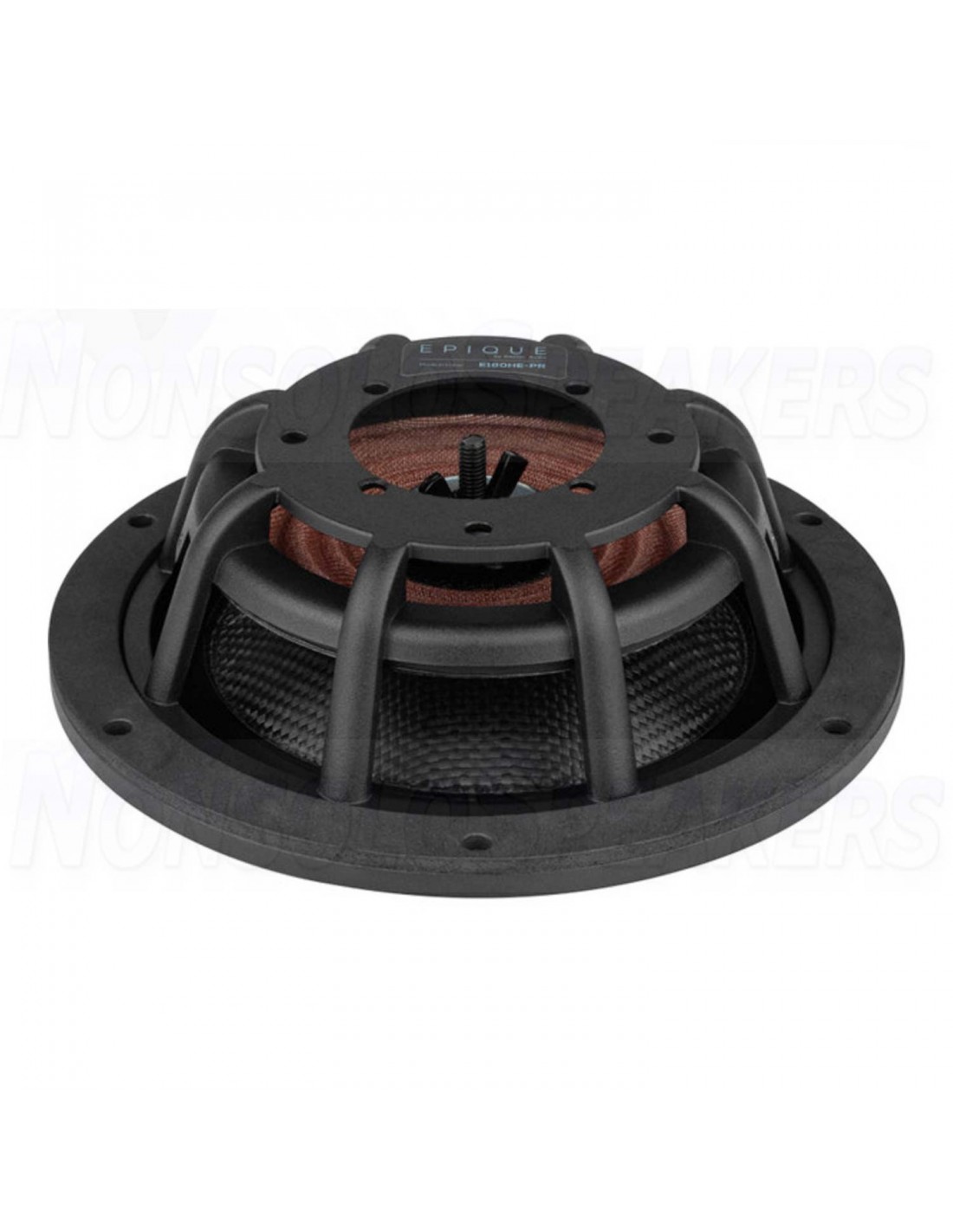

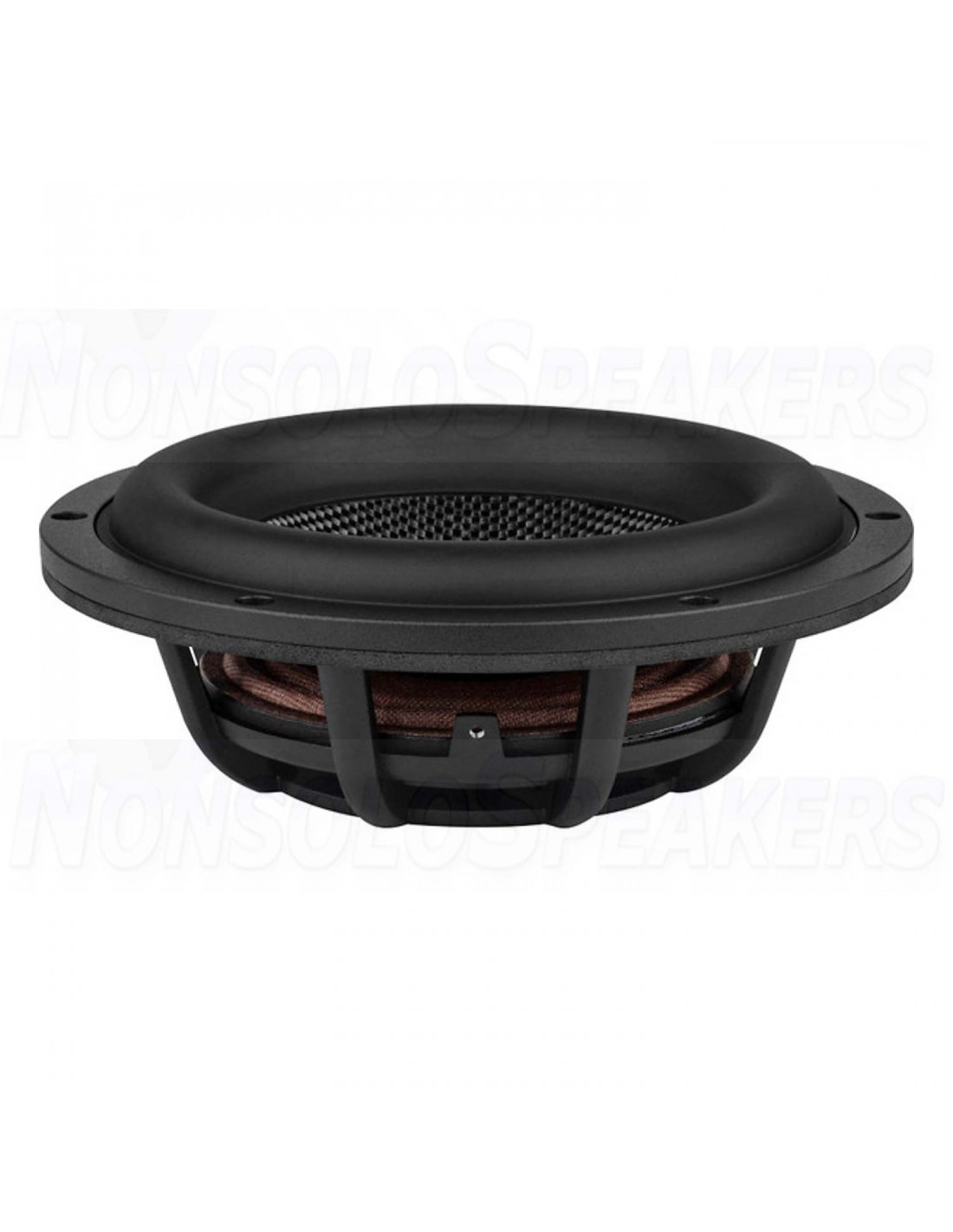

Dayton Audio Epique E180HE-PR Passive Radiator

Product description

Dayton Audio’s ground breaking Epique E180HE-PR 7” with a carbon fiber cone is the perfect companion for the Epique Series MMAG while retaining the same family look. It was engineered for a low FS in order to replace the excessive port lengths required for low-tuned enclosures. The E180HE-PR passive radiator gives you the opportunity to create systems that provide extraordinary accuracy and fidelity, without the extraordinary size.

.

Highlights

Passive radiators for the exceptional Epique Series enables you to use smaller boxes by replacing ports with excessive lengths

Carbon fiber cone is strong enough to handle the pressure of high output drivers

Incredibly linear 19mm xmech enhances output at low tunings

Incredible versatility, perfect compliment for any compact subwoofer

Cosmetically identical to the Epique MMAG subwoofers

.

Product details

Dayton Audio Epique E180HE-PR 7" Carbon Fiber Cone Passive Radiator

Combining world class performance with a reasonable cost, the Epique E180HE-PR 7" carbon fiber cone passive radiator from Dayton Audio is the perfect companion for the Epique Series MMAG Subwoofers. Featuring a carbon fiber cone, custom tooled suspension, and cast aluminum frame, the low FS of the E180HE-PR enables speaker designers to use smaller and lower tuned boxes without the excessive port lengths.

When designing the E180HE-PR, Dayton Audio paid extra attention to optimizing the suspension to guarantee unrestricted excursion without limiting performance. The large roll rubber surround was custom tooled for high excursion and a custom weighted spider was created to lower the FS for maximum performance and easier tuning.

The rigid carbon fiber cone gives the E180HE-PR retains a familiar look while offering a number of performance advantages. The woven cone has excellent damping properties which keep the active driver well controlled. Optimized cone and dustcap profiles make sure that there is no deformation when exposed to high stress so the smooth response and low distortion remain consistent even when pushed to high excursion

In order to support its extreme excursion, the E180HE-PR uses a rugged cast aluminum frame. The minimalistic design of the frame both eliminates unwanted flex and provides ample room for the rear of the cone. 19mm of Xmech, and plenty of room behind the spider makes sure that you can push the limits of excursion without bottoming out.

.

Specifications

Article number E180HE-PR

Woofer Series Epique

Woofer Type Passive Radiator

Nominal Diameter 7"

Resonant Frequency (Fs) 22 Hz

Mechanical Q (Qms) 4.48

Surface Area of Cone (Sd) 136.1 cm2

Volume of Displacement (Vd) 258.59 cm3

Maximum Linear Excursion (Xmax) 19 mm

E180HE-PR
New
844632080654
