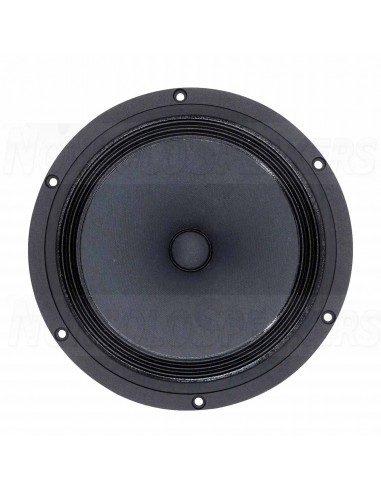

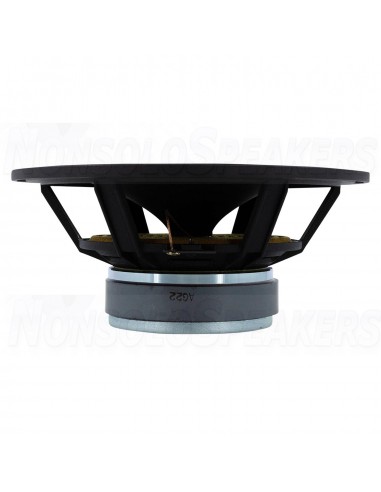

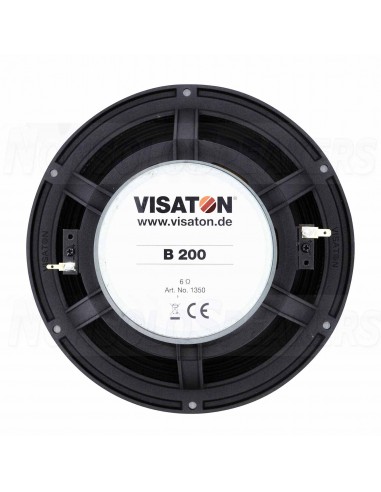

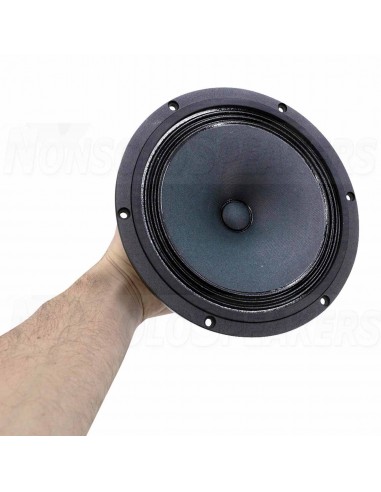

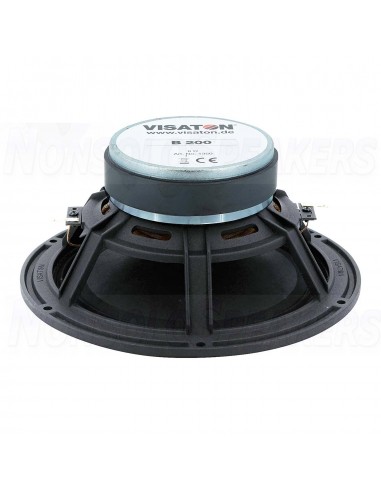

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.

.

Highlights

• High sensitivity
• Fabric surround
• Die cast aluminum basket

.

Product Details

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

These high-end speakers stand out because of their high degree of sensitivity and extremely well-balanced frequency response free of noticeable deviations. This is achieved by using a very light-weight paper cone, a fabric surround and an optimized driver equipped with a 25 mm voice coil (aluminum wire) which makes optimum use of the magnetic field in the air gap. The Kapton voice coil carrier is vented. The sturdy aluminum diecast basket is not only optically appealing but, thanks to its rear-venting openings, ensures that physical losses are minimized. Distortion is suppressed to a very low, uniform level.

The B 200 is ideally suited to use in high-quality, powerful single-band speakers, where the cabinet design need not be restricted to classic, fully enclosed or vented cabinets, but more exotic alternatives like horns or open baffles can be used to create amazing results.

.

Technical Data

• Article number B 200
• Woofer Series High-End
• Woofer Type Full-Range
• Nominal Diameter 8"
• Power Handling (RMS) 40 Watts
• Power Handling (max) 70 Watts
• Impedance (Z) 6 ohms
• Sensitivity (SPL at 1m / 2.83V) 99 dB
• Frequency Response 40 - 18,000 Hz
• Voice Coil Diameter 25 mm
• DC Resistance (Re) 5 ohms
• Voice Coil Inductance (Le) 0.5 mH
• Resonant Frequency (Fs) 40 Hz
• Mechanical Q (Qms) 8.39
• Electromagnetic Q (Qes) 0.83
• Total Q (Qts) 0.75
• Diaphragm Mass Inc. Airload (Mms) 9.7g
• Surface Area of Cone (Sd) 214 cm2
• BL Product (BL) 3.9 Tm
• Compliance Equivalent Volume (Vas) 102 liters
• Maximum Linear Excursion (Xmax) 3.5 mm
• Cone / Diaphragm Material Paper
• Surround Material Cloth
• Voice Coil Wire Material Aluminum
• Voice Coil Former Kapton Basket / Frame
• Material Cast Aluminum
• Overall Outside Diameter 222 mm
• Overall Depth 92 mm
• Baffle Cutout Diameter 190 mm
• Bolt Circle Diameter 210 mm
• # Mounting Holes 6 Mounting Hole Diameter 5 mm
