SHIPMENT IN 7/10 WORKING DAYS
€179.00
Tax included
rating No review at the moment

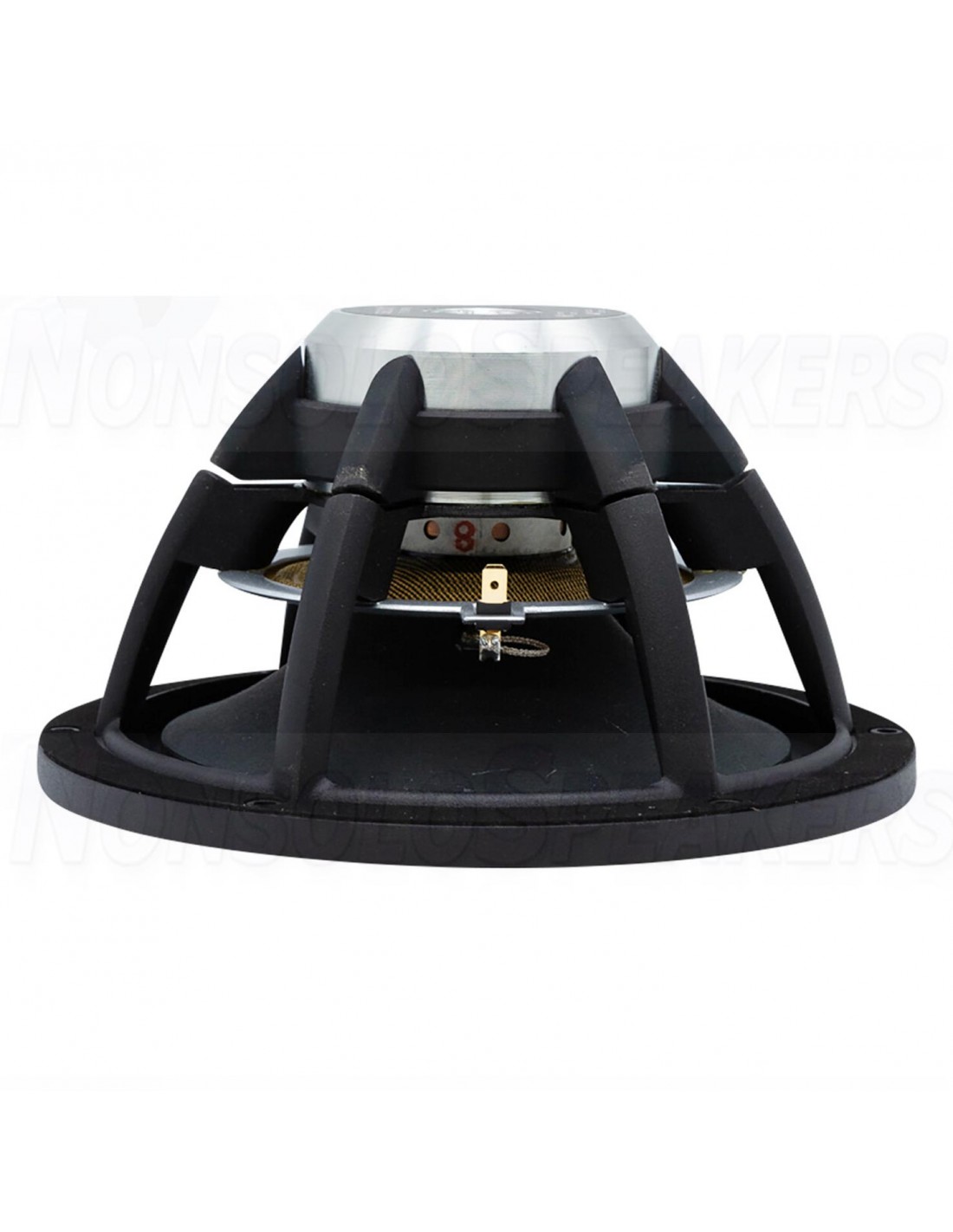

SB ACOUSTICS Satori MW19P-4 - 7.5" 4 OHM

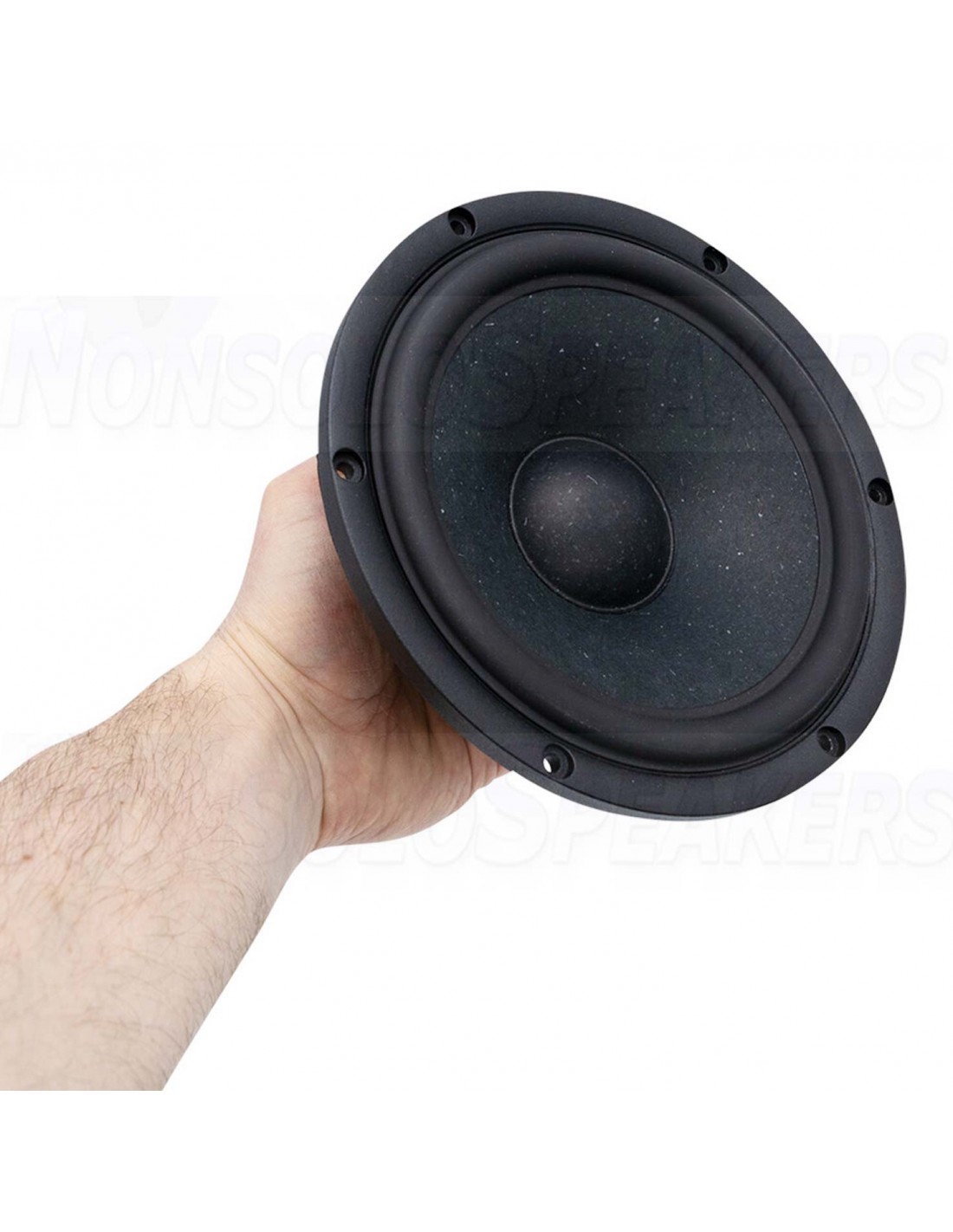

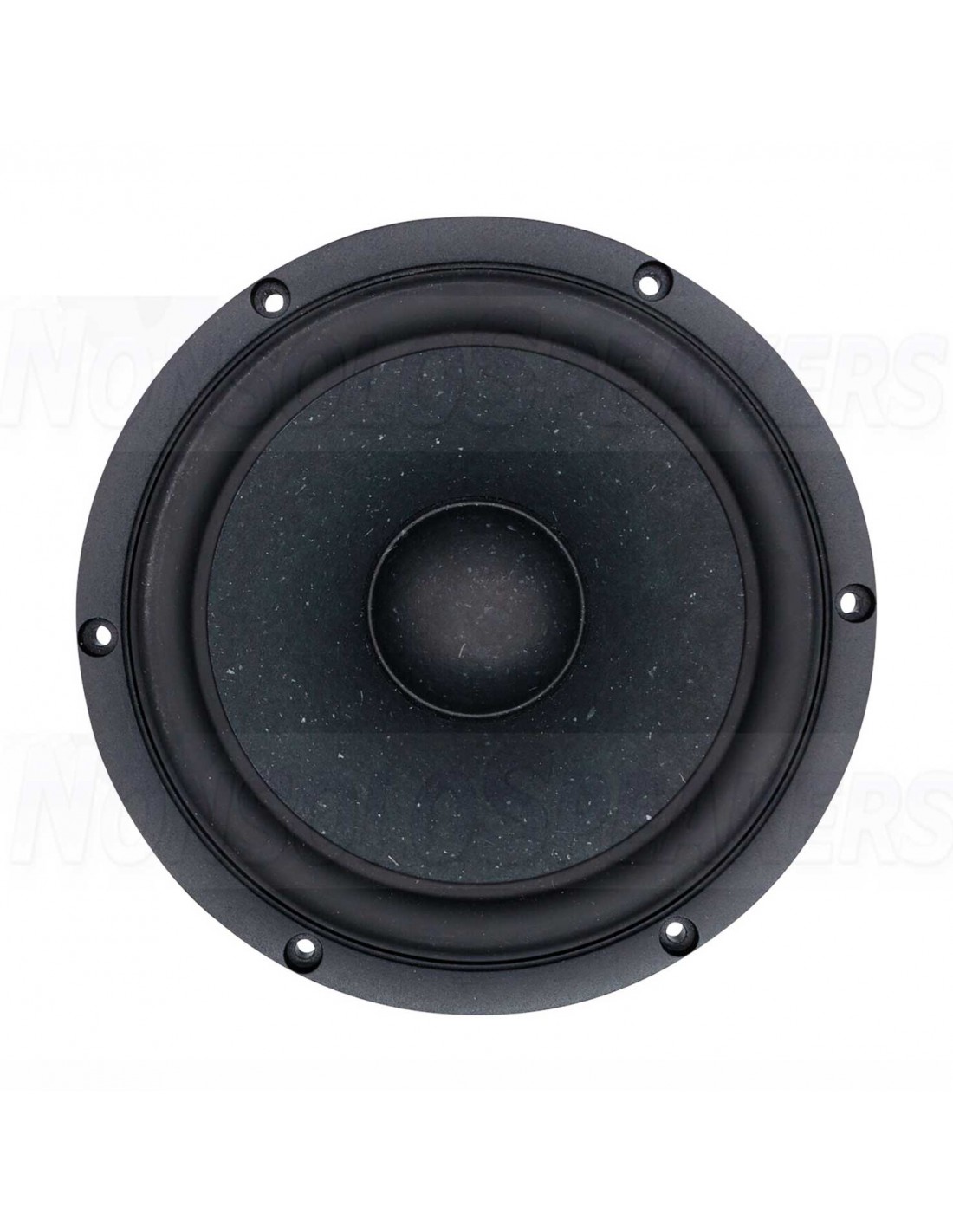

The SB Acoustics Satori MW19P-4 Midwoofer is a State of The Art Neodymium magnet 7.5" 4 ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency soft low damping optimum response rubber surround.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer

.

Product description

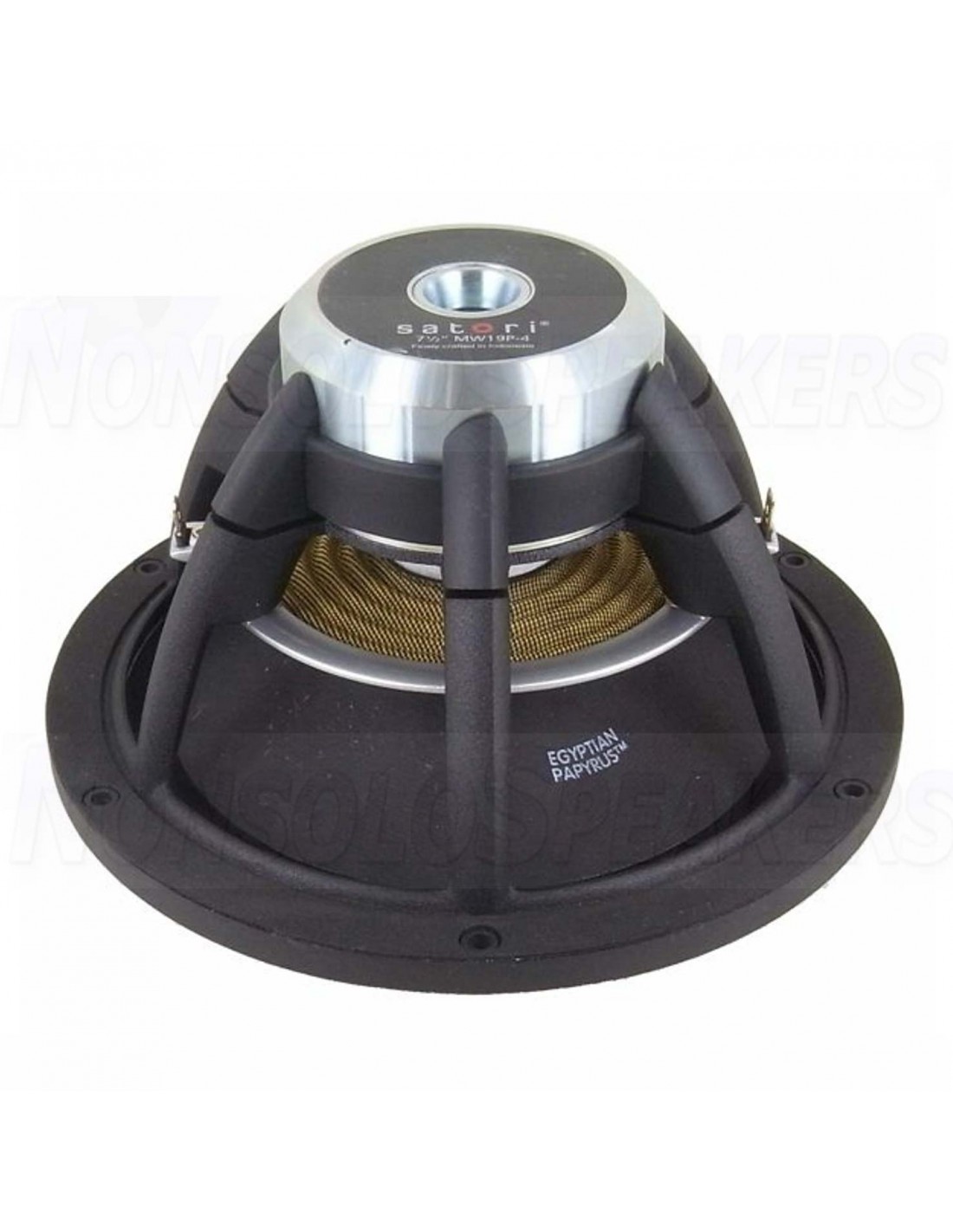

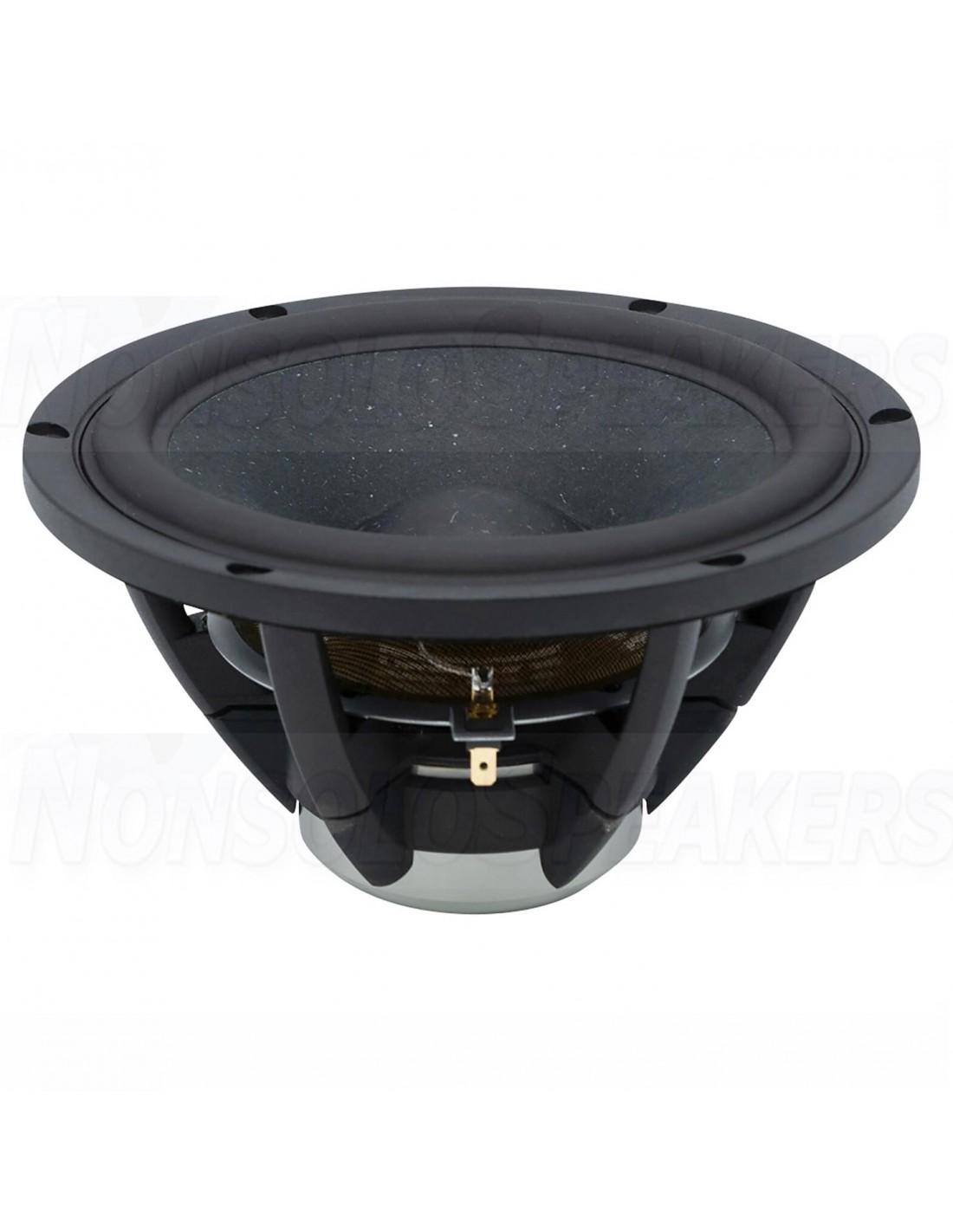

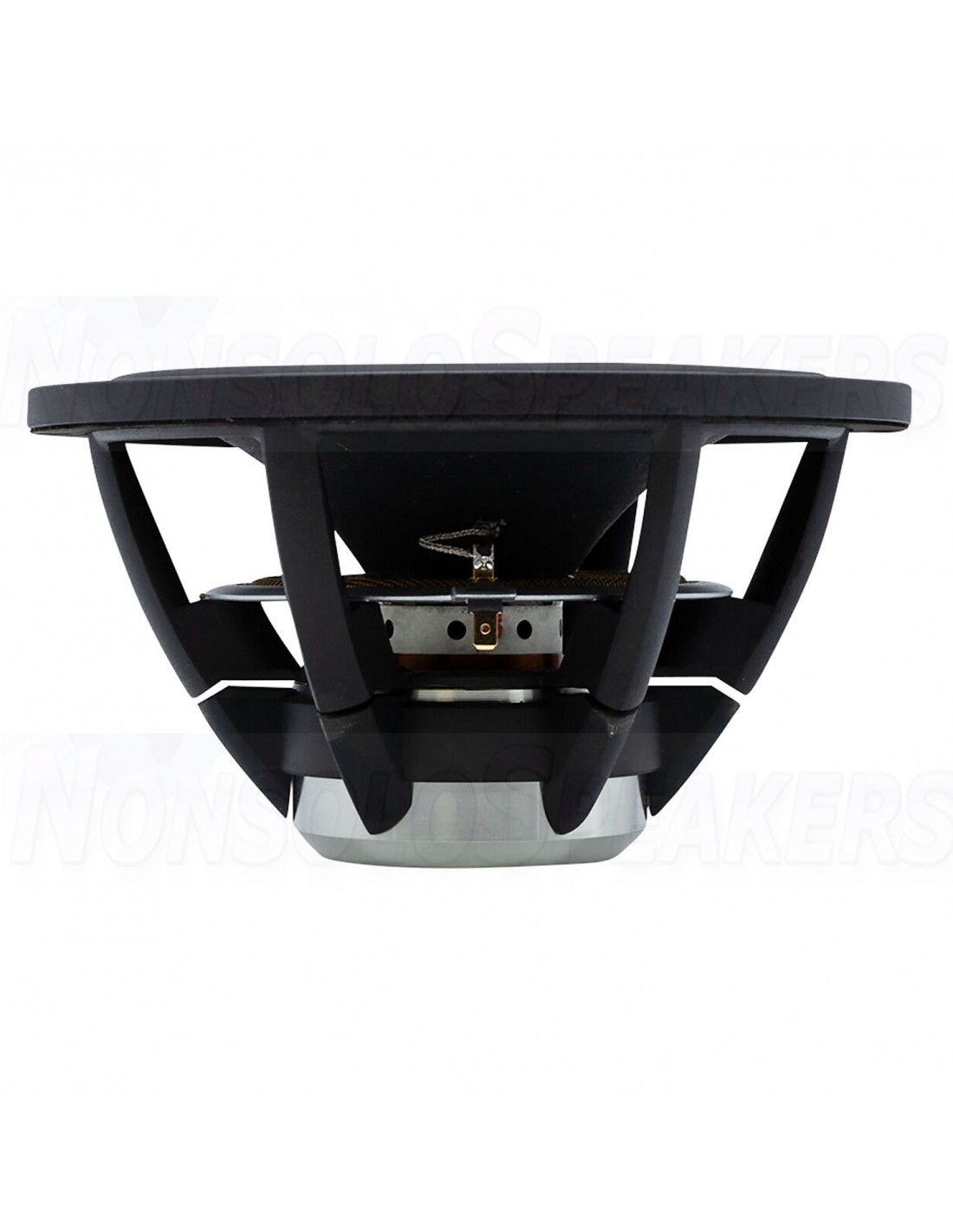

Vented aerodynamic cast aluminum chassis for optimum strength and low compression

Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house

Soft low damping rubber surround for optimum transient response

Advanced BIMAX spider for improved linearity

Powerful optimized low distortion neodymium motor system

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and reduced distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires attached 180° apart for improved stability

Vented pole piece for reduced compression

High piston to chassis diameter ratio

Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

-

Product details

SB Acoustics Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer

The SB Acoustics Satori MW19P-4 Midwoofer is a State of The Art Neodymium magnet 7.5" 4 ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece.

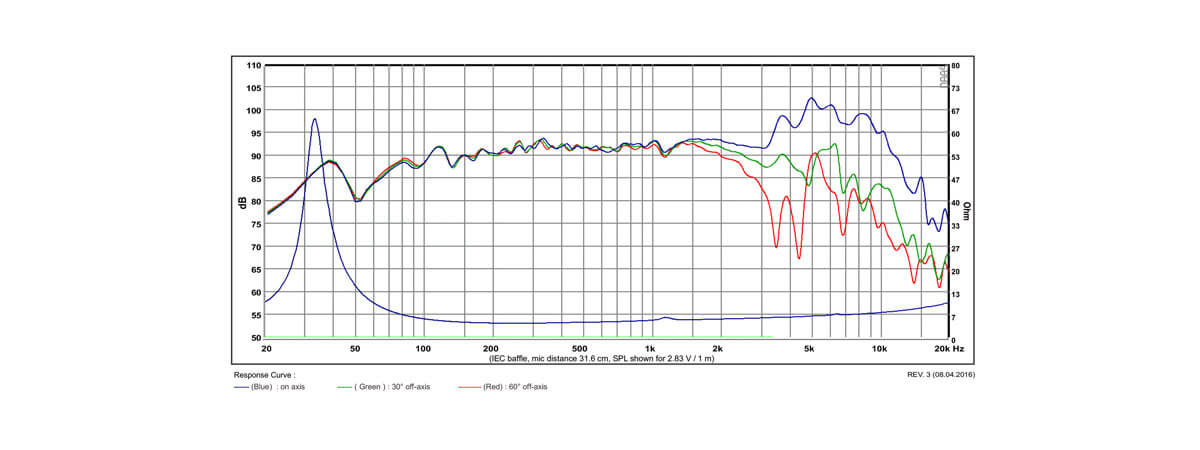

Fitted with a 39mm voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 28Hz, and a fabulous level wide response curve, this is a very flexible unit.

.

Specifications

Article numberMW19P-4
Woofer SeriesSatori Series
Woofer TypeMidwoofer

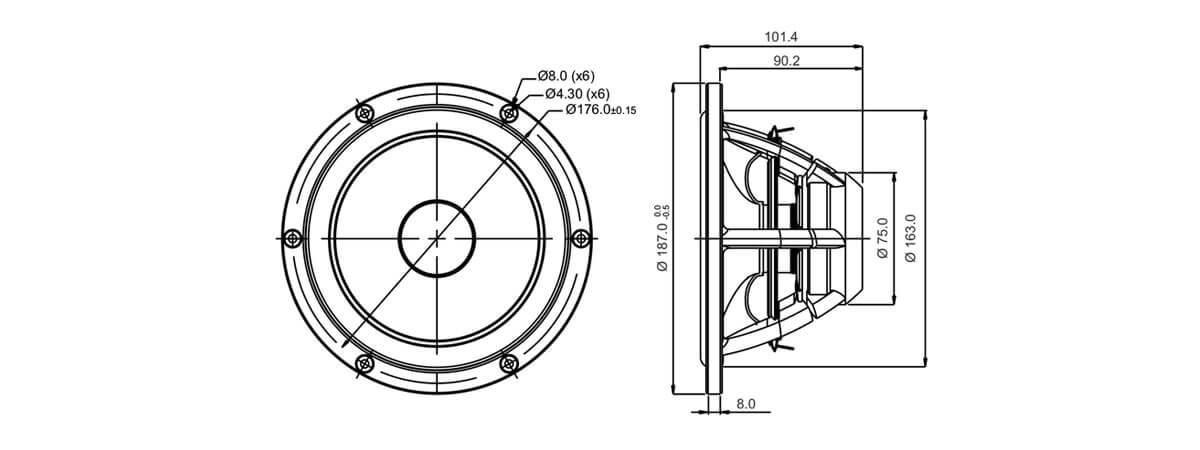

Nominal Diameter7.5"
Power Handling (RMS)70 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)91.5 dB
Voice Coil Diameter1.53"
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.14 mH
Resonant Frequency (Fs)32 Hz
Mechanical Q (Qms)4.11
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.28
Diaphragm Mass Inc. Airload (Mms)18.4 g
Mechanical Compliance of Suspension (Cms)1.35 mm/N
Surface Area of Cone (Sd)158 cm2
BL Product (BL)6.5 Tm
Compliance Equivalent Volume (Vas)1.69 ft.³
Maximum Linear Excursion (Xmax)6.8 mm

MW19P-4
