Dayton Audio MB1025-8 Midbass Woofer

SHIPMENT IN 7-10 WORKING DAYS
€73.45
Tax included
rating No review at the moment

Dayton Audio MB1025-8 Midbass Wofer

Built for high impact and low distortion, the MB1025-8 10” midbass is a great choice for use in dynamic, high output 2-way and 3-way designs.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

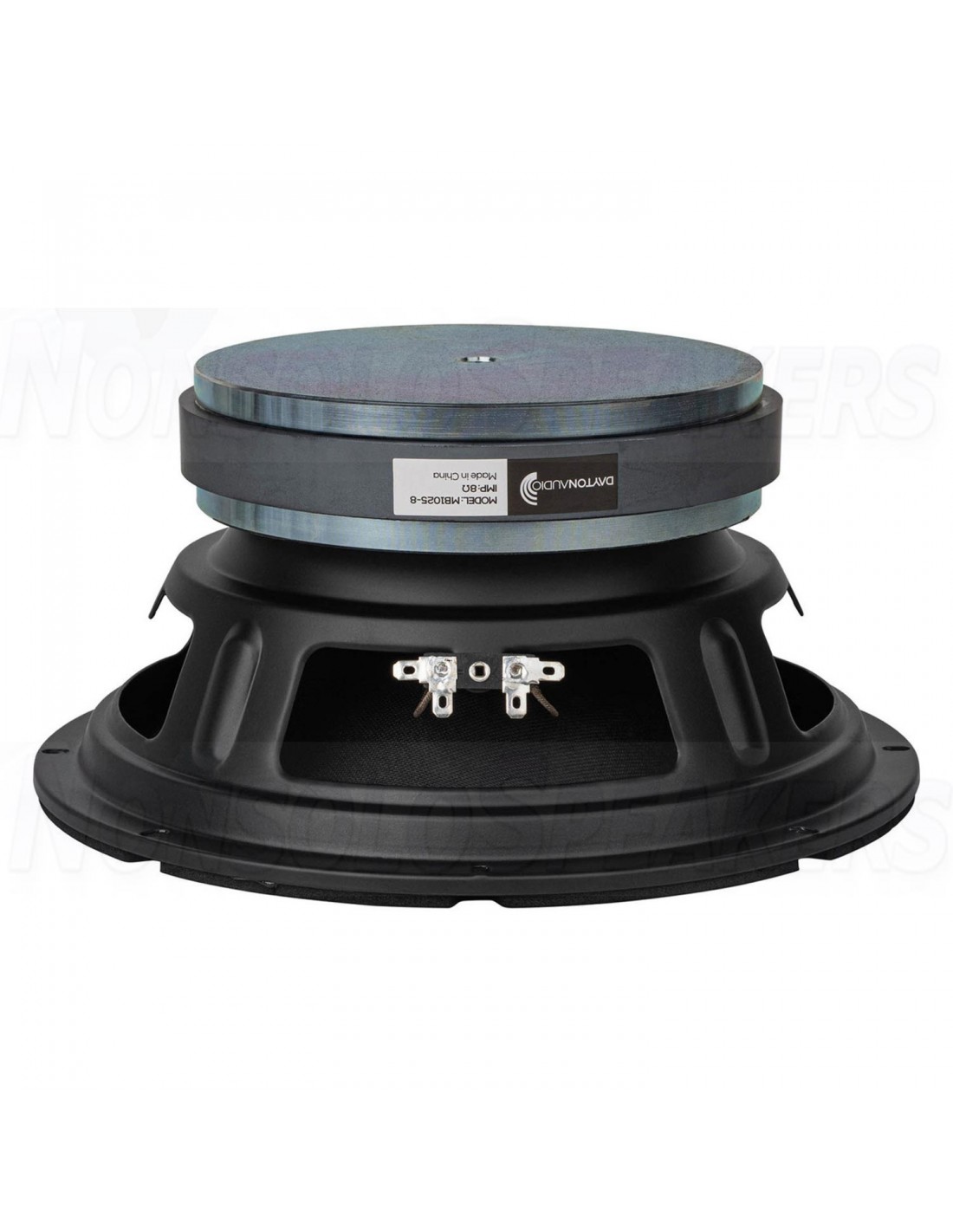

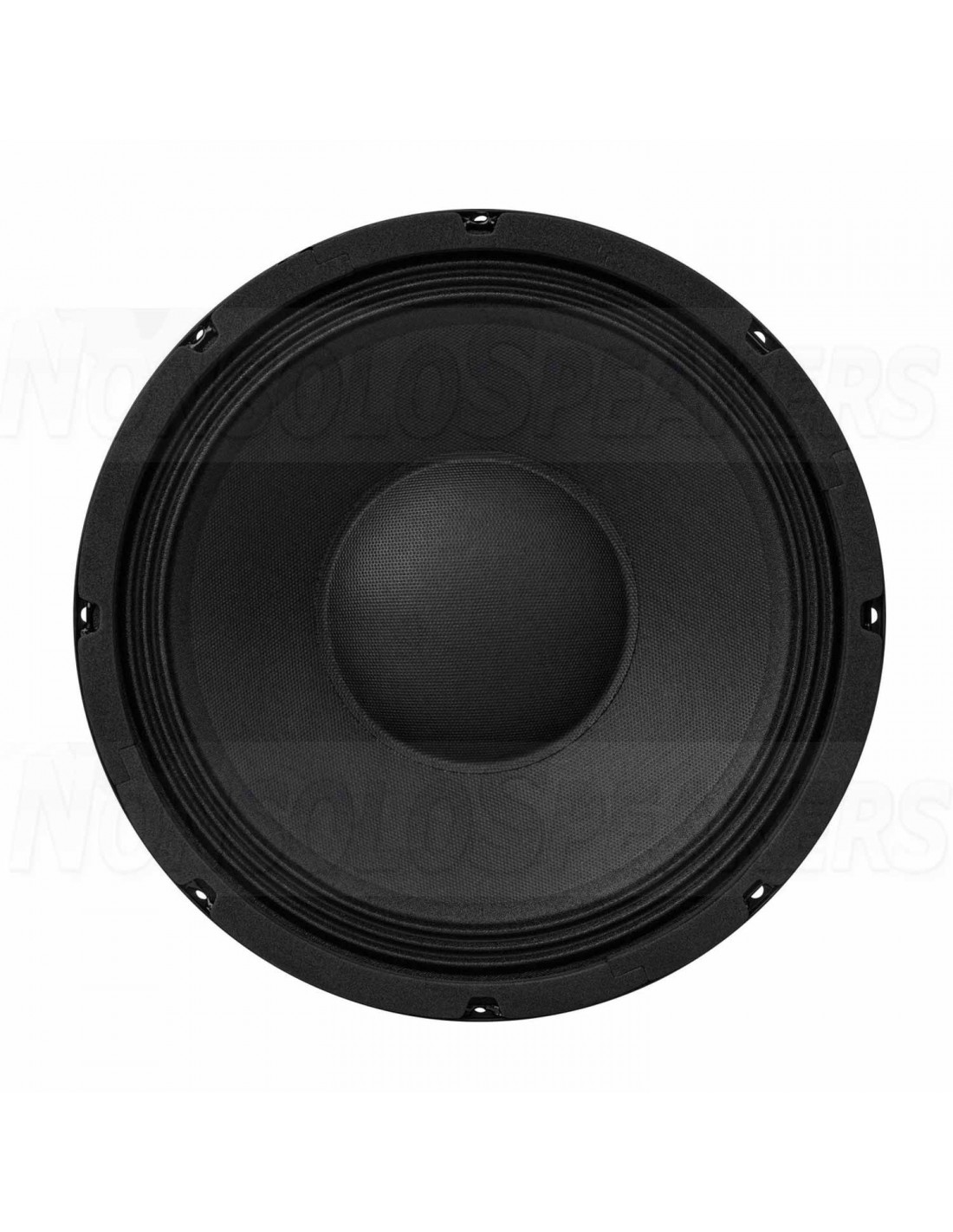

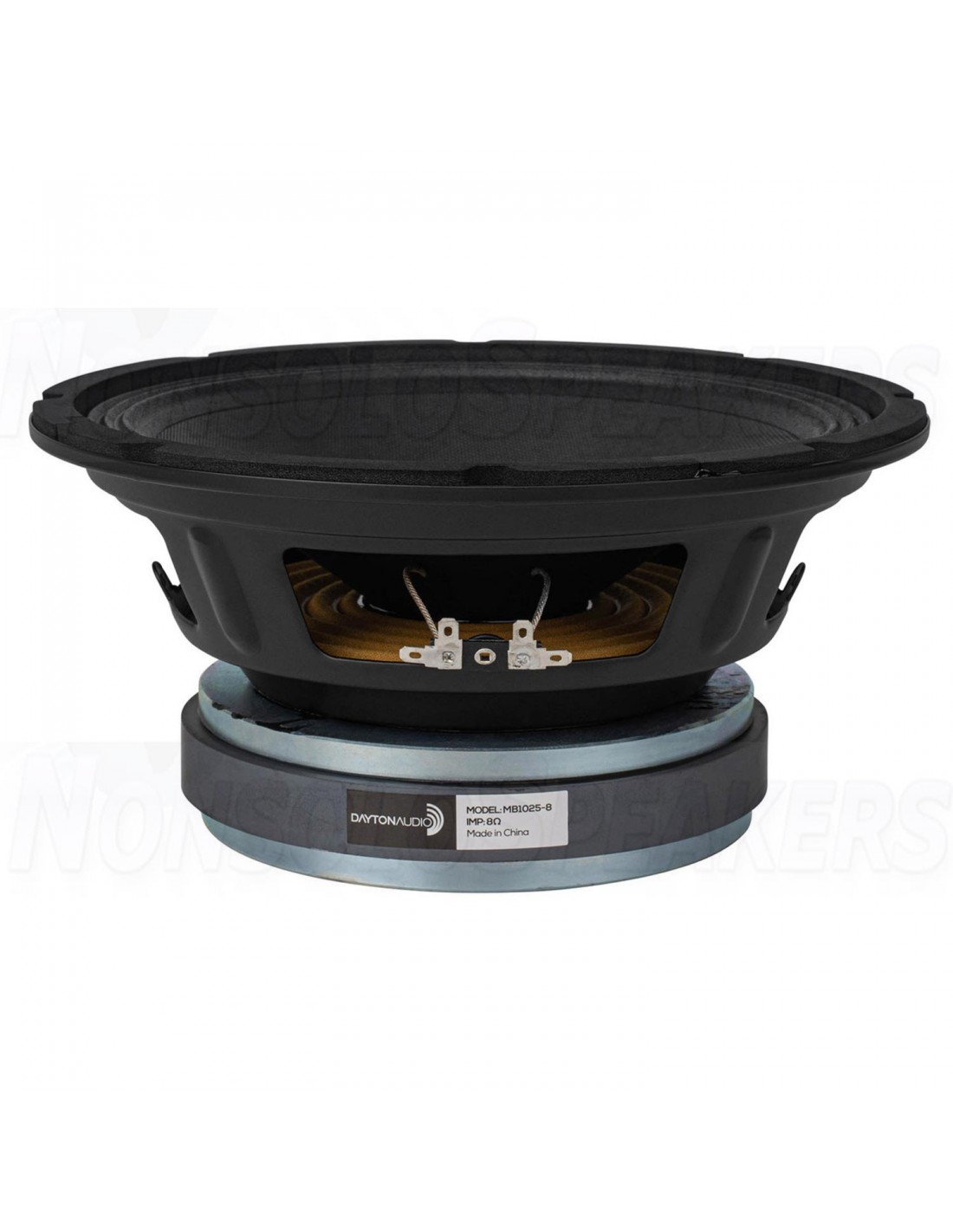

Dayton Audio MB1025-8 Midbass Woofer

Product description

Built for high impact and low distortion, the MB1025-8 10” midbass is a great choice for use in dynamic, high output 2-way and 3-way designs. With a damped paper cone, treated cloth spider, and powerful ferrite motor these drivers will deliver incredible clarity and detail even when pushed to extreme SPL levels. Suitable for use in professional speakers, studio monitors, and even car audio systems, these are incredibly flexible mid-bass drivers.

.

Highlights

95dB sensitivity and 350 watt continuous power handling allows incredible output

2.5” voice coil and 70 oz ferrite magnet with vented pole-piece

Lightweight paper cone and cloth surround

Wide 60Hz-5.5kHz usable frequency response

Great for 2 or 3-way pro audio, car, or home hi-fi systems

Excellent choice for use in musical instrument applications

.

Product details

Dayton Audio MB1025-8 10" Professional High Power Midbass Driver 8 Ohm

Dayton Audio’s MB1025-8 10” professional mid-bass driver is engineered to provide maximum impact output while keeping distortion to a minimum. This mid-bass uses a powerful, vented ferrite magnetic motor and lightweight paper cone with cloth surround to achieve high SPL and loads of clarity. While optimized for 2-way pro audio systems, this driver is versatile enough for car audio and home hi-fi mid-bass work, and even musical instrument applications, such as bass guitar and keyboard. The MB1025-8 is an 8 ohm 10” with a 2.5” voice coil and a 40oz ferrite magnet design. It offers a lot of bang-for-the-buck at 95dB SPL and 350 watts of continuous power handling. The MB1025-8 has a wide and smooth usable frequency response from 60Hz-5.5kHz.

.

Specifications

Article number MB1025-8

Woofer Type Midbass Driver

Nominal Diameter 10"

Power Handling (RMS) 350 Watts

Power Handling (max) 700 Watts

Impedance (Z) 8 Ohms

Sensitivity 95dB 2.83V/1m

Frequency Response 60 to 5,500Hz

Voice Coil Diameter 2.5"

DC Resistance (Re) 5.3Ω

Voice Coil Inductance (Le) 1.2mH

Resonant Frequency (Fs) 45Hz

Mechanical Q (Qms) 6.47

Electromagnetic Q (Qes) 0.36

Total Q (Qts) 0.34

Diaphragm Mass Inc. Airload (Mms) 41.1g

Mechanical Compliance of Suspension (Cms) 0.3mm/N

Surface Area of Cone (Sd) 342.5cm²

BL Product (BL) 13.1T·m

Compliance Equivalent Volume (Vas) 1.79ft³

Maximum Linear Excursion (Xmax) 3mm

Cone / Diaphragm Material Paper

Surround Material Cloth

Voice Coil Wire Material CCA

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 10"

Overall Depth 4.25"

Baffle Cutout Diameter 9.14"

# Mounting Holes 8

Sealed Volume 0.6ft³

Sealed F3 103Hz

Vented Volume 0.9ft³

Vented F3 64Hz
