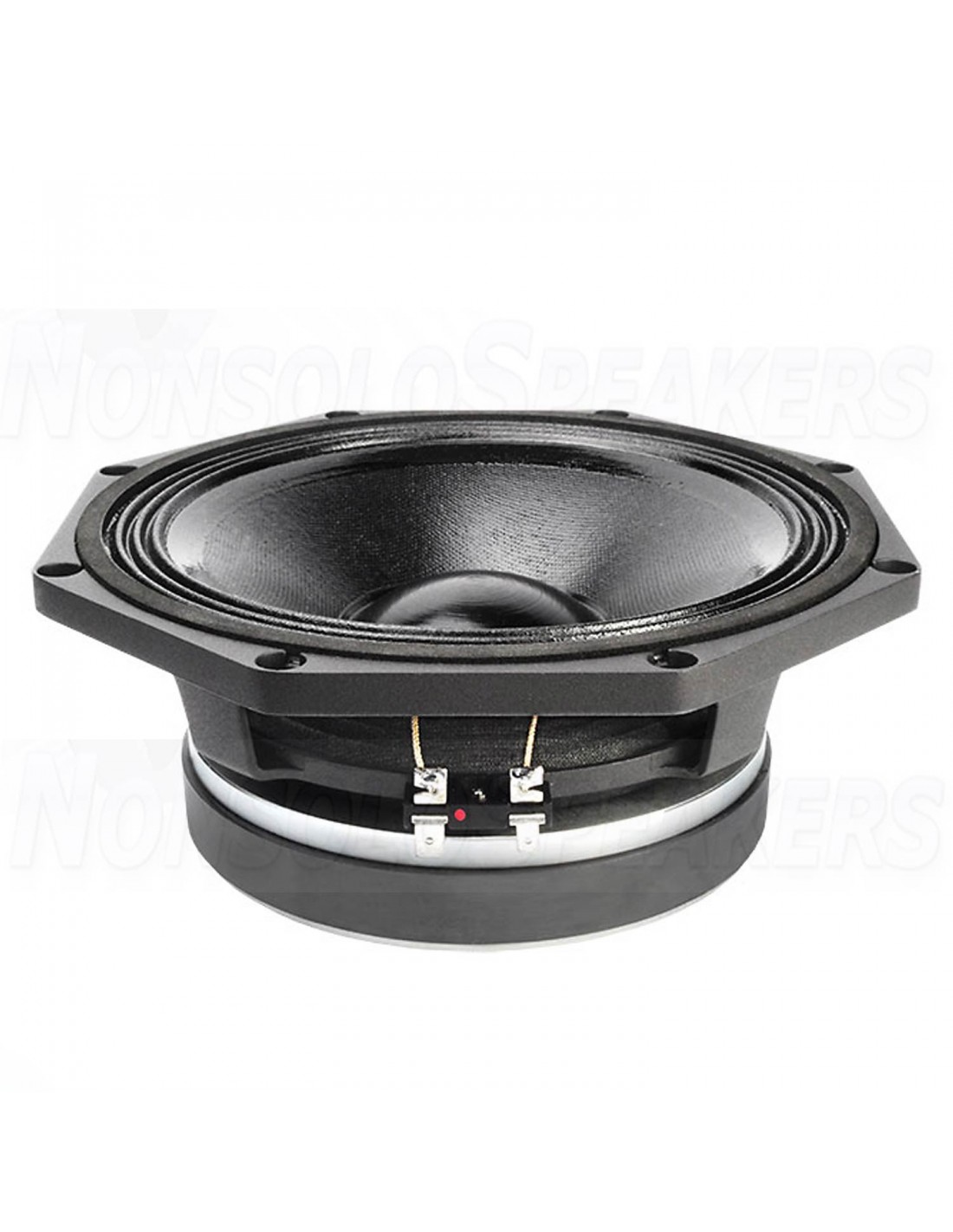

Faital 8PR155 - Midrange 8" Ferrite - 8ohm
Faital 8PR155 - Midrange 8" Ferrite - 8ohm

Faital 8PR155 - Midrange 8" Ferrite - 8ohm

Faital 8PR155 - Midrange 8"  Ferrite - 8ohm

SHIPMENT IN 5-7 WORKING DAYS
€150.09 €157.99 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 8PR155 - Midrange 8"  Ferrite - 8ohm

NOMINAL SPECIFICATIONS

Nominal Diameter 200 mm (8 in)
Overall Diameter 223.7/207.9 mm (8.81/8.18 in)
Bolt Circle Diameter 210 mm (8.27 in)
Baffle Cutout Diameter 183 mm (7.20 in)
Depth 98.5 mm (3.88 in)
Flange and Gasket Thickness 10.8 mm (0.43 in)
Net Weight 4.3 Kg (9.5 lb)
Shipping Box
(Single Carton Box)		 235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in)
Shipping Weight 4.6 Kg (10.1 lb)



TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 6.3 Ohm
AES Power Handling (1) 200 W
Maximum Power Handling (2) 400 W
Sensitivity (1W/1m) 97 dB
Frequency Range 80÷6300 Hz
Voice Coil Diameter 52 mm (2 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 9.8 mm (0.39 in)
Magnetic Gap Depth 8 mm (0.31 in)
Flux Density 1.3 T
Magnet Ferrite Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 1.06 dm^3 (0.037 ft^3)


QUICK ACOUSTIC SPECS

Nominal Impedance 8 Ohm
Minimum Impedance 6.3 Ohm
AES Power Handling (1) 200 W
Sensitivity (1W/1m) 97 dB
Frequency Range 80÷6300 Hz
Flux Density 1.3 T
Magnet Ferrite Ring
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 85 Hz
Re 5.3 Ohm
Qes 0.39
Qms 8.8
Qts 0.37
Vas 9.4 dm^3 (0.33 ft^3)
Sd 217 cm^2 (33.67 in^2)
Xmax (3) 3.57 mm
Xdamage (4) 10.65 mm
Mms 24.5 g
Bl 13.4 N/A
Le 0.41 mH
Mmd 20.9 g
Cms 0.14 mm/N
Rms 1.5 Kg/s
Eta Zero 1.45 %
EBP 218 Hz


QUICK MECHANICAL SPECS

Nominal Diameter 200 mm (8 in)
Overall Diameter 223.7/207.9 mm (8.81/8.18 in)
Bolt Circle Diameter 210 mm (8.27 in)
Baffle Cutout Diameter 183 mm (7.20 in)
Depth 98.5 mm (3.88 in)
Flange and Gasket Thickness 10.8 mm (0.43 in)
Net Weight 4.3 Kg (9.5 lb)
Shipping Box
(Single Carton Box)		 235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in)
Shipping Weight 4.6 Kg (10.1 lb)
8PR155
