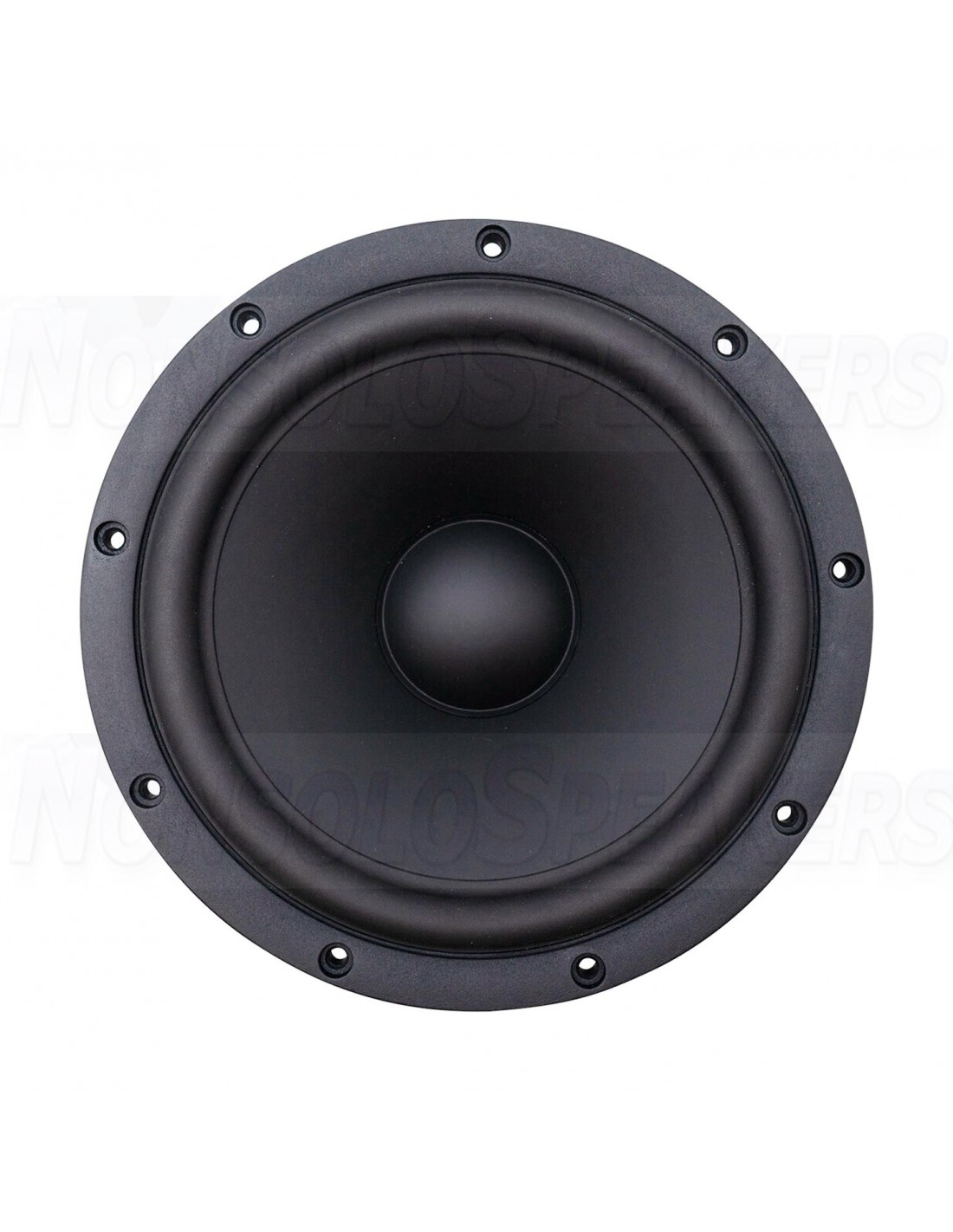

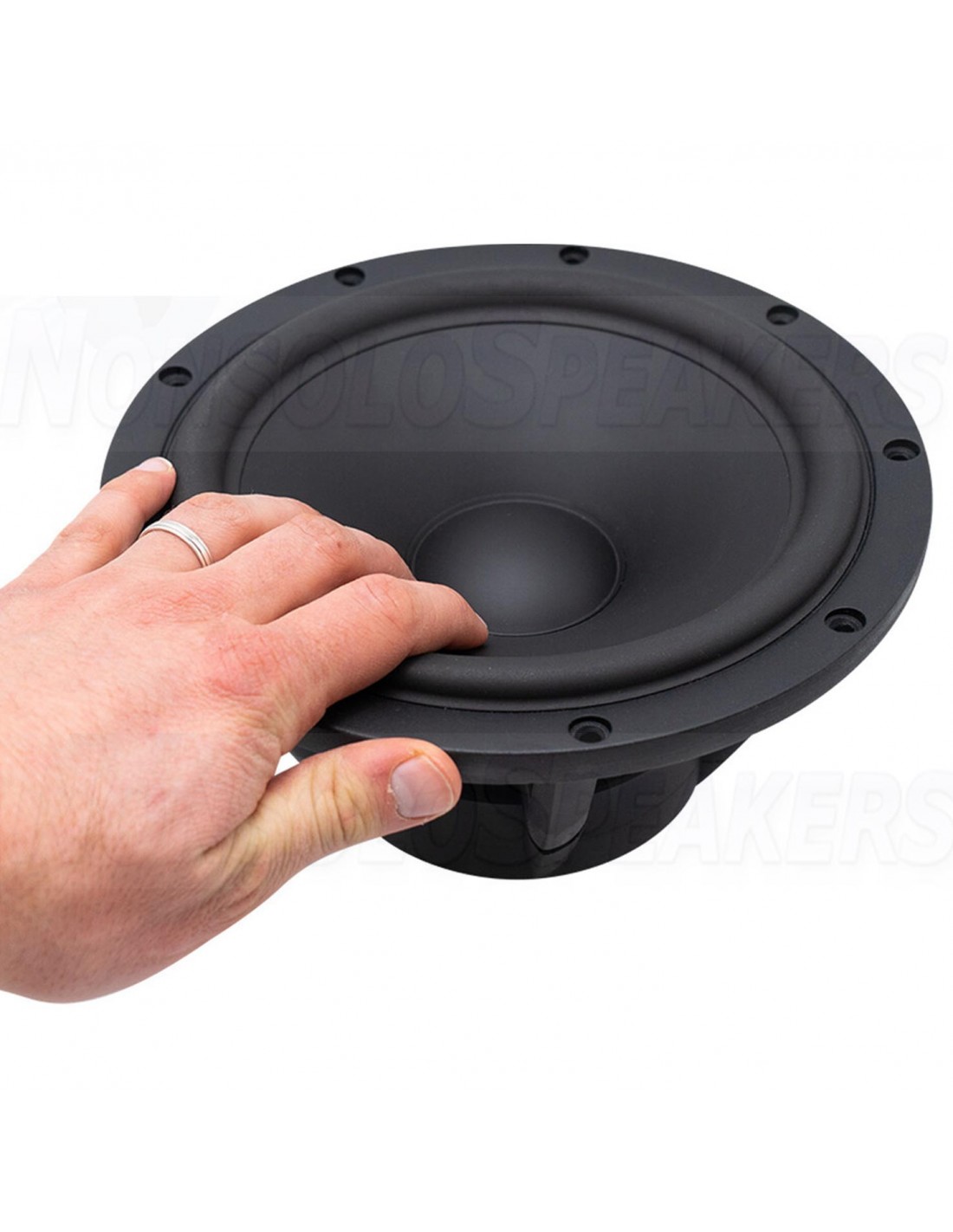

SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer
SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer

SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer

SHIPMENT IN 7-10 WORKING DAYS
€234.00
Tax included
rating No review at the moment

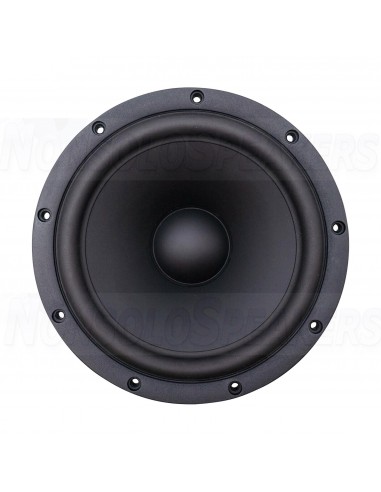

SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer

The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori WO24P-4 9.5" Egyptian Papyrus Cone Woofer

The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. “As we get more experience, new materials, better simulation tools, we believe in benefiting the customer with those improvements. We always knew that geometry is essential and we are working more and more with geometry. Every time we get new materials, like beryllium, and we optimize the designs, there’s always room for improvement. We’ve been able to implement significant improvements with beryllium, and we could obtain pretty good results in combination with geometry.”

-

Highlights

Hard paper cone for improved piston operation (made in-house)

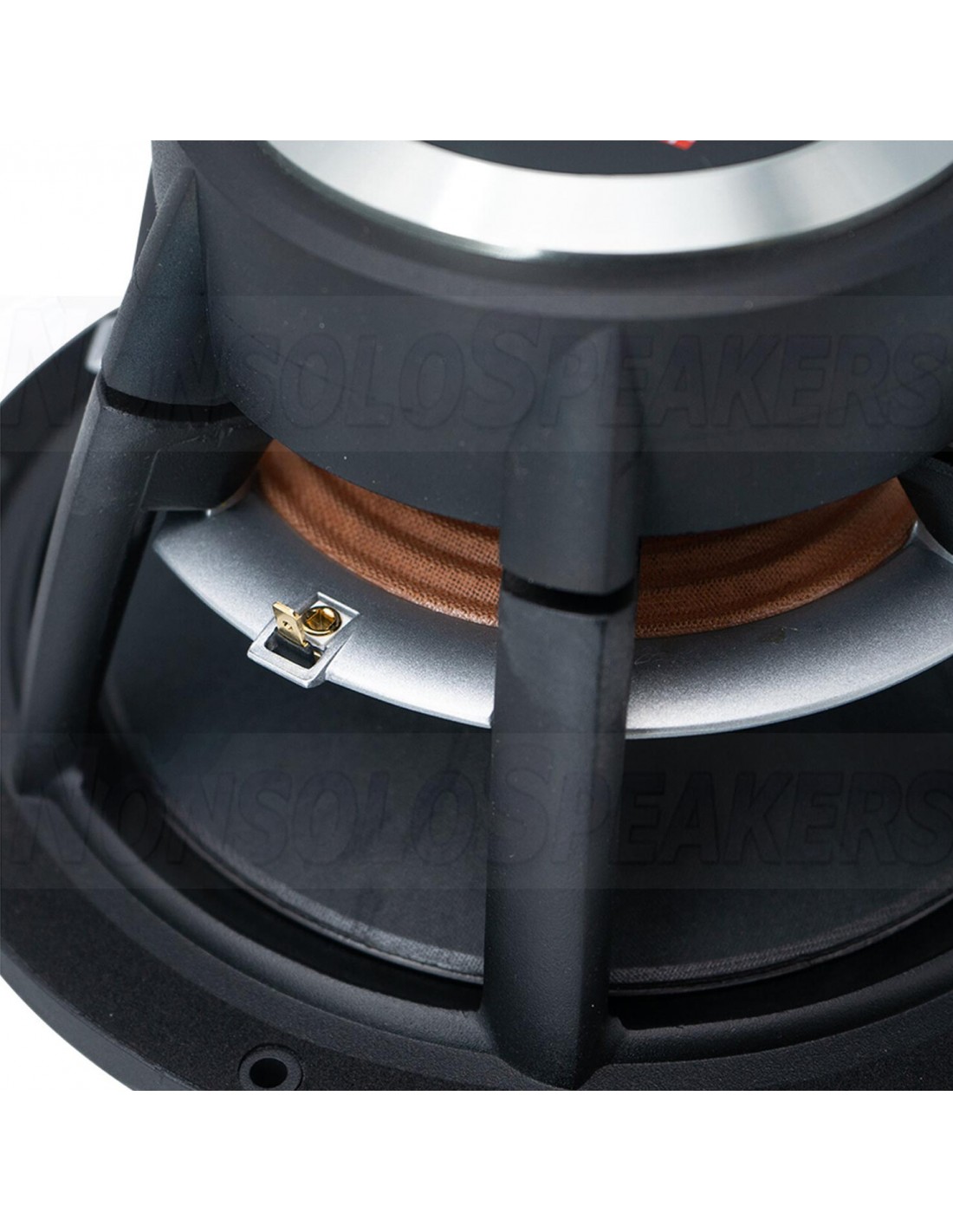

Large optimized motor system with under-cut pole piece and dual shorting rings

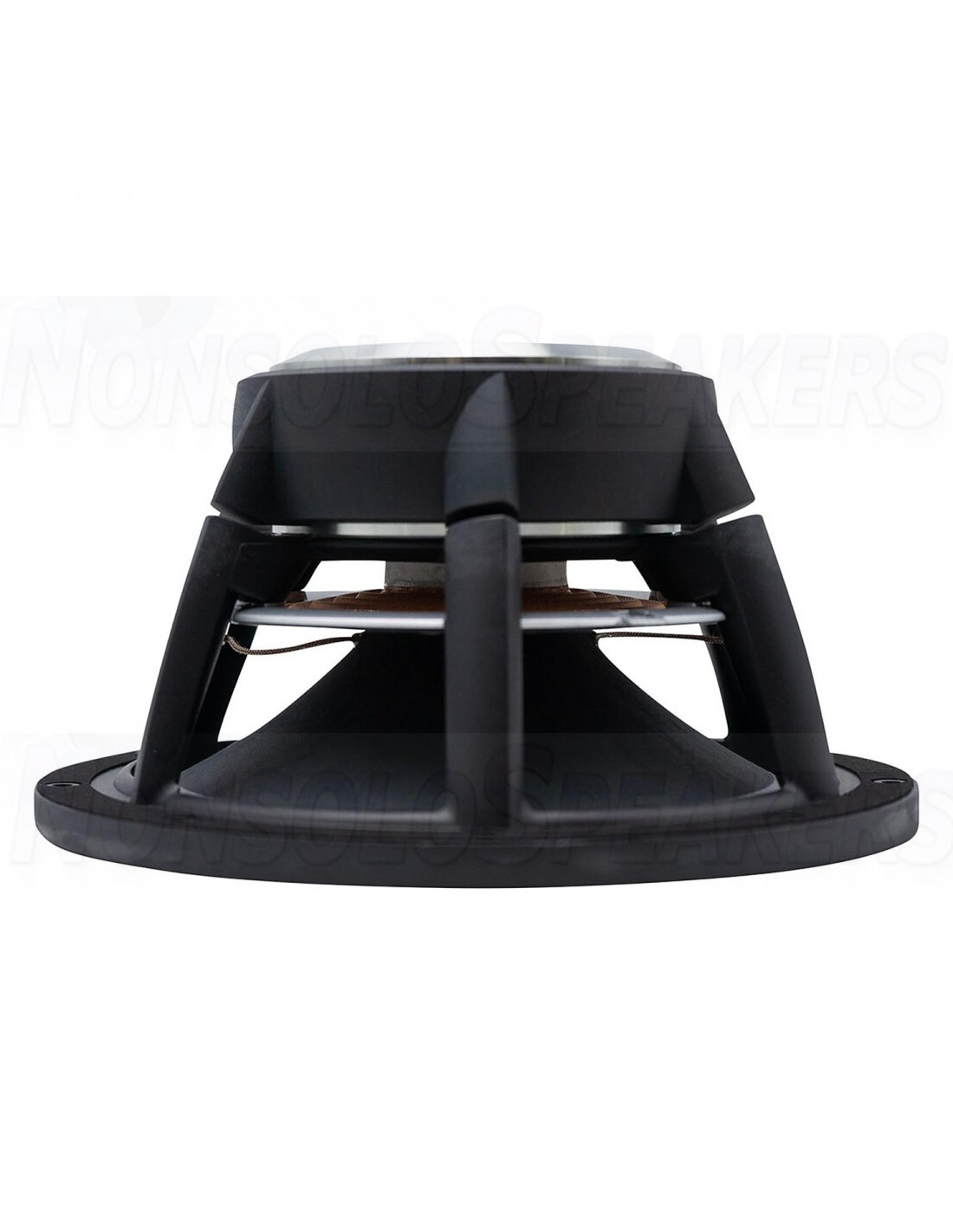

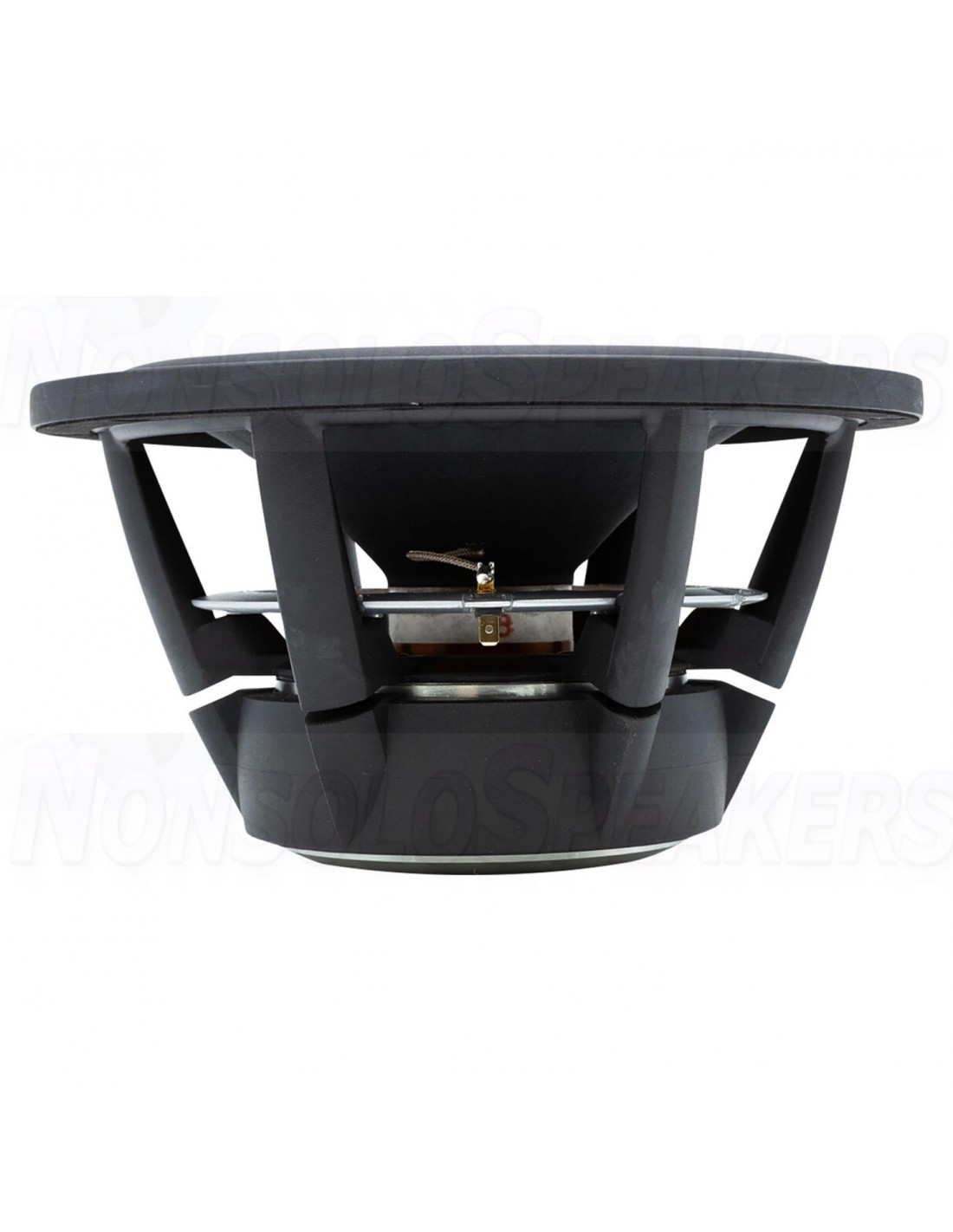

Vented aerodynamic cast aluminum chassis for optimum strength and low compression
Soft low damping rubber surround for optimum transient response
Linear symmetric suspension design for improved dynamic performance
Non-conducting fibrer glass voice coil former for minimum damping
Long life silver lead wires attached 180° apart for improved stability

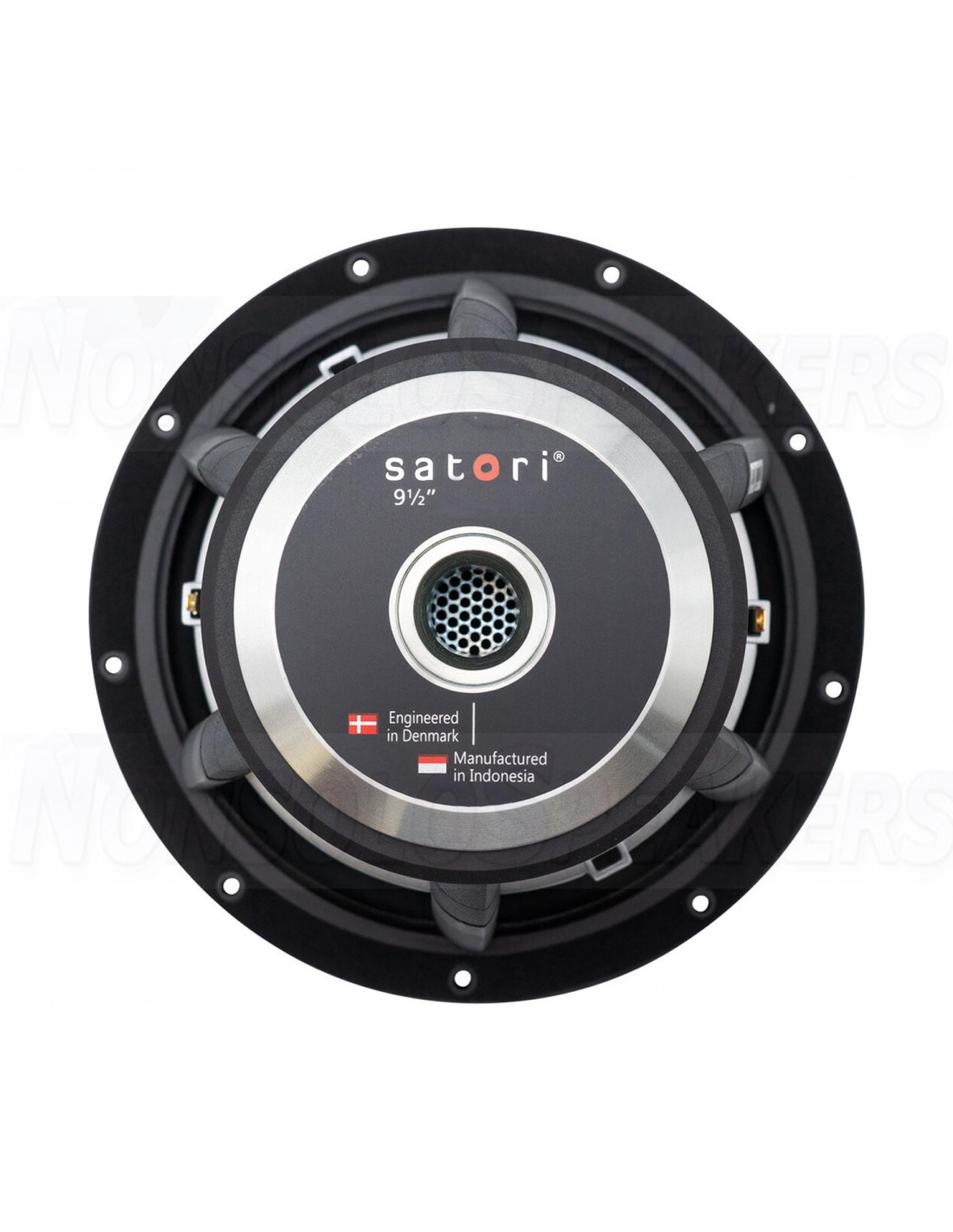

Vented pole piece for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

.

Specifications

Article numberWO24P-4
Woofer SeriesSatori Series
Woofer TypeMidwoofer
Nominal Diameter9.5"
Power Handling (RMS)90 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)91 dB
Voice Coil Diameter1.94"
DC Resistance (Re)3.3 ohms
Voice Coil Inductance (Le)0.29 mH
Resonant Frequency (Fs)28 Hz
Mechanical Q (Qms)6.7
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.40
Diaphragm Mass Inc. Airload (Mms)42 g
Mechanical Compliance of Suspension (Cms)0.77 mm/N
Surface Area of Cone (Sd)255 cm2
BL Product (BL)7.6 Tm
Compliance Equivalent Volume (Vas)2.50 ft.³
Maximum Linear Excursion (Xmax)8.5 mm

WO24P-4
4 Items

You might also like

MOREL CAW 634 - 6" Woofer - Morel Classic Advanced MOREL CAW 634 - 6" Woofer - Morel Classic Advanced 2
  • On sale!
  • -3%
SHIPMENT IN 7/10 WORKING DAYS
6" to 6,9" 15,24 - 17,5cm

MOREL CAW 634 - 6" Woofer - Morel Classic Advanced

MOREL
MOREL CAW 634
€163.93 €169.00
MOREL CAW 634 - 6" Woofer - Morel Classic Advanced The Classic Advanced line of woofers is based on Morel’s classic line - the renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, reinforced ferrite magnets resulting in higher power handling, and low resonance frequency and Qts points.
16W/4538G05 Midwoofer 6" Scan Speak Neodimium Pair 16W/4538G05 Midwoofer 6" Scan Speak Neodimium Pair 2
  • On sale!
  • -5%
SHIPMENT IN 7/10 WORKING DAYS
Woofer

Scan Speak 16W/4538G05 Midwoofer 6" Neodimium Pair

Scan Speak
16W/4538G05
rating 0 review
€948.10 €998.00
Scan Speak 16W/4538G05  Midwoofer 6" Neodimium Pair Our GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.
CVS10C - OFC speaker cable 2x1.0mm² - white sheath CVS10C - OFC speaker cable 2x1.0mm² - white sheath 2
SHIPMENT IN 5/7 WORKING DAYS
Speakers Cables for Home HIFI

SPEAKERS CABLE CVS40C - OFC 2x4.0mm² - white sheath

XPL
CVS40C
rating 0 review
€4.99
SPEAKERS CABLE CVS40C - OFC  2x4.0mm² - white sheath Bipolar OFC copper cable for 2x4.0mm² speakers composed of 7 braids with 50 wires each of 0.12mm. External dimensions: 5.0x10.0mm. Available in 50m and 100m air-wound rolls. Excellent quality .. Price per linear meter. Technical features Cable type Double wire speaker Cross section Cable 40 mm Cable...

16 other products in the same category:

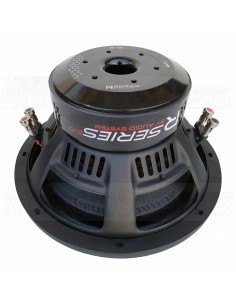

Audio System R 10 EVO - 25cm Subwoofer Audio System R 10 EVO - 25cm Subwoofer 2
