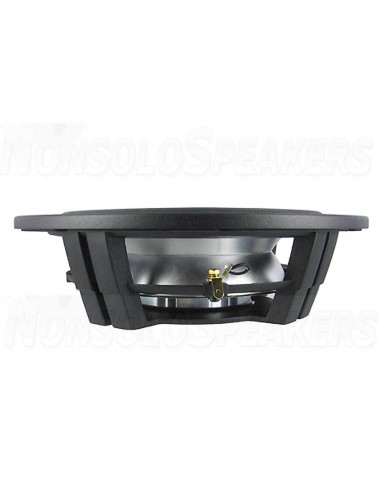

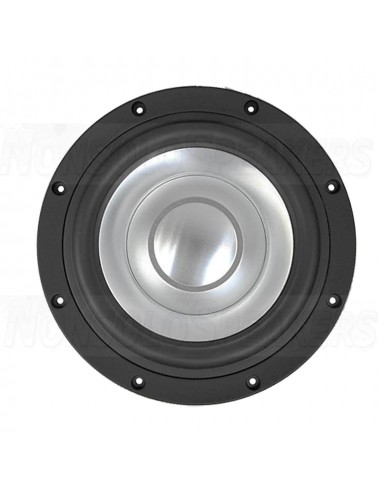

SB ACOUSTICS SW26DAC76-8 - Subwoofer 10" SB Acoustics - 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€299.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SW26DAC76-8 - Subwoofer 10" SB Acoustics - 8ohm

Highlights

Unique patented long and flat design

Powerful neodymium motor system

Ventilated cone structure made of cast aluminum

Non-conductive fiber optic coil for minimal attenuation

Short circuit ring in the motor system to reduce distortion

Durable silver wire

-

Specifications

Article numberSW26DAC76-8
Woofer TypeSubwoofer
Nominal Diameter10''
Power Handling (RMS)250 Watts
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)83 dB
Voice Coil Diameter75.5 mm
Magnet Weight281 g
DC Resistance (Re)6.4 Ohms
Resonant Frequency (Fs)19.5 Hz
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.28
Diaphragm Mass Inc. Airload (Mms)172 g
Mechanical Compliance of Suspension (Cms)0.39 mm/N
Surface Area of Cone (Sd)312 cm2
BL Product (BL)21.4 Tm
Compliance Equivalent Volume (Vas)54 Ltr
Maximum Linear Excursion (Xmax)12 mm
Driver's Mechanical Losses (Rms)4.8 kg/s
Cone / Diaphragm MaterialAluminum
Voice Coil Wire MaterialCopper
Voice Coil FormerFiber glass
Basket / Frame MaterialAluminum
Magnet MaterialNeodynium

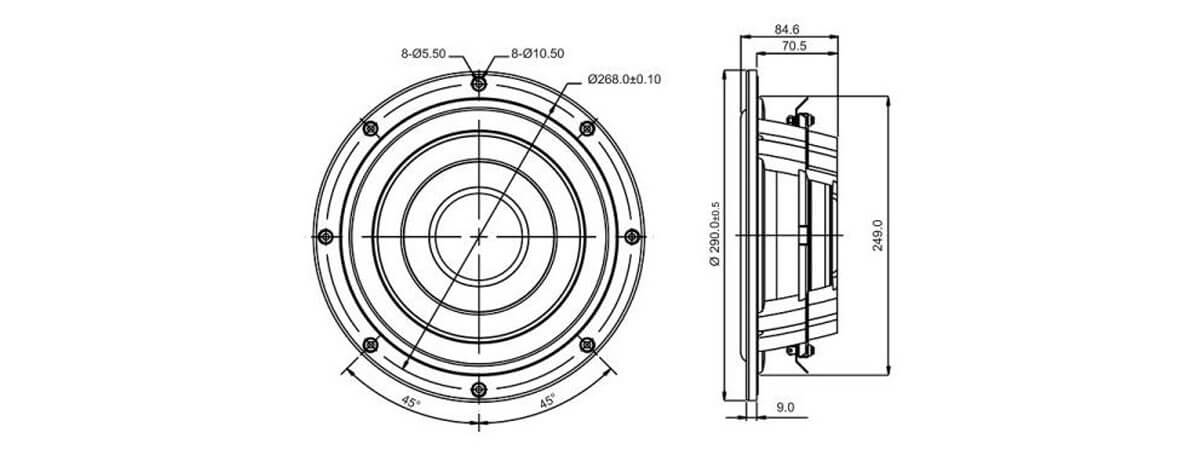

Overall Outside Diameter290 mm
Overall Depth84,6 mm
# Mounting Holes8
Mounting Hole Diameter249 mm
Sealed Volume9-16 Ltr



The SB Acoustics SW26DAC76-8 is a 10-inch, 8-ohm slim aluminum subwoofer that's unique design enables great low-frequency reproduction in a slim housing. With a depth of just 70.5mm it is ideal for applications where clearance can become an issue. For optimal performance, a sealed cabinet with a volume of 9.7 liters is recommended. This speaker is not recommended for bass reflex or gantry speakers.
