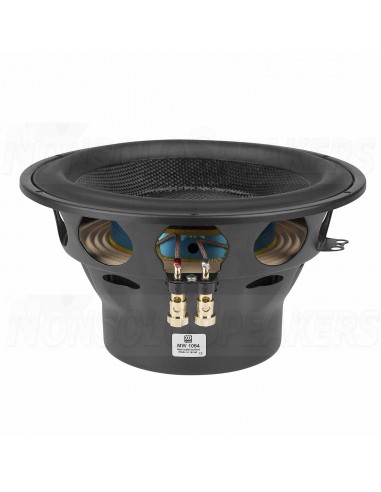

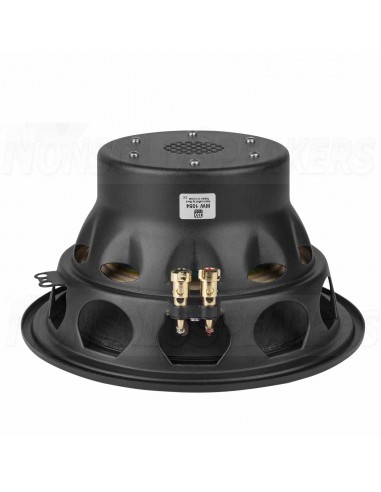

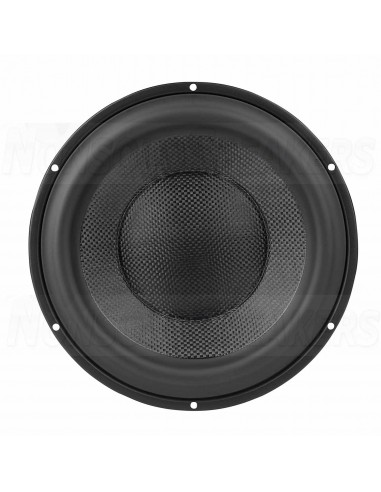

Morel MW 1054 Classic Series 10" Paper Carbon Fiber

With a huge 5.1" voice coil, double inside magnet assembly, and woven carbon fiber / paper laminate cone, Morel's MW1054 is a very powerful and unique subwoofer. Optimized for use in compact enclosures this high-end sub is suitable for both home and car audio designs.

Key Features

  • Massive 5.1" aluminum Hexatech voice coil handles extreme amounts of power
  • One of a kind stamped steel frame provides extensive venting for noise free operation
  • Rigid woven carbon fiber laminated paper cone for incredible damping
  • Huge spider and smooth transition surround keeps excursion as linear as possible

Estimated Shipping Costs
Shipping Costs
€19.20
Shipping Time
.
Want to check another country or courier?



Morel MW 1054 Classic Series 10" Paper Carbon Fiber

With a huge 5.1" voice coil, double inside magnet assembly, and woven carbon fiber / paper laminate cone, Morel's MW1054 is a very powerful and unique subwoofer. Optimized for use in compact enclosures this high-end sub is suitable for both home and car audio designs.

Highlights

  • Massive 5.1" aluminum hexatech voice coil handles extreme amounts of power
  • One of a kind stamped steel frame provides extensive venting for noise free operation
  • Rigid woven carbon fiber laminated paper cone for incredible damping
  • Huge spider and smooth transition surround keeps excursion as linear as possible

Morel's innovative engineering on the MW 1054 results in an extraordinary combination of audiophile quality bass and high power output for a great value. Featuring a gigantic 5.1” Hexatech external voice coil (hexagonal-shaped aluminum wire), the MW 1054 was created for accurate music reproduction, superior durability, and high power handling. A highly efficient double magnet ferrite motor maximizes the magnetic field to apply as much force to the coil as possible. The cone is a unique hybrid of carbon fiber composite laminated on paper to achieve an impressive mix of rigidity and damping for extraordinary musicality. Holding everything together is a solid stamped steel frame that provides extensive venting for the coil (under spider and pole piece venting) for minimal compression and quiet operation.

The MW 1054 is optimized to deliver powerful low frequencies when used in small enclosures. This driver is suitable for use in both hi-end home and car audio systems.


.

Product Specifications

  • Nominal Diameter10"
  • Power Handling (RMS)500 Watts
  • Power Handling (max)1,500 Watts
  • Impedance4 ohms
  • Frequency Response30 to 900 Hz
  • Sensitivity88 dB 2.83V/1m
  • Voice Coil Diameter5.1"

Thiele-Small Parameters

  • Resonant Frequency (Fs)26 Hz
  • DC Resistance (Re)2.82 ohms
  • Voice Coil Inductance (Le)1.07 mH
  • Mechanical Q (Qms)1.50
  • Electromagnetic Q (Qes)0.40
  • Total Q (Qts)0.31
  • Compliance Equivalent Volume (Vas)2.12 ft.³
  • Mechanical Compliance of Suspension (Cms)0.35 mm/N
  • BL Product (BL)11.1 Tm
  • Diaphragm Mass Inc. Airload (Mms)104.6g
  • Maximum Linear Excursion (Xmax)10 mm
  • Surface Area of Cone (Sd)346 cm²

Materials of Construction

  • Cone MaterialPaper / Carbon Fiber
  • Voice Coil Wire MaterialAluminum
  • Voice Coil FormerAluminum
  • Magnet MaterialFerrite

Mounting Information

  • Overall Outside Diameter10.35"
  • Baffle Cutout Diameter8.86"
  • Depth5.38"
  • Bolt Circle Diameter9.96"
  • # Mounting Holes6

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume0.30 ft.³
  • Sealed F371.34 Hz
  • Vented Volume0.69 ft.³
  • Vented F343.11 Hz
