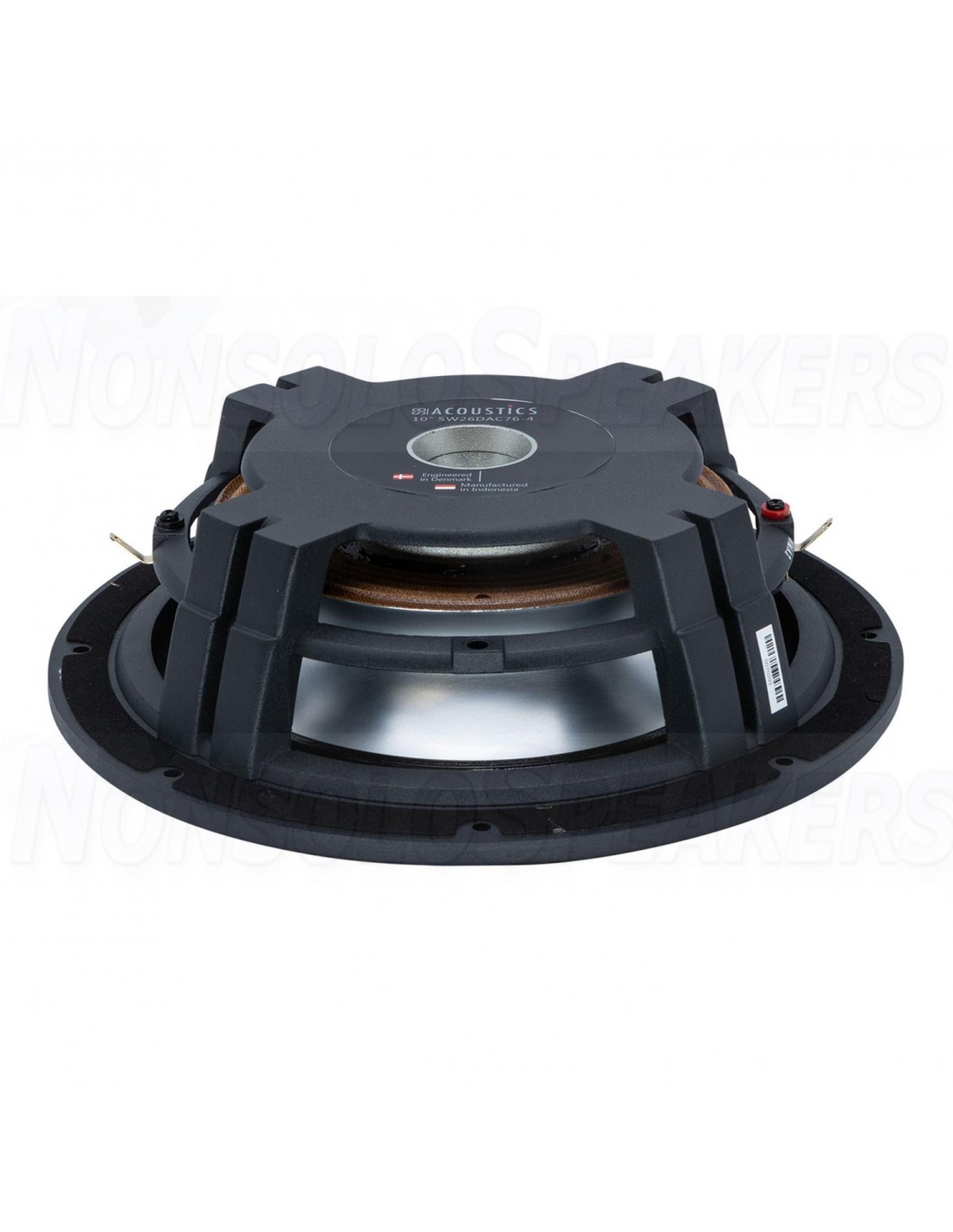

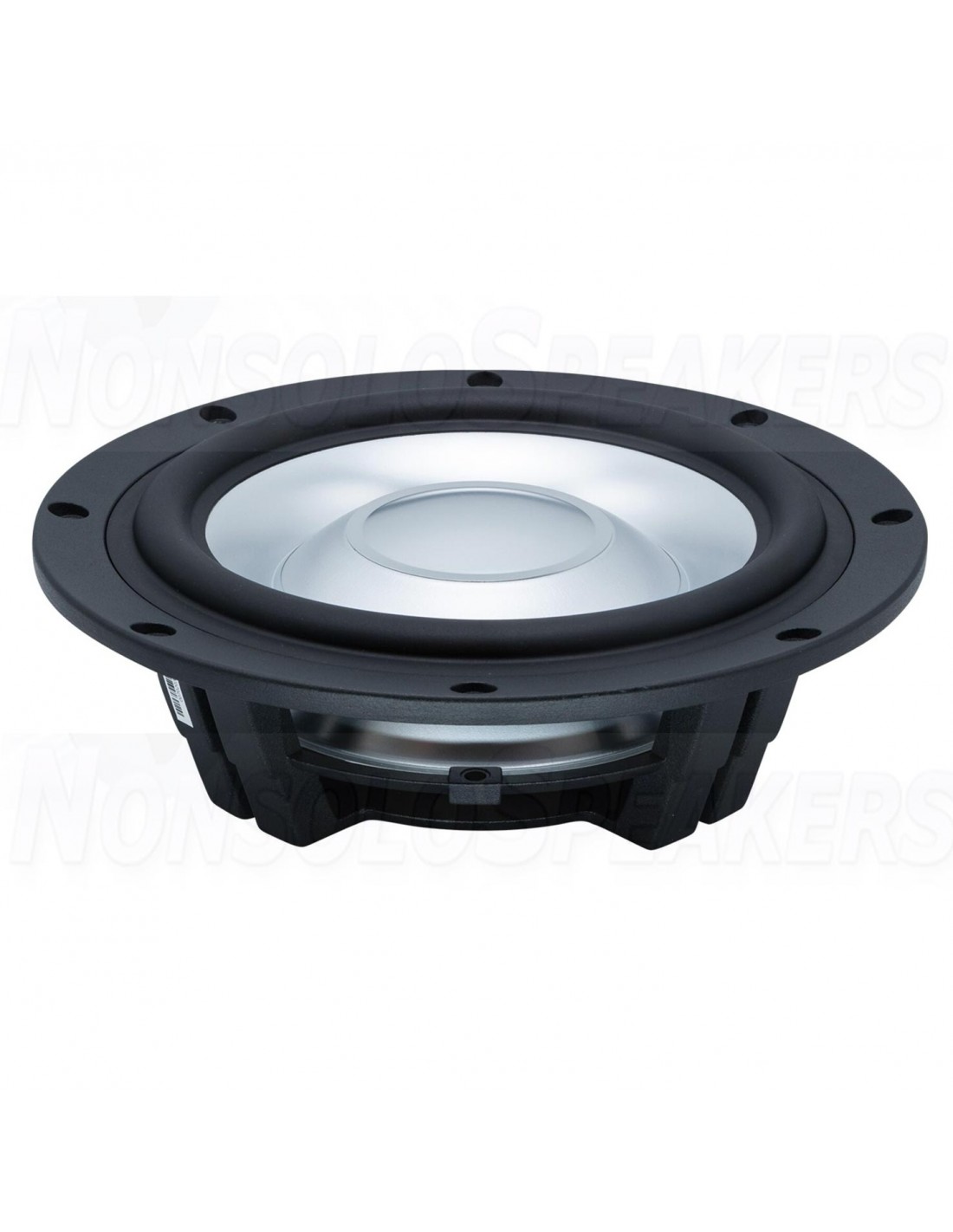

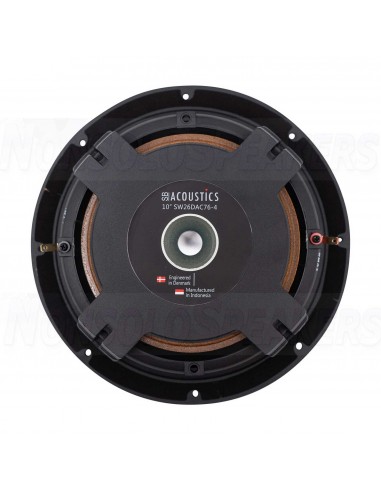

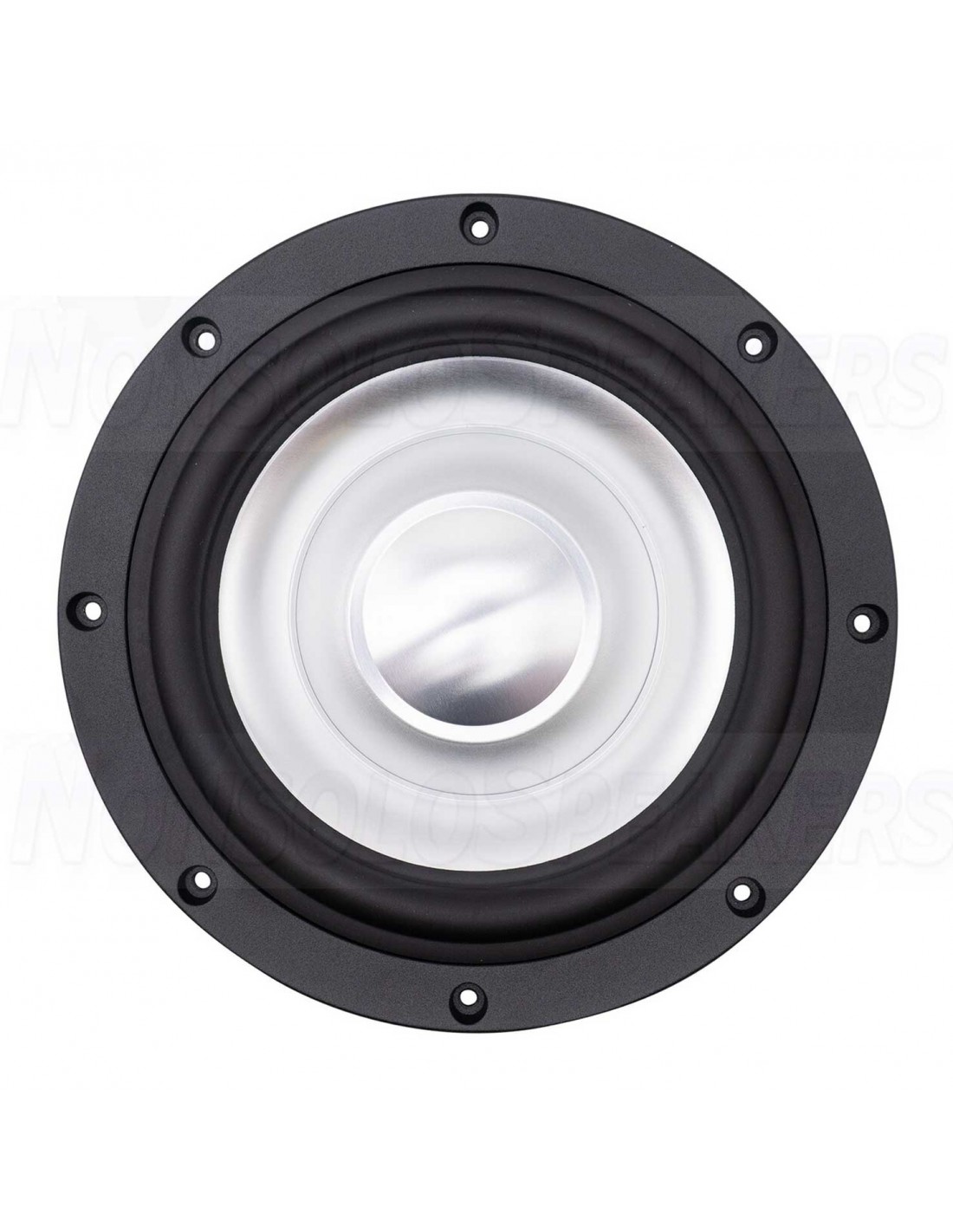

SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"
SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"

SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"

SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"

SHIPMENT IN 7-10 WORKING DAYS
€272.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SW26DAC76-4 - Subwoofer 10"

.

Product description

Unique patented long through shallow design

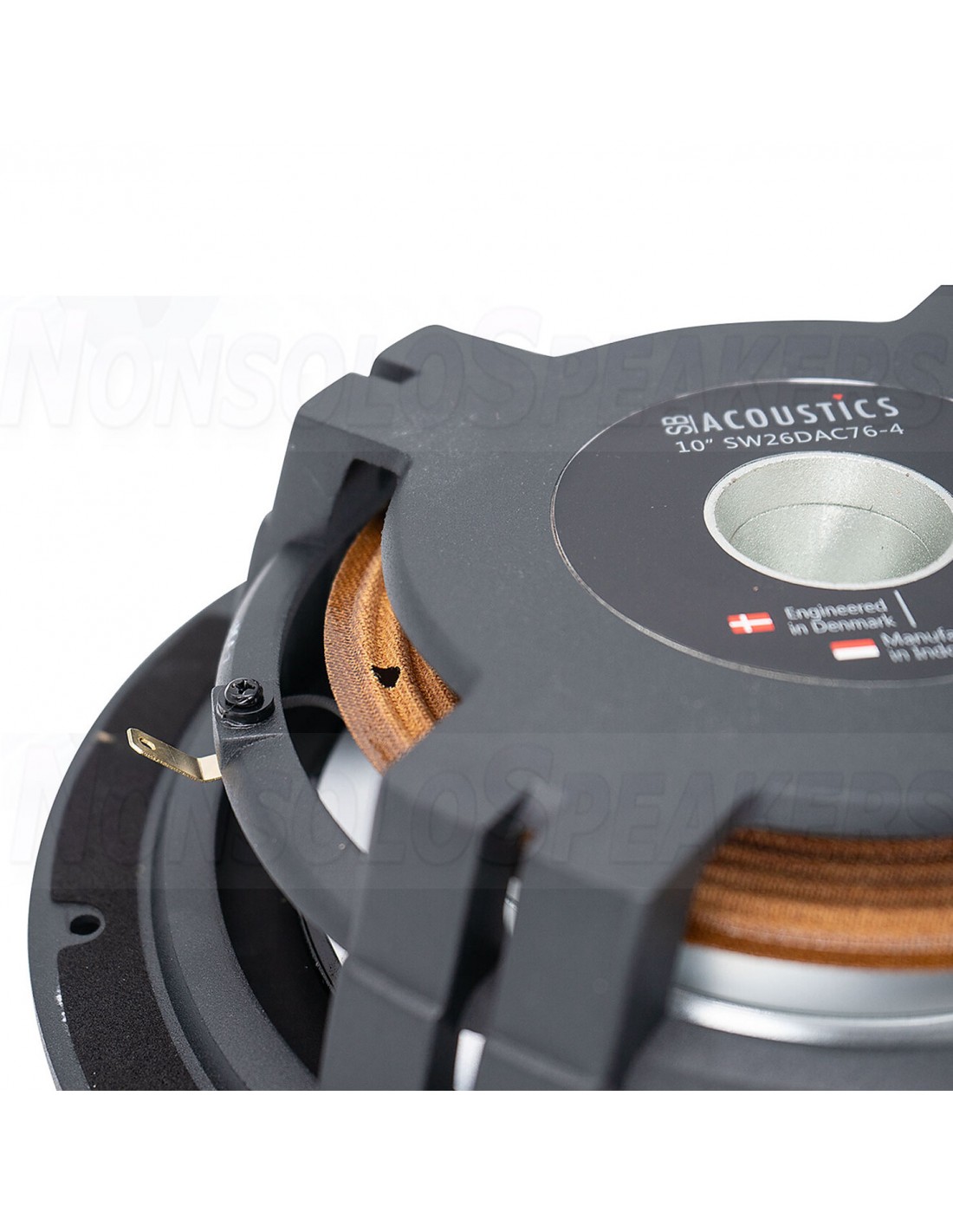

Powerful neodymium motor system

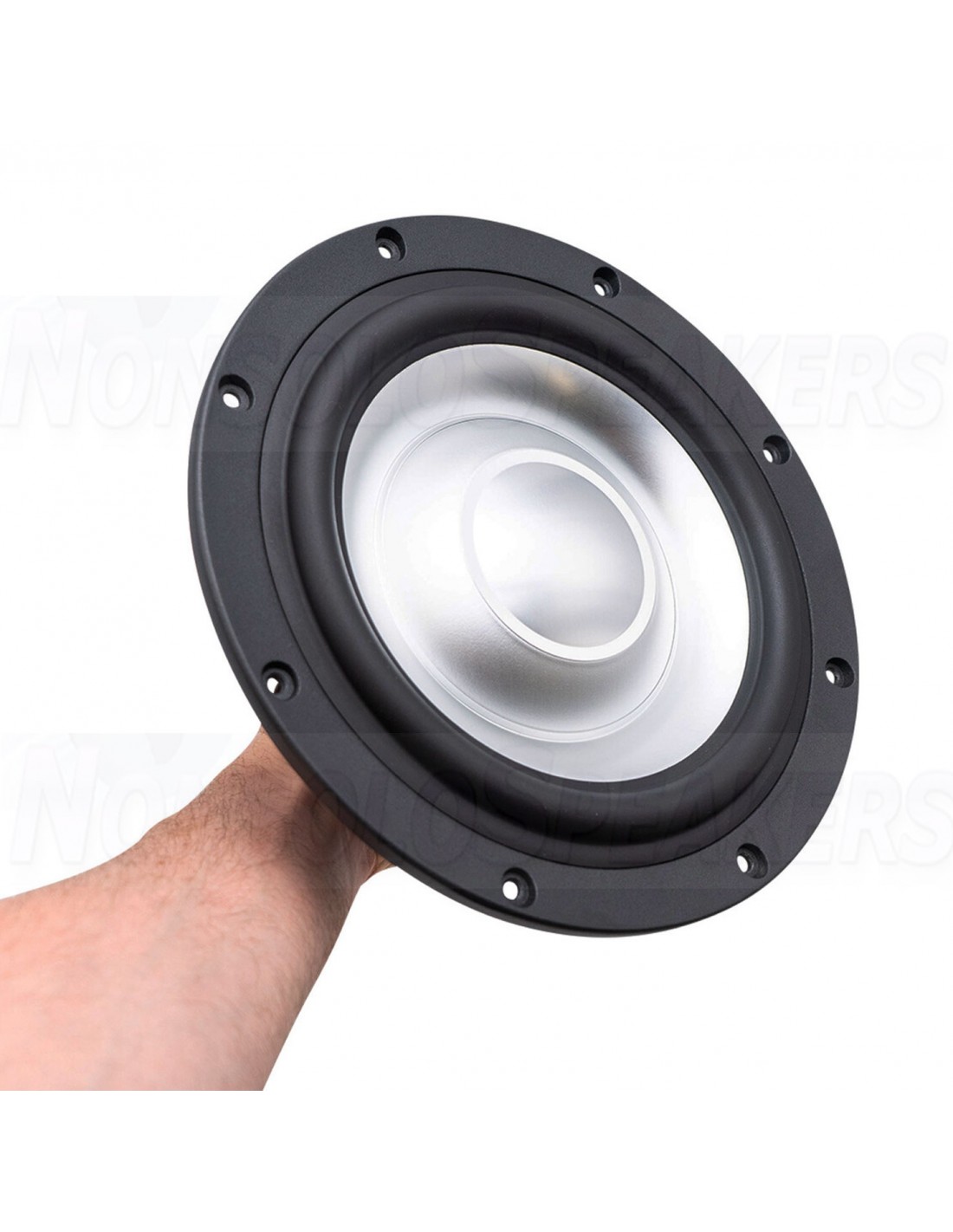

Vented cast aluminum cone structure

Non conducting fiber glass coil former for minimum damping

Shorting ring in the motor system for reduced distortion

Long-life silver lead wires

 .

Product details

SB Acoustics SW26DAC76-4 10" Subwoofer 4 Ohm

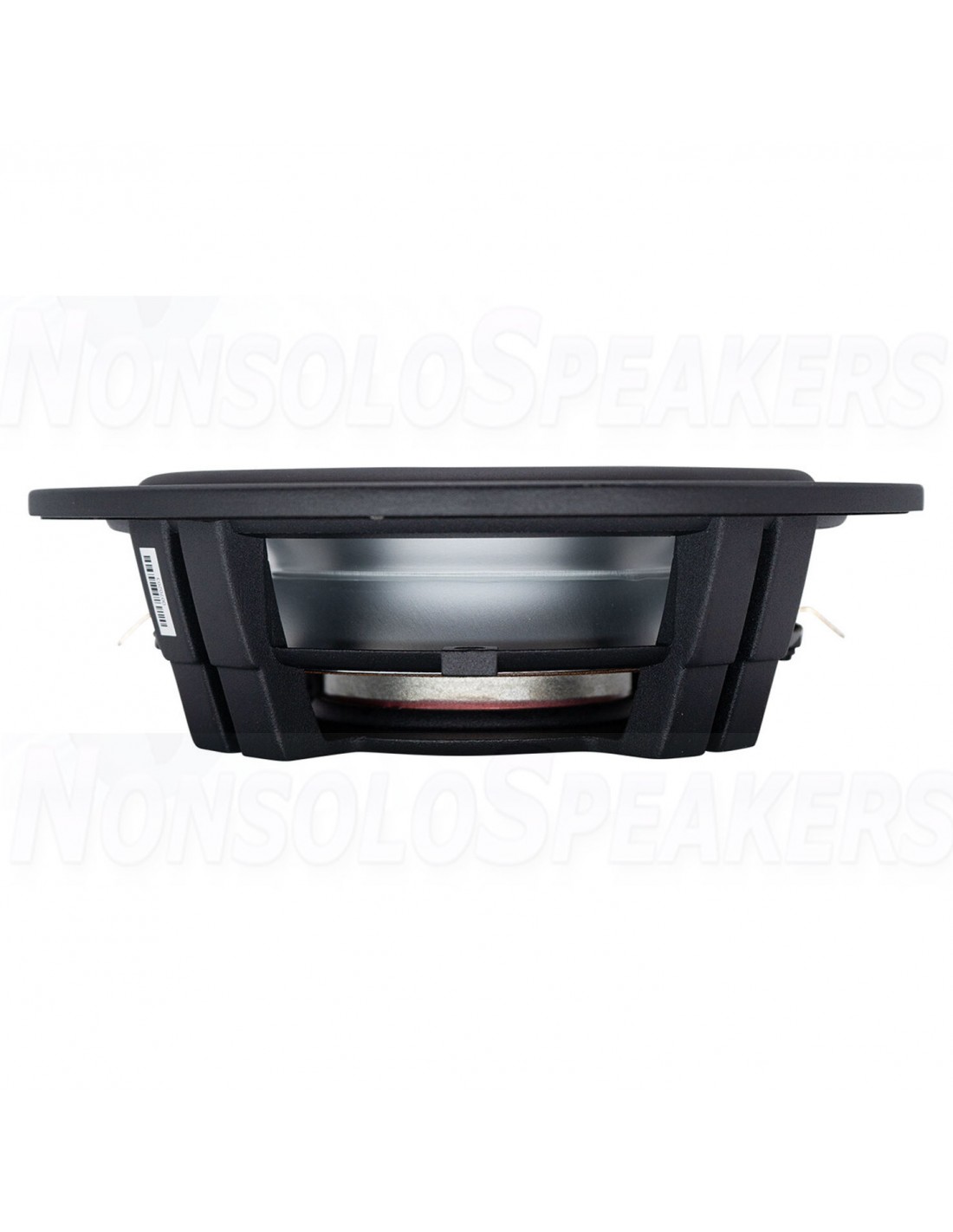

The SW26DAC76-4 shallow Subwoofer can give great low-end extension in shallow enclosures due to its unique long trough design. With a depth of only 70.5 mm, it's good for applications where clearance can become an issue. A sealed enclosure with a volume of 40Ltr is recommended for optimal performance. This driver is not recommended for bass-reflex/ported enclosures.

Specifications

Article numberSW26DAC76-4
Woofer TypeSubwoofer
Nominal Diameter10''
Power Handling (RMS)200 Watts
Impedance (Z)4 Ohms (Re 3.2Ω)

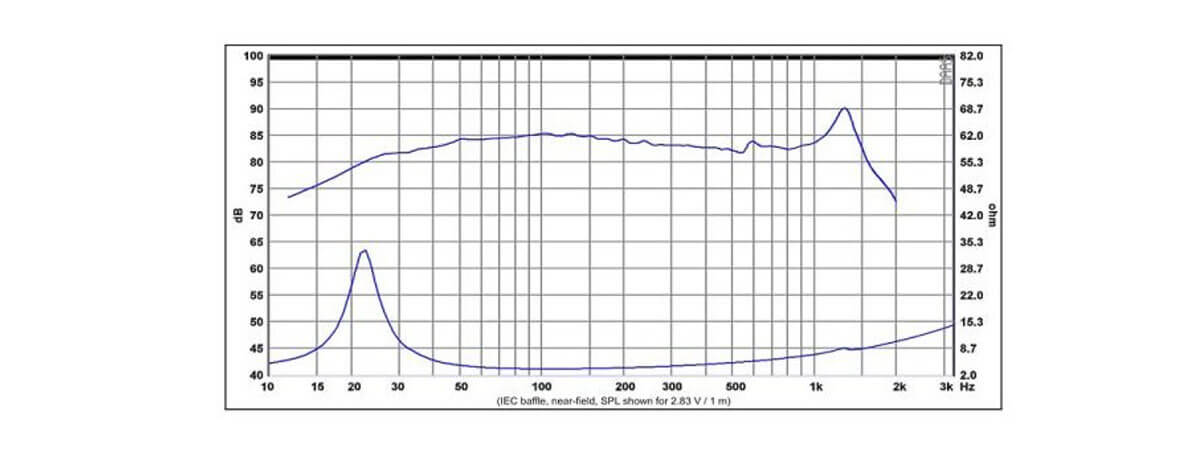

Sensitivity (SPL at 1m / 2.83V)86 dB
Voice Coil Diameter75,5 mm
Magnet Weight281 g
DC Resistance (Re)3.2 Ohms
Resonant Frequency (Fs)22 Hz
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.46
Diaphragm Mass Inc. Airload (Mms)134 g
Mechanical Compliance of Suspension (Cms)0.39 mm/N
Surface Area of Cone (Sd)312 cm2
BL Product (BL)10.8 Tm
Compliance Equivalent Volume (Vas)54 Ltr
Maximum Linear Excursion (Xmax)12 mm
Driver's Mechanical Losses (Rms)4.1 kg/s
Cone / Diaphragm MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFiber glass
Basket / Frame MaterialAluminum
Magnet MaterialNeodynium

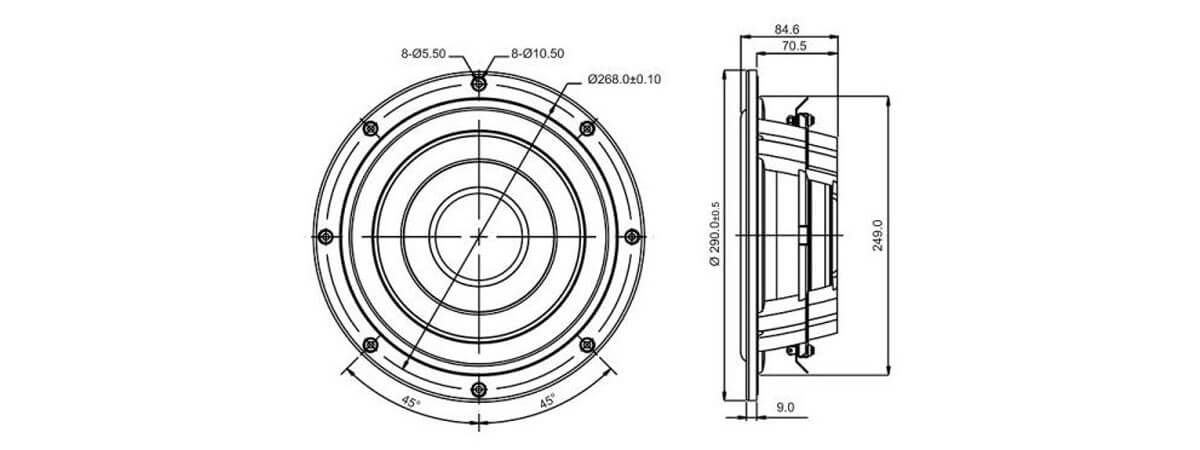

Overall Outside Diameter290 mm
Baffle Cutout Diameter249 mm
# Mounting Holes8

SW26DAC76-4
