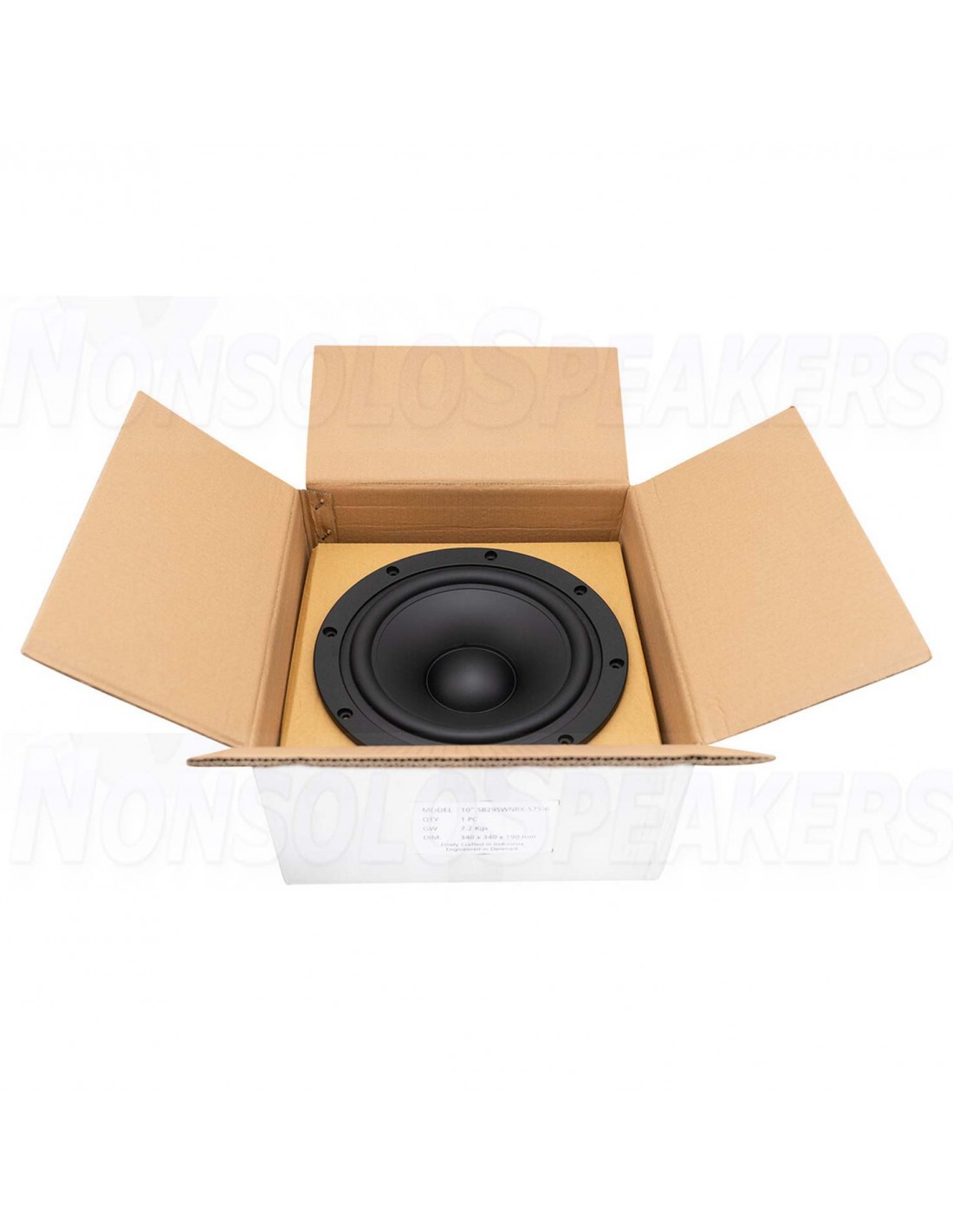

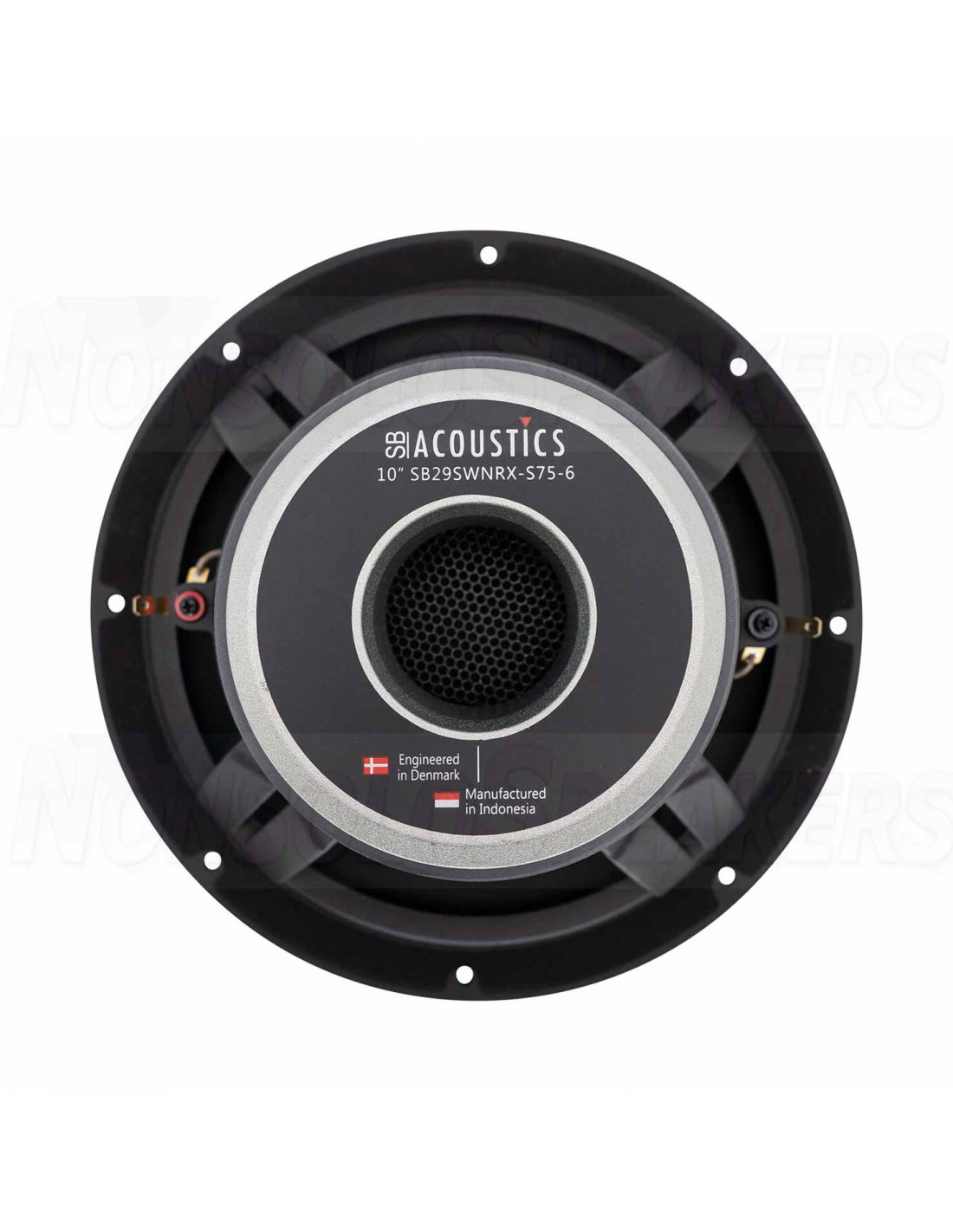

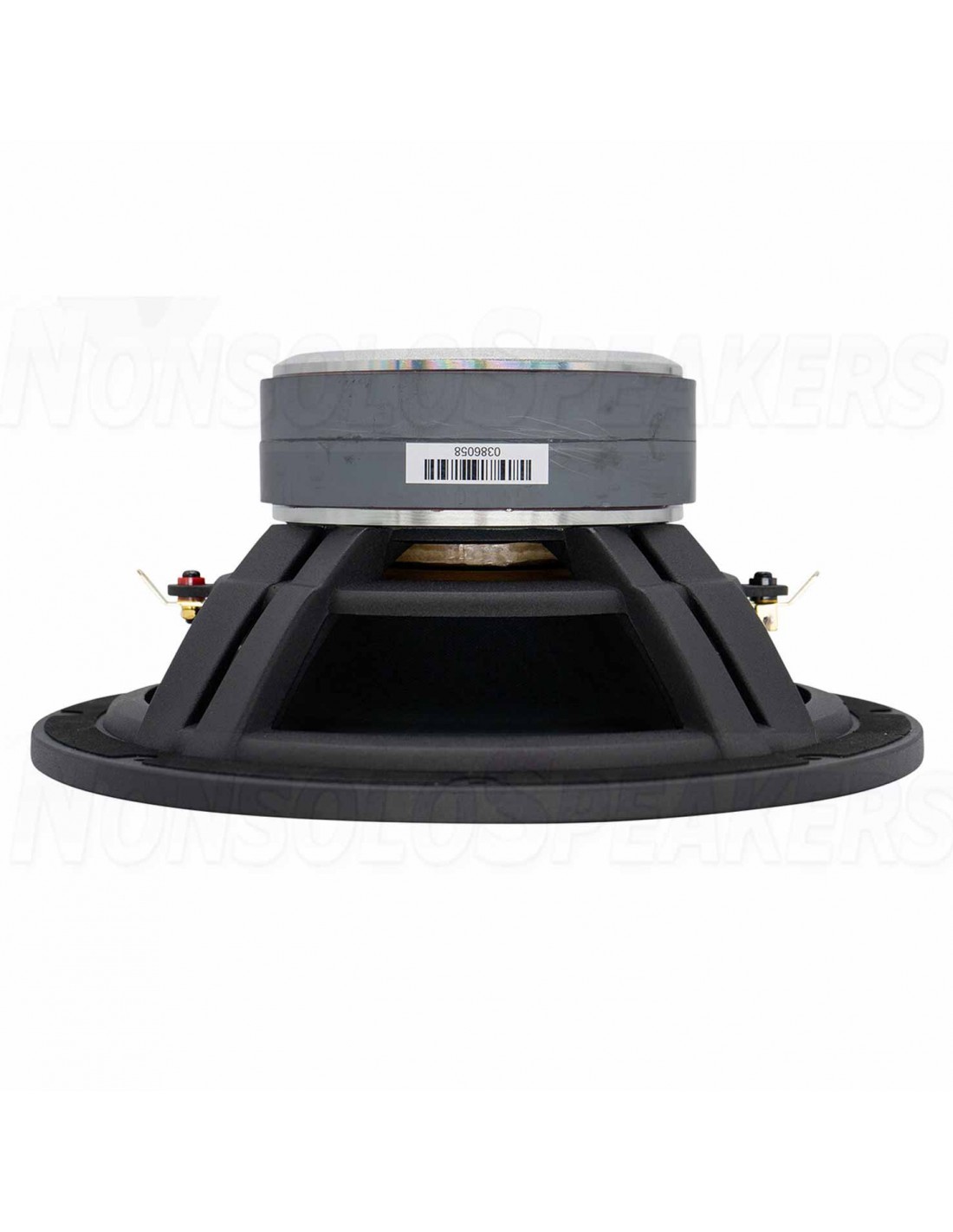

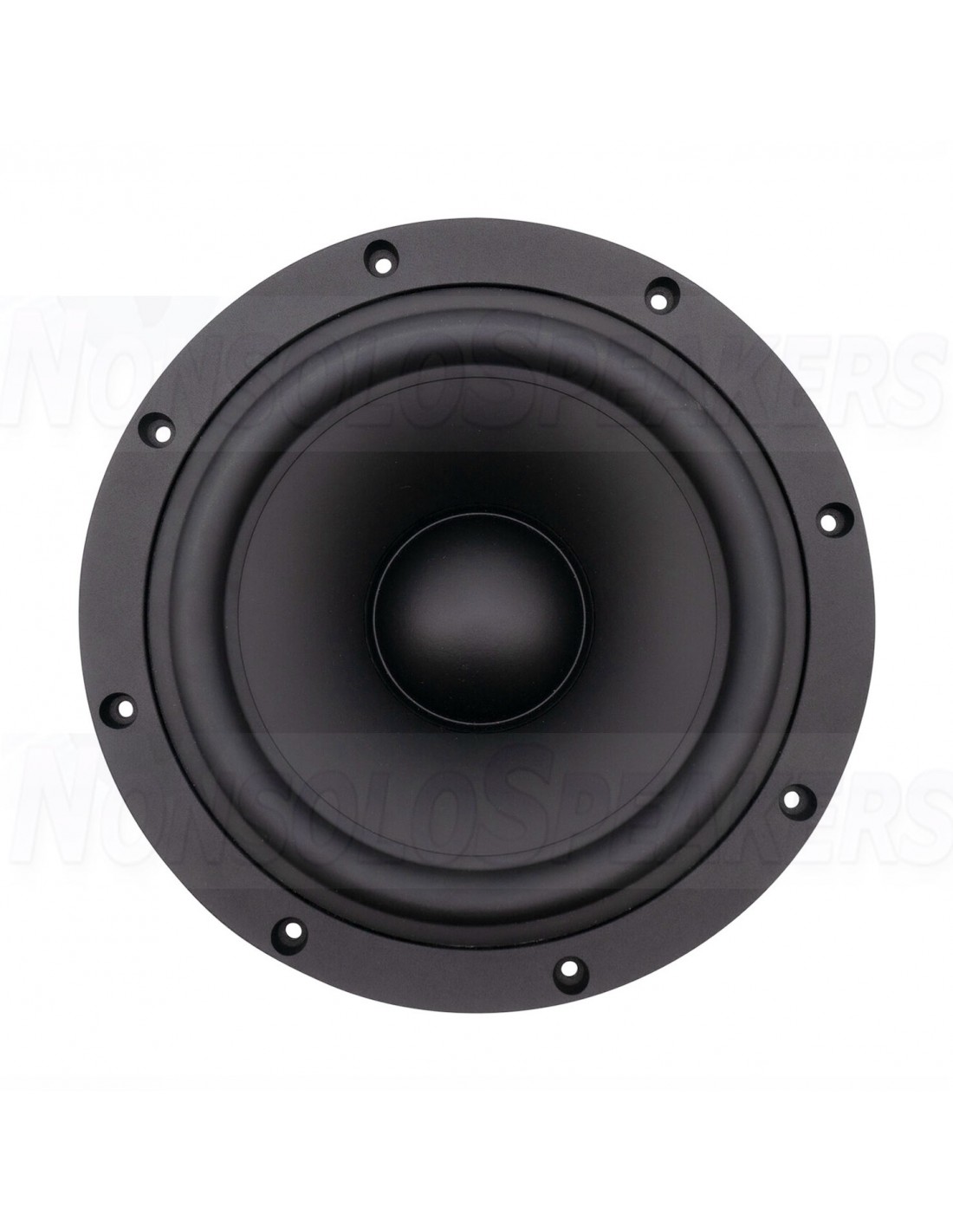

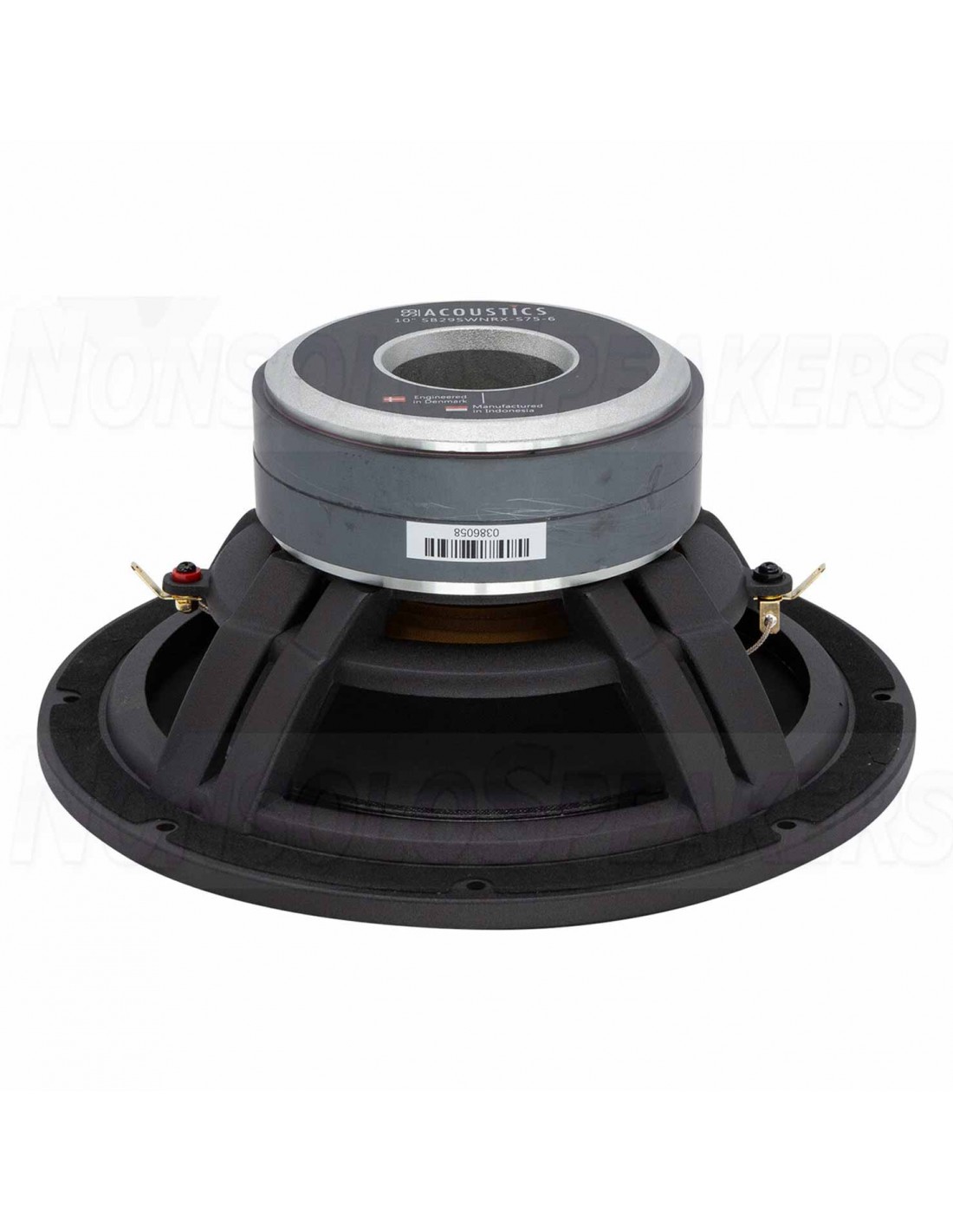

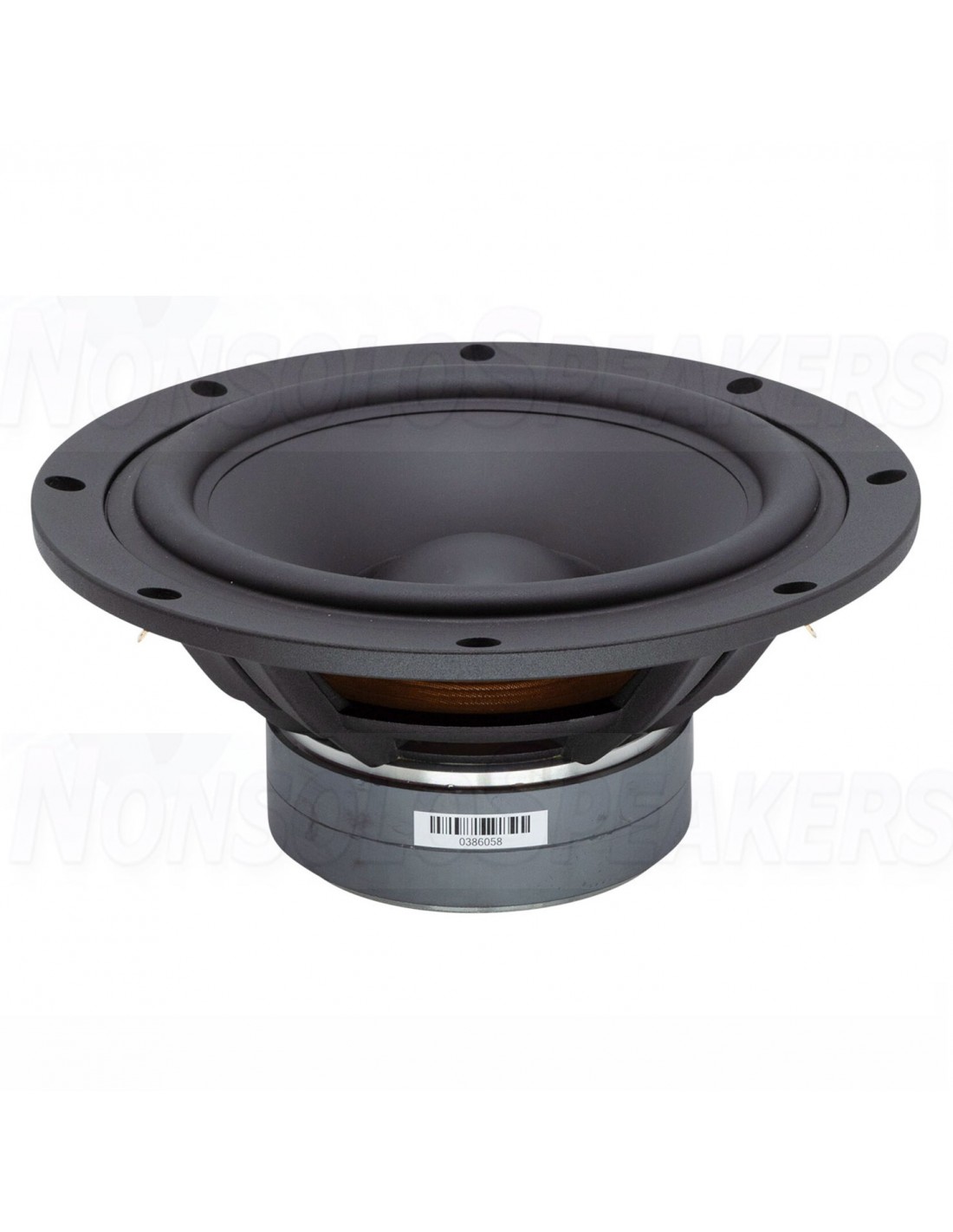

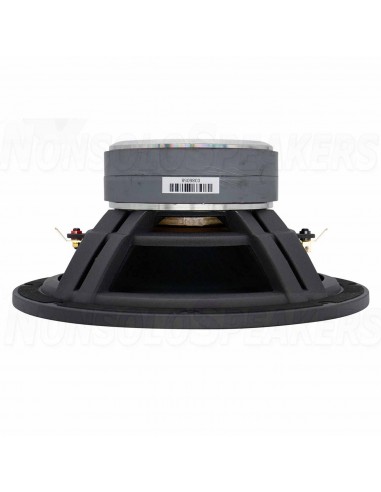

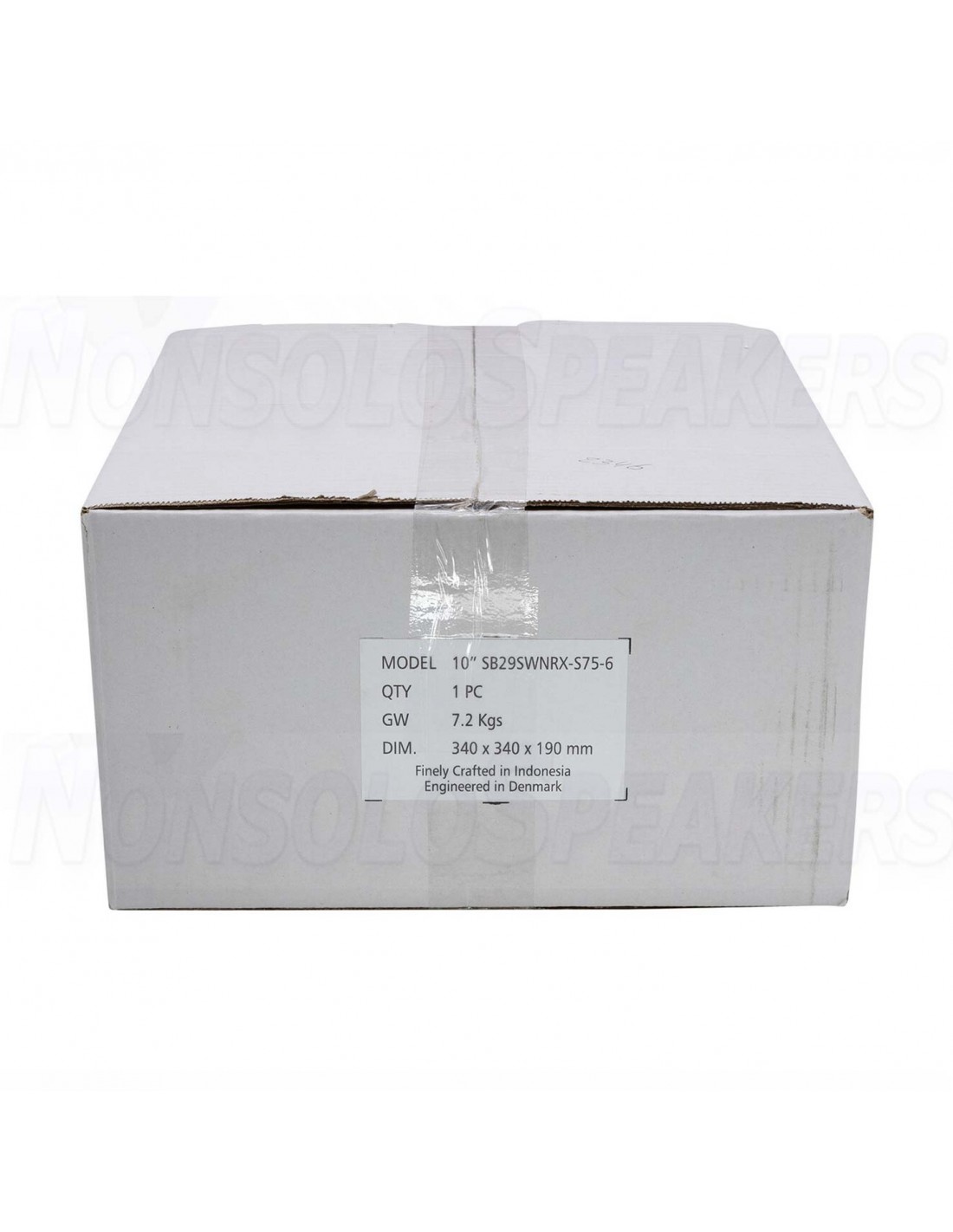

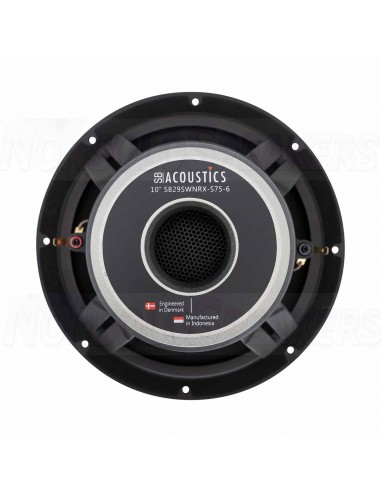

SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer
SB Acoustics SB29SWNRX-S75-6 Subwoofer

SB Acoustics SB29SWNRX-S75-6 Subwoofer

SB Acoustics SB29SWNRX-S75-6 Subwoofer

Hard paper cone for improved piston operation (made in-house). Vented pole piece for minimum compression. Vented cast aluminum chassis for optimum strength and low compression.

SHIPMENT IN 7/10 WORKING DAYS
€179.55 €189.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB29SWNRX-S75-6 Subwoofer

.

Product description

Power handling (continuous/programme) = 200 W

Impedance R = 6 Ohm

Overall diameter d = 290 mm

.

Product details

SB Acoustics SB29SWNRX-S75-6 Woofer

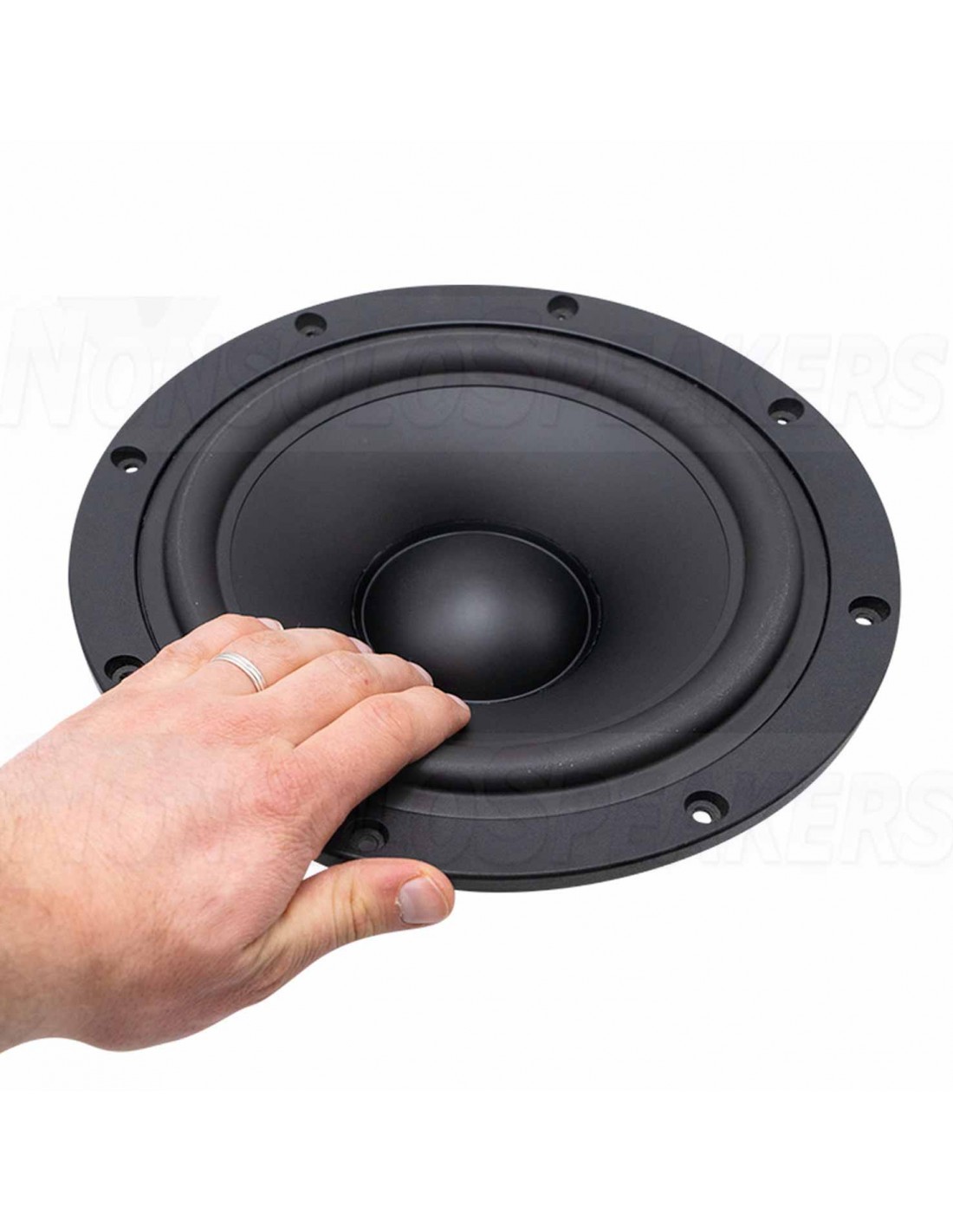

Hard paper cone for improved piston operation (made in-house). Vented pole piece for minimum compression. Vented cast aluminum chassis for optimum strength and low compression. 3″ copper voice coil (4-layer) for improved power handling. Long-life silver lead wires. Low damping medium hardness rubber surrounds for improved linearity and power handling. Non-conducting fiber glass voice coil former for minimum damping.

.

Specifications

Article numberSB29SWNRX-S75-6
Woofer TypeSubwoofer
Nominal Diameter10" - 254 mm
Power Handling (RMS)200 W
Power Handling (max)400 W
Impedance (Z)6 Ohms
Sensitivity (SPL at 1m / 2.83V)86 dB
DC Resistance (Re)4.5 Ω
Voice Coil Inductance (Le)3 mH
Resonant Frequency (Fs)20 Hz
Mechanical Q (Qms)4.50
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Diaphragm Mass Inc. Airload (Mms)132 g
Moving Mass Of Diaphragm (Mmd)127.9 g
Mechanical Compliance of Suspension (Cms)480 µm/N
Surface Area of Cone (Sd)312 cm²
Volume of Displacement (Vd)343.2 cm³
BL Product (BL)15.4 T·m
Compliance Equivalent Volume (Vas)66 litres
Maximum Linear Excursion (Xmax)11 mm
Driver's Mechanical Losses (Rms)3.7 N·s/m
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
SB29SWNRX-S75-6
