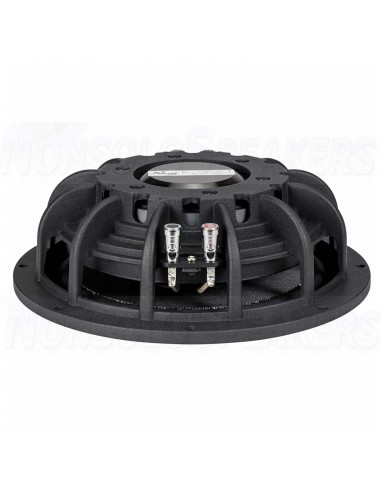

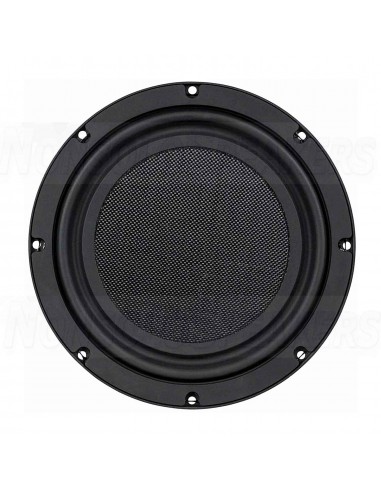

Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm

Product description

At a depth of less than 3.4", Dayton Audio's LS10-44 10" low profile subwoofer fits into shallow spaces that ordinary subs wouldn't dream of attempting! Dual 2" 4 ohm coils provide flexible wiring, while the flat cone and innovative suspension support 10 mm of Xmax!

.

Highlights

• Innovative low-profile subwoofer – less than 3.4" thick!
• 10 mm Xmax guarantees uncompromised bass performance
• Dual 4 ohm voice coils, 6 layers total, for high BL force and multiple wiring options
• Rigid flat honeycomb fiberglass cone maintains linearity and high impact
• Low distortion ferrite motor with dual aluminum shorting rings
• Balanced rubber double-roll surround design improves stability and control

.

Product details

Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm

Back with a new and improved design, Dayton Audio's shallow subwoofers let you put more bass into less space! The new LS10-44 Low Profile Subwoofer from Dayton Audio provides over 10 mm of controlled excursion, for bass that hits hard and goes deep -- even in places ordinary subwoofers just won't fit! These drivers are perfect for installation in walls, floors, and ceilings, or in limited-clearance automotive applications like the narrow space behind pickup truck seats. They might even fit under your chair or behind your sofa!

Innovative design makes the shallow form factor of the LS Series low profile subwoofers possible. A flat, rigid piston made of aluminum honeycomb with glass fiber skins replaces the conventional cone of most subwoofers, and a balanced double-roll surround design maximizes the stability of the moving symmetrical motion and minimizes distortion. The LS10-44 also features dual heavy-gauge aluminum shorting rings for low inductance and fast, impactful bass. Lastly, a 6-layer dual voice coil ensures maximum available force from the compact motor, featuring high-grade ceramic ferrite magnetic material, and enables 2 ohm or 8 ohm wiring.

Nothing has been sacrificed in creating these truly next-generation shallow subwoofers, capable of over 10 mm of linear excursion from an ultra-slim package. Trust the LS Series subwoofer drivers to deliver years of rugged, long-lasting enjoyment, wherever you install them. Wherever you would like to add more bass, Dayton Audio has you covered.

.

Specifications

Article number LS10-44

Woofer Series Low Profile Series

Woofer Type Subwoofer

Nominal Diameter 10"

Power Handling (RMS) 250 watts

Power Handling (max) 500 watts

Impedance (Z) 4+4 ohms

Sensitivity 86.5 dB @ 2.83V/1m

Frequency Response 30 - 300 Hz

Voice Coil Diameter 50 mm

DC Resistance (Re) 7.4 ohms

Voice Coil Inductance (Le) 5.25 mH @ 1 kHz

Resonant Frequency (Fs) 34.3 Hz

Mechanical Q (Qms) 5.15

Electromagnetic Q (Qes) 0.47

Total Q (Qts) 0.43

Diaphragm Mass Inc. Airload (Mms) 132g

Mechanical Compliance of Suspension (Cms) 0.16 mm/N

Surface Area of Cone (Sd) 366.4 cm²

Volume of Displacement (Vd) 36.4 cm³

BL Product (BL) 21.1 Tm

Compliance Equivalent Volume (Vas) 30.8 liters

Maximum Linear Excursion (Xmax) 10 mm

Cone / Diaphragm Material Fiberglass Cone

Surround Material Rubber

Voice Coil Wire Material Cast Aluminum

Voice Coil Former Ferrite

Overall Outside Diameter 272.2 mm

Overall Depth 84.5 mm

Baffle Cutout Diameter 238.5 mm

# Mounting Holes 8
