SB Acoustics SW26SFC38-8 Paper Shallow Subwoofer

.

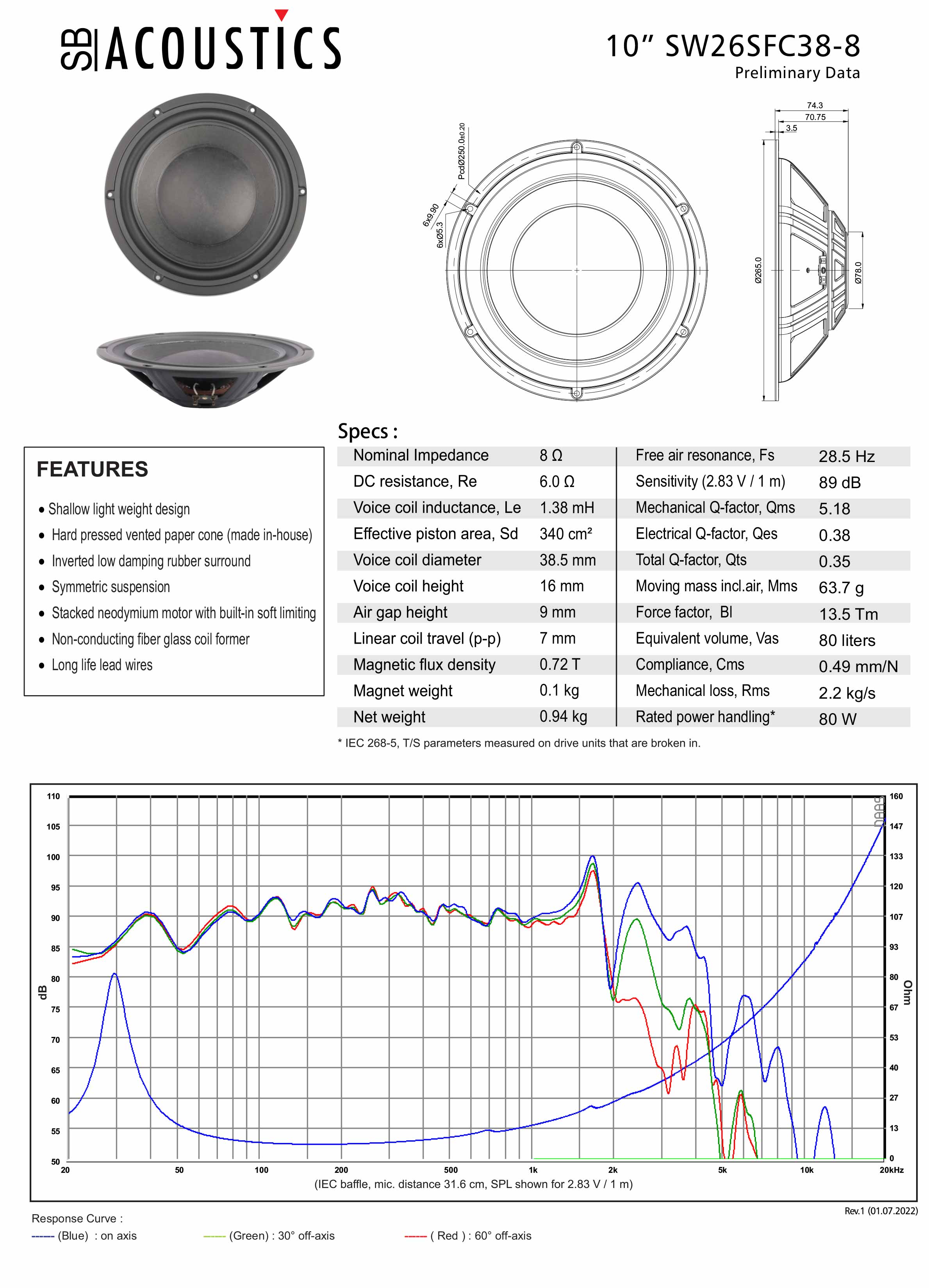

Product description

• Nominal impedance, 8 Ω
• DC resistance, Re 6.0 Ω
• Voice coil inductance, Le 1.38 mH
• Effective piston area, Sd 340 cm2
• Voice coil diameter 38.5 mm
• Voice coil height 16 mm
• Air gap height 9 mm
• Linear coil travel (p-p) 7 mm
• Magnetic flux density 0.72 T
• Magnet weight 0.1 kg
• Net weight 0.94 kg
• Free air resonance, Fs 28.5 Hz
• Sensitivity (2.83 V / 1 m) 89 dB
• Mechanical Q-factor, Qms 5.18
• Electrical Q-factor, Qes 0.38
• Total Q-factor, Qts 0.35
• Moving mass incl.air, Mms 63.7 g
• Force factor, BI 13.5 Tm
• Equivalent volume, Vas 80 liters
• Compliance, Cms 0.49 mm/N
• Mechanical loss, Rms 2.2 kg/s
• Rated power handling* 80 W

.

Product details

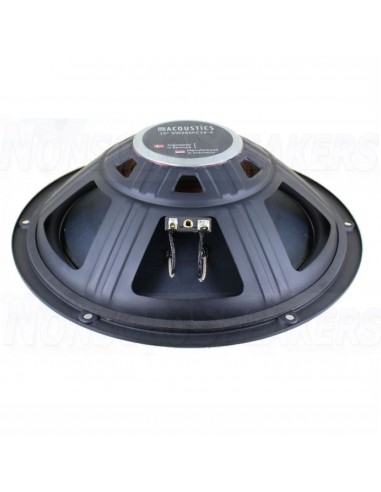

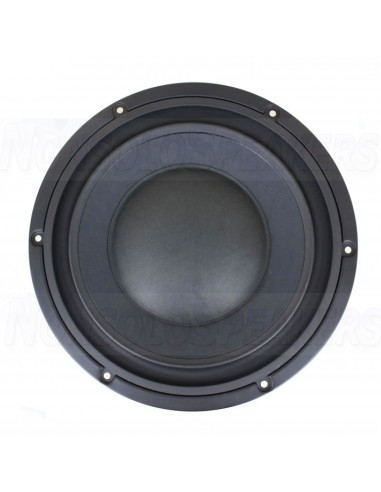

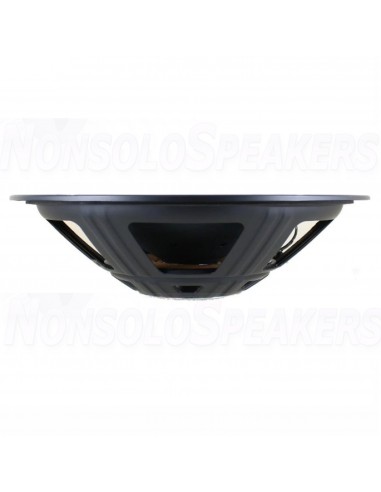

SB Acoustics SW26SFC38-8 Shallow Subwoofer

Shallow light weight design. Hard pressed vented paper cone (made in-house). Inverted low damping rubber surround. Symmetric suspension. Stacked neodymium motor with built-in soft limiting. Non-conducting fiber glass coil former. Long life lead wires..

.

.
