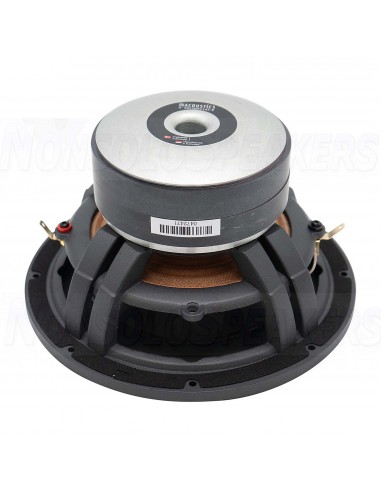

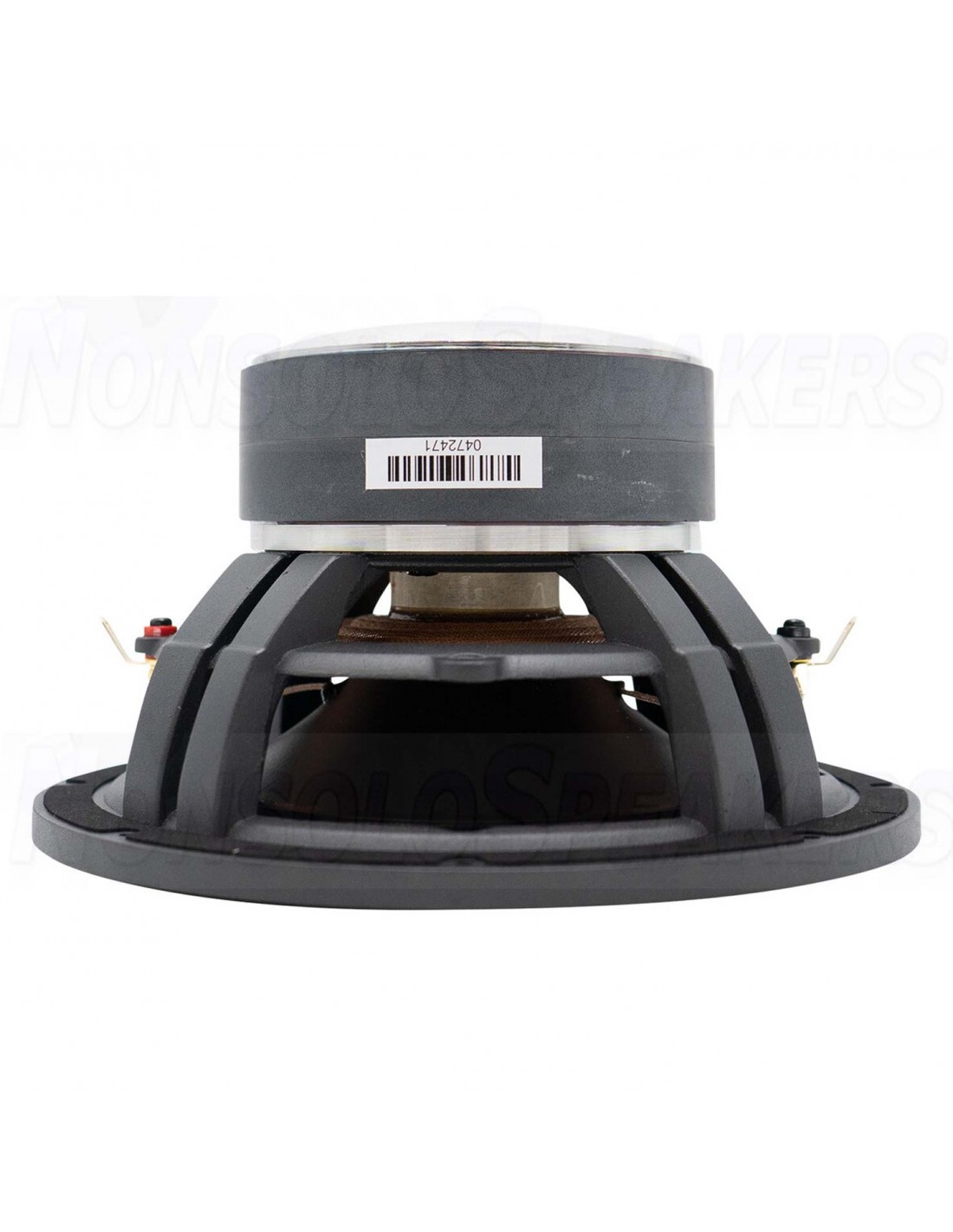

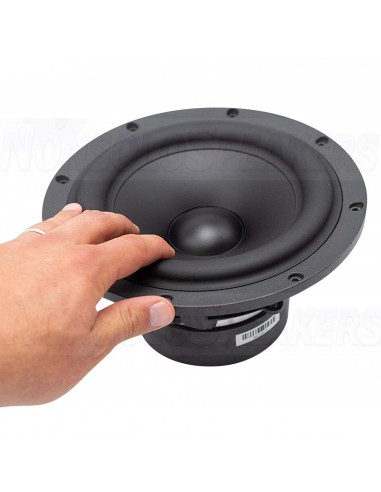

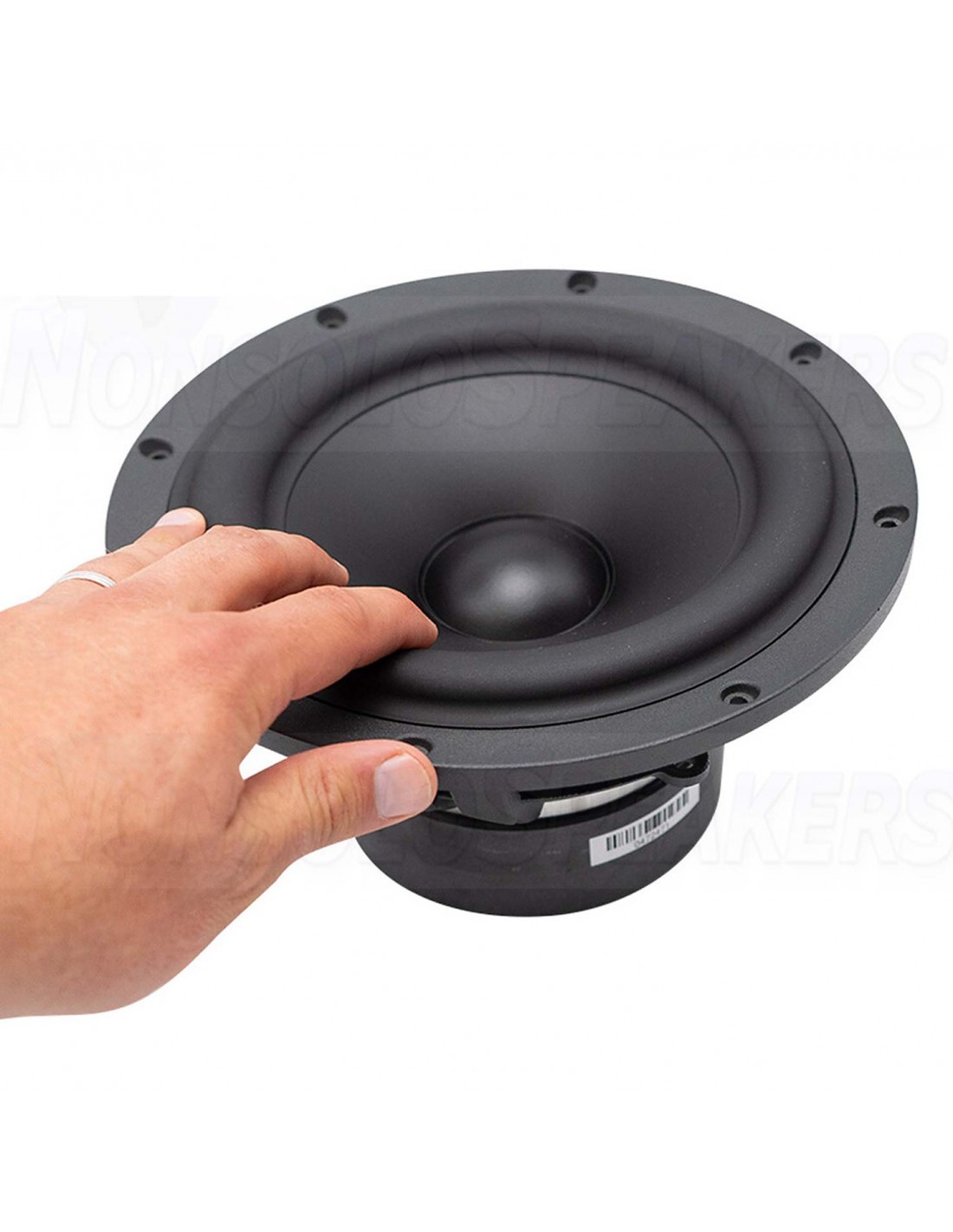

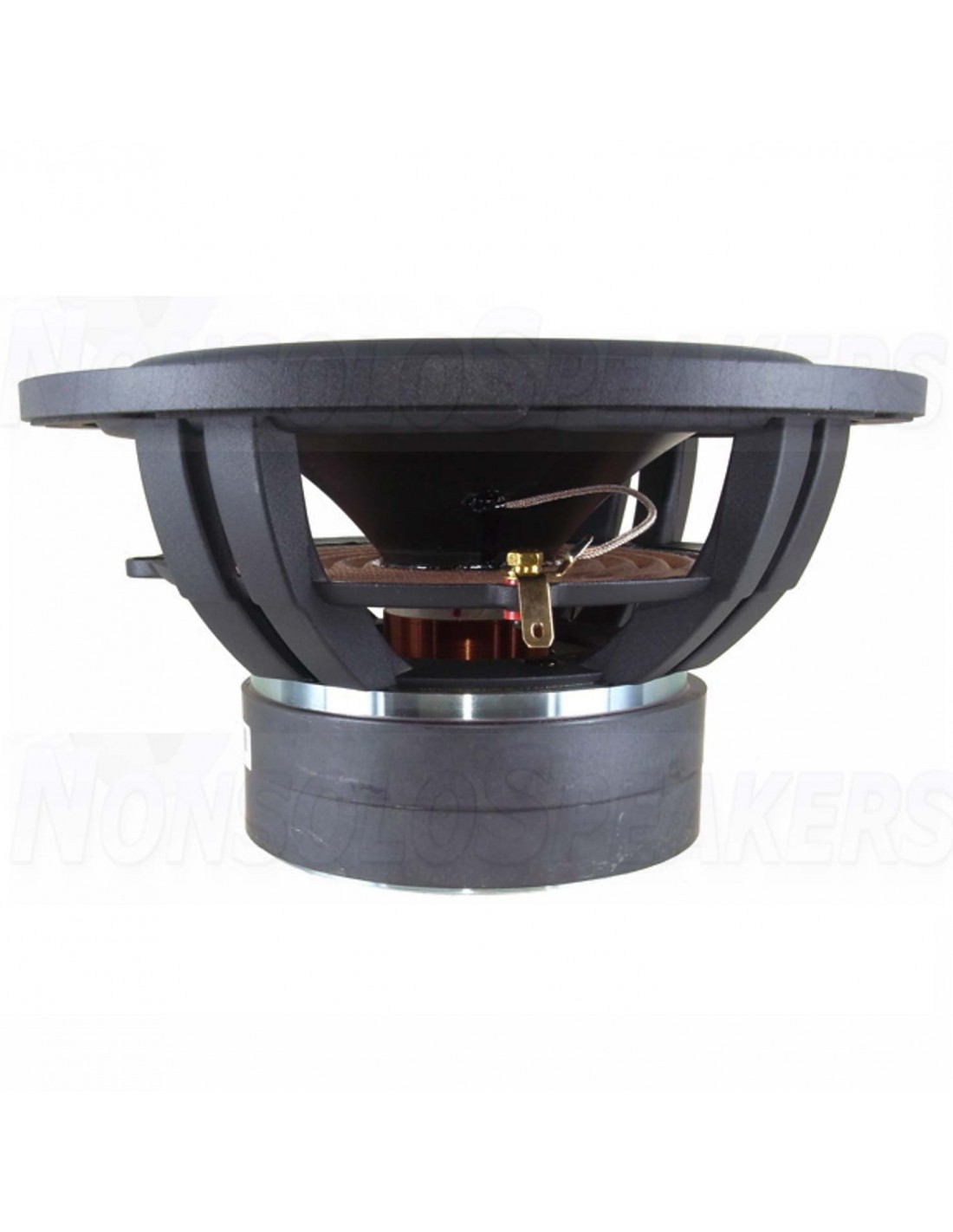

SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"
SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"

SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"

SHIPMENT IN 7/10 WORKING DAYS
€159.00
Tax included
rating No review at the moment

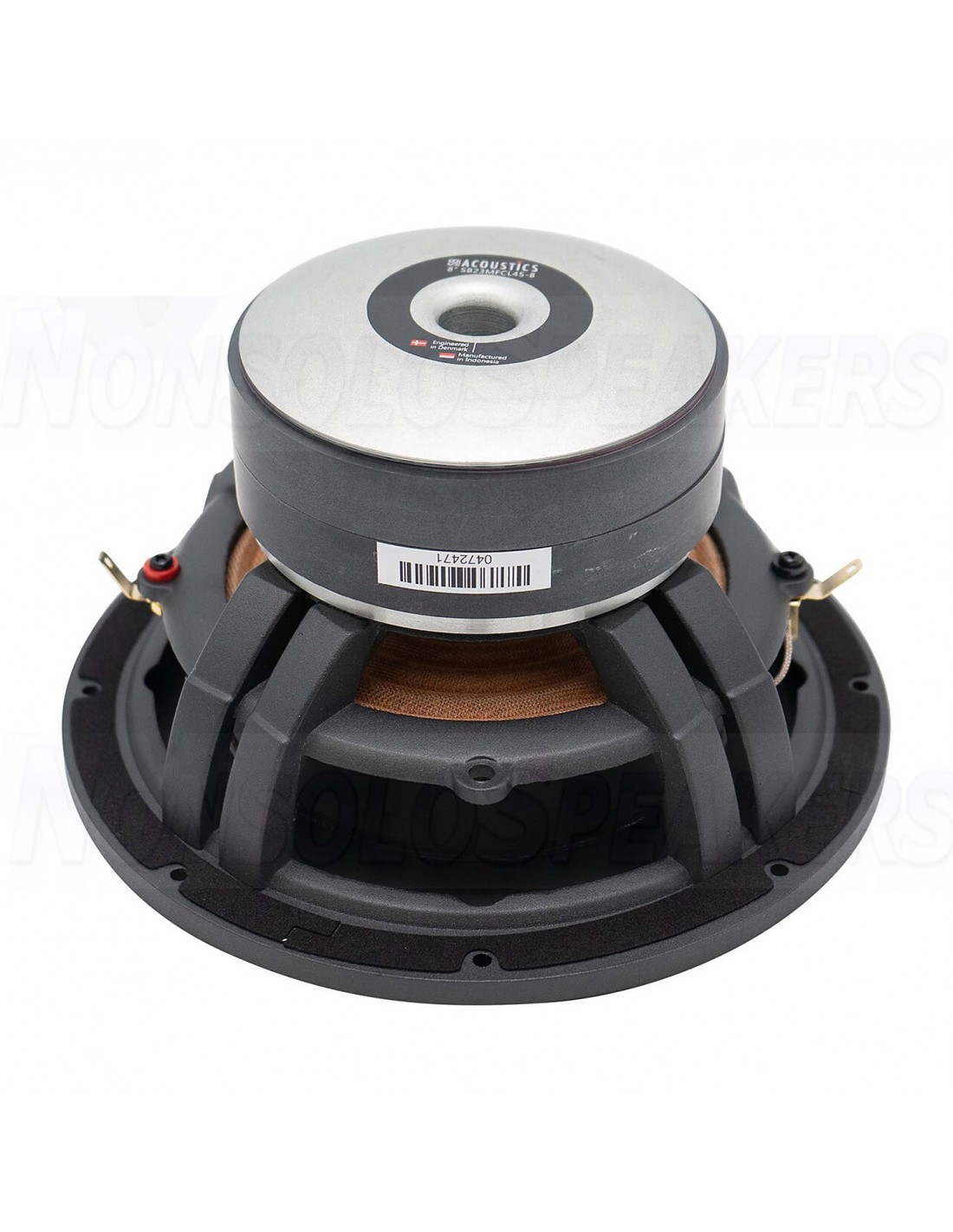

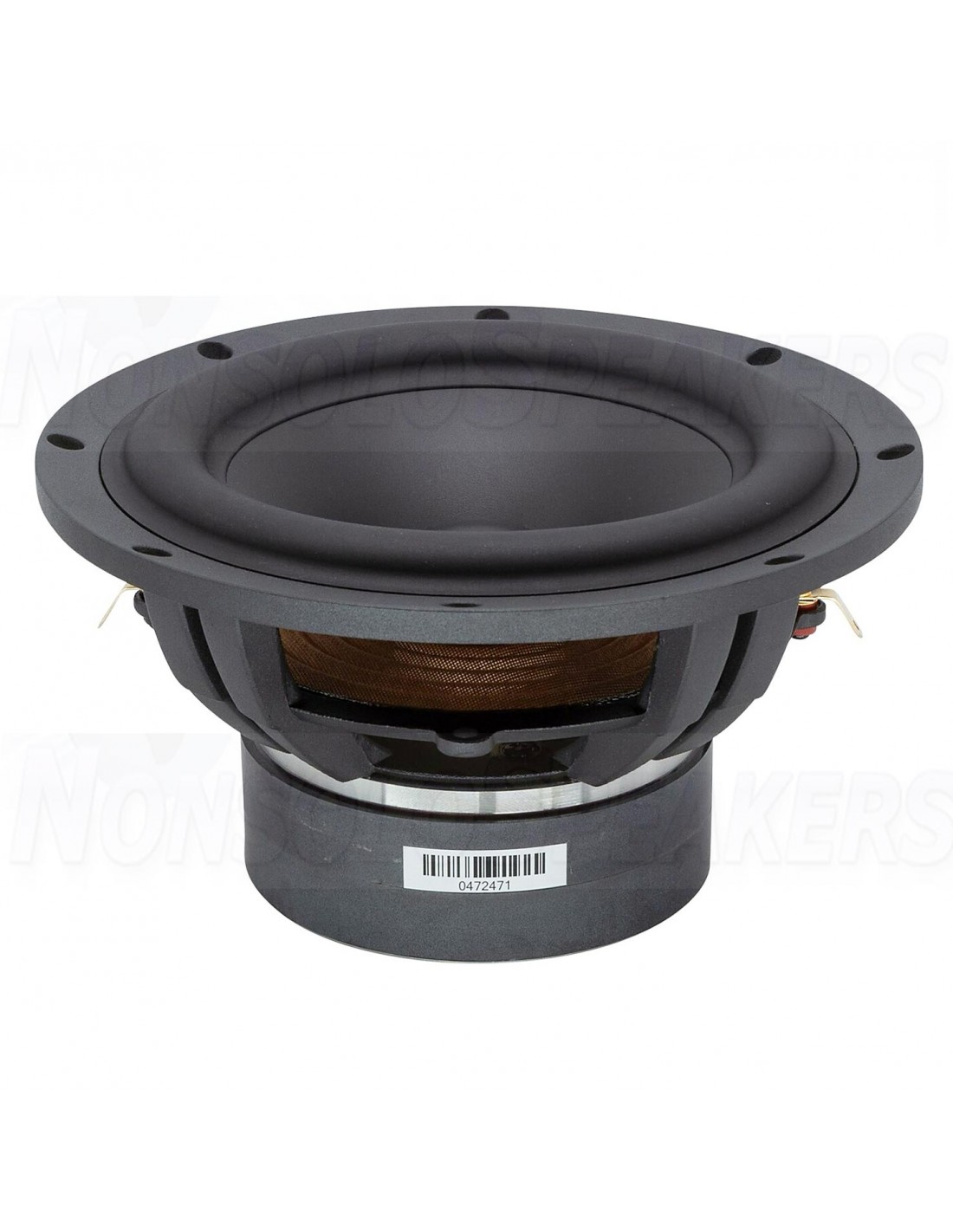

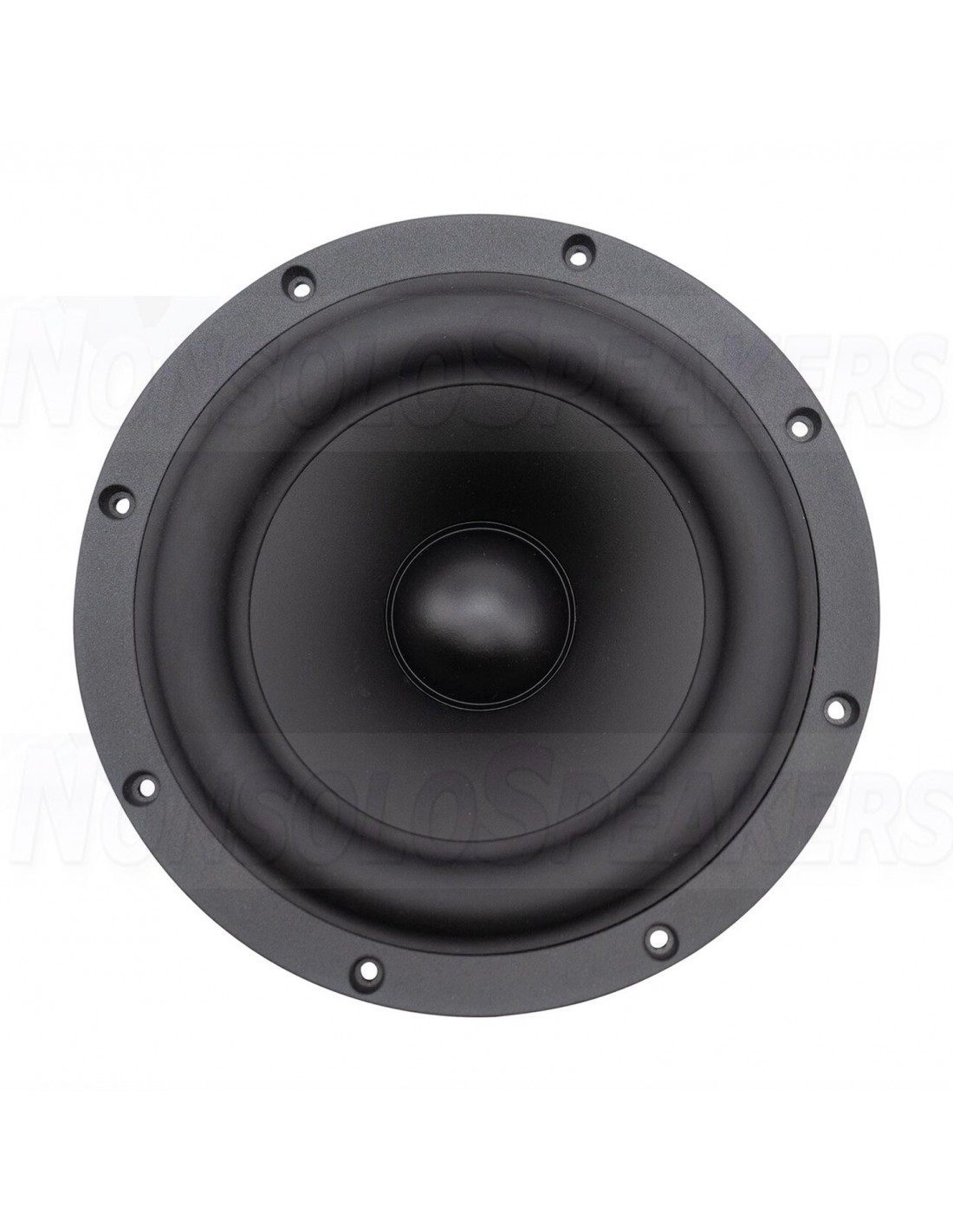

SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8" SB Acoustics - 8 ohm

Offering the benefits of a stiff polypropylene cone of a smooth well-damped sound quality. It also one of the quality’s that allows this subwoofer to be used in small enclosures.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB23MFCL45-8 - Subwoofer 8"

.

Product description

Long stroke design

Linear high stability surround

Low damping rubber surround

Long copper voice coil

Non-conducting reinforced fibre glass coil former

Very stiff mineral filled polypropylene cone

Vented cast aluminum chassis

Large vented motor system

Optimized for smaller enclosures

-

Product details

SB Acoustics SB23MFCL45-8 8"Polypropylene Cone Subwoofer

SB Acoustics is known for their high value products. And the SB23MFCL45-4 is no exception. Offering the benefits of a stiff polypropylene cone of a smooth well-damped sound quality. It also one of the quality’s that allows this subwoofer to be used in small enclosures.  A powerful an exceptionally stable subwoofer for any compact subwoofer DIY project.

.

Specifications

Article numberSB23MFCL45-8
Woofer TypeSubwoofer
Nominal Diameter8''
Power Handling (RMS)150 Watts
Sensitivity (SPL at 1m / 2.83V)85 dB
Magnet Weight2.0 kg
DC Resistance (Re)6.2 Ω
Voice Coil Inductance (Le)1.02 mH
Resonant Frequency (Fs)28.5 Hz
Mechanical Q (Qms)7.3
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.43
Diaphragm Mass Inc. Airload (Mms)53 g
Mechanical Compliance of Suspension (Cms)0.59 mm/N
Surface Area of Cone (Sd)210 cm2
BL Product (BL)11.3 Tm
Compliance Equivalent Volume (Vas)37 liters
Maximum Linear Excursion (Xmax)10.5 mm
Driver's Mechanical Losses (Rms)1.3 kg/s

,

SB23MFCL45-8
