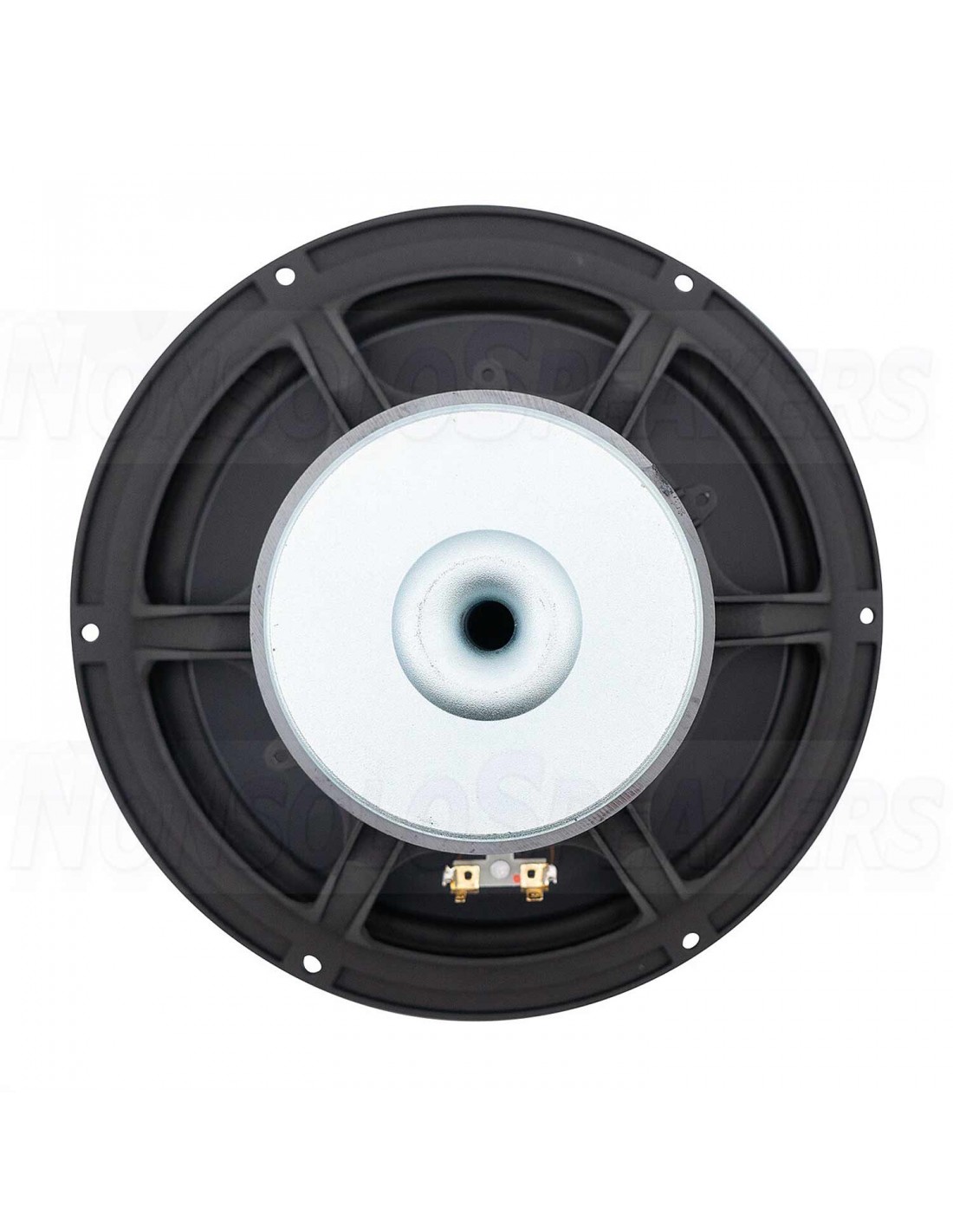

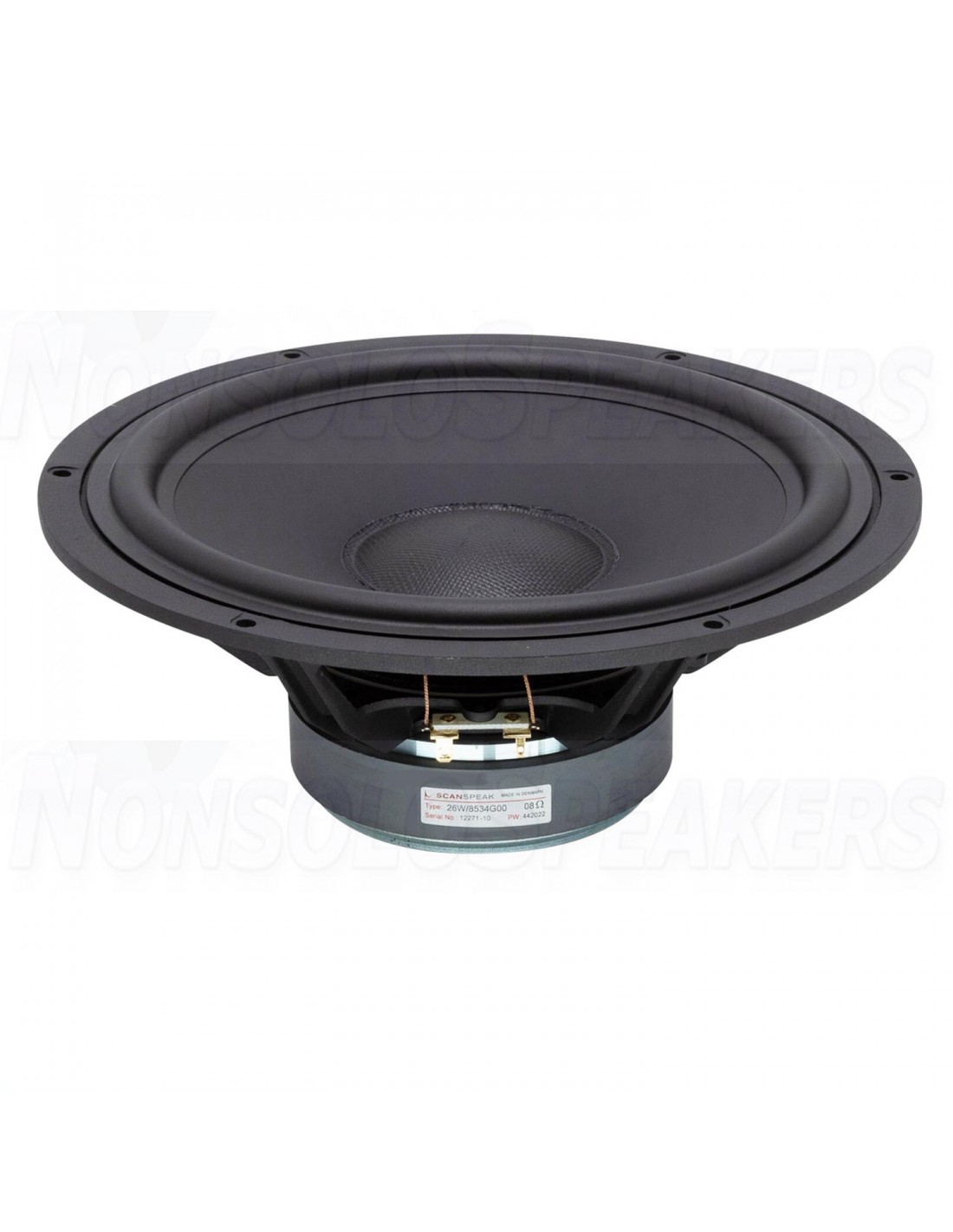

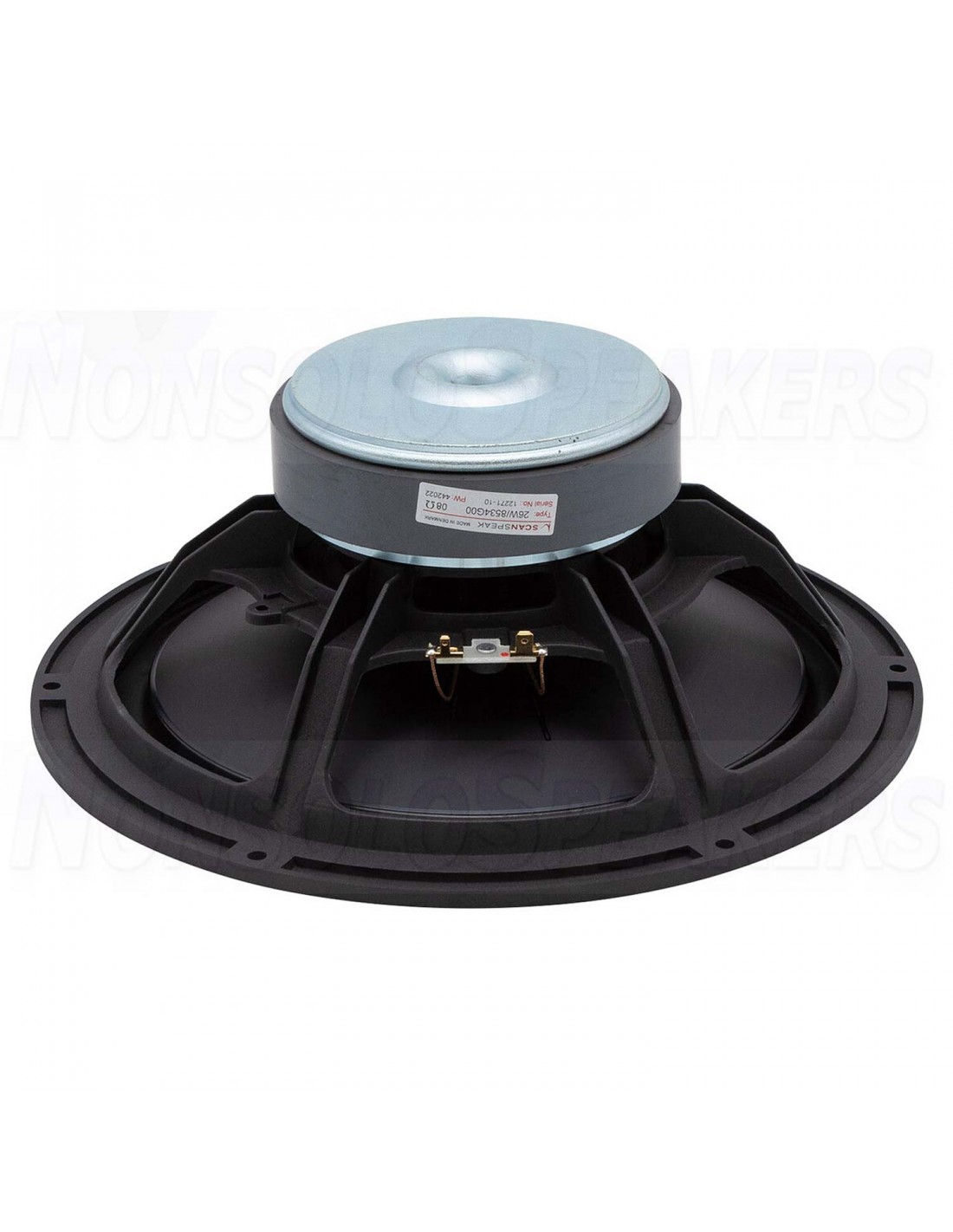

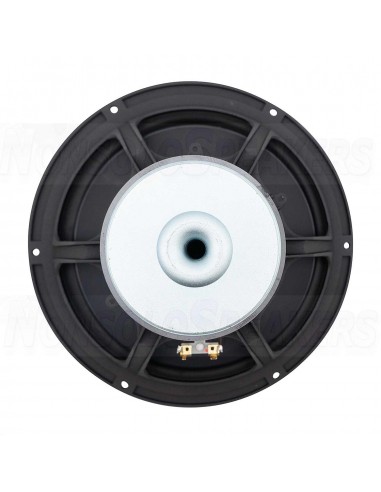

    Scan-Speak Discovery 26W/8534G00 10" Woofer 8 Ohm

    The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

    Estimated Shipping Costs
    Shipping Costs
    €18.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    Scan-Speak Discovery 26W/8534G00 10" Woofer 8 Ohm

    Product description

    Black anodized aluminum cone

    Magnet system with aluminum Ring

    Die cast aluminum chassis vented below spider

    Low resonance Frequency of 23 Hz

    Coated fiberglass dust cap

    .

    Product details

    Scan-Speak Discovery 26W/8534G00 10" Woofer

    The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

    .

    .

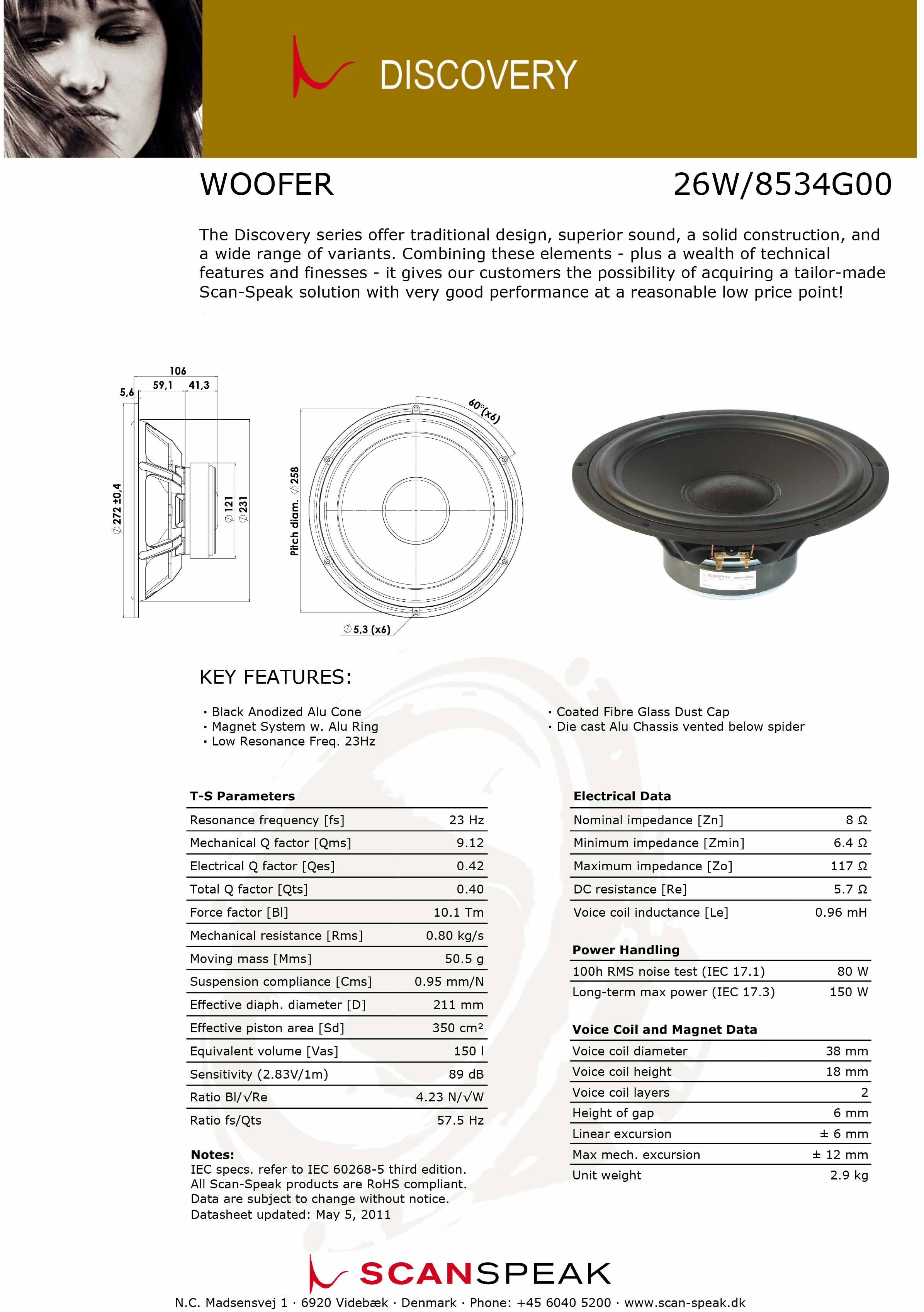

    Specifications

    Article number26W/8534G00
    Woofer SeriesDiscovery Series
    Woofer TypeWoofer
    Nominal Diameter10"
    Power Handling (RMS)80 watts
    Power Handling (max)150 watts
    Continuous Program Power-
    Impedance (Z)8 ohms
    Sensitivity (SPL at 1m / 2.83V)89 dB
    Frequency Response-
    Voice Coil Diameter38 mm
    Magnet Weight-
    DC Resistance (Re)5.7 ohms
    Voice Coil Inductance (Le)0.96 mH
    Resonant Frequency (Fs)23 Hz
    Mechanical Q (Qms)9.12
    Electromagnetic Q (Qes)0.42
    Total Q (Qts)0.40
    Diaphragm Mass Inc. Airload (Mms)50.5g
    Moving Mass Of Diaphragm (Mmd)-
    Mechanical Compliance of Suspension (Cms)0.95 mm/N
    Surface Area of Cone (Sd)350 cm²
    Volume of Displacement (Vd)210 cm³
    BL Product (BL)10.1 Tm
    Compliance Equivalent Volume (Vas)150 liters
    Maximum Linear Excursion (Xmax)6 mm
    Driver's Mechanical Losses (Rms)0.80 kg/s
    Cone / Diaphragm MaterialAluminum
    Surround MaterialRubber
    Voice Coil Wire Material-
    Voice Coil Former-
    Dual Voice Coil-
    Basket / Frame MaterialAluminum
    Magnet Material-
    Shielded-
    Overall Outside Diameter272 mm
    Overall Depth106 mm
    Baffle Cutout Diameter232 mm
    Bolt Circle Diameter258 mm
    # Mounting Holes6
    Mounting Hole Diameter5.3 mm
    Sealed Volume-
    Sealed F3-
    Vented Volume-
    Vented F3-
    26W/8534G00
