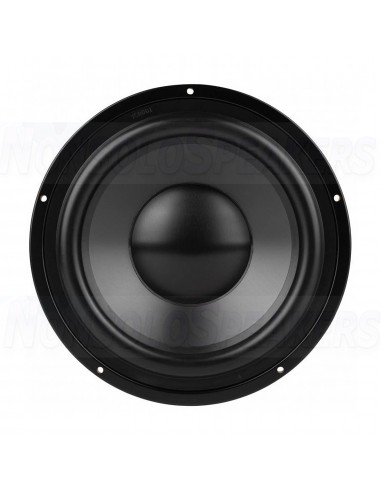

Dayton Audio DSA270-PR 10" Designer Series Aluminum Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Highlights

• Perfect match for Dayton Audio's aluminum cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports
• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted

Product details

Dayton Audio DSA270-PR 10" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from full size tower designs to compact subwoofer systems.

Specifications:

• Fs: 21.9 Hz

• Vas: 3.74 cu. ft.

• Qms: 5.26

• Cms: 0.60 mm/N

• Rms: 2.3 kg/s

• Mms: 88.4 g

• Sd: 353 sq. cm.

• Xmax: 11 mm

• Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.87".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
